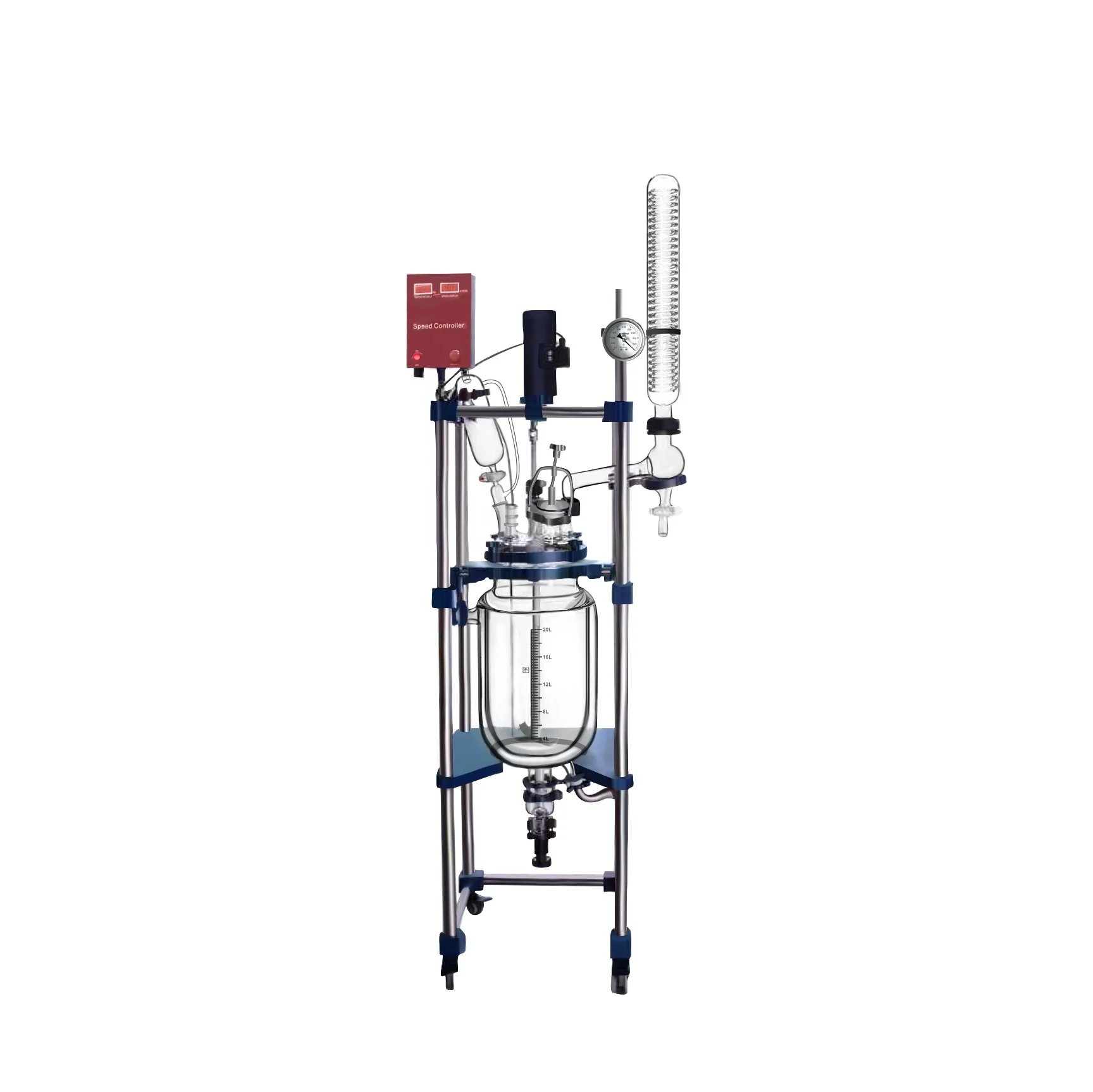

Factory Price WTGR 20D Speed adjustable Double layer 20L Jacketed Glass Reactor Tank for CBD Oil Distillation
- Category: Reactors >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (62414575934):
Product Overview
Description
Product Description
WTGR-20D Speed-adjustable Double-layer Jacketed Glass Reactor
Reagents are set in the inner layer of double-layer glass reactor, at the same time, the reactor can he vacuumed and stirred in speed adjustable, interlayer can guide in refrigerating fluid, water and high temperature liquid to heat and cool the materials, which can be used for the experiment, pilot test and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. Products can be constituted system devices with circulating water type multipurpose vacuum pump, diaphragm pump, low temperature circulating (vacuum) pump, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other equipment.

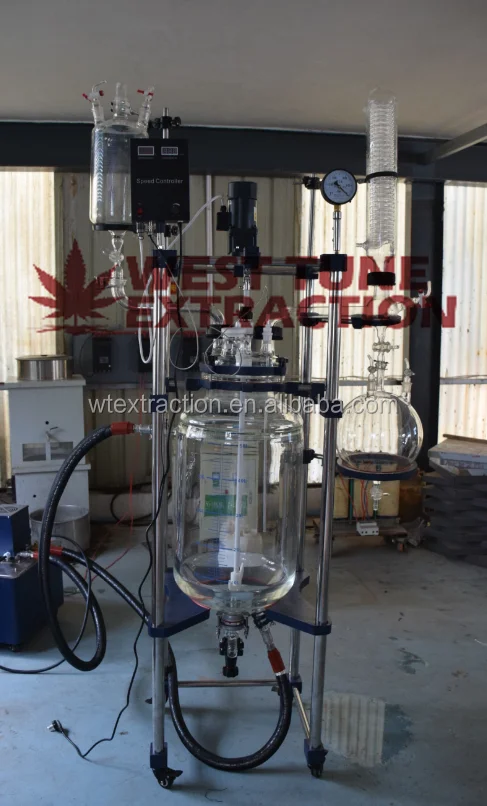

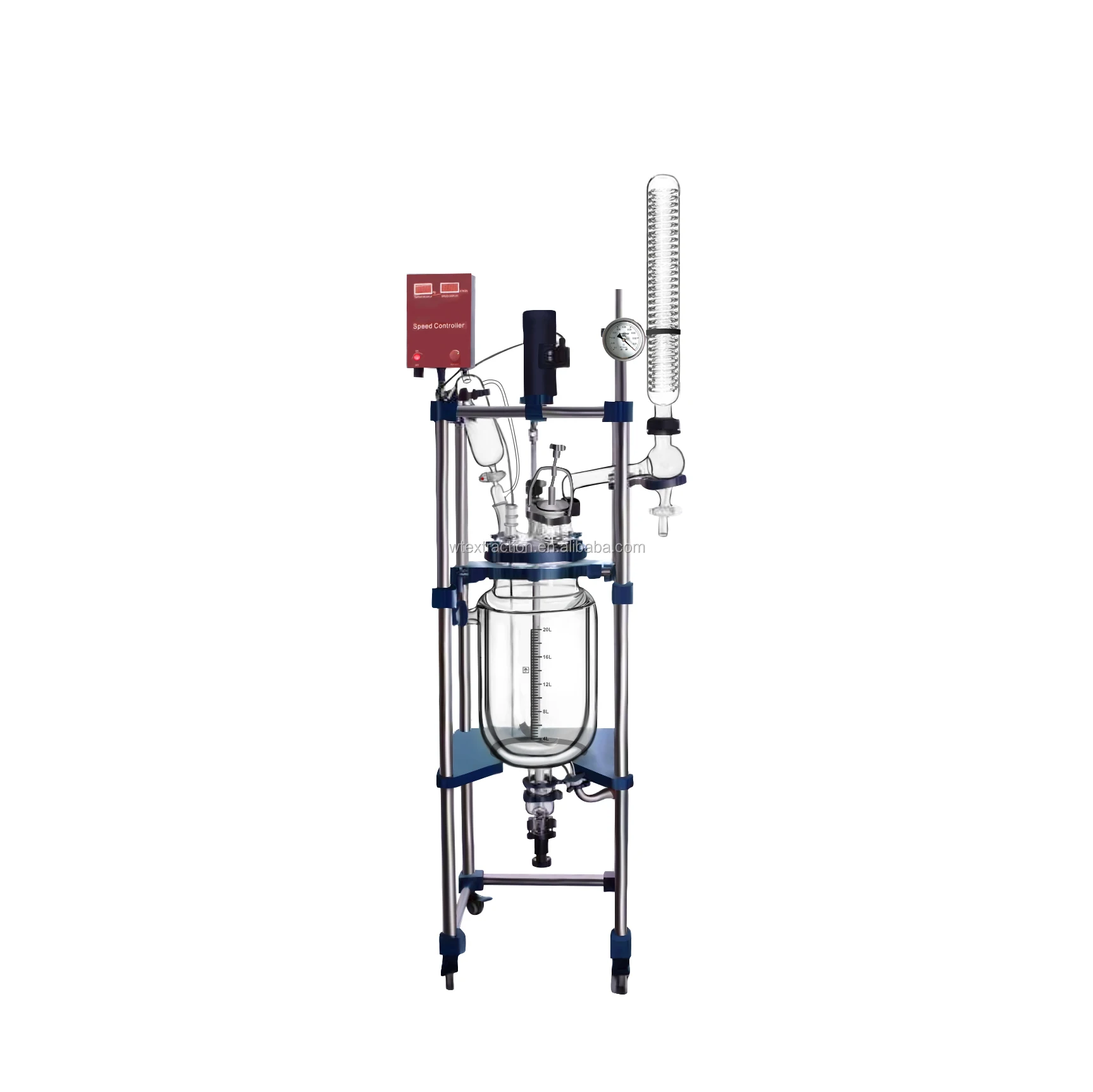

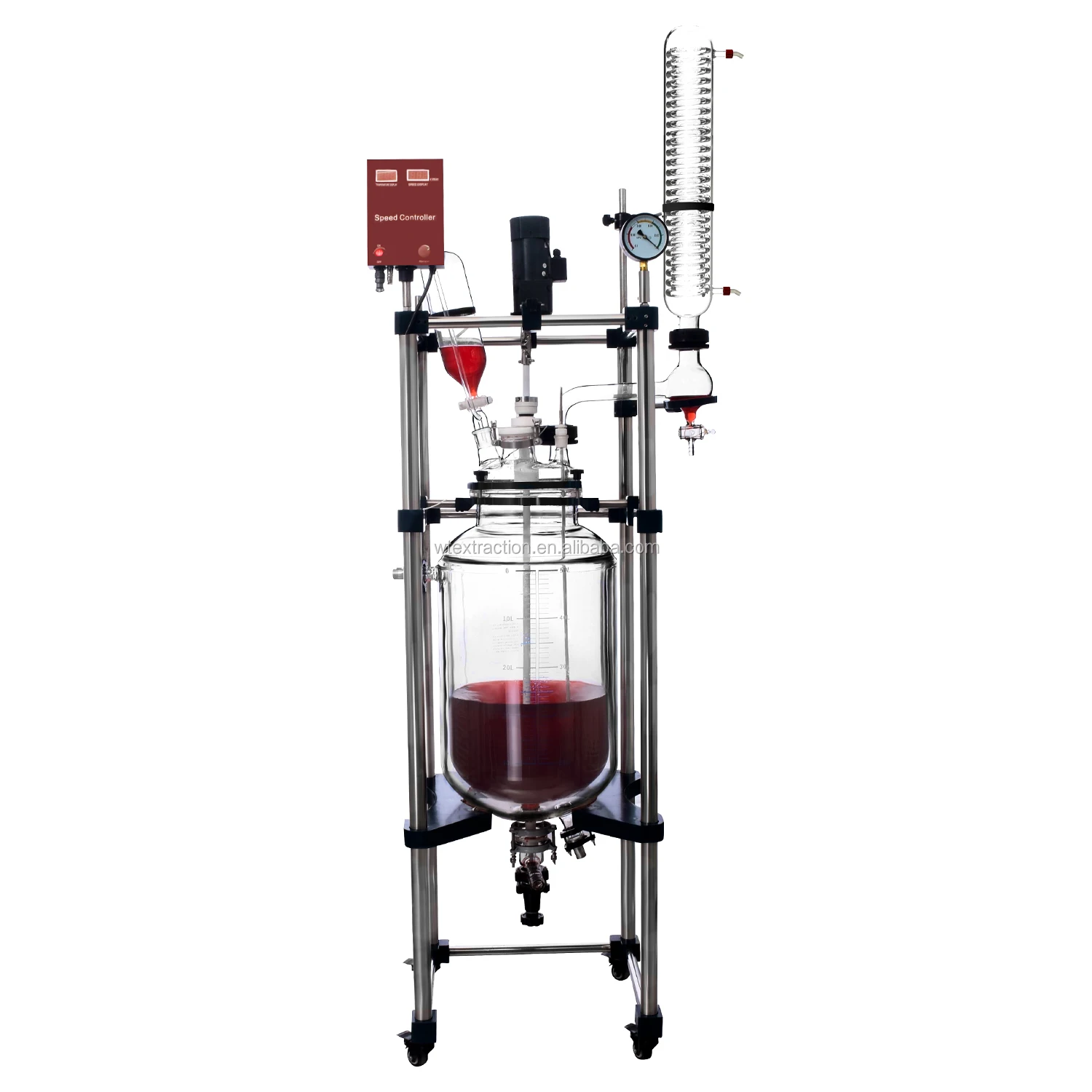

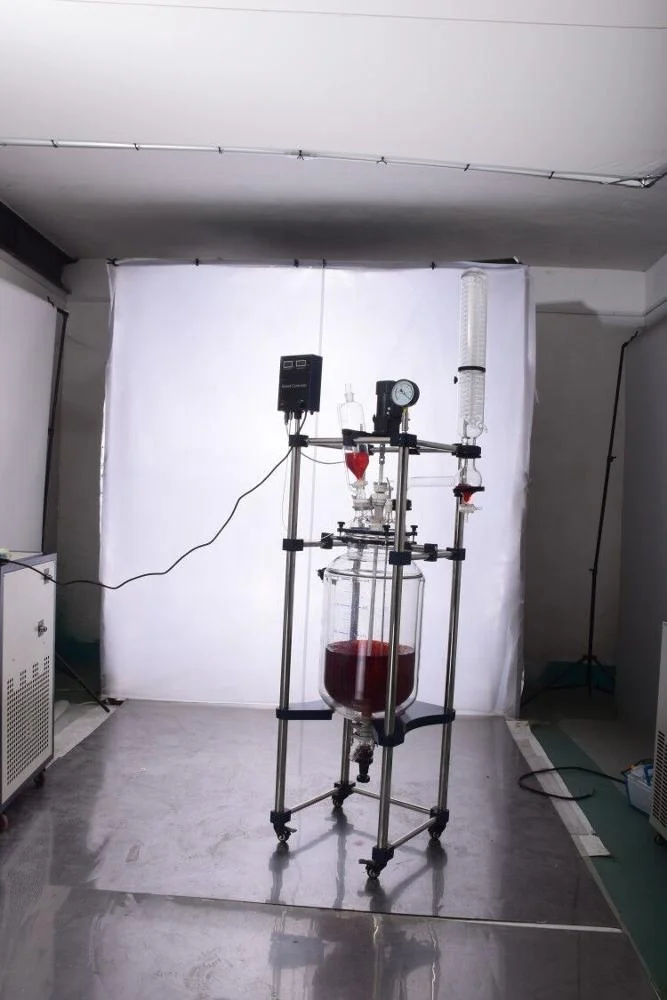

Details Images
Specifications
Type | WTGR-20D |
Glass material | GG-17 |
Frame material | Stainless steel |
Pipe material | 304 stainless steel |
Moving method | The band brake type universal angle wheel |
Reaction bottle volume | 20L |
Jacket capacity | 8L |
Flange in and out of the oil circulation | Low “in” and high “out” |
Number of kettle lid bottle | six |
Distance between Discharging valve opening and ground | 450mm |
Reaction temperature of reactor | -80-250℃ |
Vacuum | 0.098Mpa |
Stirring running speed | 0-450rpm |
Stirring axis diameter | 12mm |
Stirring power | 90W1/3 |
Voltage/frequency (V/Hz) | 110V/60Hz |
Exterior size (mm*mm*mm) | 560*560*2100 |
Packing size (mm*mm*mm) | 1480*660*810 0.80 square |
Packing weight （KG） | 80 |
Speed regulation method | Electric stepless speed regulation |
Motor configuration | Power motor at low speed, speed ratio is 3:1 |
Rotary speed display | LCD digital display |
Humidity display | PT100 sensor digital display |
Sealing method | PTFE sealing, ￠50 flange stirring opening |
Condenser | Vertical efficient double-reflow condenser, 100*670mm，40# standard opening |
Reflux (distill) device | Reflux bend with feeding switch, 50# ball mill mouth |
Dropping device | 1Lconstant pressure funnel 40# standard opening |
Pressure reducing device | 34#standard pressure reduce valve |
Temperature measuring tube | 24#standard opening |
Solid feeding | ￠80flange opening with PTFE lid |
Discharging method | Inclined glass charging valve ￠80 flange opening |
Vacuum display method | Vacuum meter |
Stirring connection | Cardan joint connected |
Stirrer | Writing stainless stick, coated by PTFE |
Main Frame | Tray type |
Collecting device | Collecting bottle |
Explosion-proof | Ex-frequency inverter, Ex-motor EX180W, 0-1400 running speed |
Frame parts | Plastic spraying or PTFE |
Attemperator | Insulated cotton |
Sealing parts | Ceramic bearing, mechanical seal |
Condenser | Horizontal condenser can decrease whole height |
Cover of reactor | Custom-made PTFE cover |
Feature:
1. High borosilicate glass materials, good physical and chemical properties
2. Can be used in wide temperature range from high temperature(300"C) to low temperature(80"C)
3. Can work in constant pressure and vacuum condition, vacuum degree is below 0.095MPa in quiet situation
2. Can be used in wide temperature range from high temperature(300"C) to low temperature(80"C)
3. Can work in constant pressure and vacuum condition, vacuum degree is below 0.095MPa in quiet situation
