Product Overview

Description

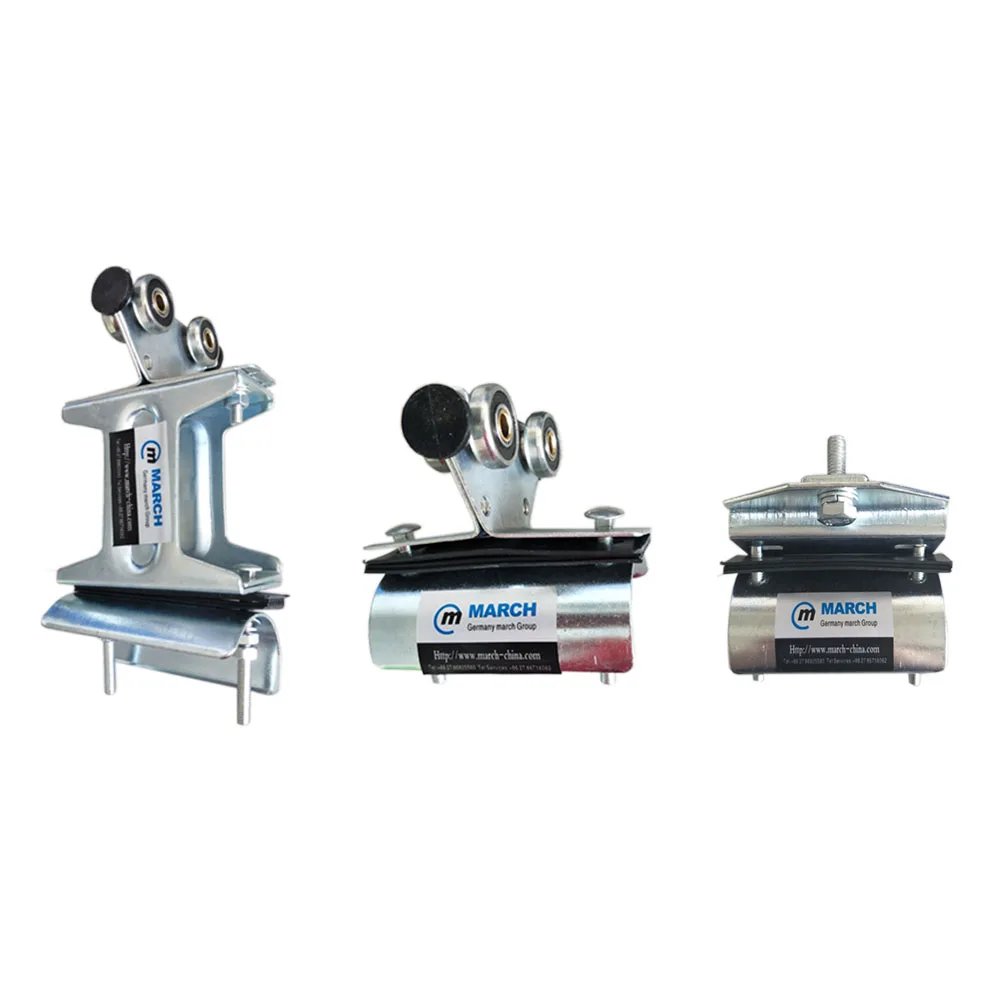

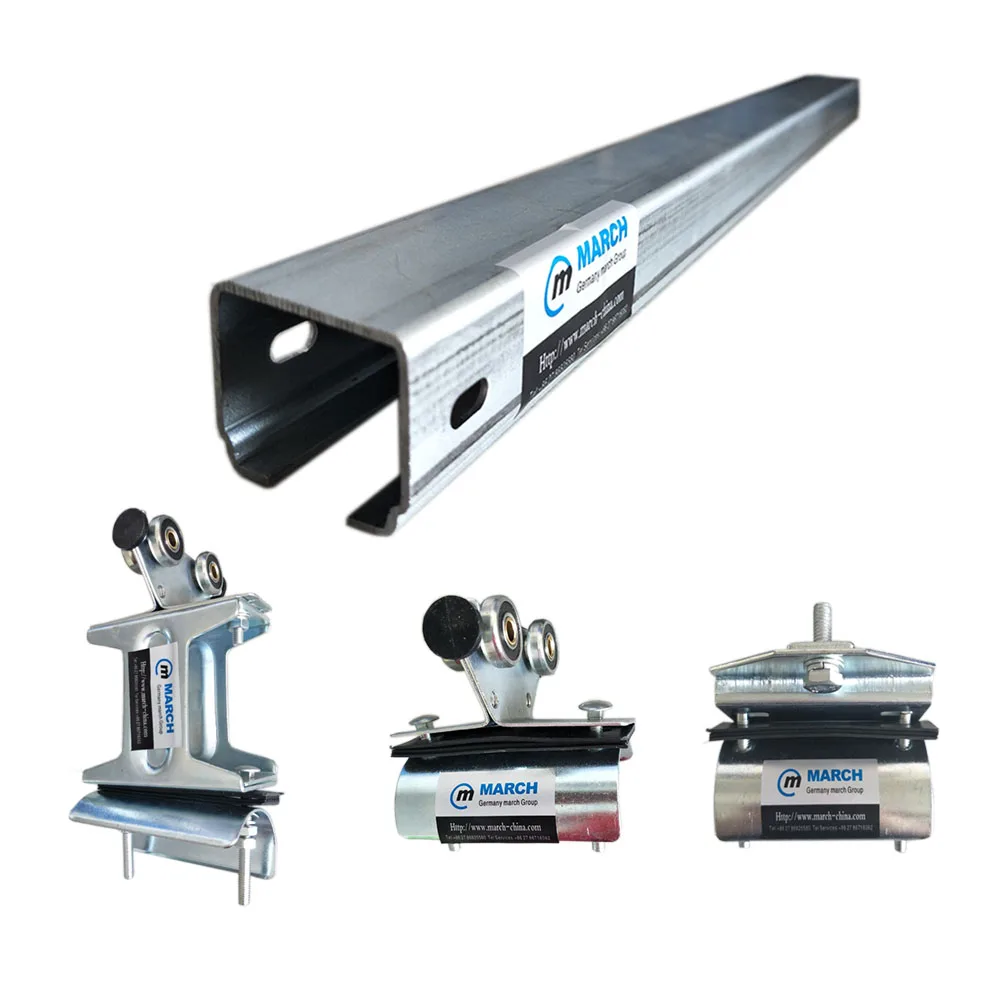

March C-Rail Track Flat Cable Festoon System





Quick details



Place of Origin: wuhan, China (Mainland)                         Brand Name:March



Model number:C-track                                                       Certificate:ISO,CCC,CE


Rated voltage:550V-770V                                                  Travel Speed:<120m/min



Material:Galvanized steel                                                   Type:C32 C30  C63  C40





Overview


Cable pulley bearing of March cable trolleys is spherical contact,so that the trolley is flexible,stable,uniform,low failure rate.Flat cable and round cable can install and use,and fitted with cushioning devieces and cable protection devices.






C30 trolley


1.C-tracks
































































TypeC32*30*1.5C40*40*2.0C63*63*4.0C30*28*1.5
Cat-No320014001630013001
MaterialGlavanized steel
Weight (kg/m)1.192.05.981.03
A32406330
B30406328
C12131810
D1.52.04.01.5







c32 c-track 4   c32 c-track 5

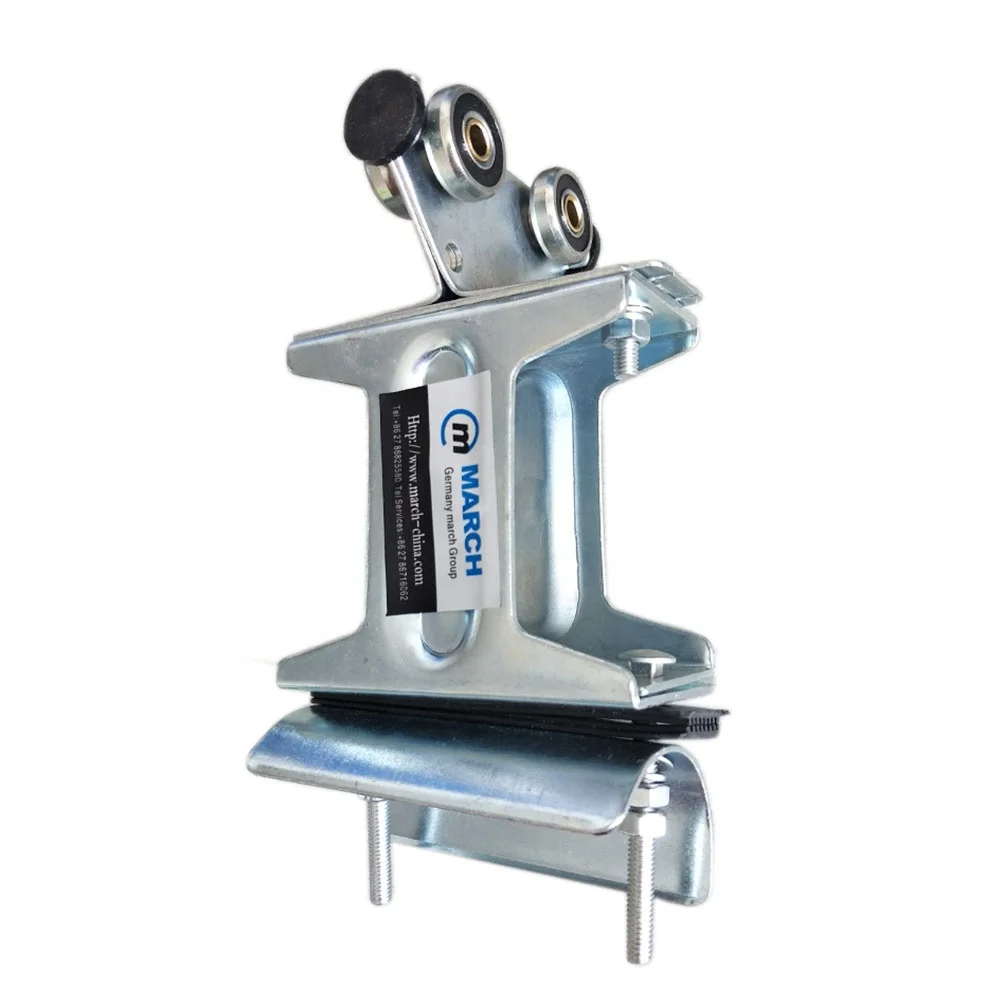

2. i beam trolley Middle trolley & Towing trolley




































TypeC30MC-60C32SC-60
Wheels

Ball bearings, hardened, galvanized


Temperature resistance : -30 degree to +125 degree


Travelling speed:ca.120m/min


Material

Galvanized steel





Maz Cable LoadMax 20kg per carrier Max 20 kg per carrier
Weight(kg)0.350.63
Cat-No.441001441002




 C32 trolley 3c32 c-track 5











3. i beam trolley End trolley




























TypeC30EC-60
Material Carrier Body:Galvanized steel
Max Cable loadMax 20 kg per carrier
Weight(kg)0.33kg
Parts No441003










c32 end towing trolley








4.Hanger






















TypeWeight (kg )Material Parts No
C30DJ-20.208Galvanized steel 301001
C30DJ-50.176301002












5.Joint clamp

















TypeWeight (kg )MatericalParts No
C30DJ-10.358Galvanized steel 301003










Packaging & Shipping


Payment : T/T, L/C, paypal


Packing :Wooden case or carton


Delivery  time: 7-15 days after confirm the order













Company Information


Wuhan March Industrial Electric Co.,Ltd ,


which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !


Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.







Certifications







Application project


Application project ---Feedback from Customer


They are Widely used in :


Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
