Qualitive Waste Tyre to Diesel Plant
US $35000
Лэннинг экономически эффективным полу непрерывного пиролиза отходов шин пиролизная установка 5T
- Category: Rubber Pyrolysis Machines >>>
- Supplier: Henan Lanning Technology Co. Ltd.
Share on (62415477770):
Product Overview
Description
Lanning 5-8T highly cost effective semi-continuous waste tyre pyrolysis plant
Lanning semi-continuous waste recycling pyrolysis plant
Plant information
1. The Raw Material For Pyrolysis Machine
NO. | Raw material | Note |
1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
2 | Waste plastic | PE,PVC,PMMA,Waste washed mixture plastic from waste Paper Factory |
3 | Waste rubber | Shoes Soles,Cable Skin |
4 | oil sludge,waste oil sludge |
|
We have our own lab to test the oil output rate of your raw material. welcome to contact us. | ||
2. Pyrolysis plant models and specification
Product Model | Specifications | Per batch capacity | Per day output | Containers | Gross weight | Power |
LN-2200*6000 | 2200mm*6000mm | 3-5ton | 2-2.5ton | 2*40HQ | 25ton | 23kw |
LN-2200*6600 | 2200mm*6600mm | 5-8ton | 2.5-4ton | 2*40HQ | 27ton | 23kw |
LN-2800*6600 | 2800mm*6600mm | 8-11ton | 3.5-5ton | 1*40HQ&1*FR | 36ton | 24kw |
LN-2800*7200 | 2800mm*7200mm | 9-12ton | 4-6ton | 1*40HQ&1*FR | 37ton | 24kw |
LN-2800*8000 | 2800mm*8000mm | 12-15ton | 5.5-7ton | 1*40HQ&1*FR | 39ton | 24kw |
LN-3000*10000 | 3000mm*10000mm | 20ton | 10ton | 2*40HQ&1*FR | 42ton | 25kw |
3.The available fuel for pyrolysis processing
NO. | Fuel |
1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
2 | Natural gas |
3 | Coal |
4 | Firewood |
5 | Carbon black pellet |
4. End product percentage and useage( Example : raw material is tyre)
NO. | Name | Percentage | Usage |
1 | Tyre oil | 45% | * can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
2 | Carbon black | 35% | * can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
3 | Steel wire | 10% | * can be sold directly. * make steel bloom by use hydraulic press-packing |
4 | Oil gas | 10% | * can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |
5. Pyrolysis machine advantage and main technical characteristics
1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you getting more and higher quality oil.
Diversiform cooling system can be choosen according to client's willingness.
3. Dust-removing device -four levels dust processing system makes no pollution and the
output smoking is the spray.So it's more environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm—20mm,guarantee
4-7 years service life and the optional plate is Q345R.
6. Optional Auto feeder and carbon black discharge elevator, high automation, saving time and labors.
6.Machine 3D drawing flow chart and working processing
Apare parts
Final products
Packaging & Shipping
The machine can delivery within 15 working days after receiving deposit

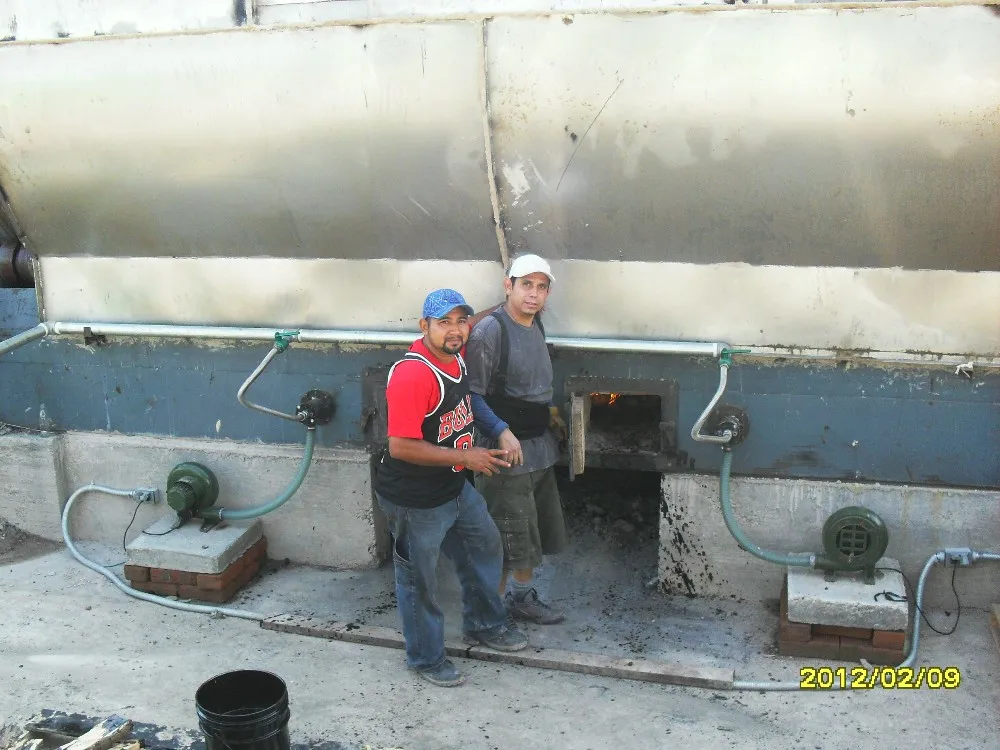

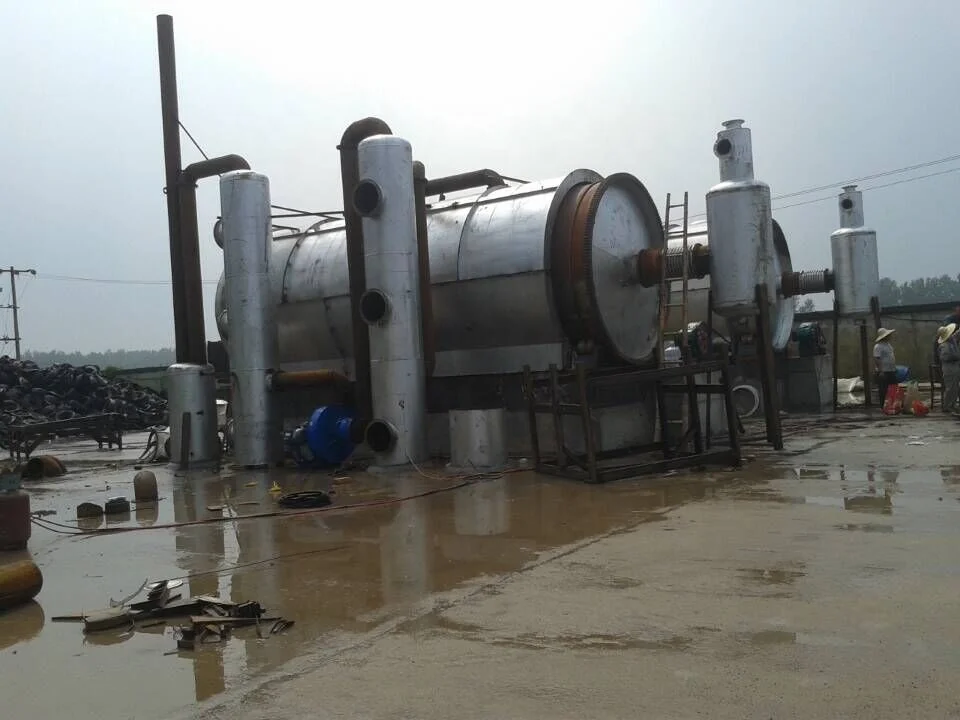

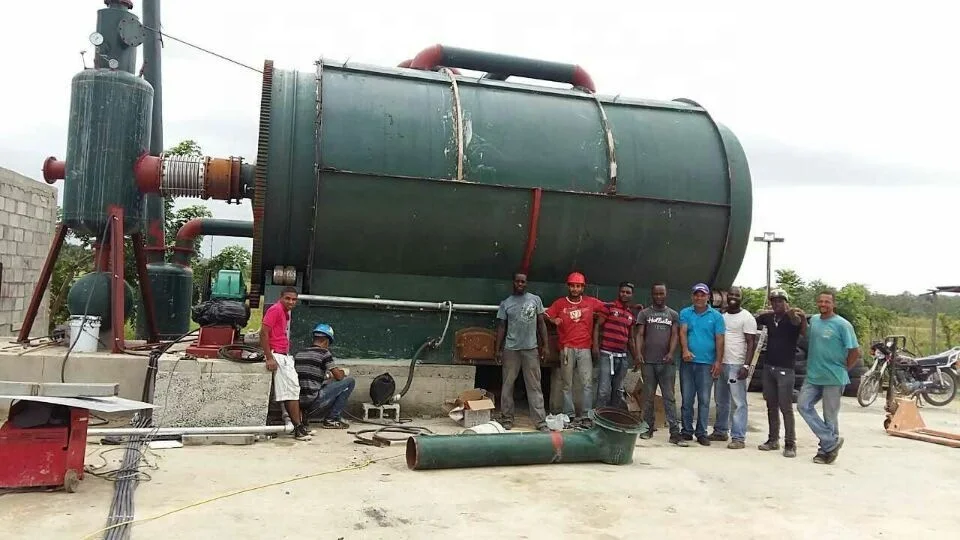

Installatation
Company Information
1) History:
Founded in 2006 with Ningling Lanning Technology Co.,LTD.
Renamed in 2017 by Henan Lanning Technology Co.,LTD
2) Location:
Located in Ningling county, Shangqiu city, Henan province, China.
3) Main Products:
Tyre/ Plastic Pyrolysis machine;
Oil distillation machine;
Carbon black make pellet machine;
4) Certification:
ISO 9001
CE (International exports to the European Union certification)
BV (French authority certification)
TUV (Germany authority certification)
Our Services
About installation
We will send you one engineer for installation and training of your works.
About Guarantee & after service
All the various series of the equipment we sell enjoy perfect after -sale service :
1. We will arrange engineers to help you with the installation of the machine and the training of your
workers until everything runs smoothly.
2. We guarantee the complete machine one year since installation.
During the first year, if there is any problem caused as the
Machine quality, we will take the responsibility.
3. We guarantee the reactor life more than 4 years, other parts no need change expect the vulnerable
parts.
4. We provide the whole life machine maintenance. we will try our best to solve the customers' extra worries.
Let's be mutual reciprocity and benefit, win-win hand in hand .
