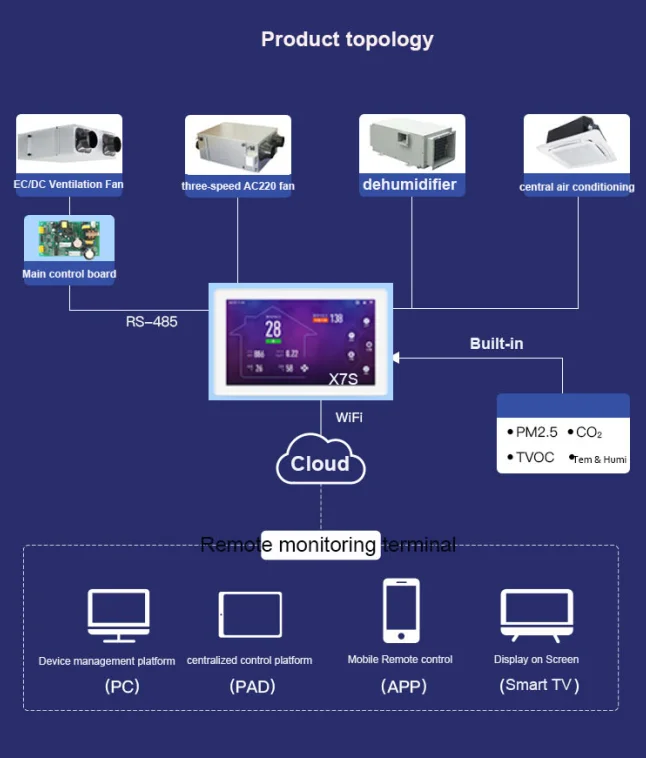

1. Suitable for ceiling ventilation fan, central air conditioning, dehumidifier and other equipment.

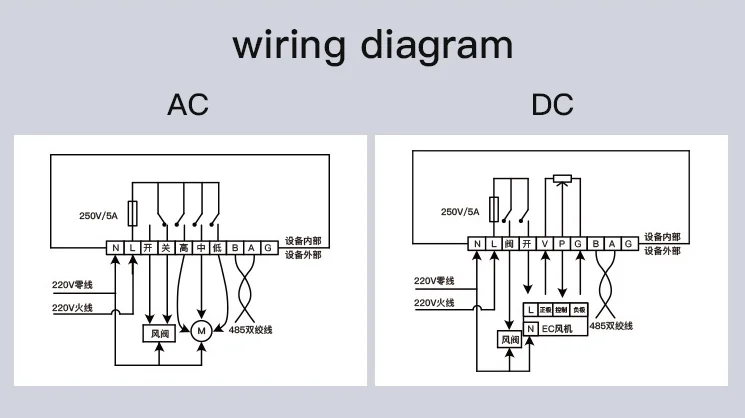

2. Control AC 3 speed fan through relay directly, or connect the electric control board with RS485 to control the fan.
3. Built-in PM2.5, carbon dioxide (CO2), TVOC, temperature and humidity sensors (optional)
4. Smart Calculation of filter remaining time.
5. Support function: timing off screen, timing switch, brightness adjustment.

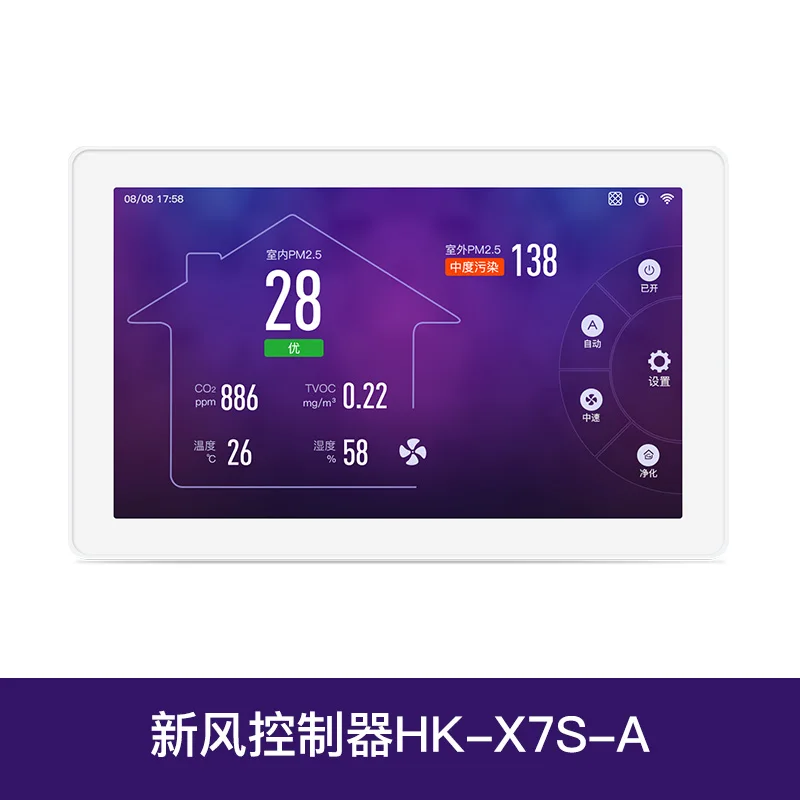

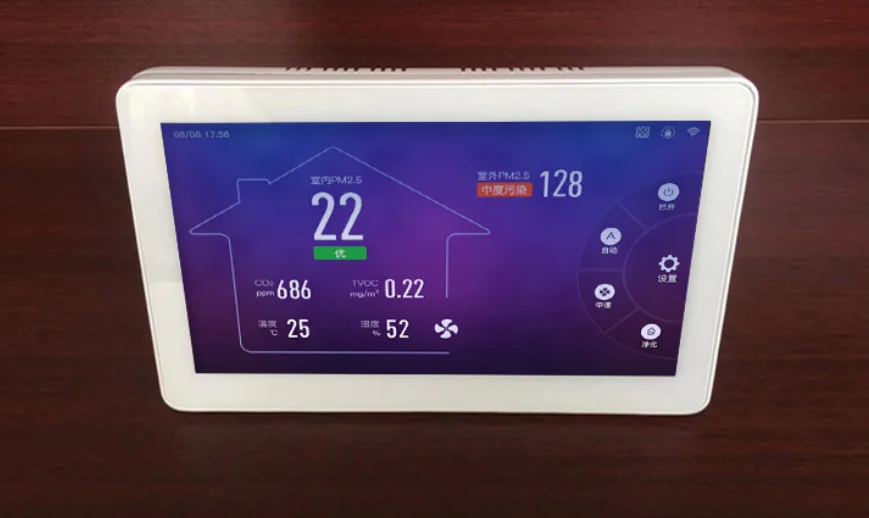

6. The 7-inch LCD touch screen can display the monitoring data and the operation status of the device in real time. It also has the Wi-Fi communication capability. After connecting to the network, it can check the operation status of the device through the background management system, WeChat APP and other terminals, realize remote control.
Communication：
Wi-Fi and RS485
Distribution mode：
Wechat App
Installation:
Standard 86 box
Wireless:
Wi-Fi 2.4GHz
Detection parameters
Principle
Range
Accuracy
Resolution
PM2.5
Laser Scattering
0~999μg/m³
±15%
CO2
Infrared
0~9999ppm
±40ppm±3%
1ppm
TVOC
Semiconductor
0.22~9.99mg/m³
0.01mg/m³
Temperature
-40℃~99℃
±2%℃
1℃
Humidity
0~100%RH
±5%RH
1%RH
Installation Instructions
A: Use the "word screwdriver" insert "separator to rotate gently, to separate the front panel from the bottom shell
B: Lift the sub cover of the cable end, and unplug the cable from the cable connector.
C: Place the device case in the 86 box and fix the screws
D: Connect the cable back to the cable interface, and snap the front screen in the 86 box, finish installation
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price but do not pay the freight.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q: Can you customize according to our designs and put our logo on the products?
A: Yes, we support both standard and customized products and can put your logo on the products.We can do the ODM/OEM as your requirements
Company Profile & Certification & Factory& Exhibition
Beijing Hike IoT Technology Co., Ltd was founded in 2012, which focus on indoor air monitoring and intelligent control of air purification systems. We provide effective IOT solutions by the integration of the air monitoring, wi-fi display, WECHAT app linkage, screen display, client platform, cloud service and digital data analysis.
We are factory and focus on air quality products for 7 years in China.We supply all kinds of air monitors which could testing the PM2.5/CO2/TVCO/Temperature/Humidity/Formaldehyde to global market with good quality and reasonable price.
