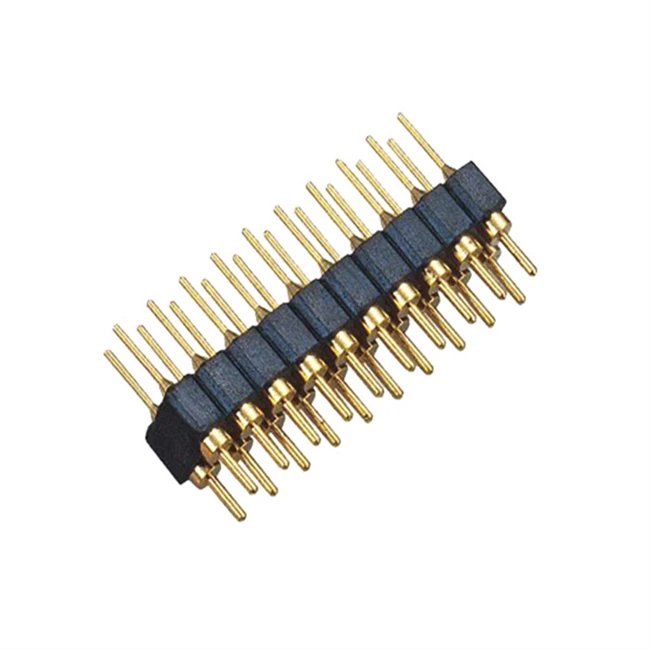

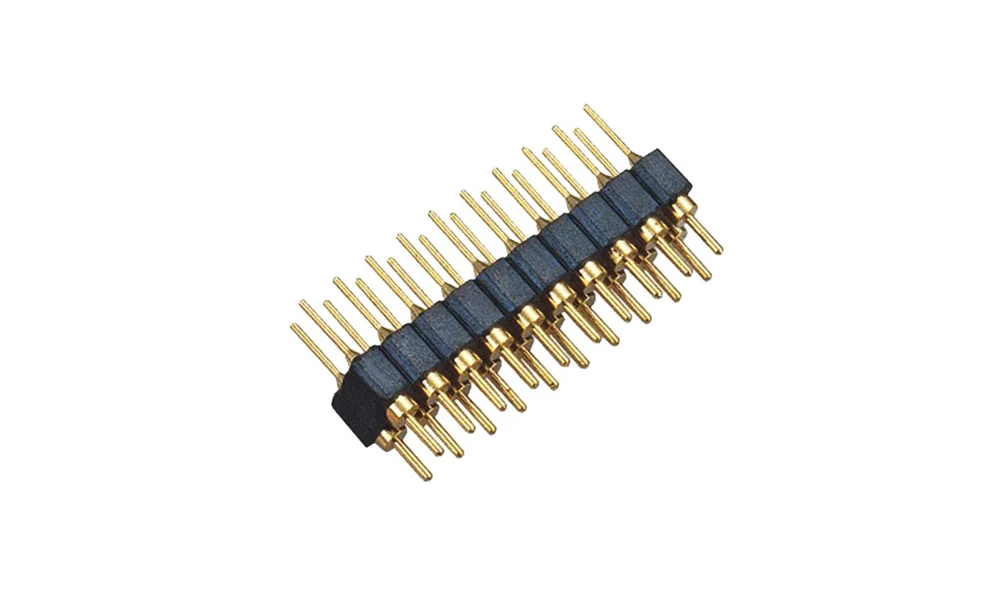

1.27x2.54mm pitch 20pin H1.9 L8.1 dual row 180 degree straight machined round male plug pin header connector
1.27x2.54mm pitch 20pin H1.9 L8.1 dual row 180 degree straight machined round male plug pin header connector
1.27x2.54mm pitch 20pin H1.9 L8.1 dual row 180 degree straight machined round male plug pin header connector

1.27x2.54mm pitch 20pin H1.9 L8.1 dual row 180 degree straight machined round male plug pin header connector

Share on (62417175141):


Price:

Quantity:


Product Overview

Description



Environmental Compliance: RoHS & REACH
333


Contact Resistance:
10m Ω Max
Insulation Resistance:
1000m Ω Min
Contact Material:
C36000
Insulation Material:
Polyester PPS+30%GF Black
Contact Plating:
Au, Sn over Ni
Material Flammability Rating:
UL94-V0
Contact Plating Thickness:
G0 to G6
Operating Temperature:
-40°C to +105°C
Current Rating:
1.0AMP
Dielectric Strength:
Min 1000Vrms
No. of Row:
2
Mounting Type:
Through-Hole Type
No. of Positions:
20P
Termination:
Solder Type
Pitch:
1.27mm
Packing:
Original Packing
Row Spacing:
2.54mm
Certificate:
ROHS,REACH,SGS,ISO9001/14001
Manufacturer Standard Lead Time:
1-3 Weeks
