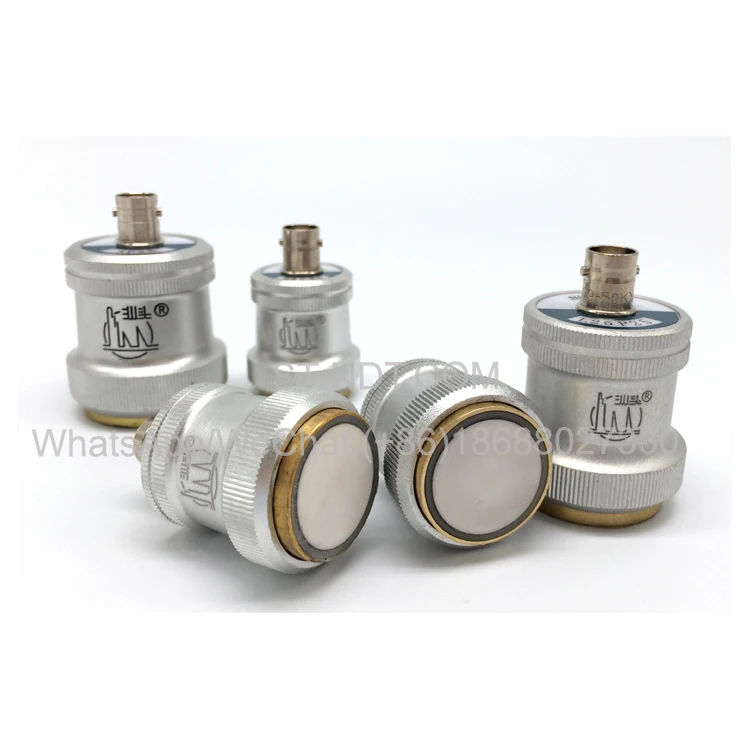

UT NDT sensor probe contact single element

Product Overview

Description

• The piezoelectric elements are used for transmitting and receiving the ultrasonic waves.


• The protective membrane is made of high hardness corundum film featuring high resistance to abrasion and corrosion.


• The cases are made of aluminum alloy with the surface sanding and passivation.


• The absorbing materials are used to absorb the back noise of the elements.


• The receptacles are the electric signal interfaces for connecting an instrument with a probe cable.



Models:

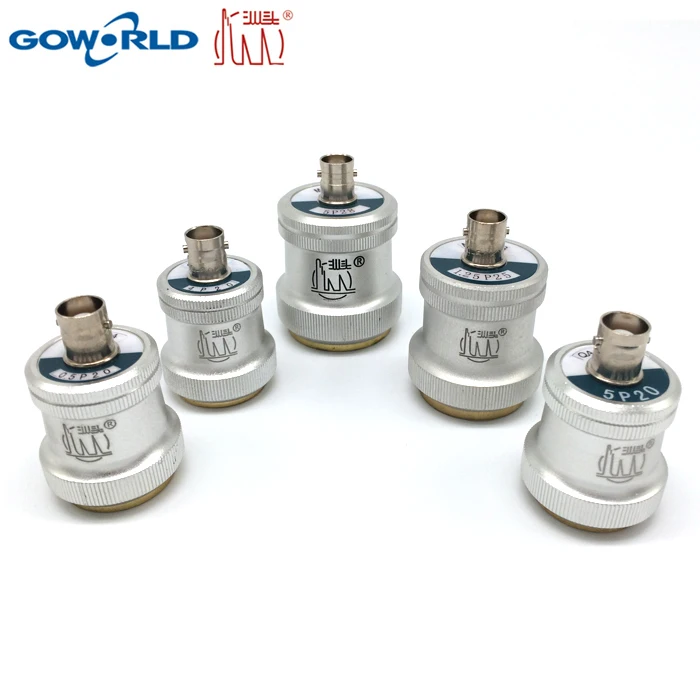

Contact probes for Common use

Frequency(MHz)	Element size(mm)	Type	Case	Receptacle
0.5	20	0.5P30	A2	Q9
	28	0.5P28	A3
1.25	14	1.25P14	A1
	20	1.25P20	A2
	28	1.25P28	A3
2.5	14	2.5P14	A1
	20	2.5P20	A2
	28	2.5P28	A3
5	14	5N14	A1
	14	5P14	A1
	20	5P20	A2



*The other contact probes are manufactured on a special basis to customers specifications.Contact us to discuss applications.

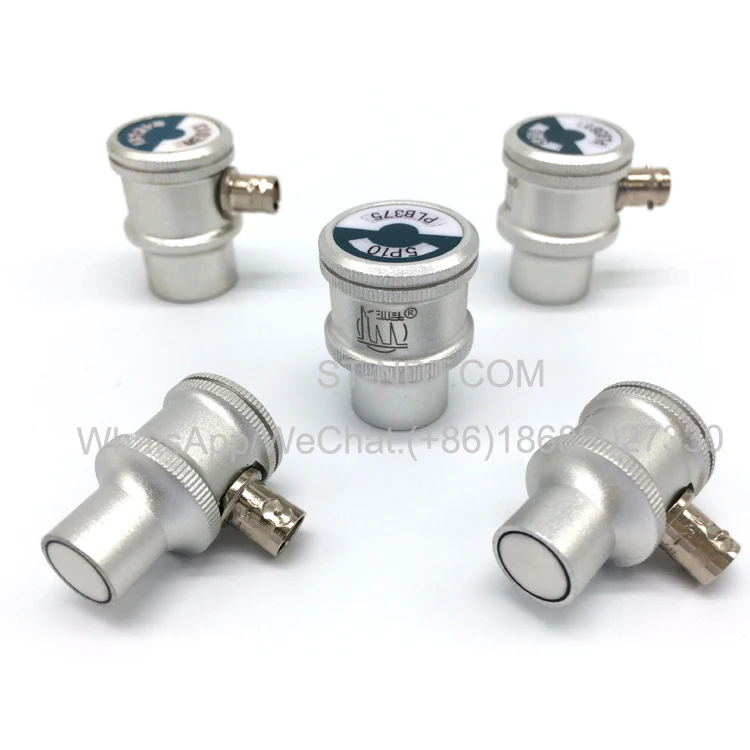

Miniature contact probe

Frequency(MHz)	Element size(mm)	Type	Case	Receptacle
2.5	6	2.5P6	A7	Q6
	8	2.5P8	A6
	10	2.5P10	A5
	12	2.5P12	A4
5	6	5P6	A4
	8	5P8	A7
	10	5P10	A6
	12	5P12	A5
10	6	10N6	A7
	6	10P6	A7



*N: High damping narrow pulse probes
