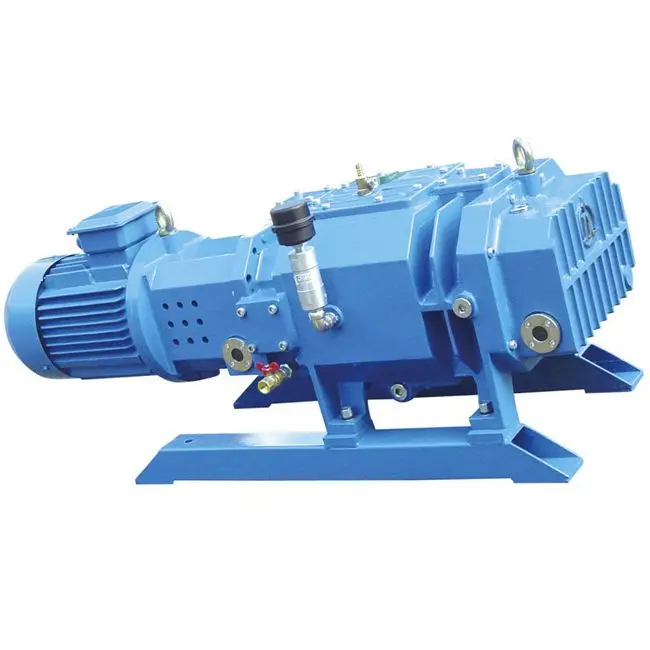

High effective centrifuge Screw Pump

Product Overview

Description

Company Information:

Shandong Jintan Machinery Equipment Co., Ltd established in 2006 . Through years of development, Jintan have developed into a comprehensive company, integrating the research and manufacture of oil drilling and workover equipments, oilfield special equipments, oil extraction equipments and wellhead and downhole tools, with the offer of petroleum engineering design proposal and technical service, and Jintan subordinate with a manufacturing enterprise and a petroleum technology service enterprise, which are Dongying Jintan Petroleum Technology&Equipment Co., Ltd and Shandong Jintan Petroleum Equipment CO., LTD respectively. Dongying Jintan Petroleum Technology&Equipment Co., Ltd is the first-grade network unit of Sinopec, and has become a strategic cooperation partner of many big domestic oilfields.

Description:

Screw pumps are low-pressure, dilute-phase conveying equipment. It consists of a motor, a coupling, a bearing seat, a screw shaft, a bearing, a check valve, a mixing chamber, a nozzle, etc. The powder enters the screw conveying pump from the discharge port, and is pushed and forced by the variable pitch screw. The powder evenly enters the mixing chamber. A nozzle is installed at the lower part of the mixing chamber. Compressed air is sprayed into the mixing chamber through the nozzle box. Under the action of the jet flow and the pressure difference, the powder quickly enters the conveying pipeline in a suspended flow and is transported to the receiving bin The air is discharged into the atmosphere after being filtered by the material separator at the top of the bunker, and the powder falls into the receiving bin under the effect of gravity to complete the powder transportation.

Specification:
