Automatic Liquid Seamless Soft Capsule Vitamin E Paintball Vegetable Capsule Filling Equipment Softgel Encapsulation Machine
- Category: Pharmaceutical Machinery >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (62419342124):
Product Overview
Description
Products Description
Liquid Gel Oil Capsule Filling Machine Softgel
Soft gel manufacturing system is designed to produce softgels from either animal gelatin or plant starch(tapioca).
With over 12 years experience in helping softgel clients to success, CapsulCN is an expert in the soft gel encapsulation machine manufacturing. All machines come in both standard and custom designs for various soft gelatin capsule filling needs in pharmaceutical, chemical and food processing industries.
Softgels are very popular especially in the fast-growing nutriceutical industry, take this chance to skyrocket your business.
With over 12 years experience in helping softgel clients to success, CapsulCN is an expert in the soft gel encapsulation machine manufacturing. All machines come in both standard and custom designs for various soft gelatin capsule filling needs in pharmaceutical, chemical and food processing industries.
Softgels are very popular especially in the fast-growing nutriceutical industry, take this chance to skyrocket your business.
Advantage：
* You can easily customize your custom Softgel capsule to fit your personal shape and size.
* It has an increase in bioavailability.
* You can fill different types of liquids, semi-liquids and suspensions.
* You can easily swallow Softgel capsules without using water.
* Softgel capsules have airtight seals that is not easy to tamper with thus making them safer.
* It has an increase in bioavailability.
* You can fill different types of liquids, semi-liquids and suspensions.
* You can easily swallow Softgel capsules without using water.
* Softgel capsules have airtight seals that is not easy to tamper with thus making them safer.
Main Application
Some of the shapes that you can make using the softgel encapsulation machine are:
* Oblong Softgel Capsules * Round Softgel Capsules * Tube Softgel Capsules * Oval Softgel capsules
The sizing of the softgel capsules also vary from 000 which is the biggest to size 5 which is the smallest.
* Oblong Softgel Capsules * Round Softgel Capsules * Tube Softgel Capsules * Oval Softgel capsules
The sizing of the softgel capsules also vary from 000 which is the biggest to size 5 which is the smallest.
Details Images
Specifications of RJWJ-115C Softgel Production Line:
1. Softgel Encapsulation System

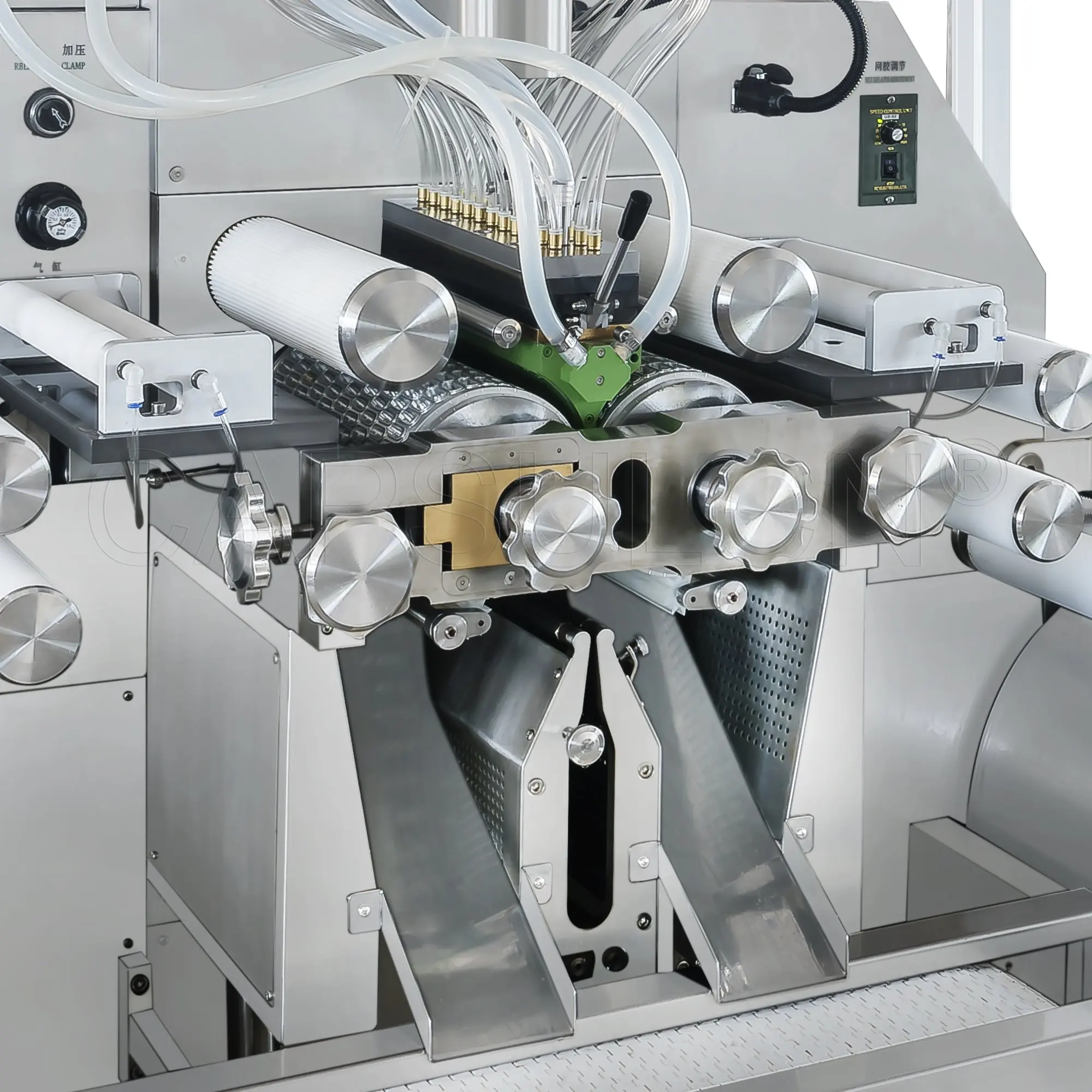

1. 1 Main Machine
1) Rotary speed of die roll: 0-4rpm(Stepless frequency speed control)
2) Control system: Omron PLC + Weinview touch screen
3) Capacity: about 13500pills/h for 12# Oval at 3rpm
4) Supplying volume for flow single-pillar: 0-2ml
5) Pillar quantity: 8pcs
6) Type of glue cooling: water cooling, at temperature about 18℃
7) Power of main machine: 4kw
8) Overall size:1500X770X1600 mm
9)Weight: 650kg
2) Control system: Omron PLC + Weinview touch screen
3) Capacity: about 13500pills/h for 12# Oval at 3rpm
4) Supplying volume for flow single-pillar: 0-2ml
5) Pillar quantity: 8pcs
6) Type of glue cooling: water cooling, at temperature about 18℃
7) Power of main machine: 4kw
8) Overall size:1500X770X1600 mm
9)Weight: 650kg

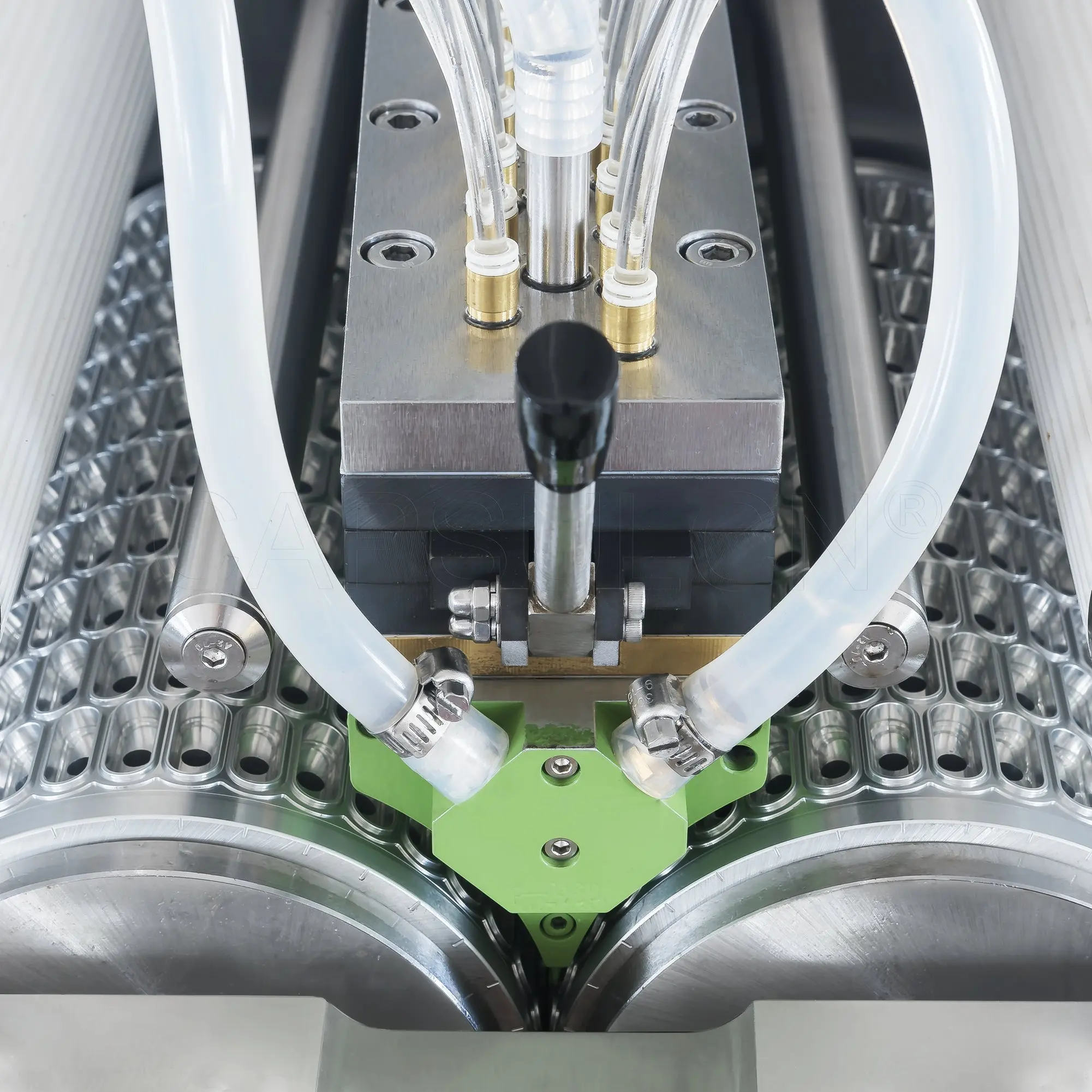

1.2 Rotary Die
Material: Aluminum alloy
1.3 Electric Cabinet of Main Machine
Control the main machine system, installed on the main machine.
1.4 PLC + Touch Screen
Omron PLC with Weinview Touch Screen
Can make English language, Russian Language, Chinese Language.
Can make English language, Russian Language, Chinese Language.
1.5 Water Chiller
1) Model: CHDHU0200F
2) Cooling type: Water cooling
3) Refrigerating Capacity: 5130kcal/h
4) Power: 2kw
5) Weight: 90kg
6) Overall size: 650×490×965mm
7) Cooling medium: R22
8) Cooling water flow: 35 L/min
2) Cooling type: Water cooling
3) Refrigerating Capacity: 5130kcal/h
4) Power: 2kw
5) Weight: 90kg
6) Overall size: 650×490×965mm
7) Cooling medium: R22
8) Cooling water flow: 35 L/min
1.6 Capsule Blower
1) Power: 0.75kw
2) Use: Can transfer the softgel capsule into the dry tumbler to drying.
3) Material: Stainless steel SS304
2) Use: Can transfer the softgel capsule into the dry tumbler to drying.
3) Material: Stainless steel SS304
2. Gelatin Preparation System
2.1. Gelation-Melt Tank Model RJ-250
1) Effective Capacity of Inner tank: 250L
2) Working temperature: Room Temperature -
100℃
3) Power of stirring motor: 1.1KW
4) Stirring speed: 32RPM
5) Agitating type: central agitating, multi agitating blade doctor blade structure
6) Main motor power: 380V, 50Hz, 3 Phases
7) Vacuum degree: 0.095Pa
8) Dimension: Φ860X2400mm
9) Weight: 350kg
2) Working temperature: Room Temperature -
100℃
3) Power of stirring motor: 1.1KW
4) Stirring speed: 32RPM
5) Agitating type: central agitating, multi agitating blade doctor blade structure
6) Main motor power: 380V, 50Hz, 3 Phases
7) Vacuum degree: 0.095Pa
8) Dimension: Φ860X2400mm
9) Weight: 350kg
2.2 Linear Condenser LN-60
1) Capacity: 60L
2) Refrigeration area:0.4m2
3) Overall Size: φ400×1950mm
4) Weight: 30kg
5) Material: SS304
6) Use: for Heat Exchange, when the melting tank of the rubber vacuum exhaust steam is cooled and condensed and collected water out, effectively easing the condensate water suction pump directly improves stability of vacuum.
2) Refrigeration area:0.4m2
3) Overall Size: φ400×1950mm
4) Weight: 30kg
5) Material: SS304
6) Use: for Heat Exchange, when the melting tank of the rubber vacuum exhaust steam is cooled and condensed and collected water out, effectively easing the condensate water suction pump directly improves stability of vacuum.
2.3 Water Circling Vacuum Pump SK-0.5A
1) Power: 380V, 50Hz, 1.5kw
2) Vacuum degree: -0.097Mpa
3) Overall size: 300×220×250mm
2) Vacuum degree: -0.097Mpa
3) Overall size: 300×220×250mm
2.4 Thermal Insulation Heating Tank BWCJ-100
1) Use: to keep the finished gelatin liquid
2) Air pressure range: 0~0.2mpa
3) Effective volume: 100L
4) Electric heating power: 220V, 1kw
5) Heating area: 0.5m2
6) Temperature control range: 0~100℃
7) Dimension: Φ540x1150mm
8) Weight: 60kg
2) Air pressure range: 0~0.2mpa
3) Effective volume: 100L
4) Electric heating power: 220V, 1kw
5) Heating area: 0.5m2
6) Temperature control range: 0~100℃
7) Dimension: Φ540x1150mm
8) Weight: 60kg
3. Material Preparation System
3.1 Dosage Tank PL-250
1) Effective volume of inner tank: 250L
2) Working temperature: Room temperature -
100℃
3) Agitating type: eccentric agitating, multi agitating blade turbine structure
4) Main motor power: 380V, 1.1kw
2) Working temperature: Room temperature -
100℃
3) Agitating type: eccentric agitating, multi agitating blade turbine structure
4) Main motor power: 380V, 1.1kw
5) Power of stirrning motor: 1.1KW
6) Pressure-bearing range: 0~0.1mpa
7) Dimension: Φ860x2400mm
8) Weight: 350kg
8) Weight: 350kg
3.2 Colloid Mill JM-100
1) Grinding head diameter: φ100
2) Grinding head rotating speed: 2800r/min
3) Motor power: 3-phase 5-wire, 50Hz, 380V,
3kw
4) Capacity: 130kg/h (capacity depends on material property)
5) Dimension: 800×450×1000mm
6) Weight: 120kg
2) Grinding head rotating speed: 2800r/min
3) Motor power: 3-phase 5-wire, 50Hz, 380V,
3kw
4) Capacity: 130kg/h (capacity depends on material property)
5) Dimension: 800×450×1000mm
6) Weight: 120kg
3.3 Raw Material Storage Tank CL-100
1) Air pressure range: 0~0.1mpa
2) Effective volume: 100L
3) Dimension: Φ470x1050mm
4) Weight: 60kg
2) Effective volume: 100L
3) Dimension: Φ470x1050mm
4) Weight: 60kg
4. Softgel Capsule Drying System

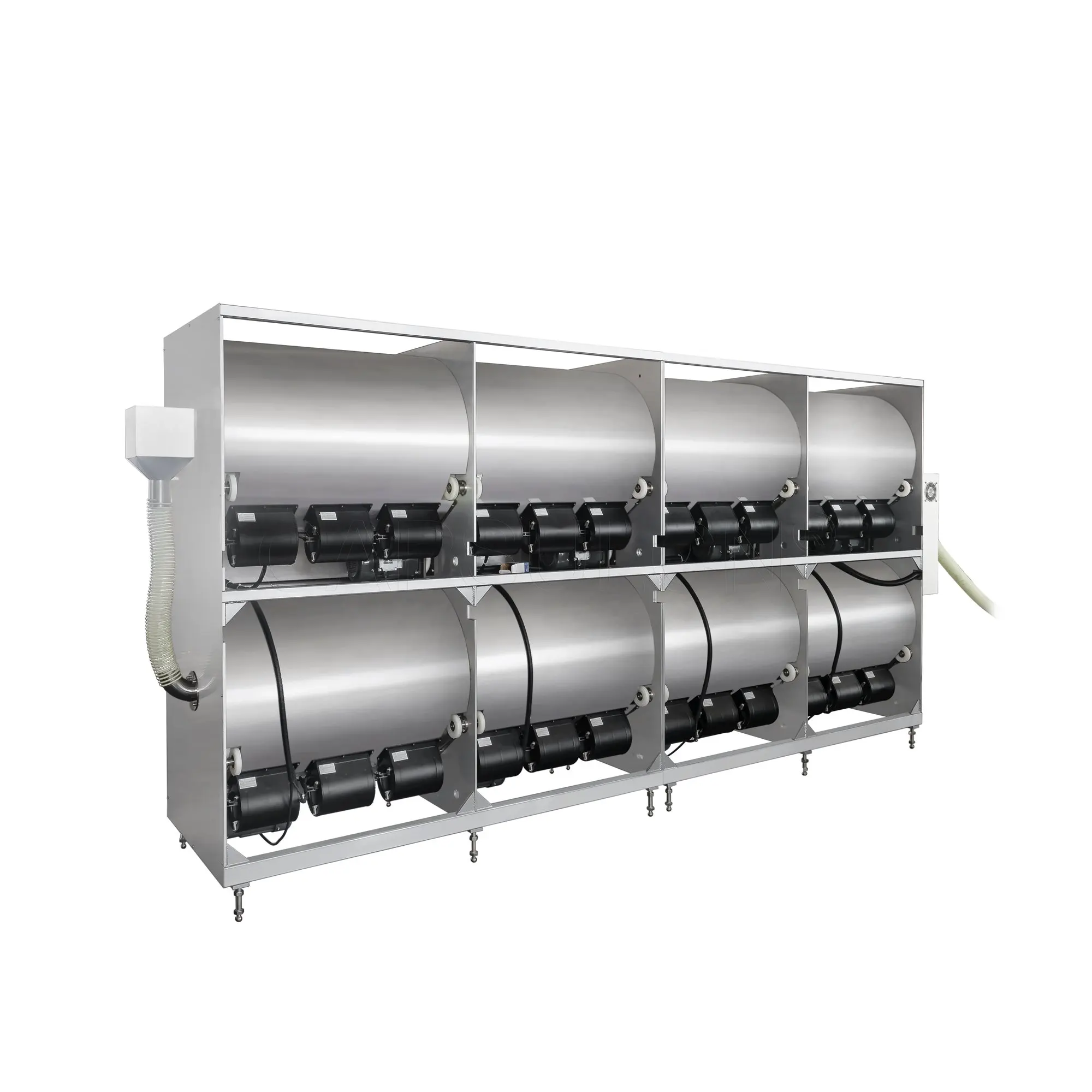

4. 1 Tumble Dryer DGZL-470
1) Effective capacity: 150L
2) Dryer drum size: Φ470x720mm
3) Dryer rotating speed: 10rpm
4) Motor speed: 1345rpm
2) Dryer drum size: Φ470x720mm
3) Dryer rotating speed: 10rpm
4) Motor speed: 1345rpm
5) Motor power: 6x 0.37kw
6) Fan volume: 2x2558m3/h
7) Power: 3-phase 5-wire, 380V, 50Hz
8) Total weight: 150kg x 6
7) Power: 3-phase 5-wire, 380V, 50Hz
8) Total weight: 150kg x 6
Product Paramenters
Die Roll Capacity In Common Use | ||||||||||||||
Shape | Model | RJWJ-115 | RJWJ-200 | RJWJ-300 | ||||||||||
Mould cavity | Capacity of the medium speed(Pill/Hour) | Mould cavity | Capacity of the medium speed(Pill/Hour) | Mould cavity | Capacity of the medium speed(Pill/Hour) | |||||||||
Oval | 4 | 114 | 17100 | 286 | 51480 | 714 | 85680 | |||||||
8 | 85 | 12750 | 230 | 41400 | 585 | 70200 | ||||||||
20 | 52 | 7800 | 140 | 25200 | 334 | 40080 | ||||||||
Oblong | 4 | 86 | 12900 | 236 | 41400 | 554 | 66480 | |||||||
8 | 64 | 9600 | 206 | 37080 | 468 | 56160 | ||||||||
20 | 48 | 7200 | 138 | 24840 | 315 | 37800 | ||||||||
Round | 8 | 82 | 12450 | 231 | 41580 | 590 | 70800 | |||||||
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.)

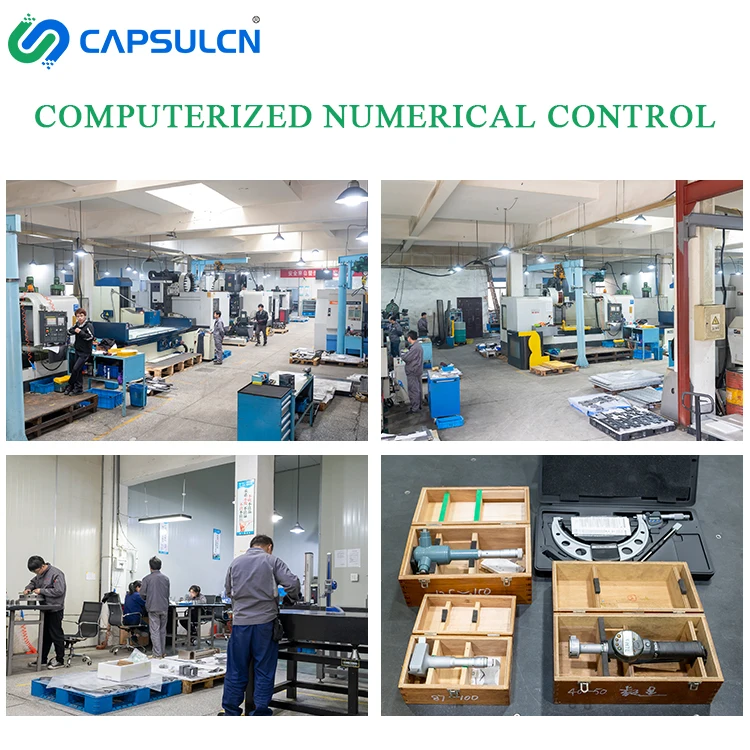

Company Profile
