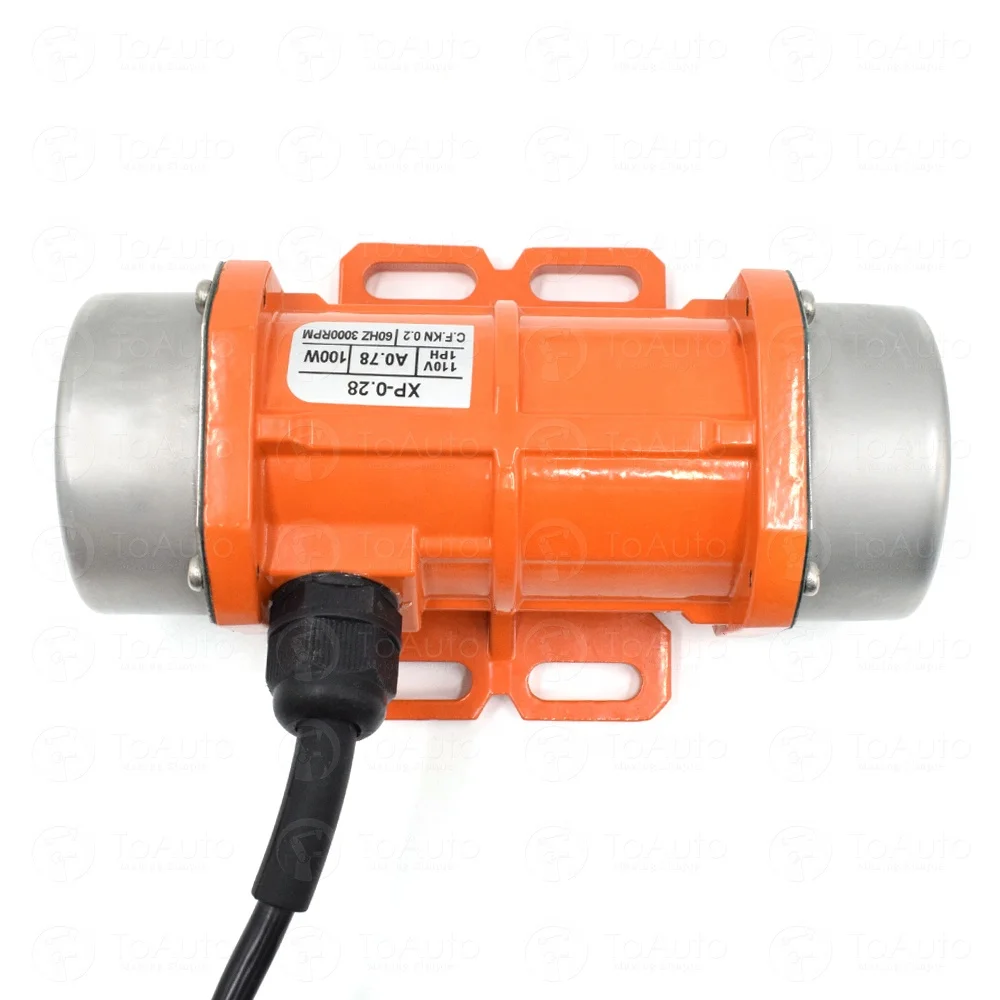

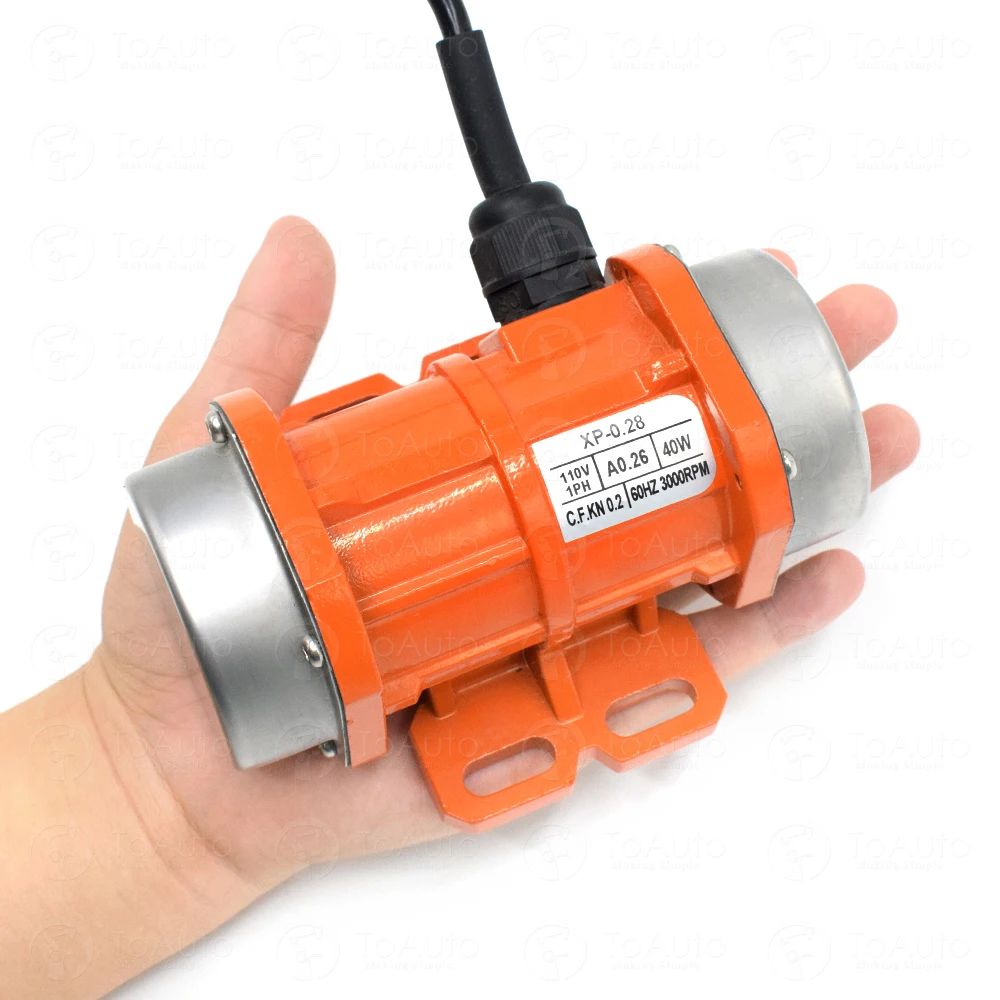

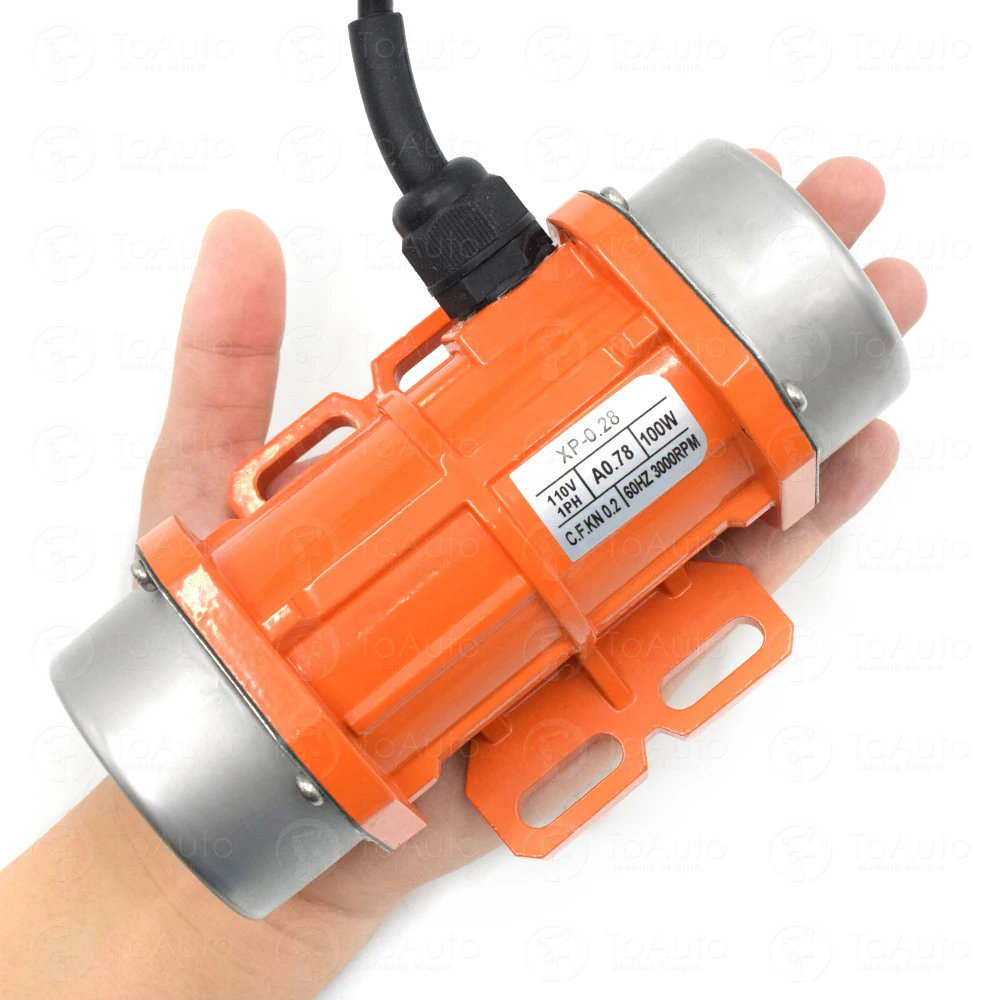

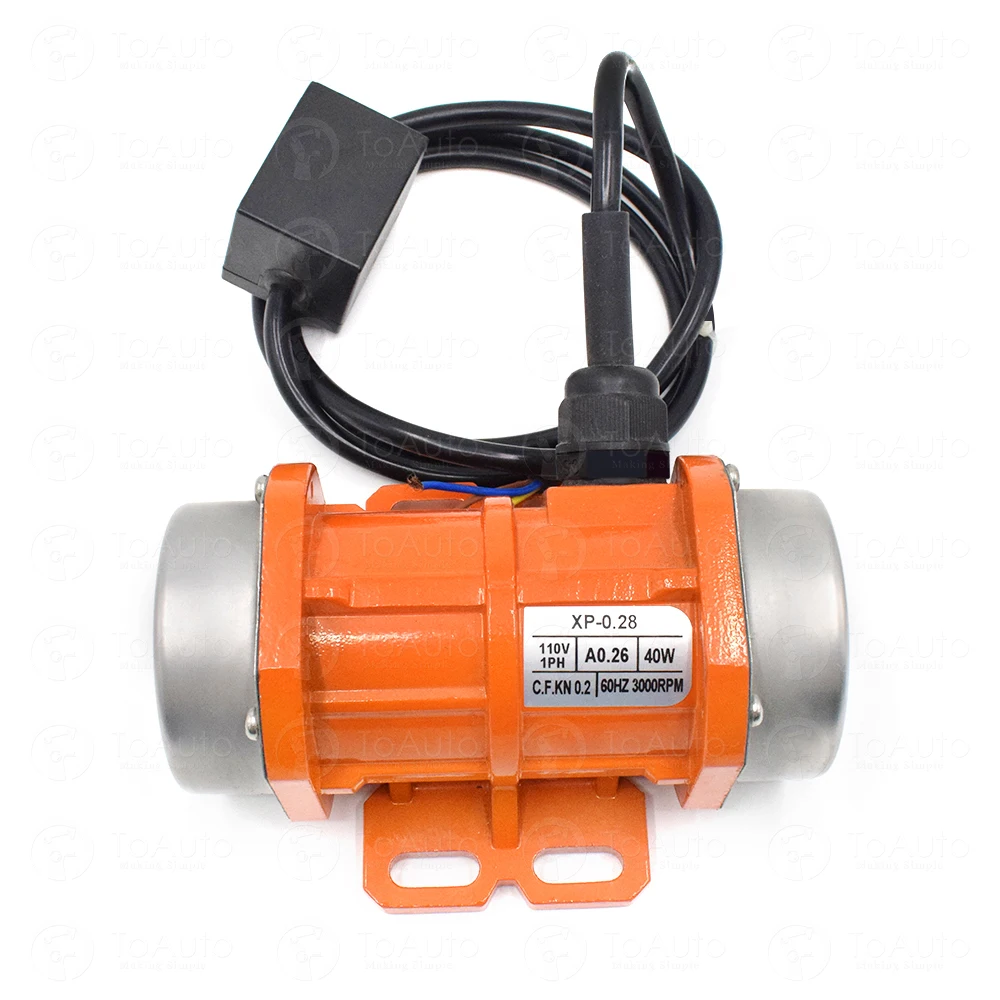

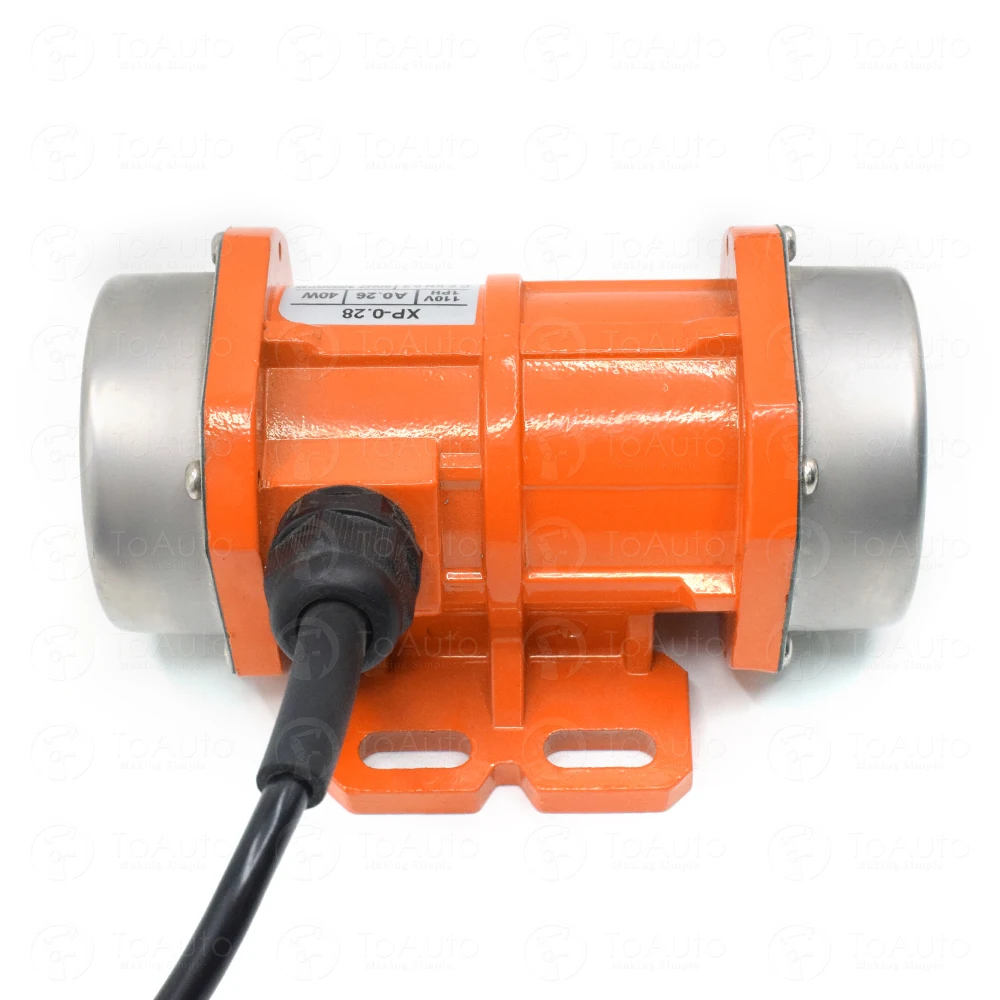

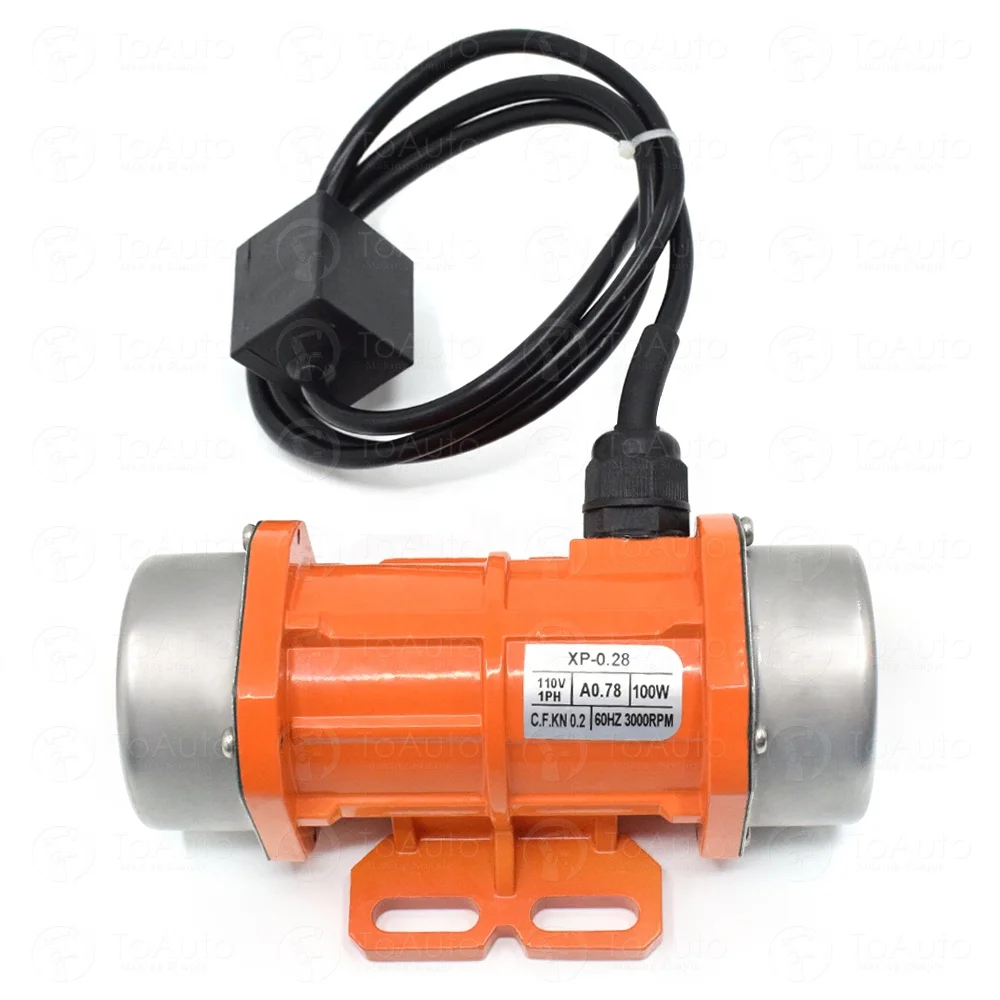

ToAuto 4Ow 100w 110v Single Phase vibrating motor IP65 vibration motor for vibrating table
1. Benefit
A.Can adjust the eccentric block
Double eccentric block dial design, stepless adjustment of excitation force to meet various working needs
B.Fixed irrigation junction box
High-quality terminals, anti-oxidation and rust-proof connecting piece, high-quality resin seal, waterproof, good insulation
C.High-quality bearings
Speed strength up to 10,000 times, high accuracy, low noise, long service life
D. Sealed structure design
Integrated structure design, with sealing groove, O-ring, IP65 protection grade
E. High temperature resistant pure copper enameled wire
Motor stator vacuum dipping process, stable motor

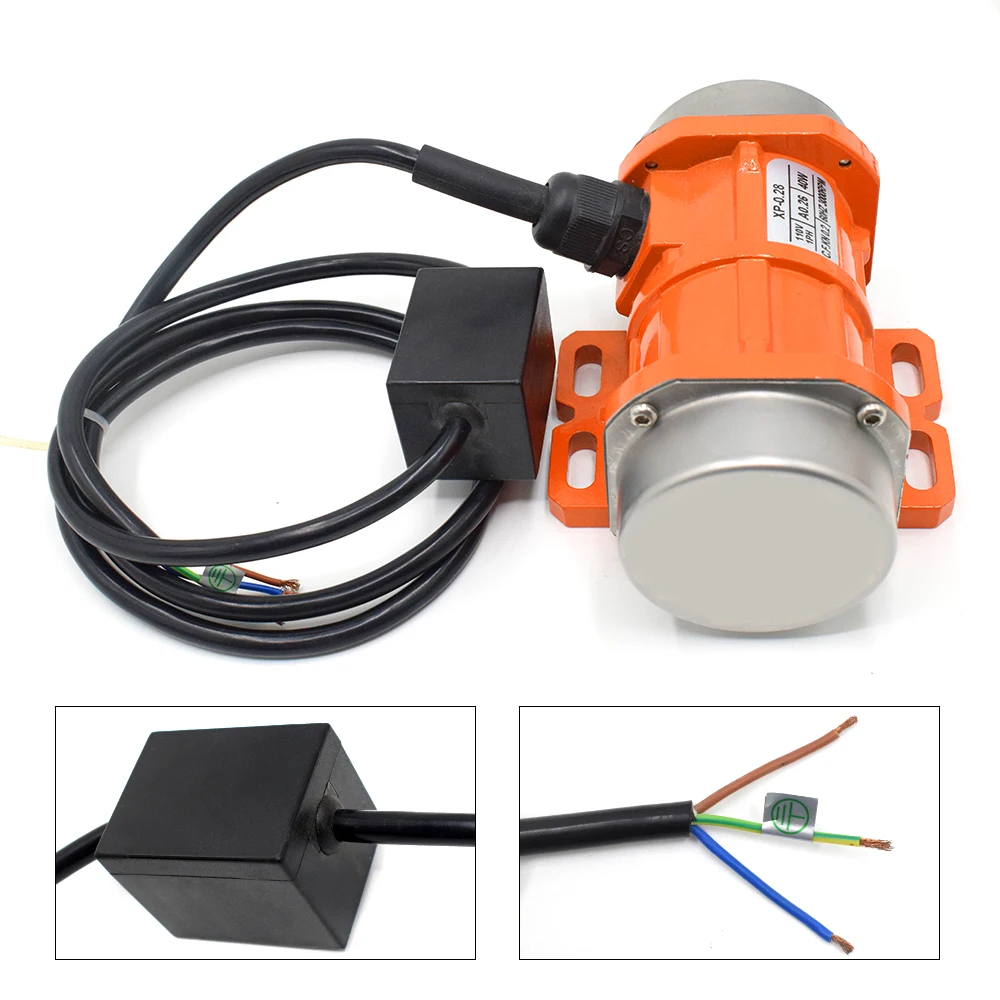

F.Double protection of power cord
Oil-resistant and anti-oxidation special power cord, outlet protective sleeve, double protection power cord
2. Specifications&Feature
Type
40W
100W
Free load current
0.13±8%
0.298±8%
Free load Power
38±8%
90±8%
Free speed
2940±10%
2940±10%
Onload Current
0.16±8%
0.336±8%
Onload power
40:±8%
100±8%
Onload speed
2940±8%
2940±8%
Direction
CW
CW
Vibration 15CM/65dB
OK
OK
Torsion of shield screws 4kgf/cm
OK
OK
Torsion of chassis screws 6kgf/cm
0
0
Protection class
IP65
OK
Insulation grade
F
F
Duty of motor
T1
Cooling mode
IC410
Insulation 1800V/2mA/2S
OK
OK
shell heating 25-35K
30-32
30-32
3.Shipping list
1 PC Vibrating Motor
4. Application area
This series of small vibration motors have been widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, foundry, food, spray coating equipment, sieve powder, grain machinery, etc.
