High level servo bending machine CNC system CT12
US $170.00-$3600
High Speed Auto Steel Blade Bender Machine for Die Cutting
- Category: Other Bending Machines >>>
- Supplier: Yi Tai Packing-Material Accessories (Kunshan) Co. Ltd.
Share on (62419807940):
Product Overview
Description
Product Description
High Speed Auto Steel Blade Bender Machine for Die Cutting

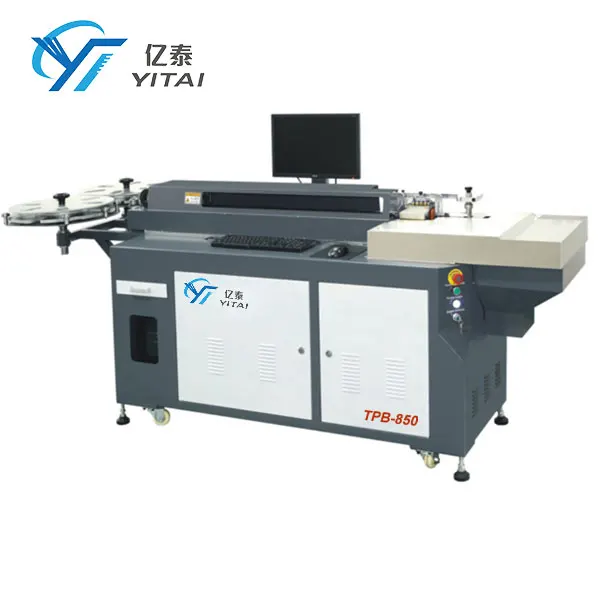

Type:TPB-850A
Product Features:
Promptly&precisly perform bending,notching,rake lipping,clearance lipping,front plane cutting and back plane cutting;
Direct calibration after bending,no need for additional edge truncation or grinding;
Fully automated bending to its true meaning,time and labor cost saving;
Perform the six function individually,simutanousal,or several of them.
Specification | |
The precision after bending | ±0.05MM |
The planeness | 0.25MM |
The min head length of the bending | 1.8MM |
The min end length of the bending | 1.8MM |
The max bending angle | 90 degree |
The min radius for 90 degree angle | 0.5mm |
Material applied | 0.45MM/0.53MM/0.71MM/1.05MM |
The height of the blade | 8-30MM |
Power supply | 220/380V 50/60HZ |
Air pression | 0.6MPA |
Size | 2600*850*1500MM(L*W*H) |
Weight | 460KG |

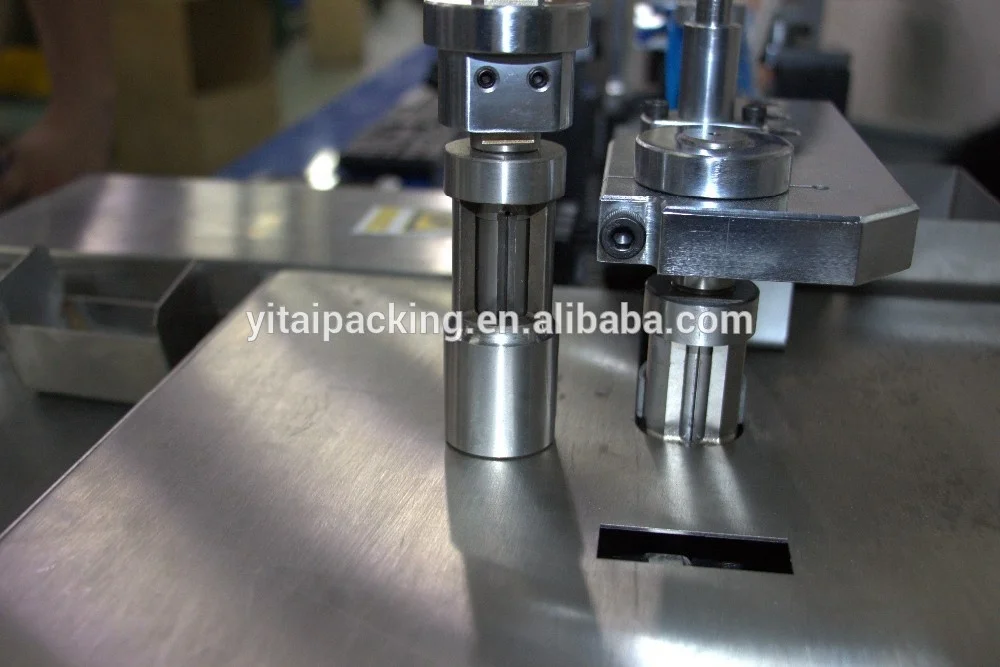

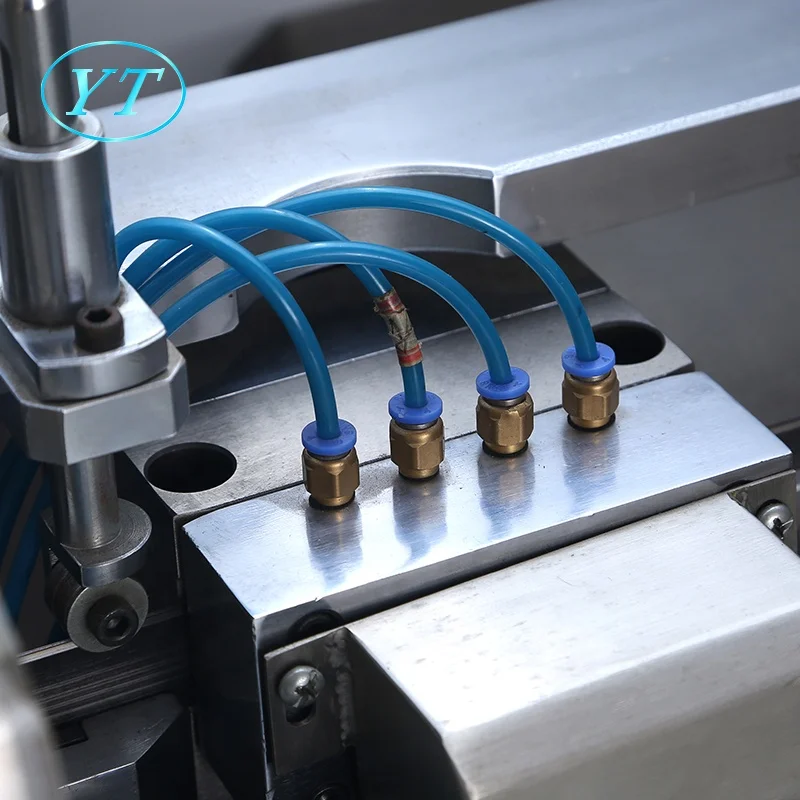

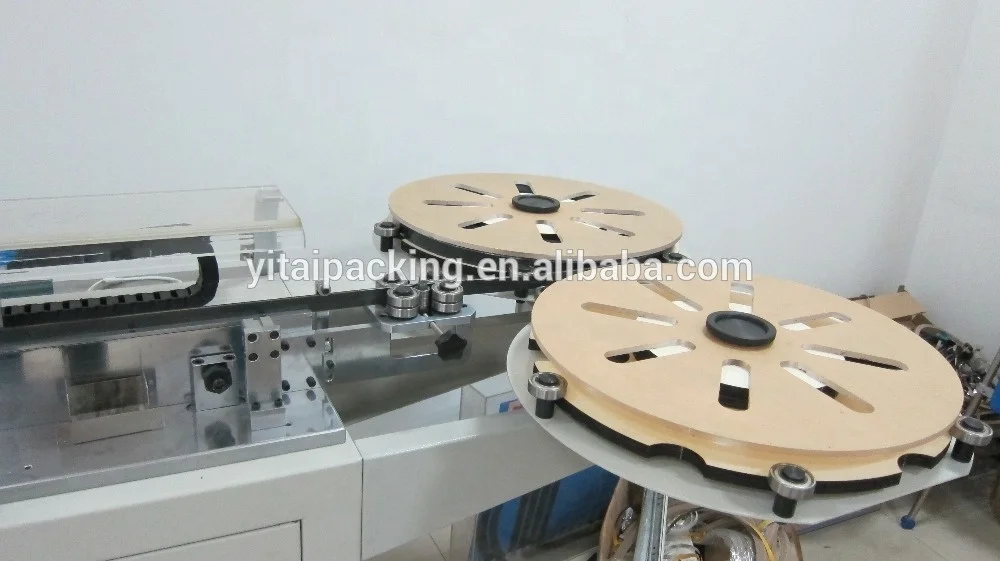

Detailed Images
Application
cutting rule for die making
1. It is for flat wooden laser die making
2. It is easy to be processed by auto bender and manual bender.
Related Products
Company Information
Our Yitai Packing Material Accessories (kunshan) Co., Ltd is professionally in manufacturing flat & rotary die board, die cutting & creasing rule, laser cutting machine, and providing other related die making materials and machines. we have been in die making industry for over 10 years. And our produts have been exported to North America, Southeast Asia, Australia, South America, Africa and other regions and we also have many distributor and partner in overseas.
