Lab Lifted chemglass glass jacketed reactor herbal extracts 10L

Product Overview

Description

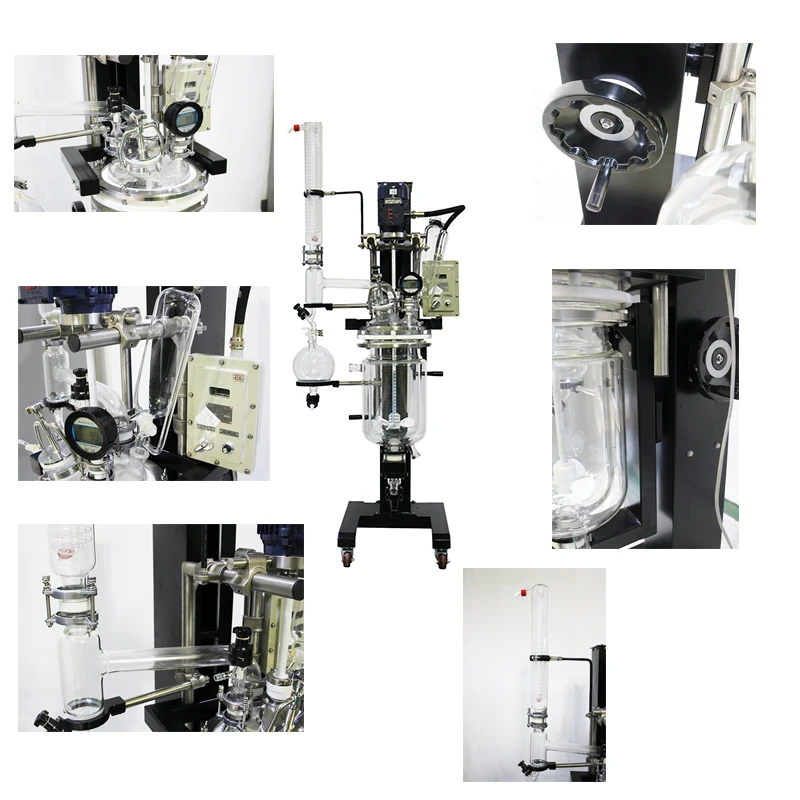

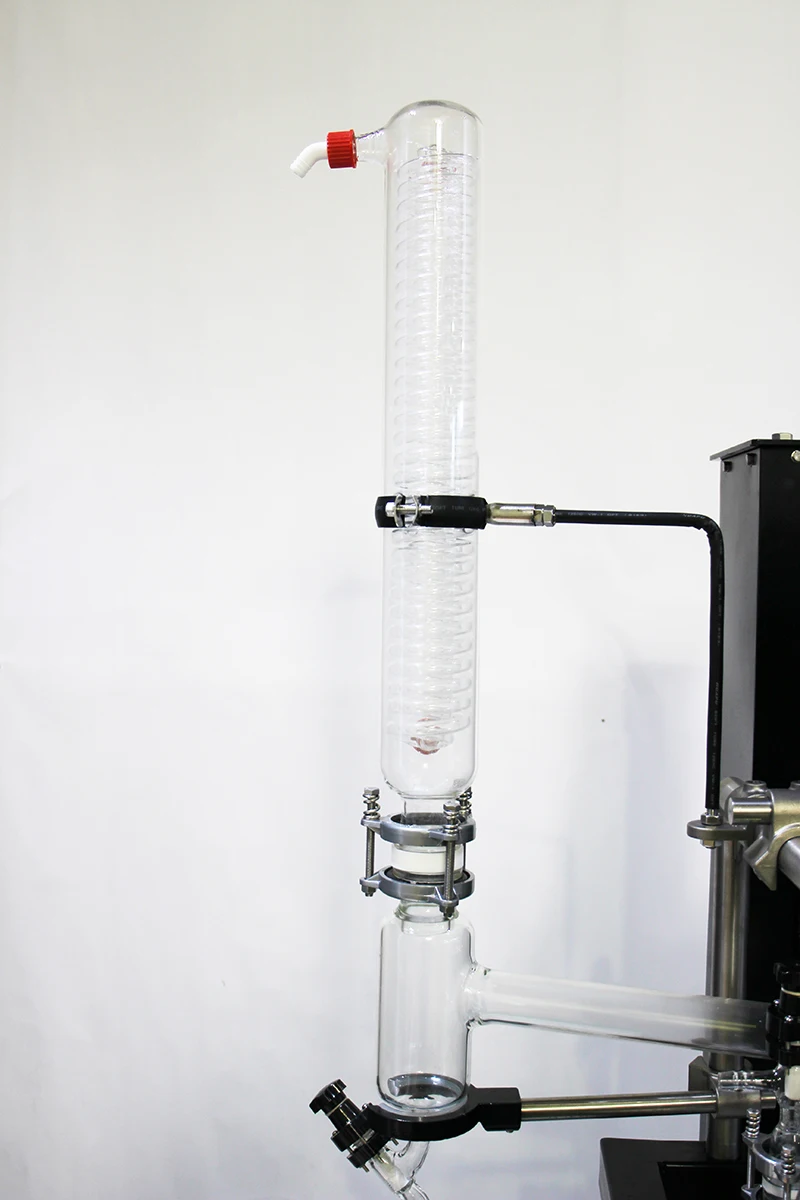

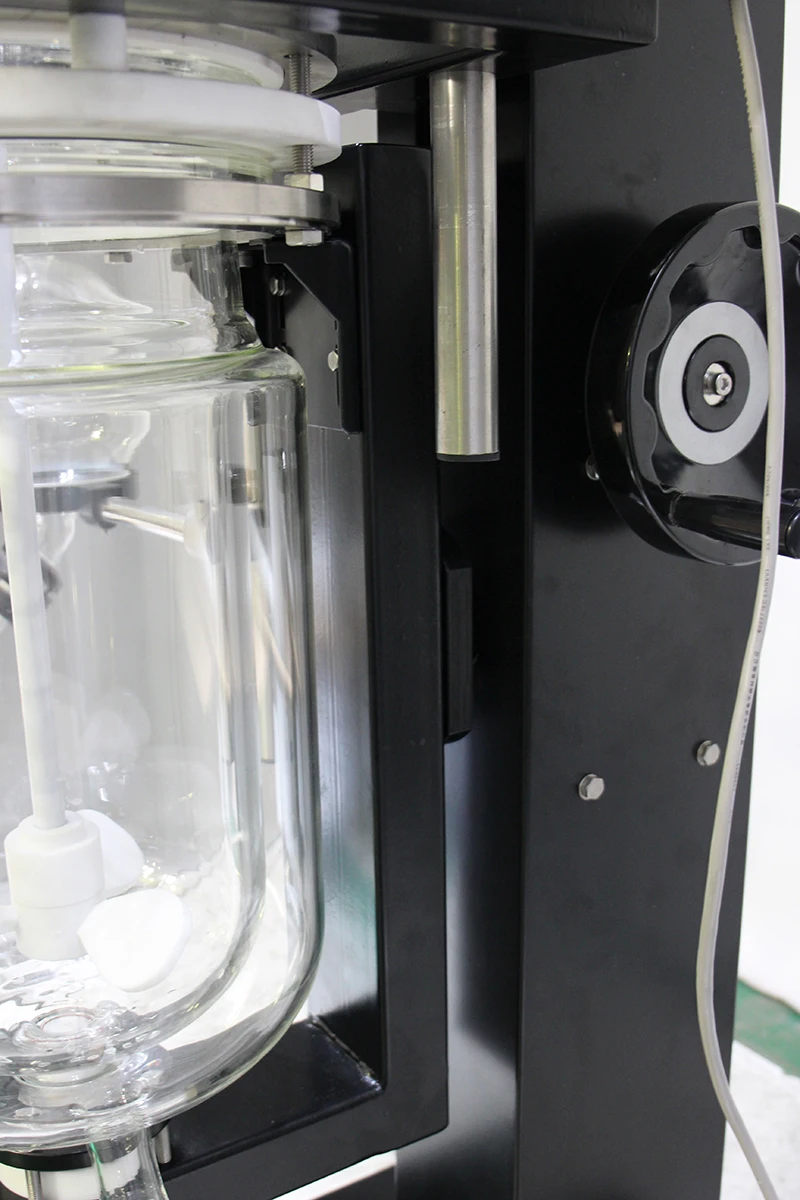

Glass reactor unit has been composed of jacketed glass reactor, coil condenser, water-steam separator, glass collector, stirring driving motor, temperature and pressure measuring meters and electrical control system.

In working process, mixture will be stirred in reactor. At same time, inner space of reactor must be vacuum. When chilling liquid, water and heating medium flows into jacketed layer, mixture will reach chemical reaction conditions. It will start distillation and extraction process.

                             Technical Data of PGR-10 Glass Reactor

Glass reactor body	model	FPGR-10
	reactor volume(L)	10
	neck quantity on lid	6
	external diameter of inner vessel (mm)	230
	external diameter of outer vessel (mm)	290
	lid diameter(mm)	180
electrical system	vessel height(mm)	450
	motor power(w)	120
	rotation speed(rpm)	50-600
	torque(Nm)	1.9
	electrical power(V)	220
vacuum system	vacuum degree (Mpa)	0.098
machine size	L*W*H (mm)	650*650*1900
