  • ET2501 1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501 1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов
ET2501-1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов

ET2501 1200 сенсорный экран сухой блок температуры Калибратор с питанием от аккумуляторной батареи с 300 градусов до 1200 градусов

Share on (62421463427):


Price:1 699,99 $ - 1 899,99 $

Quantity:


Product Overview

Description


Product Description

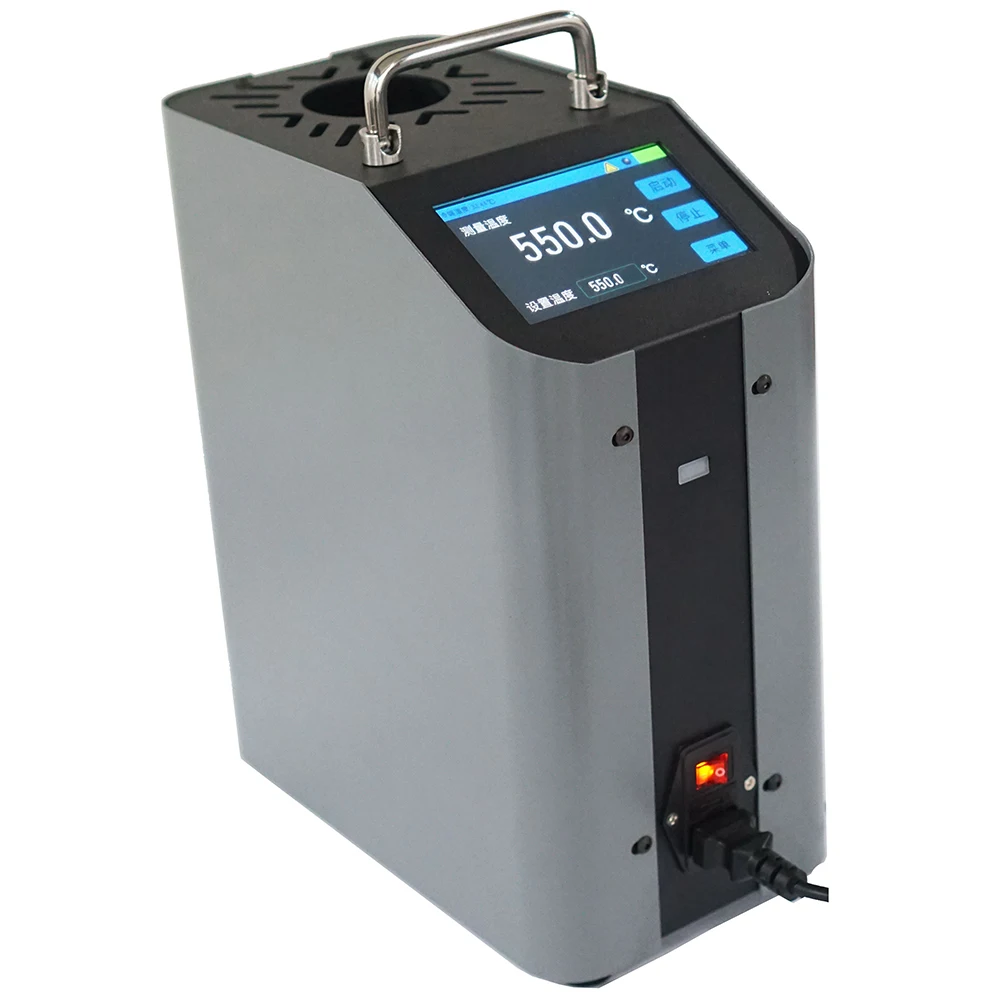

ET2501-1200 Touch Screen Dry Block Temperature Calibrator with 300 degree to 1200 degree


Basic Features:

Small size, light weight, easy to carry;
Various types of insertion tubes can meet the test and calibration of sensors of different sizes
and quantities. It can also be customized according to the special needs of users;
Horizontal temperature field and vertical temperature field are good;
Deep Insertion Degree Leads the Industry;

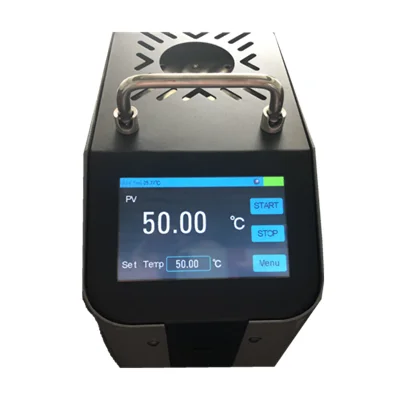

5.7 inch TFT color LCD display, full touch operation, using intuitive and eye-catching;
Chinese-English interface;
With the upper management software (only supporting ET2501 series), the verification data can
be easily read.
Quick cooling, convenient setting, good stability of temperature control;
The soaking block can be replaced;
Protective functions such as short circuit with load, load circuit breaking, sensor protection, etc.

Model
ET2501-150A
ET2501-150B
ET2501-650
ET2501-1200
temperature range
-20℃~150℃
-30℃~150℃
50℃~650℃
300℃~1200℃
heating rate
30~100:20min
30~150:40min
30~300:7min
30~400:12min
30~650:25min
30~1200:75min
Display accuracy
≤±0.1℃
Below400℃：≤±0.35℃
400~650℃：≤±0.5℃
≤±1.2℃
Insertion depth
160mm
150mm
135mm
Average heat block diameter
36mm
32mm
32mm
39mm
Temperature field stability
  ≤±0.02℃
≤±0.05℃
≤±0.2℃
Horizontal temperature field
≤±0.05℃
≤±0.05℃
≤±0.25℃
Vertical temperature field
The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is less than 1C
Temperature unit
℃ or ℉
Temp Accuracy
0.1% or 0.2%
Display resolution
0.1℃ or 0.01℃
maximum power
Negative temperature type: 500W, medium temperature type: 800W,
high temperature type: 3000W
weight (Net weight)
Negative temperature type: 13kg, medium temperature type: 11kg, high temperature type: 11kg
Outline size



Negative temperature type and high temperature type: 310*190*340mm,
medium temperature type: 250*150*310mm
Use environment
Ambient temperature 0-50℃, relative humidity less than 95% (no condensation)
Power supply
220VAC ± 10%, 45 ~ 60Hz,



Selection function

USB Device Communication Interface is optional

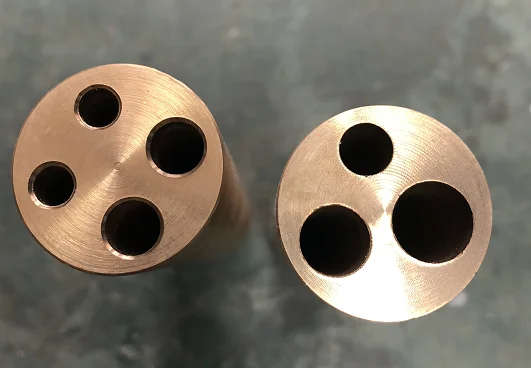

The negative temperature type of -20℃~150℃ has 4 holes,are φ6/ 8/ 10/ 12 mm .The negative temperature type of  -30 ~150 has 4 holes,are 6/ 8/ 12 mm.The medium temperature type of has 2 kinds (2 choices 1 at the time of ordering), one is 3 holes of 8/ 10/ 12mm, the other is 4 holes of 6mm*2, 8mm*2.The high temperature type of 300 ~1200 has 4 holes, are 6/ 8/ 10/ 12mm.
Related Products
Factory
Dry Block Temperature Calibrator
Our Workshop


Production Process:
PCB (Printed circuit board) --soldering --Assembling -- Visual inspeciton --Testing --Packing --Shipping



 R & D Department :
At present, the company has more than 120 employees, including 23 high-tech talents with intermediate and senior titles and masters.

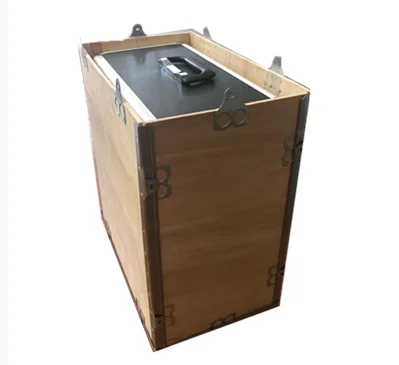

Packing & Delivery

Shipping :


1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.


2. By Air: Delivery from the Shanghai airport to customers' destination city air port.


3. For large order, we can do FOB shanghai or ningbo price, CIF price as u asked.
