2019 Newest Security Camera System Wireless 8 Channel outdoor surveillance wifi nvr kits wireless cctv camera systems
- Category: Surveillance Systems >>>
- Supplier: Guangzhou Zhongjing Digital Technology Co. Ltd.
Share on (62421576401):
Product Overview
Description
Products Description

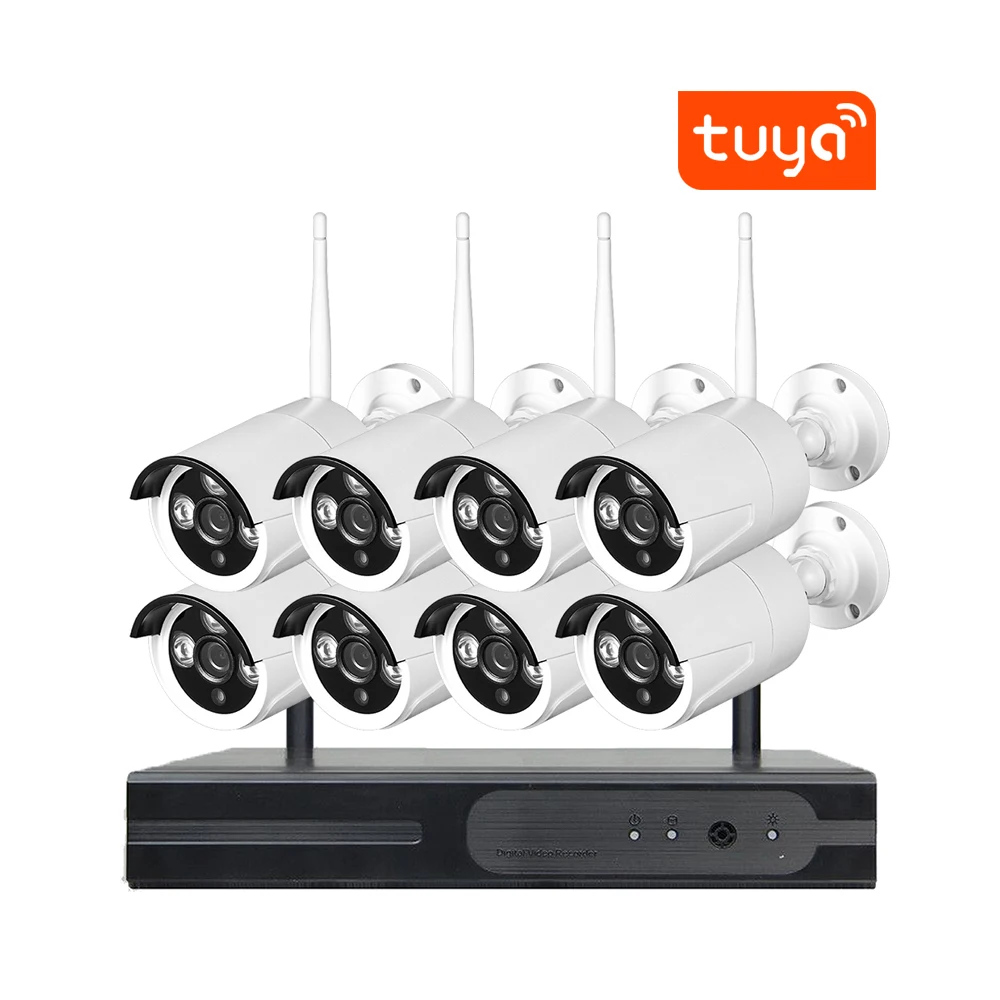

H.265 tuya smart home security cctv camera system wireless 1080p Waterproof 8ch wifi nvr kit outdoor

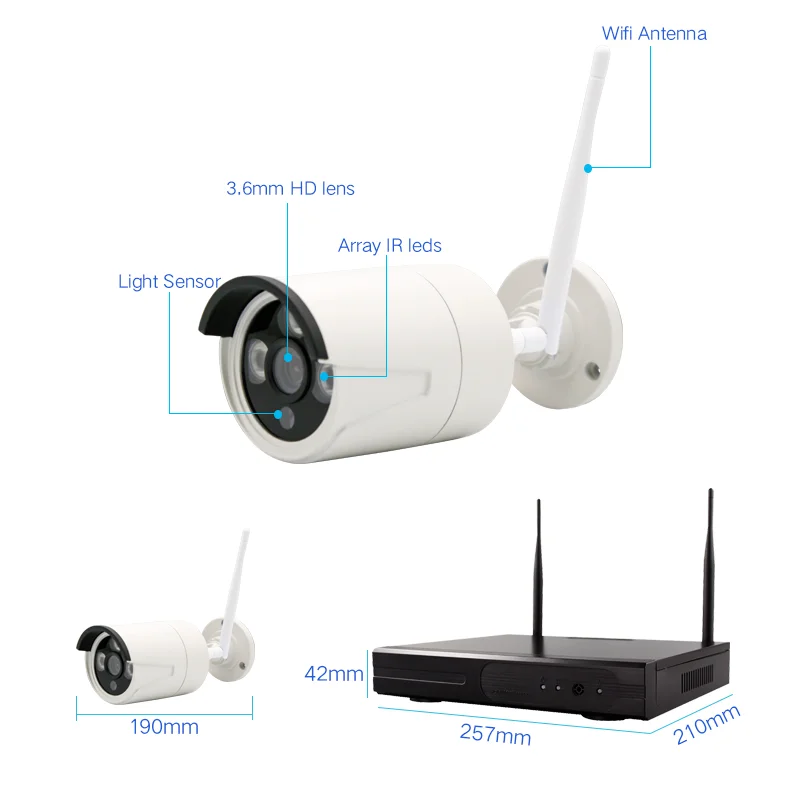

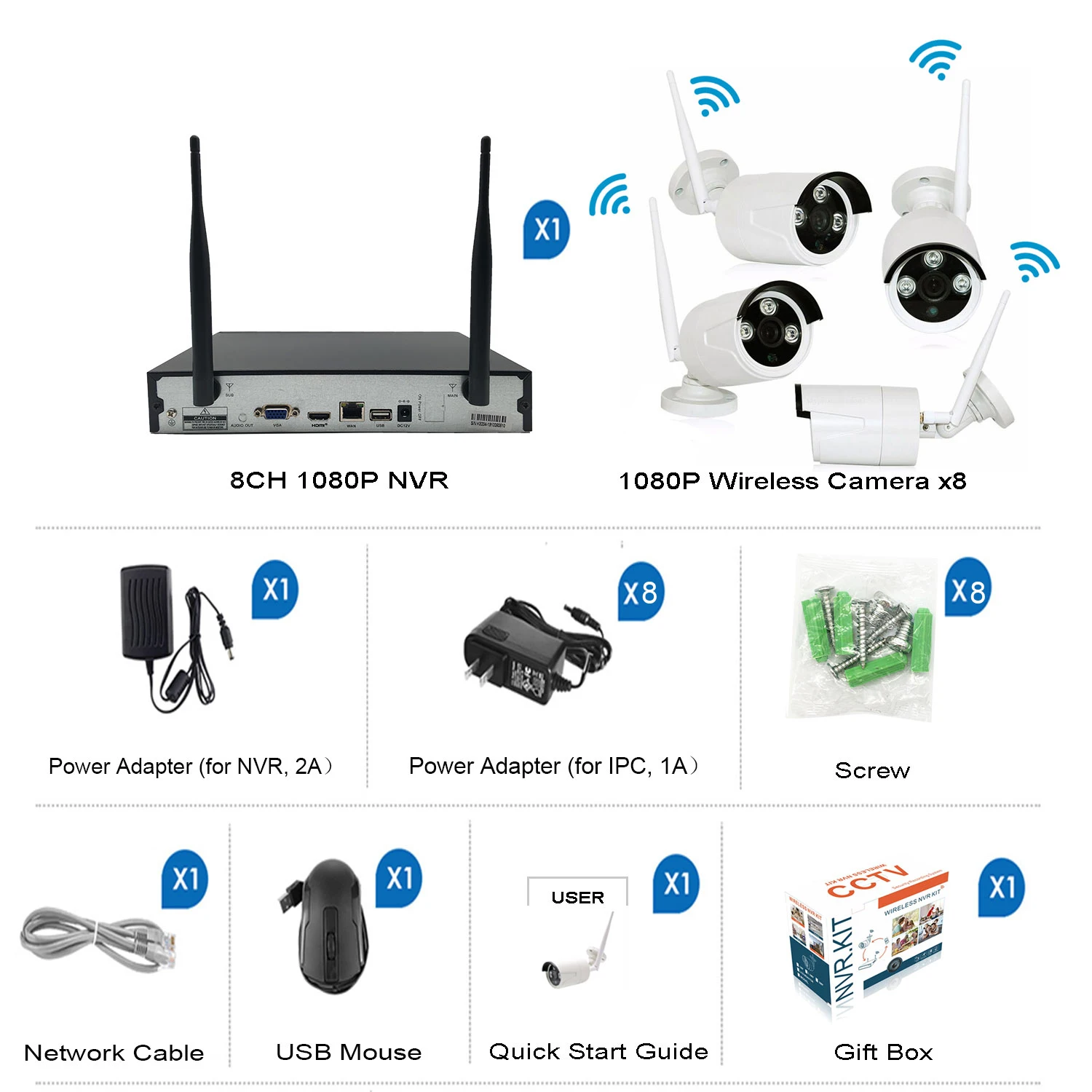

● 8pcs metal Bullet IP wireless cameras with 3pcs array LED
● 1pcs H.265 wireless NVR,VGA, HDMI, support 1HDD, double 5DB antennas
● 1pcs 1M RJ45 cable,1pcs mouse, 8pcs DC 12V 1A adaptors + 1pcs 12V 2A Adaptors
● Transmission in open space up to 350m without abstacle, Support concatenation
● Google Home and Amazon Alexa function
Key Features:
* 8CH h.265 WiFi NVR + 8pcs Hisilicon Chipset wifi cameras
* Convenient Installation + Plug and play

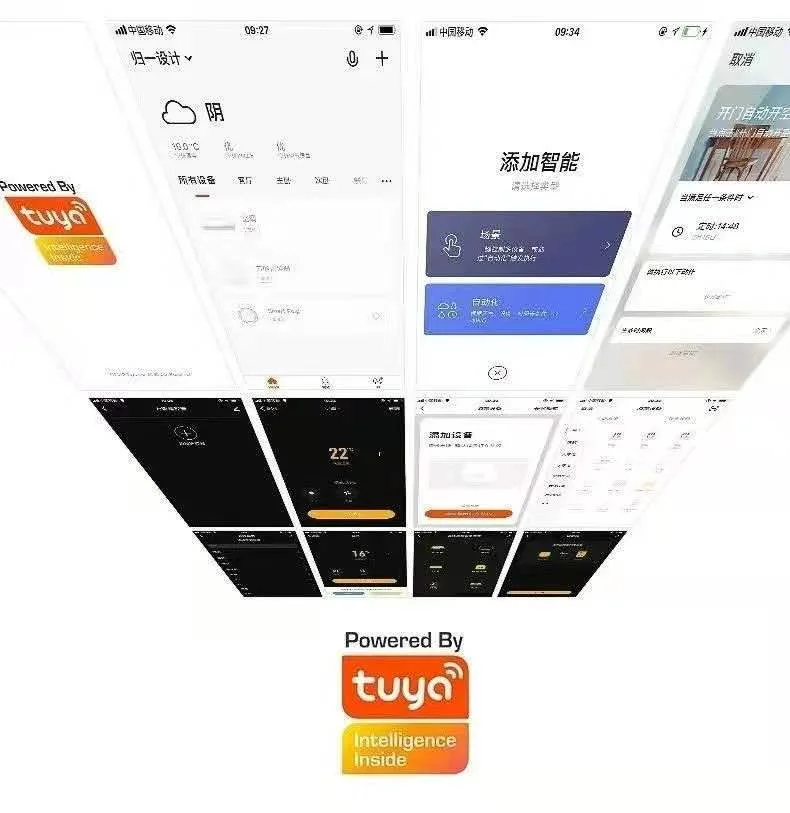

* Tuya APP, can add Google Home and Amazon Alexa function
* Support1 SATA HDD, double 5DB antennas
* Wireless transmission stability:2.4G wireless
* Special and separate network for wireless transmission
* Transmission in open space up to 350m without abstacle, Support concatenation
* Quick setup, with built-in multilingual management page
* Tuya APP, can add Google Home and Amazon Alexa function
* Support1 SATA HDD, double 5DB antennas
* Wireless transmission stability:2.4G wireless
* Special and separate network for wireless transmission
* Transmission in open space up to 350m without abstacle, Support concatenation
* Quick setup, with built-in multilingual management page
Product Parameters
Wireless NVR | ||||
processor | professional industrial processor | |||
operation system | embed linux operation system | |||
video audio input | network video input | 8 channel | ||
video output | HDMI output | 1channel，resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p | ||
VGA output | 1channel ，resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p | |||
video compression | standard H.264，H264+，H.265， H265+ | |||
video encoding specification | recording resolution | 1080P/960P/720P | ||
playback | 8 channel | |||
video manage | recording/capture mode | manual recording、time recording 、motion detection recording、alarm recording | ||
playback mode | instant playback、general playback、event playback | |||
backup mode | general backup | |||
HDD drive | type | 1 SATA connector | ||
max capacity | every sata MAX 6TB | |||
eternal connector | network port | one RJ45 10M/100M self adaptive ethernet port | ||
2 antenna | ||||
USB port | 1 USB 2.0(2 USB port optional) | |||
audio port | 1，3.5 inch headphone jack (optional） | |||
network management | network protocol | UPnP（plug and play）、SMTP（email service）、PPPoE（dial up networking）、DHCP etc. | ||
Others | power supply | DC 12V 2A | ||
power consumption（without HDD） | ≤5W | |||
working temperature | -10℃--＋55℃ | |||
working humidity | 10％--90％ | |||
size | 258×210×42mm | |||
weight （no HDD） | ≤1Kg | |||
Wireless IPC | ||||
Mega Pixel | 2.0MP | |||
processor | professional industrial processor | |||
operation system | embed linux operation system | |||
image sensor | 1/2.7”~ 1/3" Progressive Scan Sensor | |||
S/N Ratio | > 39.1 dB | |||
video compression | standard H.265, H.264，H265+ | |||
resolution | Max support 2560×1920 | |||
Min illumination | Color: 0.01 Lux | |||
B/W: 0.001 Lux | ||||
lens | 3.6mm | |||
OSD | Date Time & Title | |||
white balance | Auto | |||
Day & Night | Auto / Color / BW | |||
3D-DNR | Auto | |||
Mirror/Flip | On / Off | |||
privacy masking | 4 Zone Selectable | |||
stream | Main stream：1920x1080@20fps for 2MP IPC | |||
Sub stream： 640x360@15fps 2MP IPC | ||||
anti-lighting grade | Standard IEC61000-4-5 | |||
power input | DC12V-1A | |||
power cocumption | ≤6W | |||
connector | reser button/ WIFI 802.11b/g/n | |||
working humidity/ temperature | -10℃ to +50℃ / 30% to 80% RH | |||
storage temperature / humidity | -20℃ to +60℃ / 20% to 90% RH | |||
size | 66*180mm | |||
Product packing
Product Shipping
Company Profile
FAQ
Q1. What is your MOQ (minimum order quantity) for this products?
A1. MOQ is 4 sets for each items, sample order is no MOQ request
Q2. Can you provide OEM, can you put our brand name?
A2. We can provide OEM, we can put your brand name and logo on the label sticker, product body and the packing box. MOQ for OEM is 24pcs
Q3. What is your payment term?
A3. We accept 30% deposit against production and 70% balance before shipment delivery
Q4. What is your delivery time?
Q4. Usually within 3 weeks, regular order takes 1-2 weeks.
Q5. What about your warranty?
A5. All products enjoys 12 months warranty. During the warranty period, any defective product caused by manufacturer will get
repaired or replaced.
Q6. What about your product packing?
A6. We use foam cotton lining and color box package for every camera, DVR products. And outer packing corrugated carton box
Q7. What about your technical support?
Q7. Any technical question you can make a call or whatsapp text to +86 13822597615 ( Vincent )
A1. MOQ is 4 sets for each items, sample order is no MOQ request
Q2. Can you provide OEM, can you put our brand name?
A2. We can provide OEM, we can put your brand name and logo on the label sticker, product body and the packing box. MOQ for OEM is 24pcs
Q3. What is your payment term?
A3. We accept 30% deposit against production and 70% balance before shipment delivery
Q4. What is your delivery time?
Q4. Usually within 3 weeks, regular order takes 1-2 weeks.
Q5. What about your warranty?
A5. All products enjoys 12 months warranty. During the warranty period, any defective product caused by manufacturer will get
repaired or replaced.
Q6. What about your product packing?
A6. We use foam cotton lining and color box package for every camera, DVR products. And outer packing corrugated carton box
Q7. What about your technical support?
Q7. Any technical question you can make a call or whatsapp text to +86 13822597615 ( Vincent )
