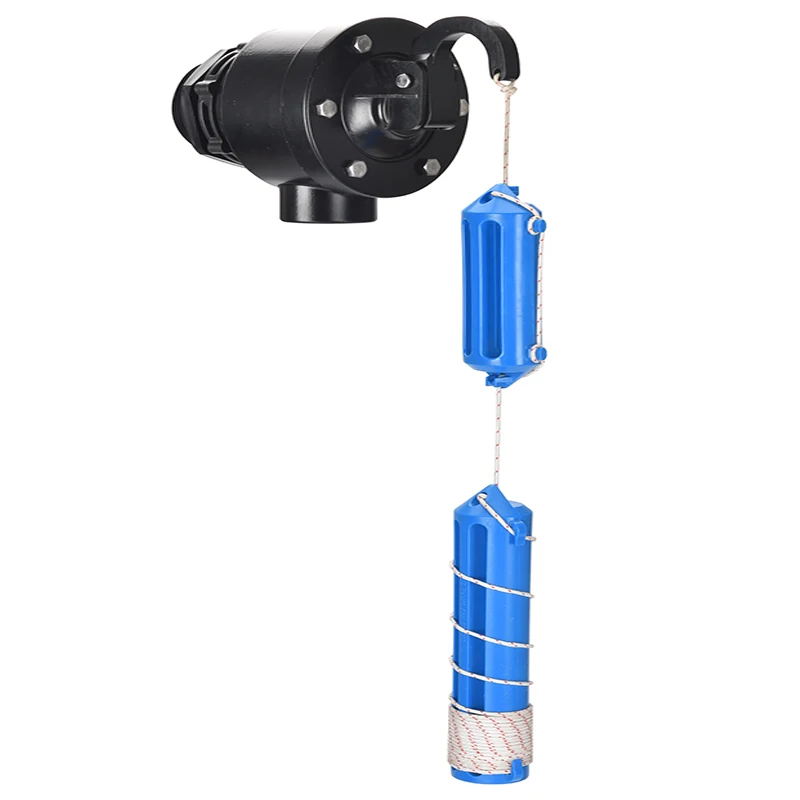

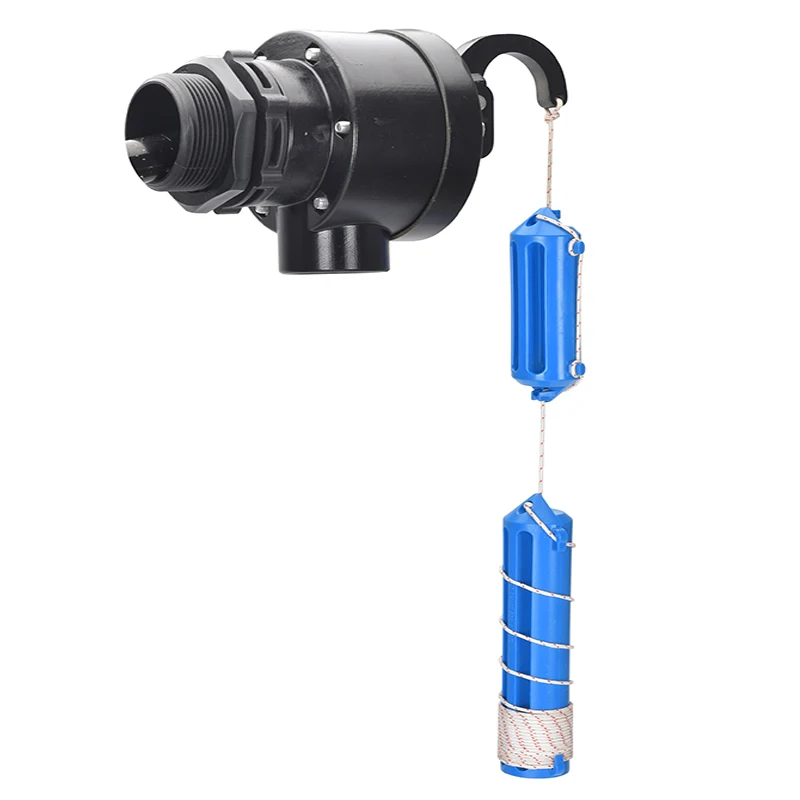

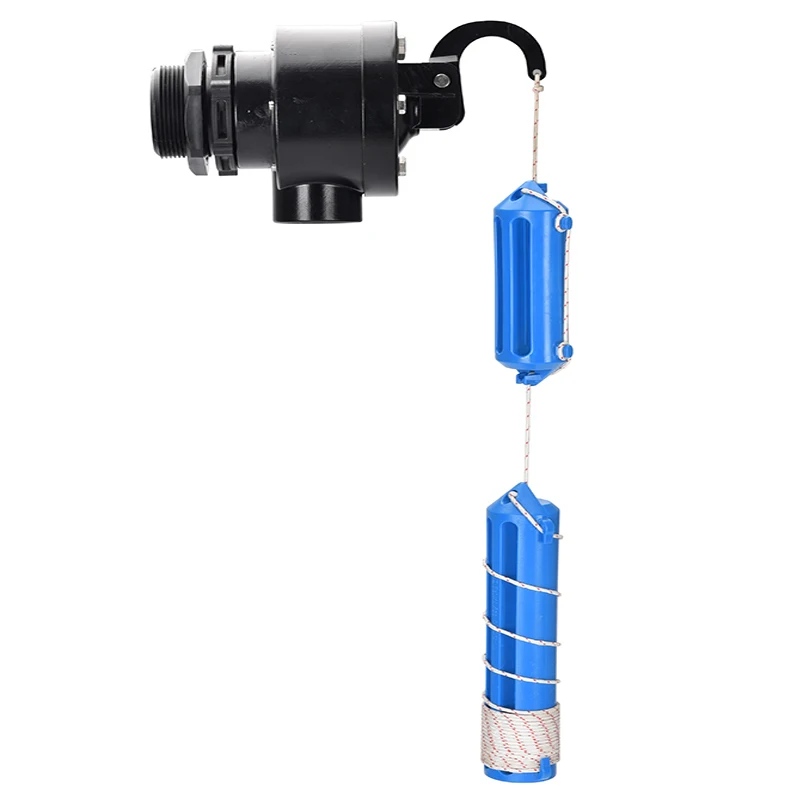

Tankbuddy Valve Industrial Water Storage Water Tank Level Control with water pumps

Product Overview

Description



· Water tank,water tower, water pool,Irrigation,animal drinking, Spray equipment,swimming pool etc.

· High flow. Ideal for all makes and models of tanks.

· Available inlet sizes.Keeps pump operation to a minimum.

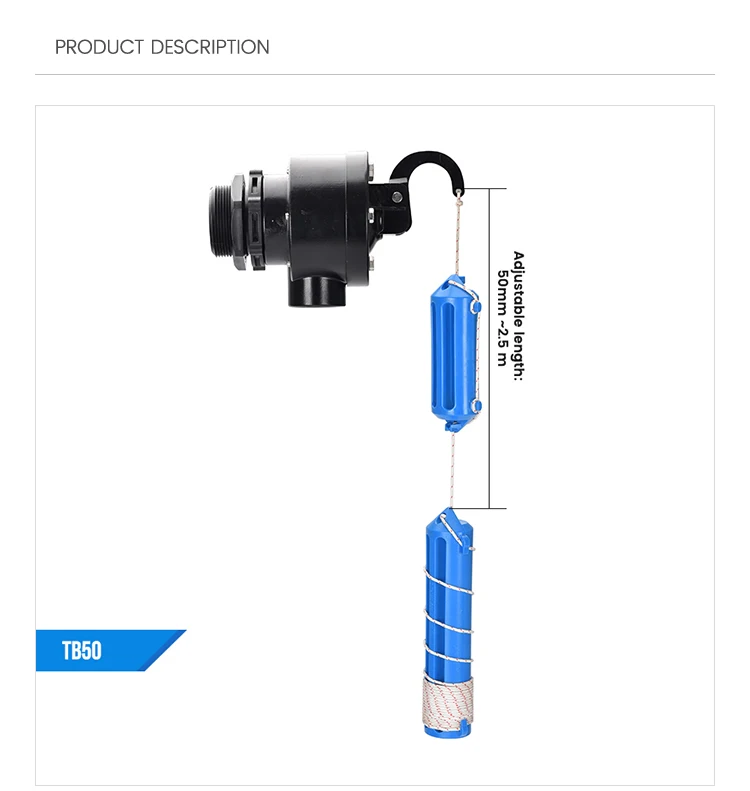

· Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.

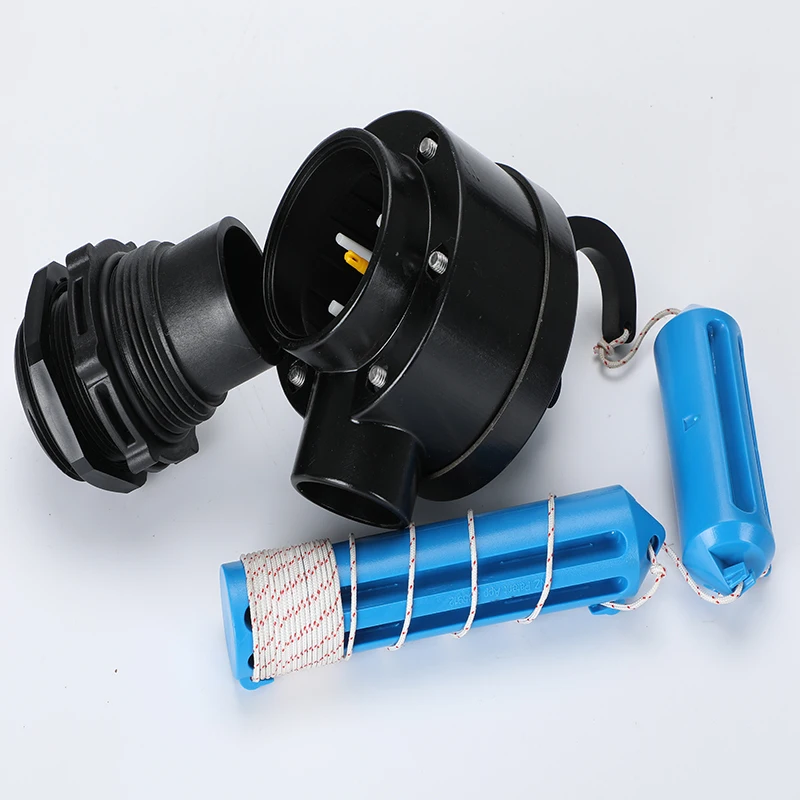

· Valve Seal Access System for quick access to valve seal.

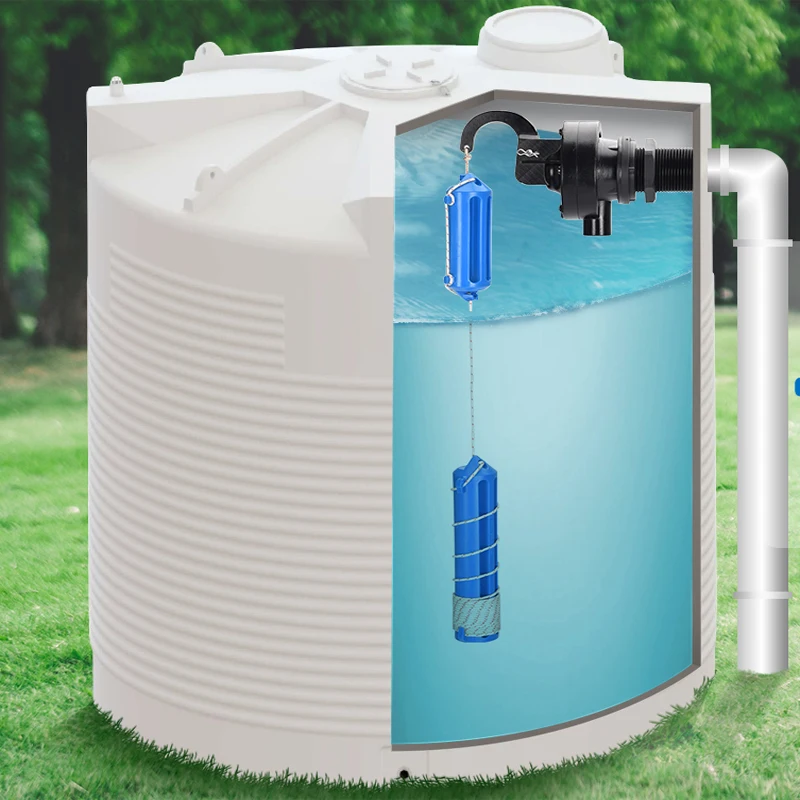

· The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded

tankinlet.

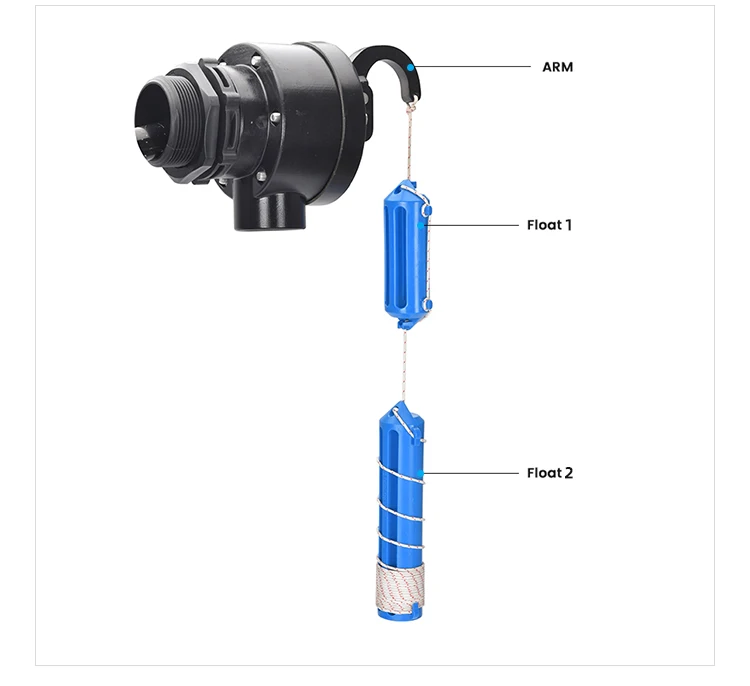

· As the tank empties, the float travels down the corduntil it hits the level stopper. The valve then opens

immediately to give a full flow.
· As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster.

This lifts the arm and the valve shuts down.

· Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump

off at a pressure at least one bar above the running pressure.
