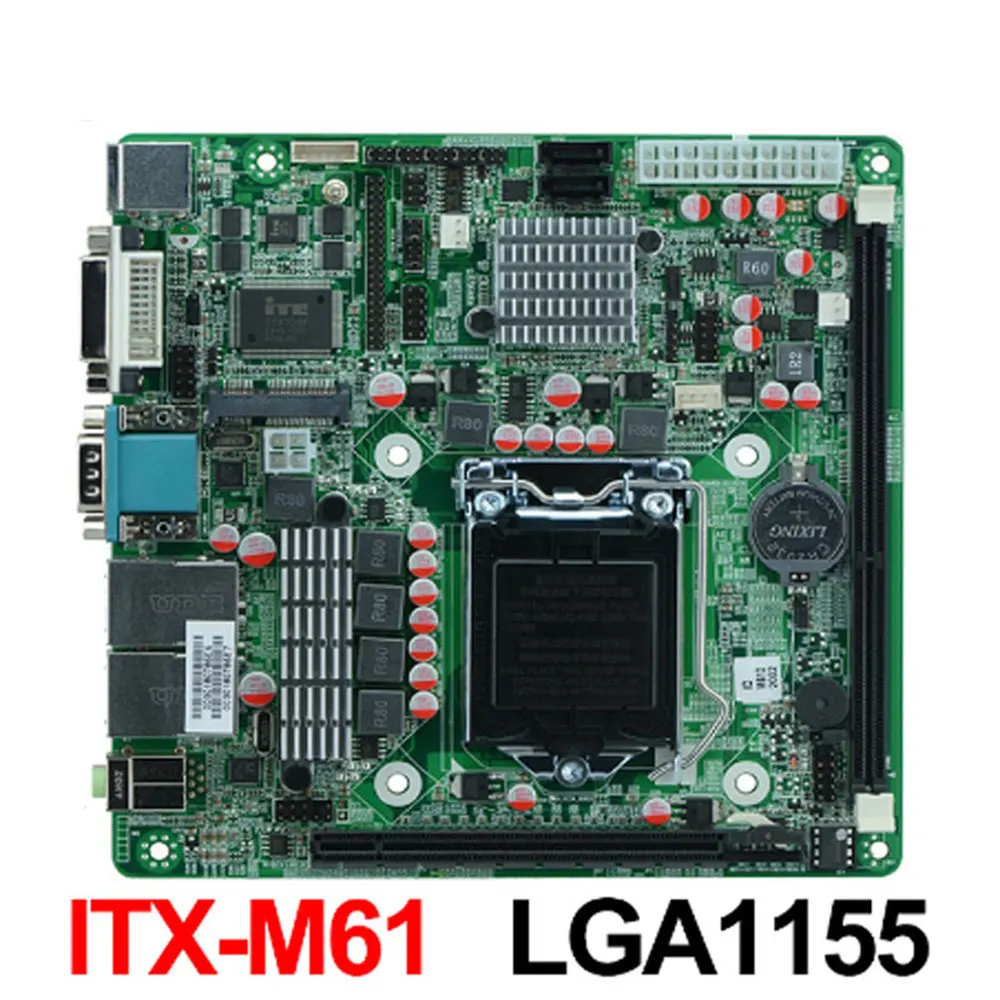

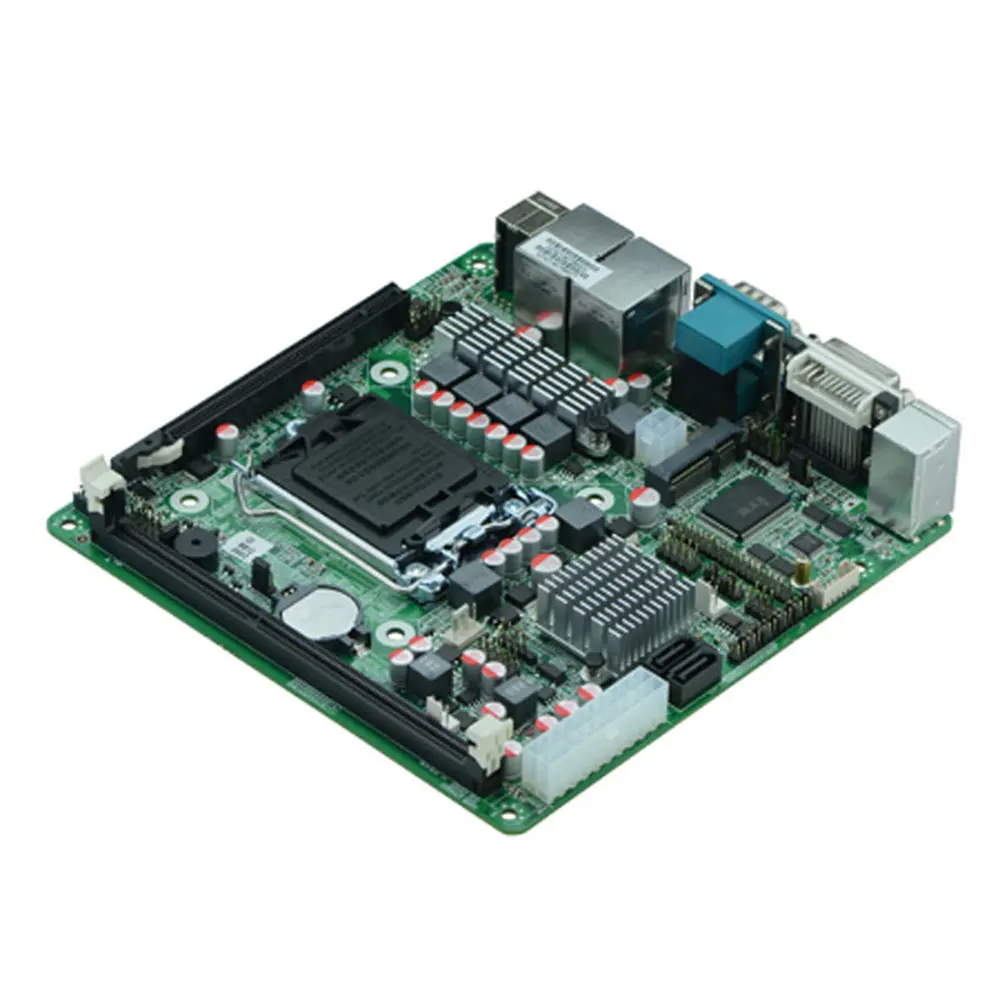

LGA1155 Socket i7 Industrial Motherboard ITX M61 support Core i3/i5/i7 Pentium 22nm/32nm CPU with 9*USB/6*COM
- Category: Motherboards >>>
- Supplier: Shenzhen Inctel Technology Co. Ltd.
Share on (62422387208):
Product Overview
Description
Product Description
Specification
Model NO. | ITX-M61 VER:1.0 |
CPU | Support LGA1155 Intel Core™ i3/i5/i7 Pentium 22nm/32nm CPU |
Chipset | Intel H61 |
Memory | 1* DDRIII DIMM slot, support 1600/1333MHz memory , max. up to 8GB |
Graphics | Intel HD graphics |
1*VGA,1*DVI | |
Support VGA;DVI synchronous/asynchronous display | |
LAN | 2* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE |
Storage | 2* SATAII port, transfer rate up to 6Gbps |
Audio | Integrated ALC662 6-Channel audio controller ,support MIC/Line-out |
Expansion Slot | 1* PCI-Express 2.0 16x slot |
1* MINIPCIE slot, support SSD /WIFI /USB WIFI , (default is SSD) | |

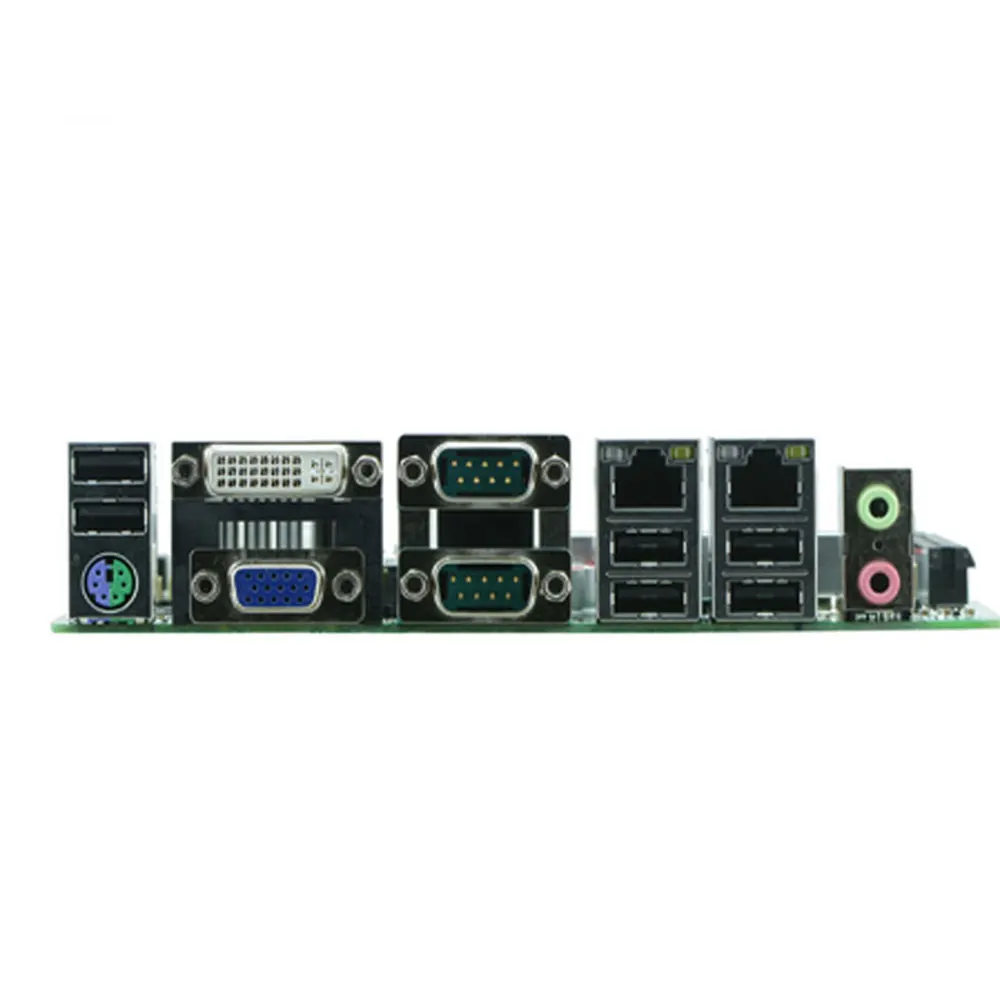

Rear I/O | 1* PS/2( KB&MS) |
2* DB9 COM port, the 9th pin of COM1 with charged function | |
1* VGA | |
1* DVI | |
6* USB2.0 | |
2* RJ-45 | |
1* Audio interface (Line out and MIC ) | |
Internal I/O | 3* USB2.0 |
1* LVDS INVERTER(1*6pin) | |
1* JVGA1(2*5pin) same signal with DB15 | |
4* RS232 COM port (the 9th pin with charged function) | |
1* TX-RXCOM RS422/485 interface | |
1* PS/2, KB/MS connector (1*6Pin) | |
1* AUDIO front panel audio connector (2*5pin) | |
1* FP1 front panel function buttons and indicator connector(2*5pin) | |
1* ATX_20P ATX power socket | |
Fan Interface | 1* CPUFAN4pin; 2* SYSFAN 3pin |
BIOS | AMI 32MB Flash ROM |
GPIO | 1* GPIO (Support 4-way GPIO function) |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | ATX power supply |
Operating Temp. | -10°C~60°C |
Storage Temp. | -20°C~70°C |
Humidity | 5%-95% (relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
