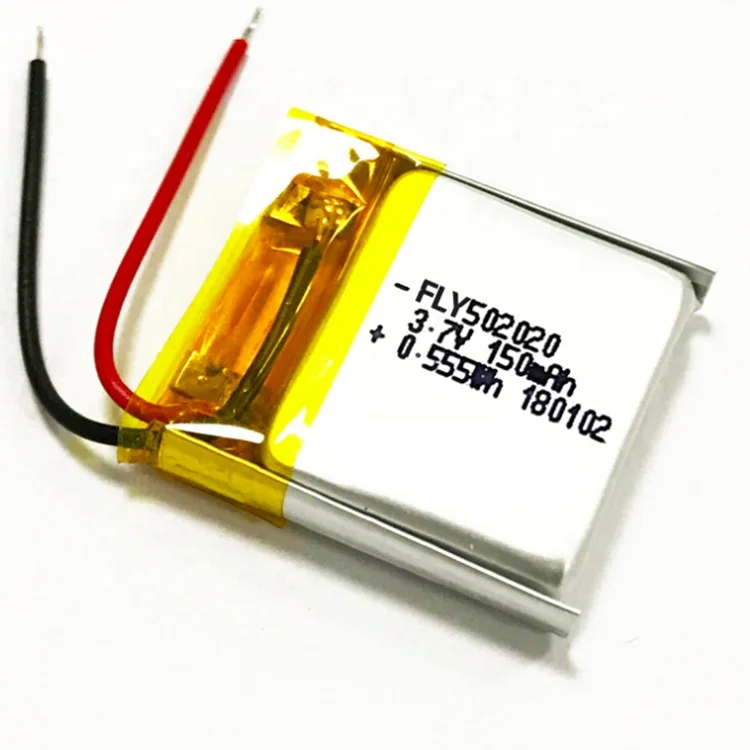

Small Battery 502020 150mAh 3.7v recharge battery Packs
Item
Nominal Parameter
Note
1. Model
502020
2. Nominal Capacity
150mAh
3. Nominal Voltage
3.7V
4. Resistance
≤100mΩ
5. Charging Voltage
4.2V
6. Discharging Voltage
3.0V
9. Standard Charging Current
30mA
0.2C5mA, About 6H.
10. Max Charging Current
150mA
1.0C5mA, About 1.5H.
11. Standard Disharging Current
30mA
0.2C5mA
12. Max Discharging Current
150mA
1.0C5mA
13. Cycle Life
500
≥80% of Nominal Capacity
14. Operating Temperature
Charge
0~45℃
Discharge
-10~60℃
15. Storage
Less than 3 months
-10~40℃
More than 3 month
-20~35℃
16. Weight
5g
17. Energy
0.555Wh
18. Dimension
Cell
5.0mm(T)*20mm(W)*20.5mm(L)
Battery-With PCM
5.3mm(T)*20mm(W)*21.5mm(L)
Related Products
Certifications
Company Information
quality Control
Our Services
FAQ
Q:What's your MOQ?Do you offer free sample?
A: MOQ:1pcs. Free sample negotiable.
Q: How many types of lithium batteries do you have?
A: We have many types of lithium batteries based on different anode material:
LiCoO2, Li(NiCoMn)O2,LiMn2O4,LiFePO4;
Power type, Energy type, For high temperature using, For low temperature using,etc.
Contact us to know more- Differences between Lithium Batteries.pdf
Q: Why applications /working conditions of batteries are frequently asked by you?
A: Those information are very critical for battery design, for PCM choosing, and for battery pricing as well.They help us to design right batteries with higher efficiency.
Click here to get our Questionnaire on Battery Required.pdf and earn our gift for you.
Q: Can you add PCM on battery cells?
A: Yes. Please tell us your detailed requirement. Sample could be ready within 48hours.
Q:How you shipped out batteries as they are special cargo.
A:We choose legal and professional shipping channels to keep our customers and us out of shipping risks. Contact us for detailed inquiry on shipping cost and shipping date.
