Waste Tire Recycle Crushers Shredding Rubber Machine Equipment Used Truck Tire Shredder Production Line

Product Overview

Description

Old tire shredder machine /tire crusher machine /tire blocks machine



1. Application:

The machine is to be used for raw rubber cracking and scrip rubber cracking in rubber reclaim industry.



2.Features:

1. Heavy-duty bearings, large inertial wheel and strong crushing ability;

2. Easy-disassembly design, simple and easy to clean and maintain;

3. Two-layer sound-insulated hopper to insulate noise;

4. High-speed quality cutter, sharp edge, durable in operation;

5. Interlock power protection to ensure operational safety.
6. To granulate radial tires into fine rubber crumb of different size with steel and fiber completely recycled at ambient temperature.
7. Tight construction, small space and simple technique flow.
8. Low energy-consuming and good performance-cost ratio.
9. High autoimmunization, fewer labors required.

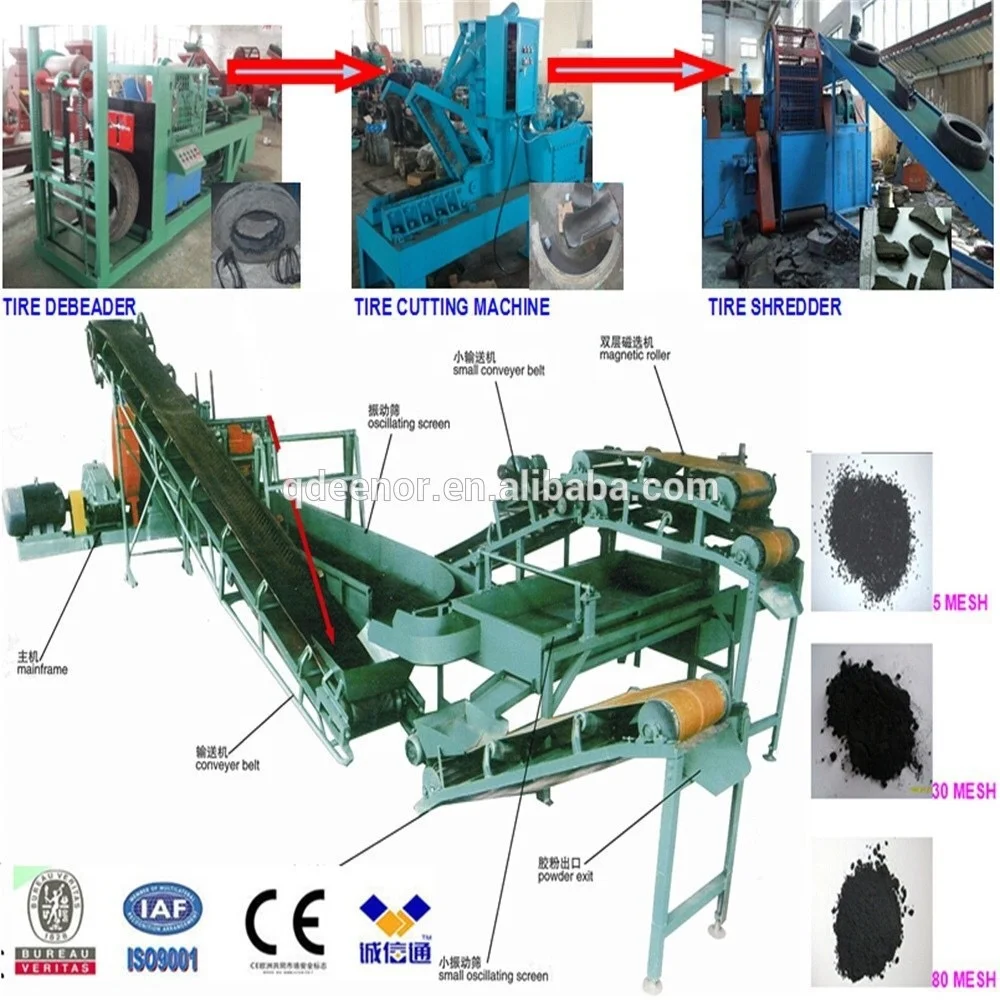

10.The input is whole tires, after the processing, steel is completely separated and fiber can be separated up to 99% or above. The

finish product is high and competitive in the market.

11.Unique design, high output and long lifetime blade characterize secondary shredder and fine rubber shredder, which can improve

the working efficiency and lower equipment maintenance cost.
12.Double-grinding pan rubber grinder is featured for low energy consuming and high output
13.Intelligence property right of the whole product ling and core technology.
14.Reasonable construction, easy operation and low rate of breakdown.
15.Environmental-protection, no pollution(no waste gas, no waste residue, no polluted water), meeting the environmental requirement of the government.



3.Specifiction:

Model	Drum diameter	Drum length	Front roll linear speed	Roll speed ratio	Max roller spacing	Motor power	Daily capacity
XKP-350	300mm	500mm	17.6m/min	1:1.38	10mm	22kw	2tons
XKP-400	400mm	600mm	21.6m/min	1:1.38	10mm	30kw	4tons
XKP-450	450mm	760mm	25.3m/min	1:1.39	10mm	37/45kw	6tons
XKP-560	560mm	800mm	28.6m/min	1:1.41	10mm	55/60kw	8tons



 .Main structure and characteristic

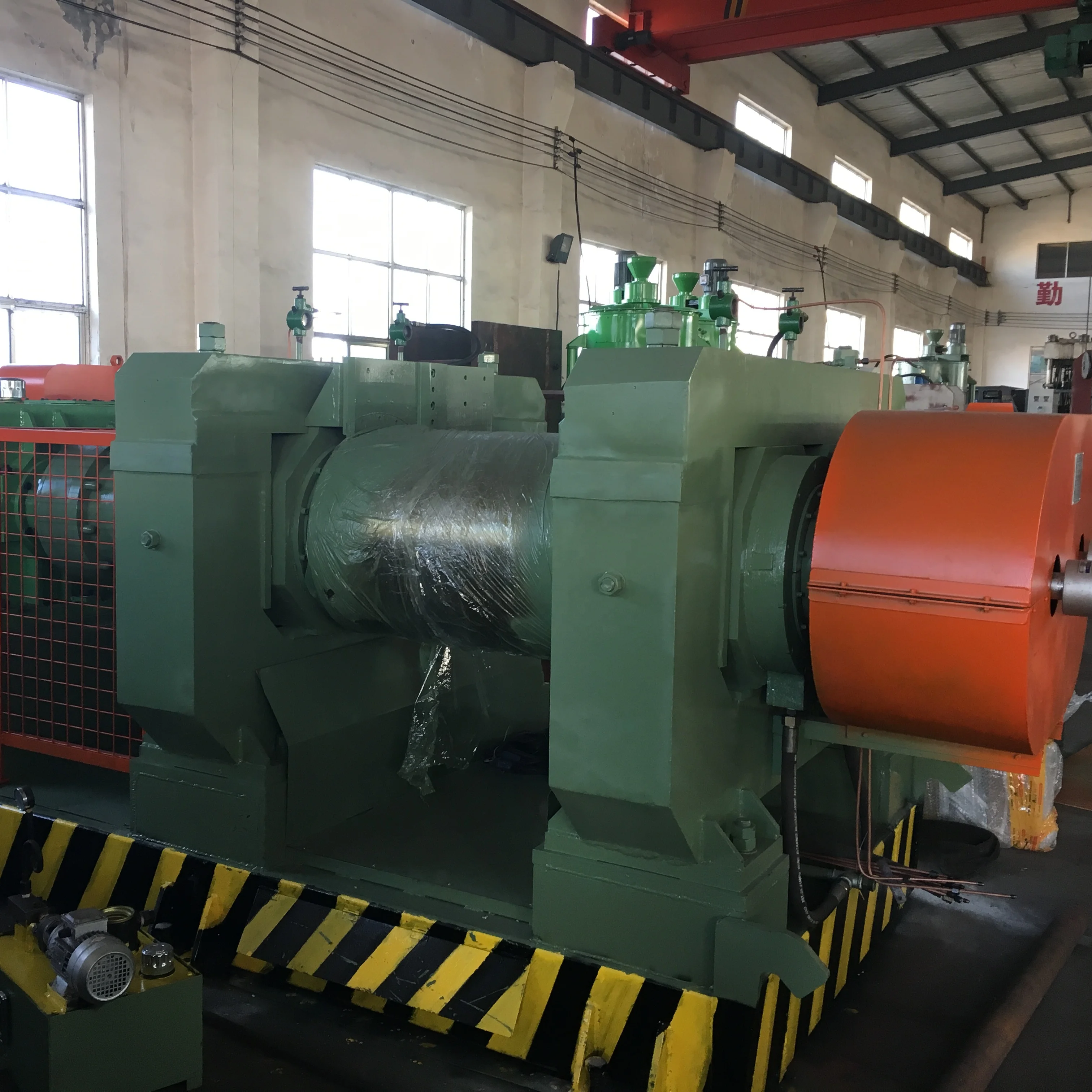

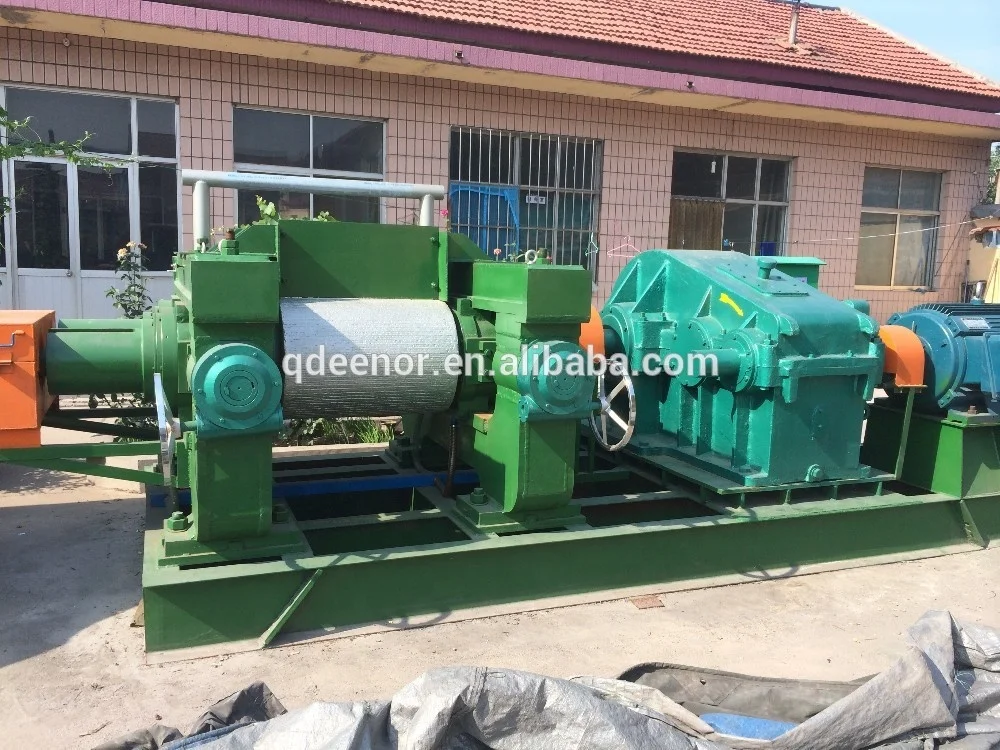

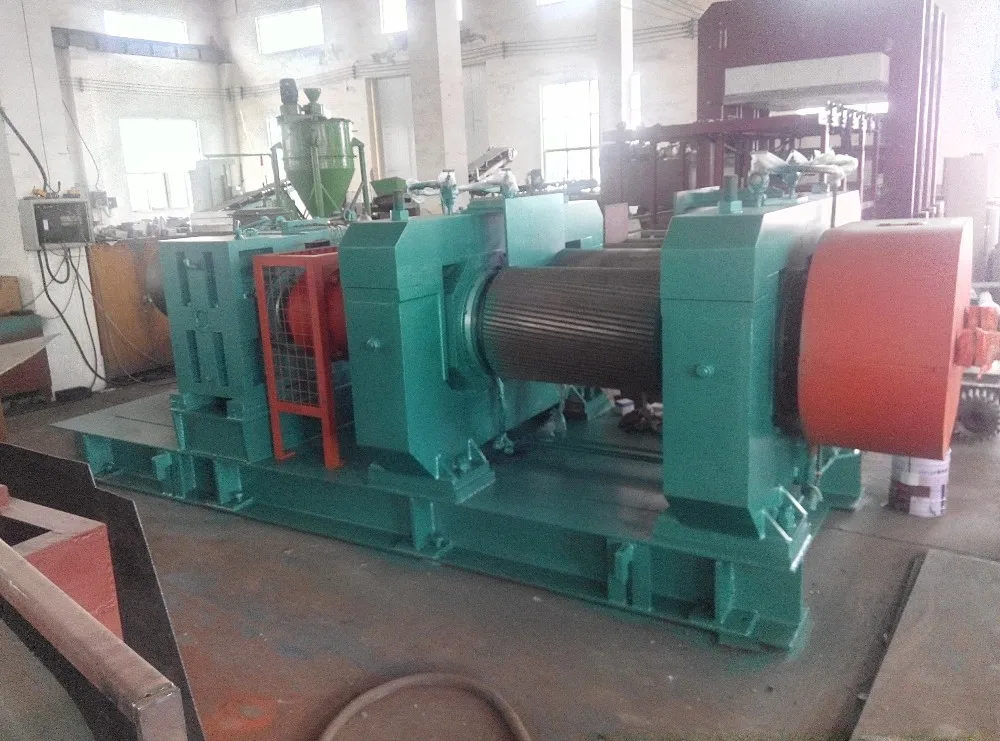

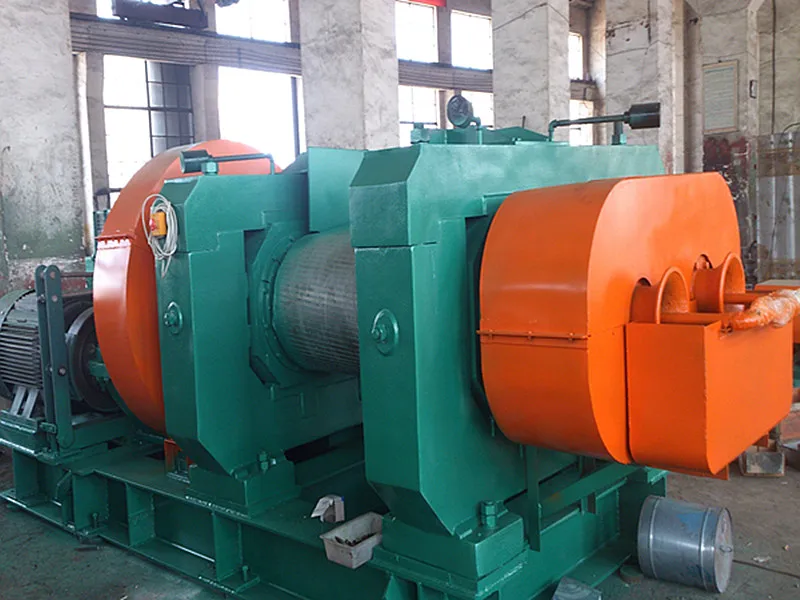

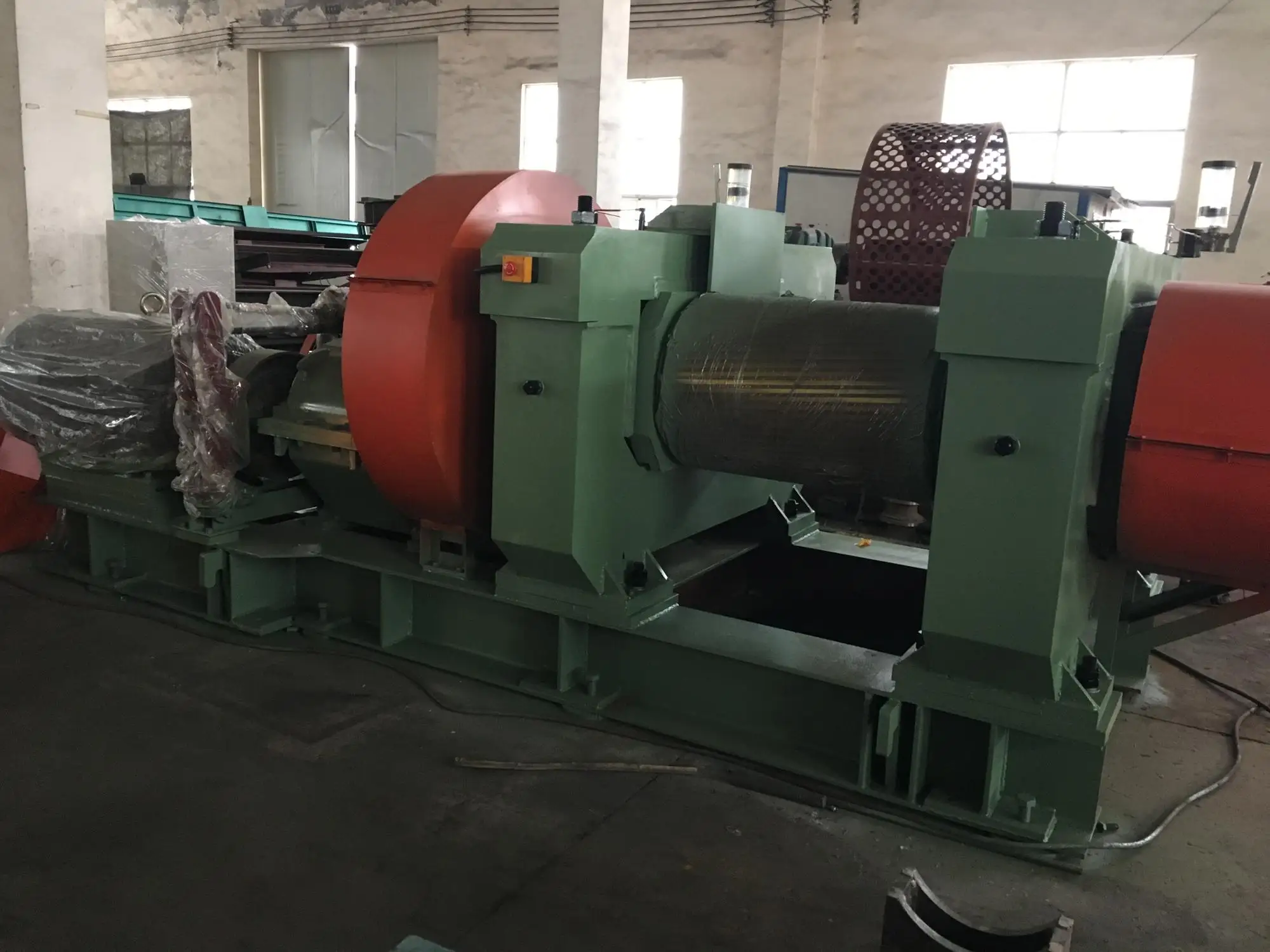

  This is a double roll rubber-mixing machine. It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.



  Front and back rolls are parallel mounted in the bearing of frame. By means of reducer, driving gears, speed ratio gears, the motor drives the front and back rolls rotate toward each other so that rubber-cracking is begun. The rolls are made from chilled cast alloy iron; the inner of it is hollow. Steam and cooling water can pass through them so that the surface temperature can be adjusted. Its surface possesses higher hardness and fineness.



  Roller bearing, copper bushing is fixed in the bearing base of frame. Back roll bearing bases are fixed up on frame, and the front roll-bearing base can slide in the guide-rail of frame.



  Roll spacing adjusting is carried out by means of the reverse of hand wheel makes the thread rod drive front bearing base movement. The roll pin reduces when the hand wheel rotates clockwise, otherwise it will increase.



  The emergency stopping device is mounted in the frame. In abnormal situation, pulling the rod, via dynamic, the machine is stopped immediately.



  Adjusting temperature device is two spray pipes with numeral rows of holes, extend the two pipes into the hollow roll, the holes are in the position of working section of the roll. The position of holes slants to 30 degree inner direction so that the spraying water and steam is directed at contacting angle of sizing material, this can control the surface temperature of roll.
