1* SODDR3L memory slot, support 1600/1333MHz DDR3L/1.35V RAM, up to 8GB
Display
Integrated Intel® HD Graphics
1*VGA,1*HDMI,1*LVDS port (support dual channel 24BIT)
Support VGA; HDMI; LVDS synchronous / asynchronous display
Network
1* Realtek RTL8111F Gigabit Ethernet, support Wake On LAN, PXE
Storage
1* SATA2.0 HDD port ( with built-in 2.5 inch HDD port SATA5 optional)
1* SATA 2.5 inch laptop HDD port SATA5,can install HDD directly.
1* MSATA slot, transmission rate up to 3Gbps
Audio
Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out/Power amplifier
Support amplifier 2Ω5W speaker
Expansion Sot
1*Mini-PCIE slot, support WiFi / 3G / 4G module
1*MSATA slot(support Intel protocol SSD, transmission rate up to 3Gbps)

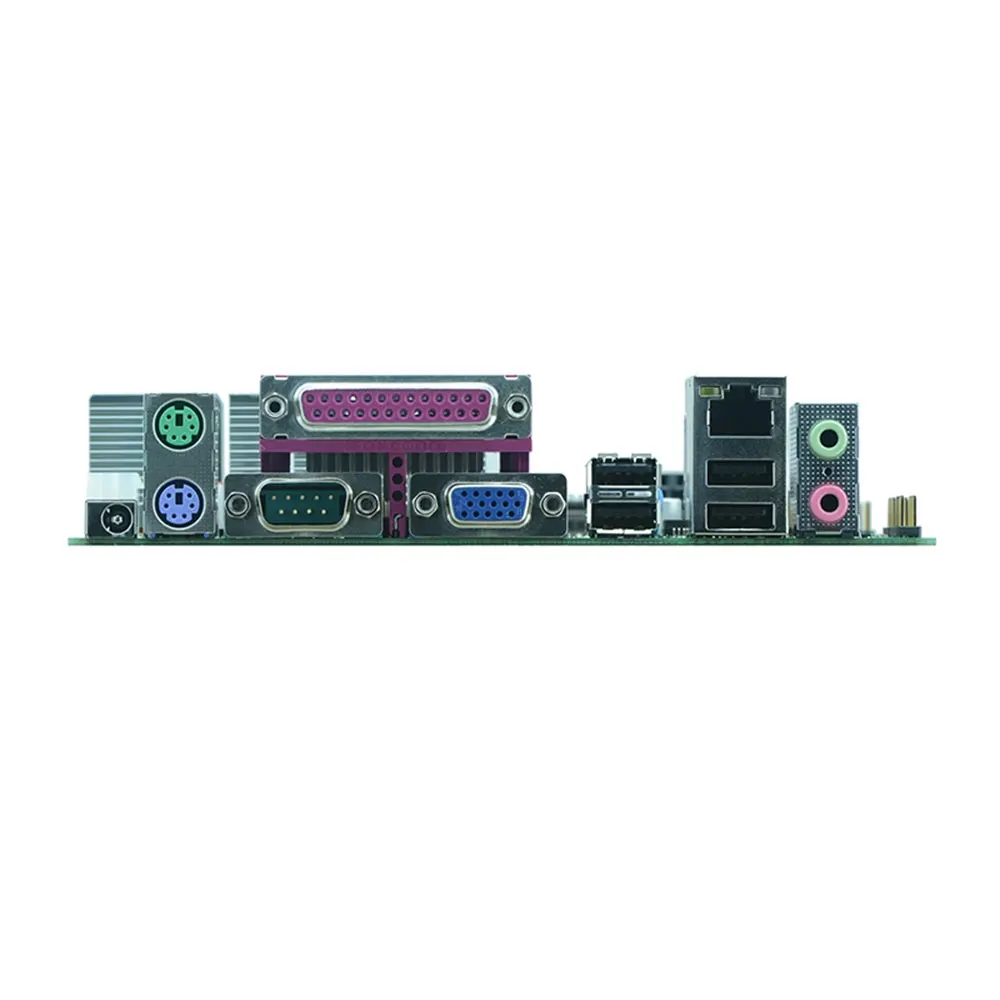

Rear I/O
1* Double deck KB/MS port
1* RS232 COM port
1* LPT printing port
1* VGA display port
4* USB 2.0 port
1* RJ-45 Gigabit LAN port
1* Line out port (green), 1* MIC port (red)
1* 12V DC_In Jack
Built-in I/O
1* LVDS port 2*15pin, support dual channel 24bit (Double 8)
1* LVDS backlight power supply port
1* J_HDMI port 2*8Pin
1* JVGA1 port 1*12Pin, same signal with DB15
1* PS/2 KB/MS port 1*6Pin
1* RS232 COM port 2*5Pin
4* USB 2.0 port 2*5Pin
1* USB 2.0 port 1*5Pin
1* Front audio port 2*5pin
1* Power amplifier port 1*4pin
1* Front panel switching button and LED indicator port 2*5Pin
1* HDD power supply port 1*4pin
1* SIM socket
1* 4pin ATX power supply port, support 12V power input output
Fan Connector
Fanless heatsink design, reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector
GPIO
Support 4 way input output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Operating System
Windows 7/Windows 10/Linux
Power Supply
DC12V power adaptor
Working Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Working Humidity
5%-95% relative humidity, non-condensing
Dimension
170mm x 170mm
Company Profile
Shenzhen Inctel Technology Co.,Ltd. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
1. As a professional manufacturer and supplier of mini pc over 10 years,we win our customers with good quality,best service and competitive price. 2.Our products are 100% original and have strict QC inspection before shipment. 3.Professional and efficient sales team serve for you diligently 4.Sample order is welcomed and will be delivered within 3 days. 5.We are Alibaba assessed 7 years Gold Supplier and more than 10 years industrial experience. 6.We support Trade Assurance to ensure On-time shipment and product quality. 7.We provide OEM service according to your requirements. 8.We provide 3 Years maintenance warranty for our products.
✈✈Actual delivery time: most customers receive within 7-15 working days. 1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid. 2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door. 3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods,hope you can kindly understand it, thanks. 4. e-EMS: it is for Russia and some other countries. 5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe . 6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you. 7. If you don't accept above terms, pls do not buy it, thanks.
FAQ
1. Can you put my brand name (logo) on these products? Yes,.We can support OEM/ODM service, the process of customization is following: 1) provide your specific requirement. 2) our design engineer draw the design draft. 3) you confirm the design draft. 4) we start produce it.
2. What payment method do you accept? T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.
3. What is the Minimum Order Quantity (MOQ)? We can sell one piece of sample for your testing.
4. What is the lead time of your products? 1-2 days for one sample, 7-15 working days for a large quantity.
5. How many years for the product warranty? 3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it? We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.
7. What kinds of customization can you do? We can do the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services? Yes, we can offer you mouse and keyboard combo, HDMI cable, genuine Windows 10 license, external CD-ROW, USB Hub, Bluetooth dongle, etc.
9. What is HS code of Partaker mini pc? 8471494000
