1* SODDR3L RAM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics
Integrated Intel® HD Graphics
1*VGA,2*EDP port
Support VGA/EDP synchronous asynchronous display
LAN
1* Realtek RTL8111H Gigabit LAN port, support Wake On LAN,PXE function
Storage
1* SATA2.0 HDD port (SATA2 and built-in 2.5” HDD port optional)
1* SATA 2.5” HDD port SATA_CN2, can install HDD directely
1* MSATA SSD slot, transmission rate up to 3Gbps
Audio
Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out
Expansion Slot
1*Mini-PCIE slot, support WIFI,3G/4G module

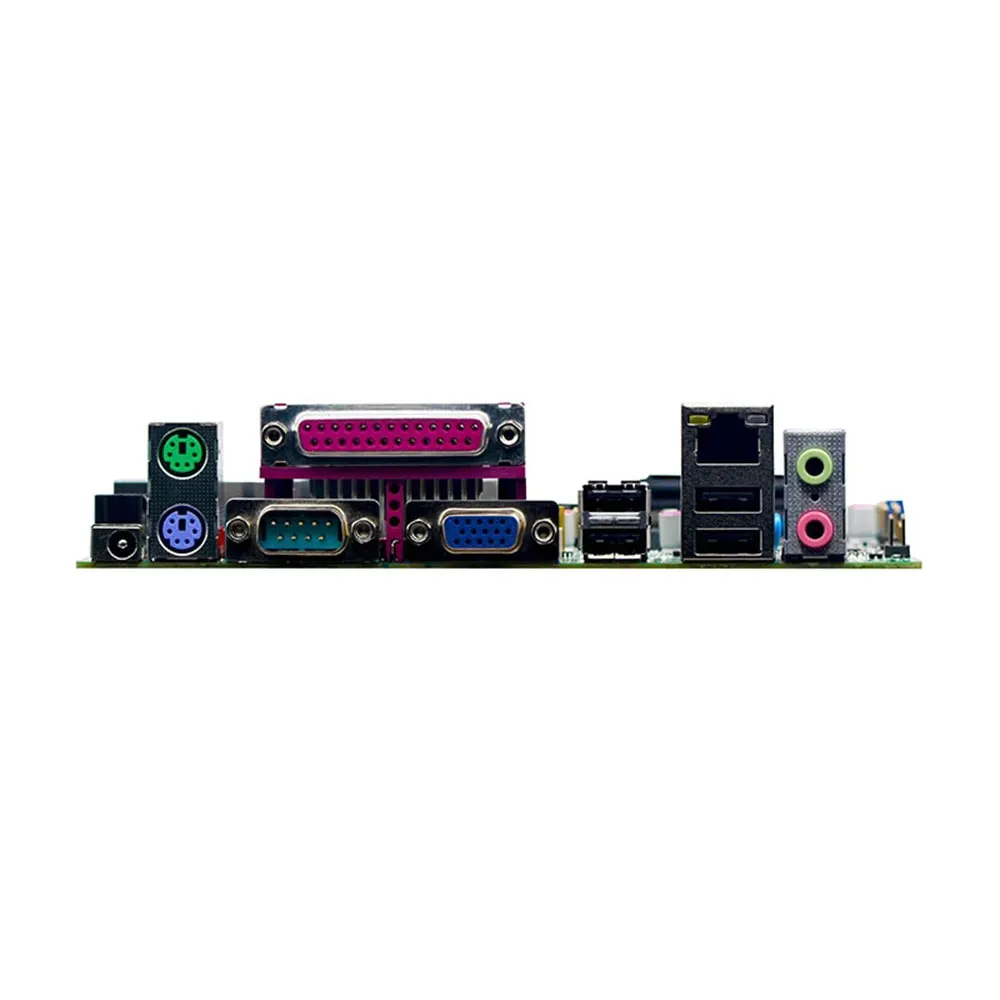

Rear I/O
1* 12V DC_In Port
1* Double layer KB/MS port
1* RS232 COM port
1* LPT port
1* VGA
4* USB 2.0
1* RJ-45 Gigbit LAN port
1* Line out port (green),1* MIC port(red)
Built-in I/O
1*JEDP1, 2*15pin,
1*JEDP2, 2*15pin
1* TPM, 2*8pin
1* JVGA1, 1*12Pin, same signal with DB15
1* PS/2 KB/MS port(red)1*6Pin
1* RS232 COM port, 2*5Pin
4* USB 2.0, 2*5Pin
1* USB 2.0, 1*5Pin
1* Front audio port, 2*5pin
1* Front panel switch button and indicator LED port, 2*5Pin
1* HDD power supply port, 1*4pin
1* SIM slot
1* 4pin ATX power connector(can do 12V input output power supply port)
Fan Connector
Fanless design, reserve 1*4pin CPU smart fan connector, 1* 4pin system fan connector
GPIO
Support 4-in 4-out GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Support OS
Windows 7/Windows 10/Linux
Power Type
DC 12V power supply
Working Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Working Humidity
5%-95% relative humidity, non-condensing
Dimension
170mm x 170mm
