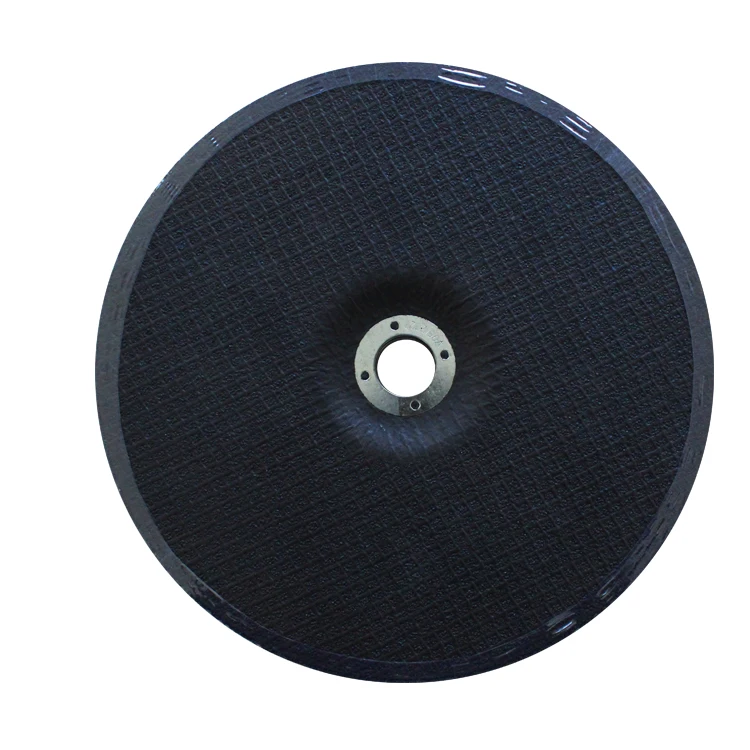

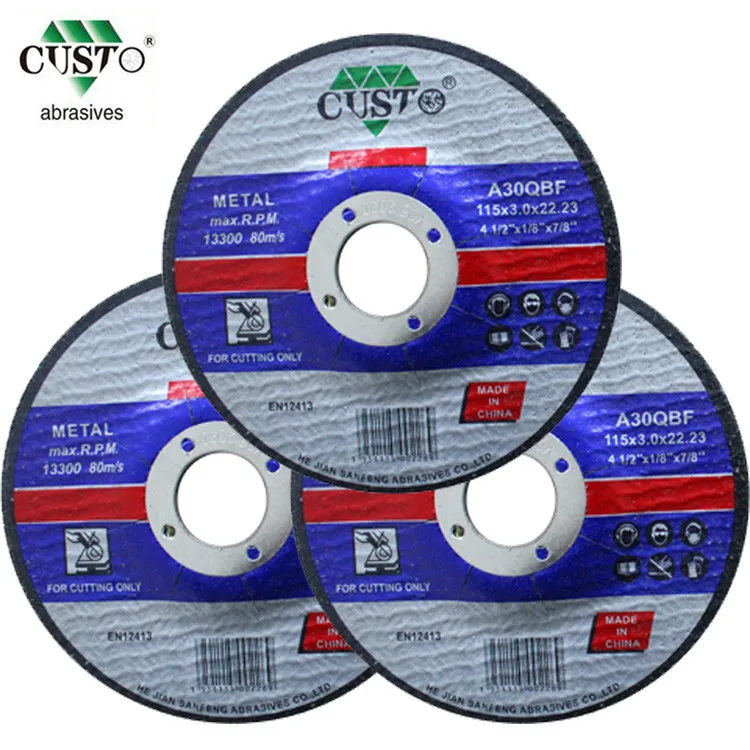

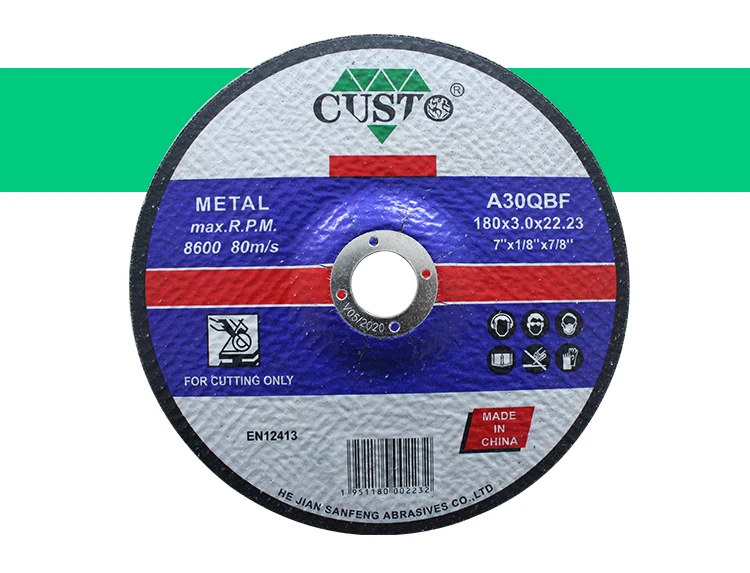

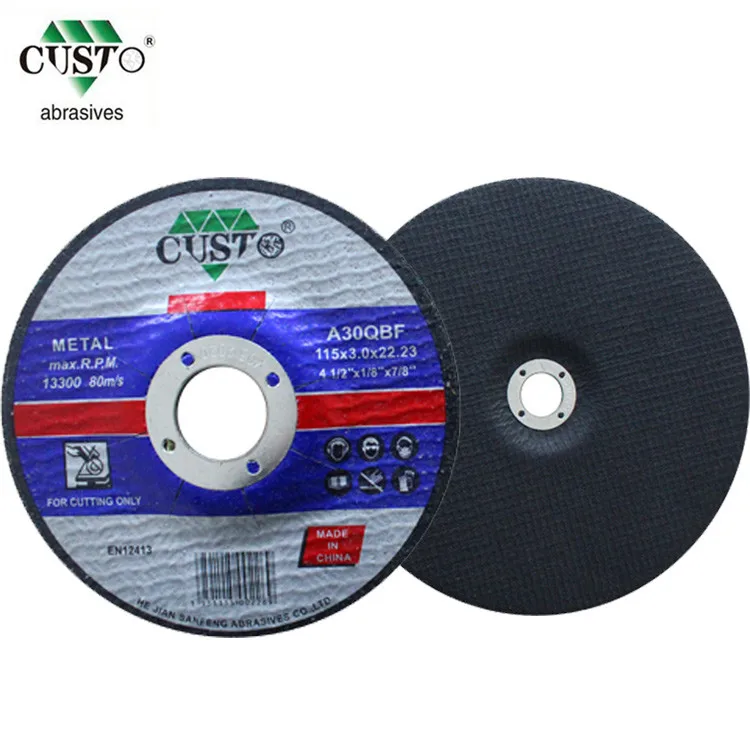

Free Sample Abrasive 115mm Cutting Disc Metal and Stainless Steel Cutting Disc
- Category: Abrasive Tools >>>
- Supplier: Hebei Sanfeng Abrasives Co. Ltd.
Share on (62425490779):
Product Overview
Description
4 inch 1mm cutting wheel /cut-ff wheels/cutting off wheels for steel with mpa
Product Description
product feature:
1.Exquisite Craft---good balance in the cutting process, the cutting does not shake, cutting speed is fast, high sharpness, cut neatly
2.Good Performance---the products are more resistant to high temperature and oxidation, and extend the service life
3.Good Material---choose brown corundum material, the product has strong impact resistance, good effect, low energy consumption
4.Dual mesh reinforced, durable design----double mesh design, not easy to blow up, with higher tensile, impact and bending resistance, use more assured
5.Wide application---suitable for cutting carbon steel, stainless steel, iron, alloy steel and other materials
| Item number | Dimension | Dimension | Speed (RPM) | Speed (m/s) | QTY/BOX | QTY/CTN |
| DXTXH(mm) | DxTxH(inch) | (pcs) | (pcs) | |||
| C41A1002016M1 | 100X2.0X10 | 4X5/64X3/8 | 15200 | 80/100 | 100 | 400 |
| C41A1002516M1 | 100X2.5X16 | 4X3/32X5/8 | 15200 | 80/100 | 50 | 400 |
| C41A1003016M1 | 100X3.0X16 | 4X1/8X5/8 | 15200 | 80/100 | 50 | 200 |
| C41A1152022M1 | 115X2.0X22.2 | 4 1/2X5/64X7/8 | 13300 | 80/100 | 100 | 400 |
| C41A1152522M1 | 115X2.5X22.2 | 4 1/2X3/32X7/8 | 13300 | 80/100 | 25 | 400 |
| C41A1153022M1 | 115X3.0X22.2 | 4 1/2X1/8X7/8 | 13300 | 80/100 | 25 | 200 |
| C41A1252022M1 | 125X2.0X22.2 | 5X1/64X7/8 | 12200 | 80/100 | 100 | 400 |
| C41A1252522M1 | 125X2.5X22.2 | 5X3/32X7/8 | 12200 | 80/100 | 25 | 400 |
| C41A1253022M1 | 125X3.0X22.2 | 5X1/8X7/8 | 12200 | 80/100 | 25 | 200 |
| C41A1502022M1 | 150X2.0X22.2 | 6X5/64X7/8 | 10200 | 80/100 | 50 | 400 |
| C41A1502522M1 | 150X2.5X22.2 | 6X3/32X7/8 | 10200 | 80/100 | 25 | 200 |
| C41A1503022M1 | 150X3.0X22.2 | 6X1/8X7/8 | 10200 | 80/100 | 25 | 200 |
| C41A1802022M1 | 180x2.0x22.2 | 7X1/12X7/8 | 8600 | 80/100 | 50 | 200 |
| C41A1802522M1 | 180X2.5X22.2 | 7X3/32X7/8 | 8600 | 80/100 | 25 | 100 |
| C41A1803022M1 | 180X3.0X22.2 | 7X1/8X7/8 | 8600 | 80/100 | 25 | 100 |
| C41A2302022M1 | 230X2.0X22.2 | 9X5/64X7/8 | 6600 | 80/100 | 50 | 100 |
| C41A2302522M1 | 230X2.5X22.2 | 9X3/32X7/8 | 6600 | 80/100 | 25 | 50 |
| C41A2303022M1 | 230X3.0X22.2 | 9X1/8X7/8 | 6600 | 80/100 | 25 | 50 |
| C41A3003020M1 | 300x3.0x20 | 12x3/32x3/4 | 5100 | 80/100 | 25 | |
| C41A3003022M1 | 300x3.0x22.2 | 12X1/8x7/8 | 5100 | 80/100 | 25 | |
| C41A3003025M1 | 300x3.0x25.4 | 12x1/8x1 | 5100 | 80/100 | 25 | |
| C41A3502525M1 | 350x2.5x25.4 | 12x3/32x1 | 4400 | 80/100 | 25 | |
| C41A3503025M1 | 350x3.0x25.4 | 14x1/8x1 | 4400 | 80/100 | 25 | |
| C41A3503225M1 | 350x3.2x25.4 | 14x1/8x1 | 4400 | 80/100 | 25 | |
| C41A3503525M1 | 350x3.5x25.4 | 14x9/64x1 | 4400 | 80/100 | 25 | |
| C41A3503520M1 | 350x3.5x20 | 14x9/64x3/4 | 4400 | 80/100 | 25 | |
| C41A4003225M1 | 400x3.2x25.4/32 | 16x1/8x1 | 3800 | 80/100 | 25 | |
| C41A4003525M1 | 400x3.5x25.4/32 | 16x9/64x1 | 3800 | 80/100 | 25 | |
| C41A4004025M1 | 400x4.0x25.4/32 | 16x5/32x1 | 3800 | 80/100 | 25 |
Above this is a part of the parameter that customers need more, if you need other sizes, please contact us!
Production Process
1,Check the machine before installation is normal operation 2,Check whether the slice cracks, deformation 3,After installation, must be empty run for more than two minutes 4,The grinder must have a protective cover 5,The use of speed shall not exceed the provisions of the safe working speed 6,Storage should pay attention to antifreeze, moisture, collision and 50 degrees above the high temperature. |

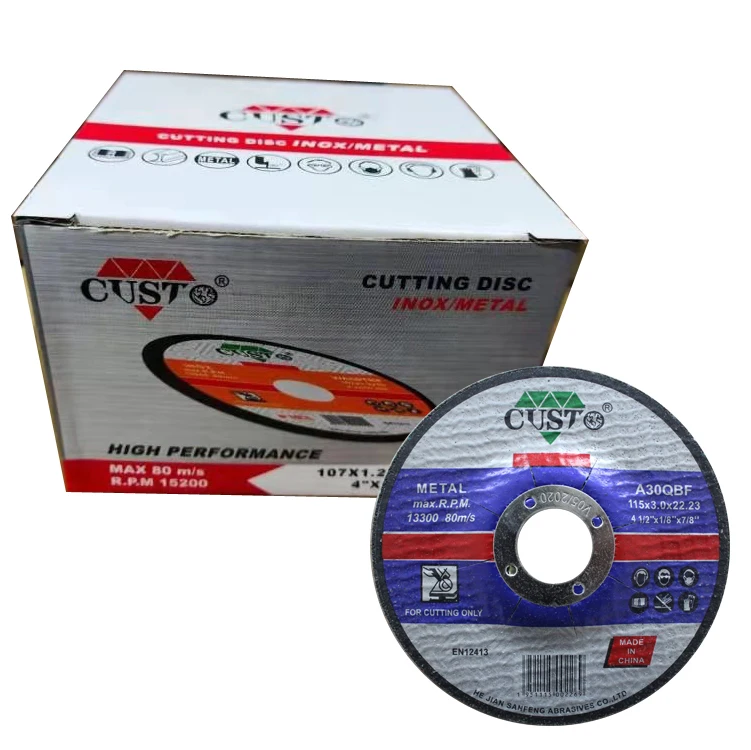

Packaging & Shipping
Packaging:Plastic film or wooden case Shipping: We will arrange delivery within 7 days after receive your deposit . |

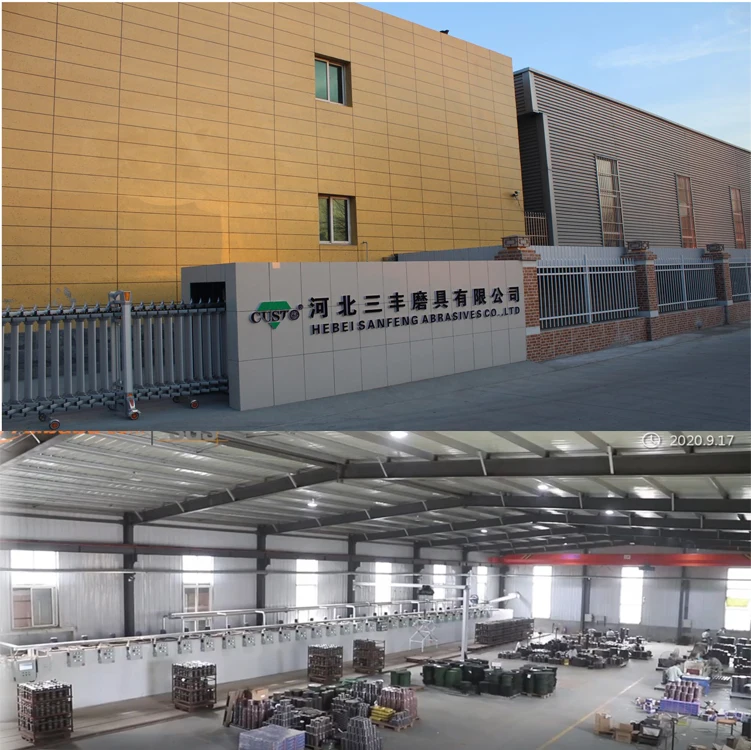

Company Information
SanFeng Abrasives was founded in 1997, specializes in producing cutting wheel ,grinding wheel, quality trustworthy and reliable. We always adhere to the principle of using high quality raw materials to create quality products. The Company strictly executes quality management system of ISO 9001 in company operation. And our products, have passed subjected to testing and certification by the authorized German MPA. |
FAQ
1. Can we use our own logo or design? Yes, you can. You can contact the salesmen. Please send an email to her/ him more details about the logo, sticker, packaging etc. More information you provide, more service you can get.
2. Do you have inspection procedures? Yes, we have inspection procedures as follows: - Raw material incoming - In-process - 100% self-inspection before packing - Final AQL inspection procedures.
3. My trial order is not in large quantity, can you provide it? Yes, we accept every order from you and your esteemed company.
4. What is the payment? Usually we accept T/T. We also accept Paypal, Western Union and L/C.
5. Can we use our own shipping agent? Yes you can. We had cooperated with many forwarders. If you need, we can recommend some to you and you can compare the prices and services.
6. If I want to visit your factory, which is the nearest international airport or domestic airport? Beijing Airport, Tianjin Airport, Shijiazhuang Airport are all close to us. |
