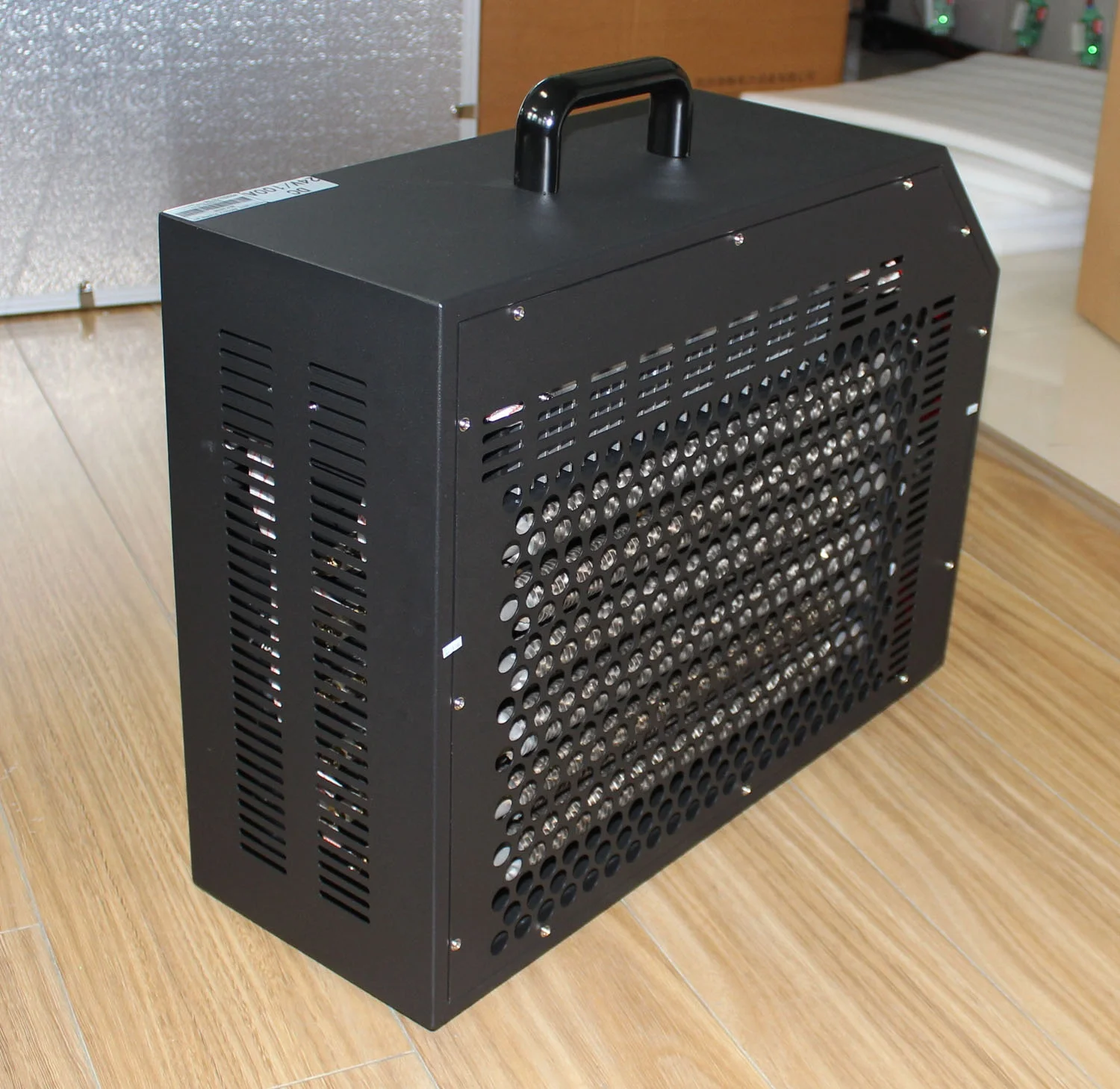

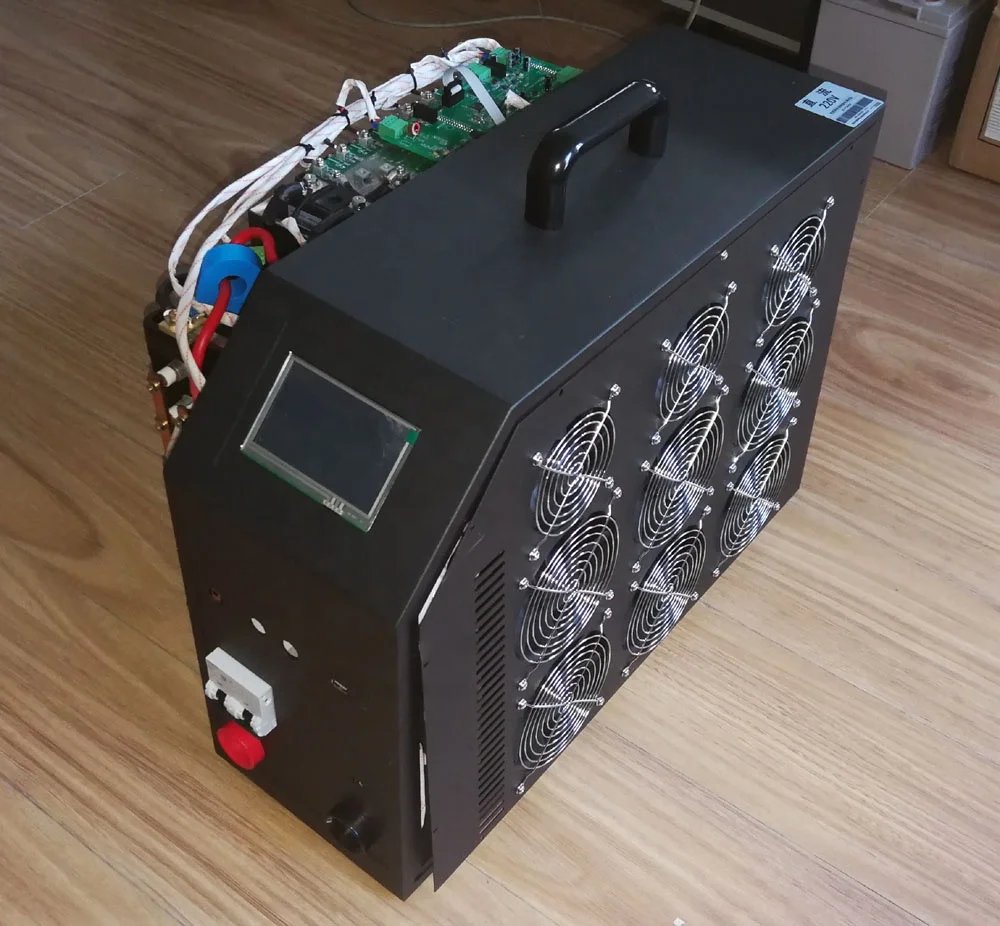

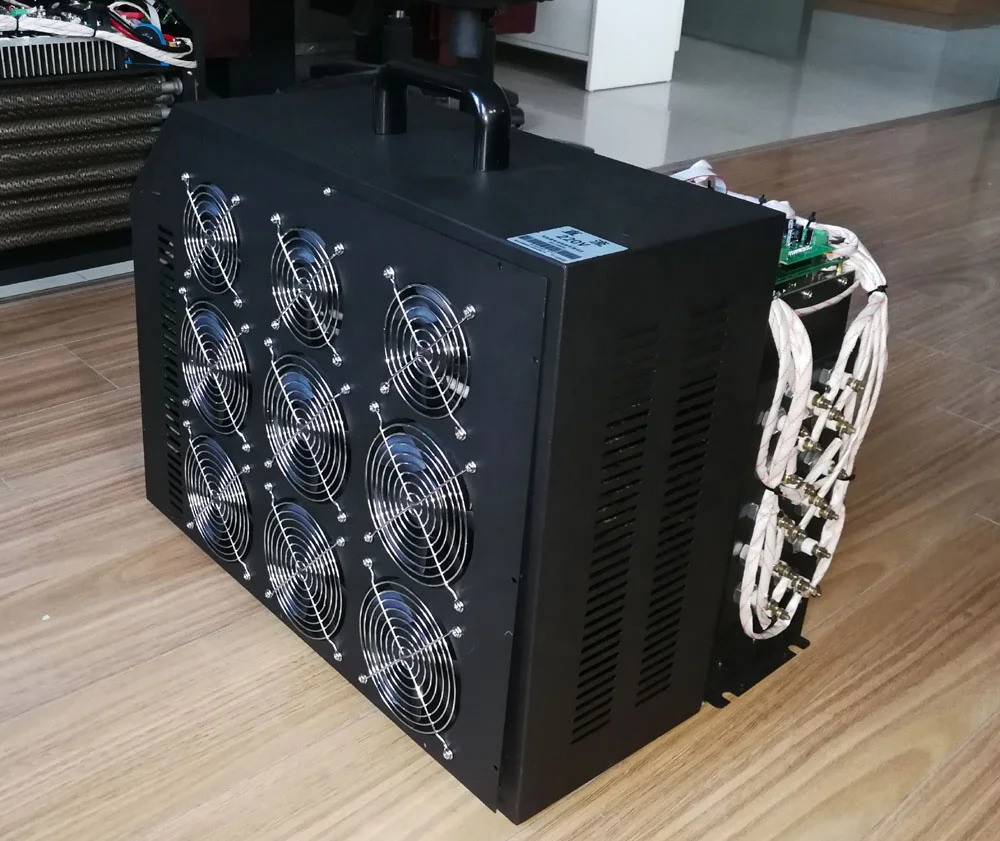

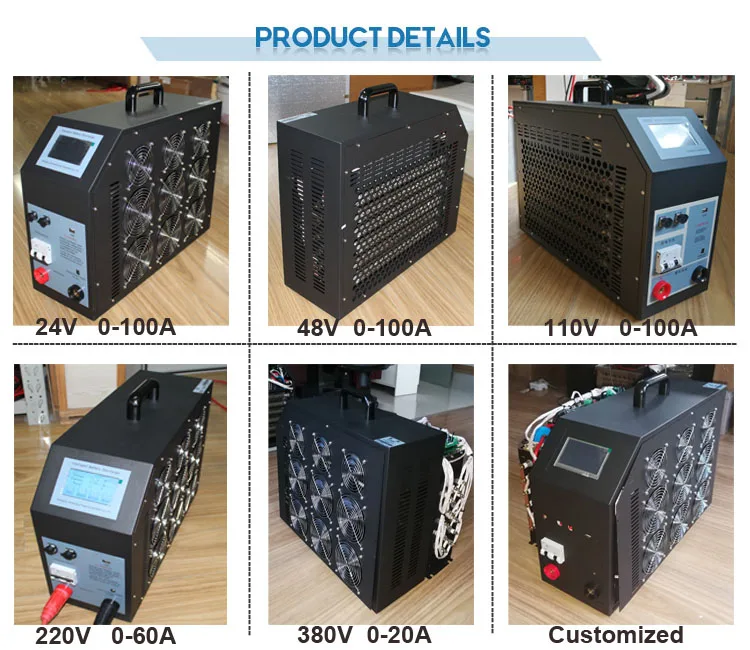

220V 60A Hangzhou factory Intelligent Discharger Lead Acid Digital Battery Discharge Tester
Product Description
Feature:
1.It adopts high efficiency discharge load and special steady current mode, high accuracy of constant current, fast response, environmental protection and no peculiar smell.

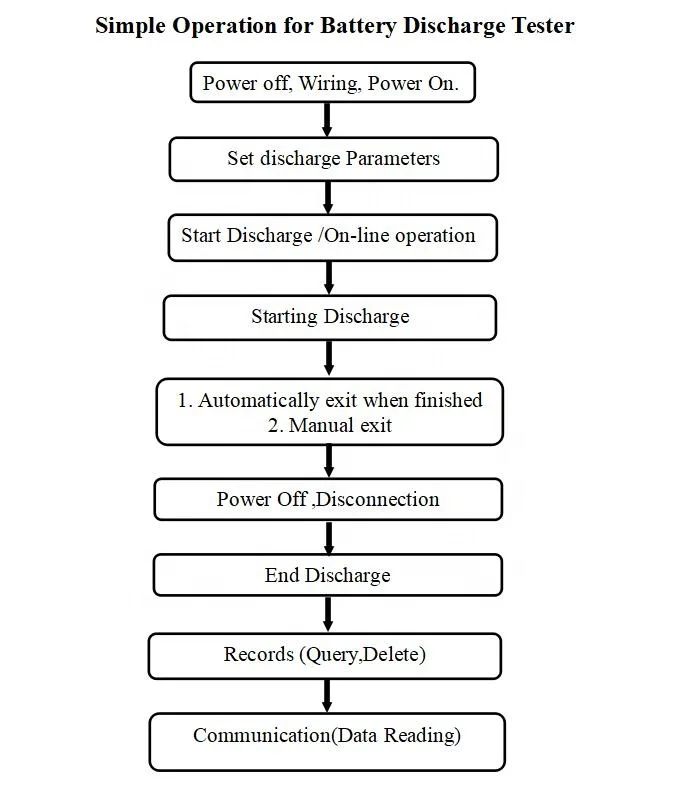

2.Discharge current, voltage protection lower limit, discharge time and other parameters can be set freely, the whole process constant current current discharge, no jump, when reached the voltage lower limit set value or discharge time to automatically stop discharge, can also be manually quit discharge at any time
4.with the "wireless battery patrol instrument" supporting the use of real-time collection of the voltage of each single battery, set the relevant parameters can achieve the automatic discharge of the whole process

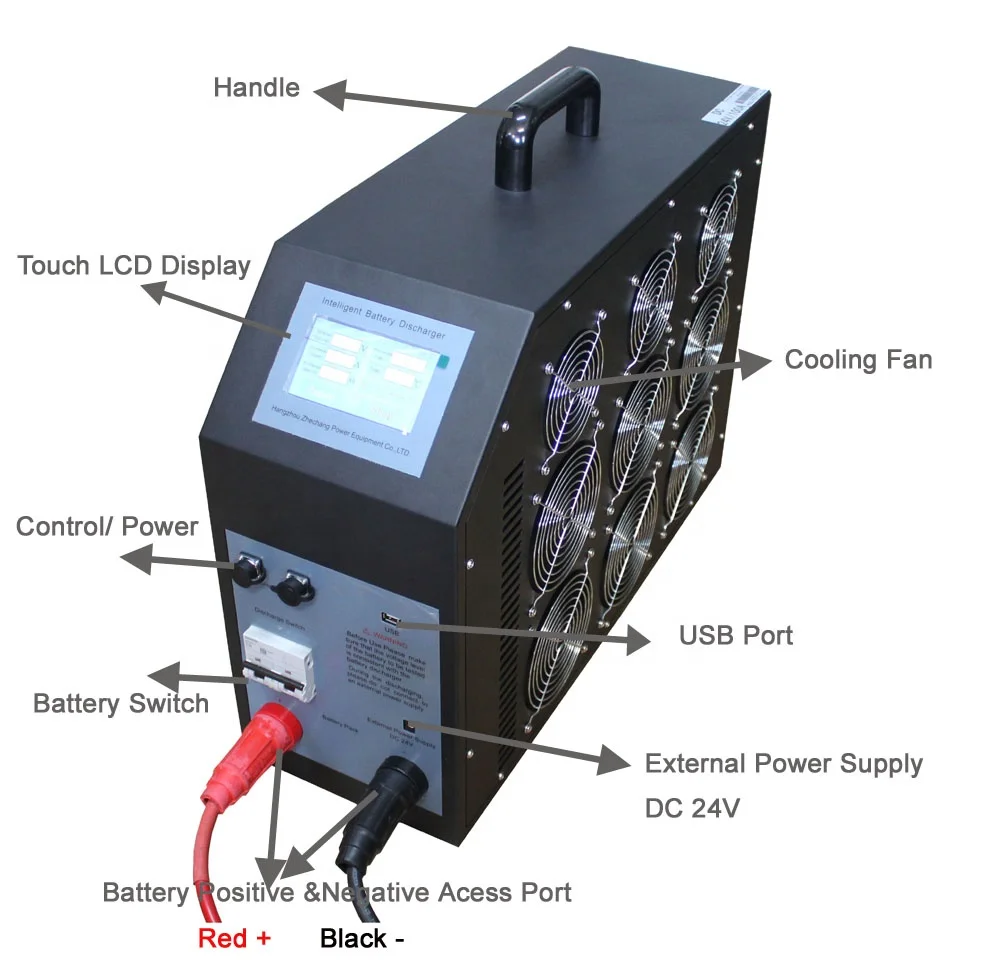

5.LCD screen, real-time display of the data, intuitive and easy to use
6.Data communication interface: USB, RS485, Convenient online use and export data
7.Built-in memory automatically save discharge data, support power off save
8.The instrument is equipped with simple and practical background analysis software, which can perform data check and analysis, report printing, automatically generate curves, histogram, data tables, etc. Excel format file can be exported, which is convenient for data processing and reporting.
9.It’s small and light and can be carried by one person, easy touse, safe and reliable.
Parameter
Model
ZC-F220/60
Applicable Battery type
220V
Dicharge Current working range
0-60A
Current setiing step
0.1A
Precision of constant current
+/-0.5%
Voltage testing accuracy
+/-0.5%
Display
LCD Screen
Communication interface
USB,RS485
Data storage
Built-in flash memory. Support power off save.
Working power
Provice directly by the battery pack test, no need external power.
