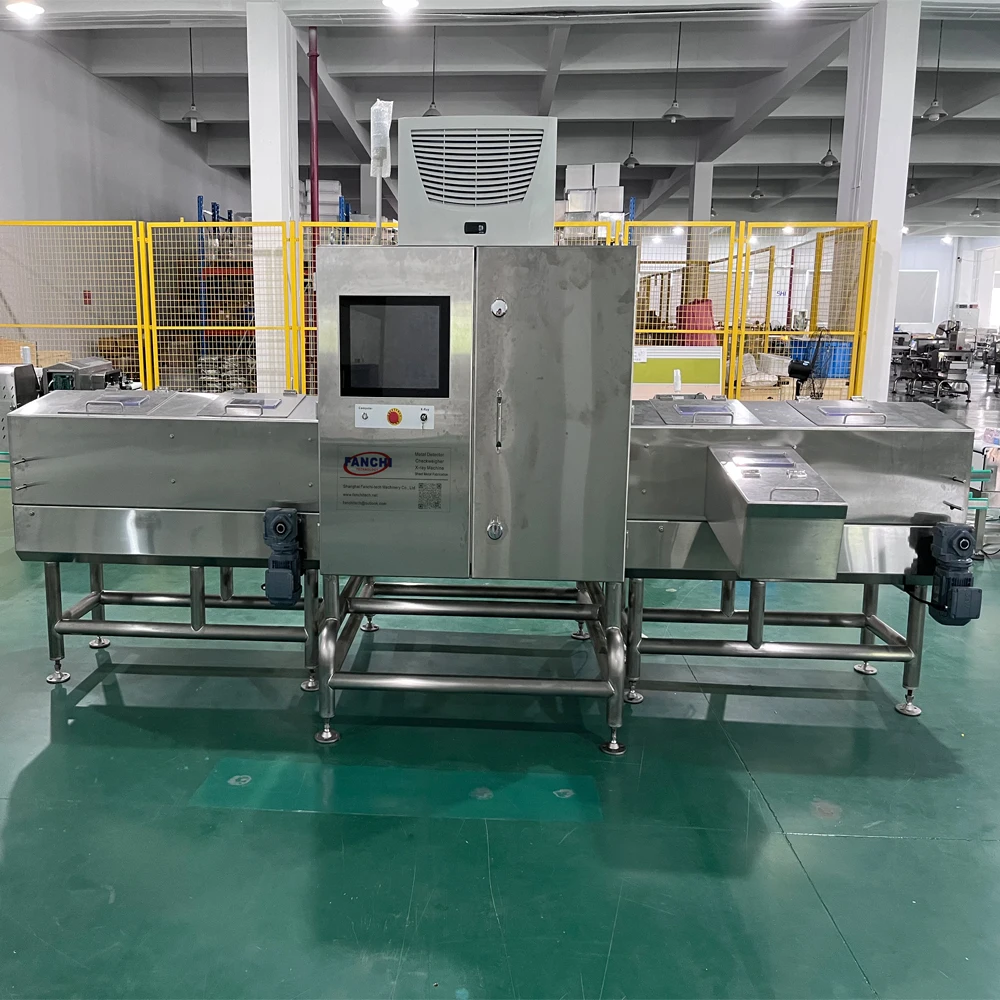

Dual beam X ray inspection system for metal canned products x ray machine for glass can
- Category: Testing Equipment >>>
- Supplier: Shanghai Fanchi-Tech Machinery Co. Ltd.
Share on (62428356447):
Product Overview
Description
Product Overview
Fanchi-tech Highly Versatile X-ray Inspection System
Fanchi-tech X-ray Inspection systems offer reliable foreign object detection in industries that have to pay particular attention to the protection of their products and customers. They are suitable for packed and unpacked products, are easy to operate and require little maintenance. It can inspect metallic, non-metallic packaging and canned goods, and the inspection effect will not be affected by temperature, humidity, salt content, etc.
In addition to metals, plastics, or stone, our side-beam&dual-beam devices detect glass contamination in glass containers. You can achieve optimal product protection for the food, chemical, cosmetics or pharmaceutical industries. Besides, it can also be used for shape analysis, missing item and package check, etc.
In addition to metals, plastics, or stone, our side-beam&dual-beam devices detect glass contamination in glass containers. You can achieve optimal product protection for the food, chemical, cosmetics or pharmaceutical industries. Besides, it can also be used for shape analysis, missing item and package check, etc.
FEATURES AT A GLANCE
1.X-ray inspection specially for packaged food or non-food products, including shape analysis, missing item and package check, etc
2.Auto parameter setting by intelligent product learning
3.Detects high density materials like metal, ceramic, stone or hard rubber
4.Easy operation with auto-learn and clearly arranged functions on 17” touch screen
5.Fanchi advanced algorithm software for instant analysis and detection with high accuracy and reliability

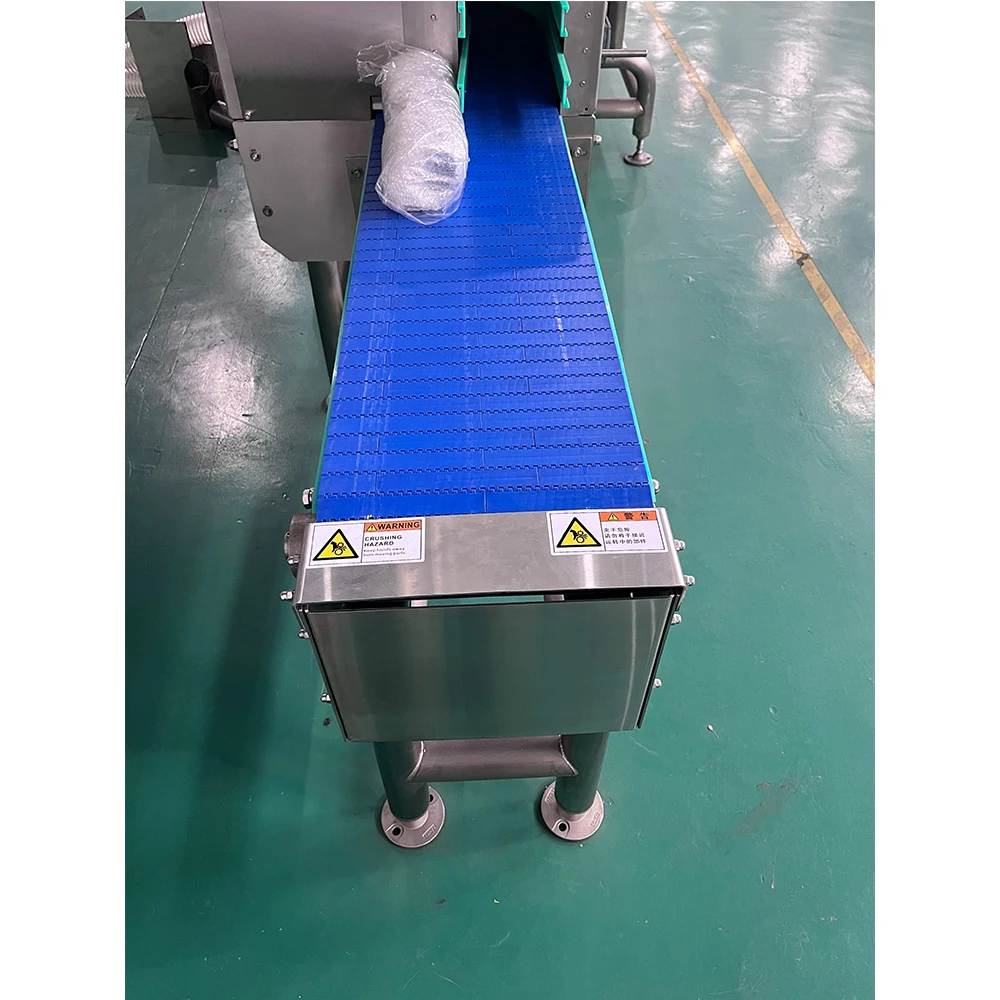

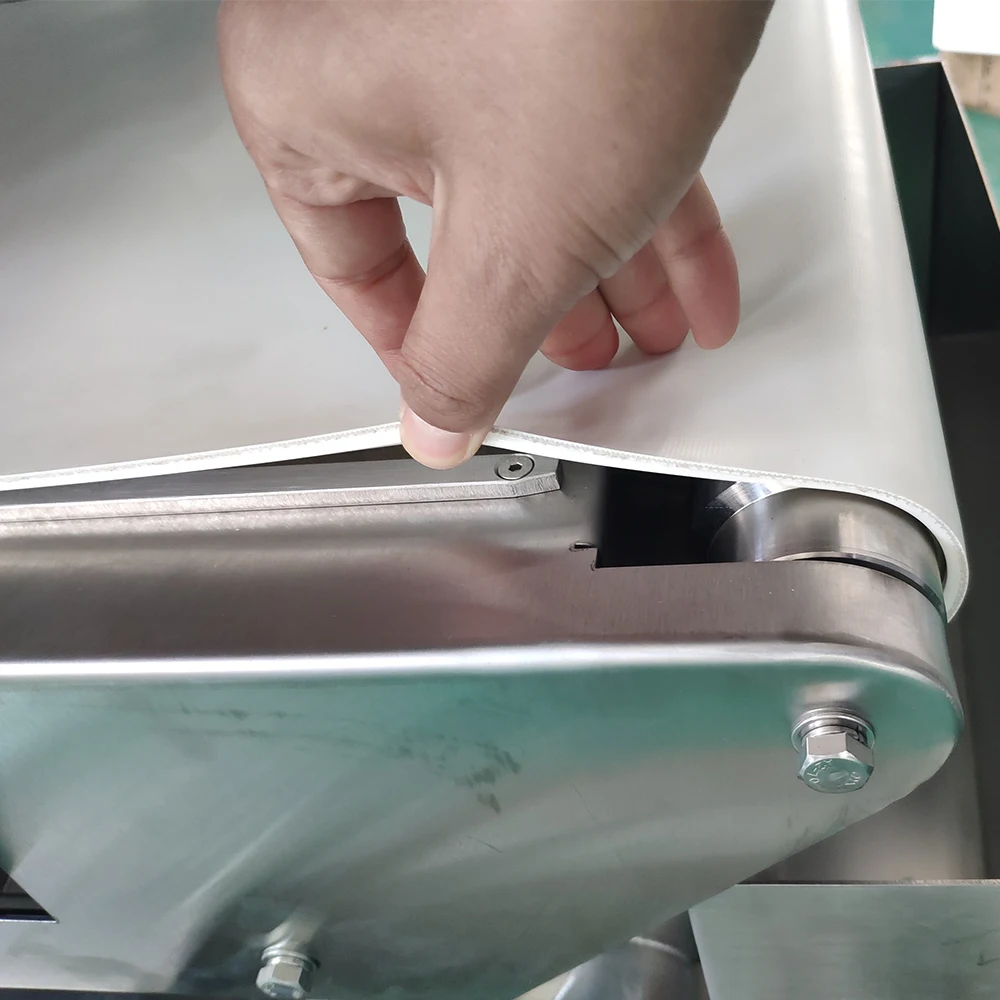

6.Quick release conveyor belt for easy cleaning and maintenance
2.Auto parameter setting by intelligent product learning
3.Detects high density materials like metal, ceramic, stone or hard rubber
4.Easy operation with auto-learn and clearly arranged functions on 17” touch screen
5.Fanchi advanced algorithm software for instant analysis and detection with high accuracy and reliability
6.Quick release conveyor belt for easy cleaning and maintenance
7.Real time detection with colored contamination analysis
8.Masking functions available
9.Auto-storing of inspection data with time and date stamp
10.User-friendly menus for easy operation

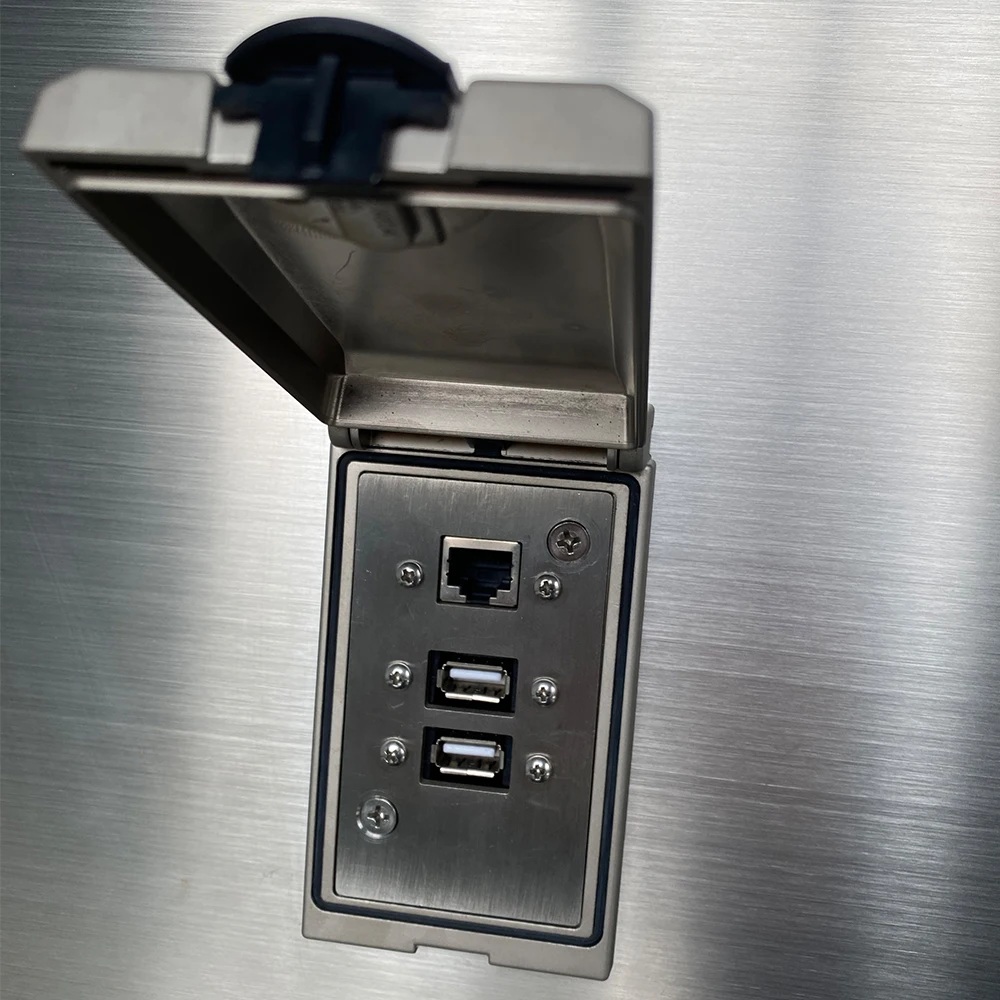

11.USB and Ethernet ports available
12.Built-in remote maintenance and service by Fanchi engineer
13.CE approval
8.Masking functions available
9.Auto-storing of inspection data with time and date stamp
10.User-friendly menus for easy operation
11.USB and Ethernet ports available
12.Built-in remote maintenance and service by Fanchi engineer
13.CE approval

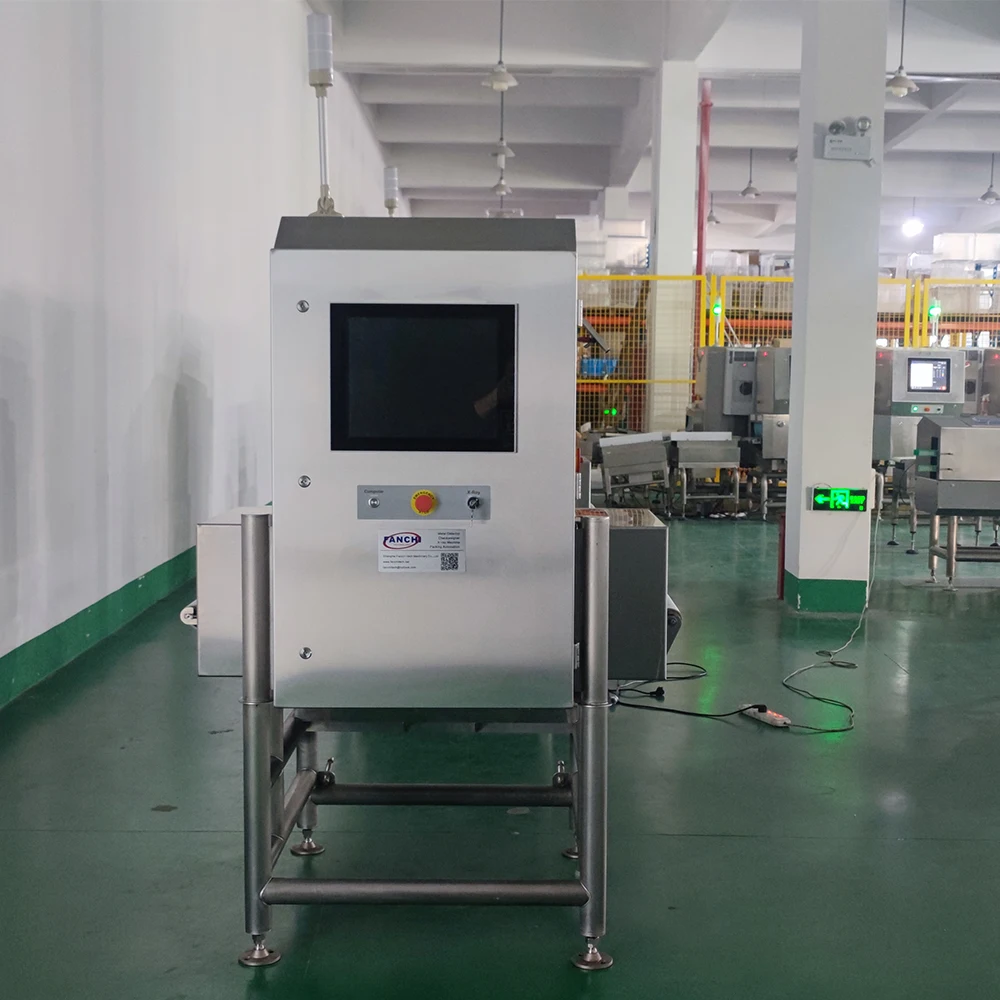

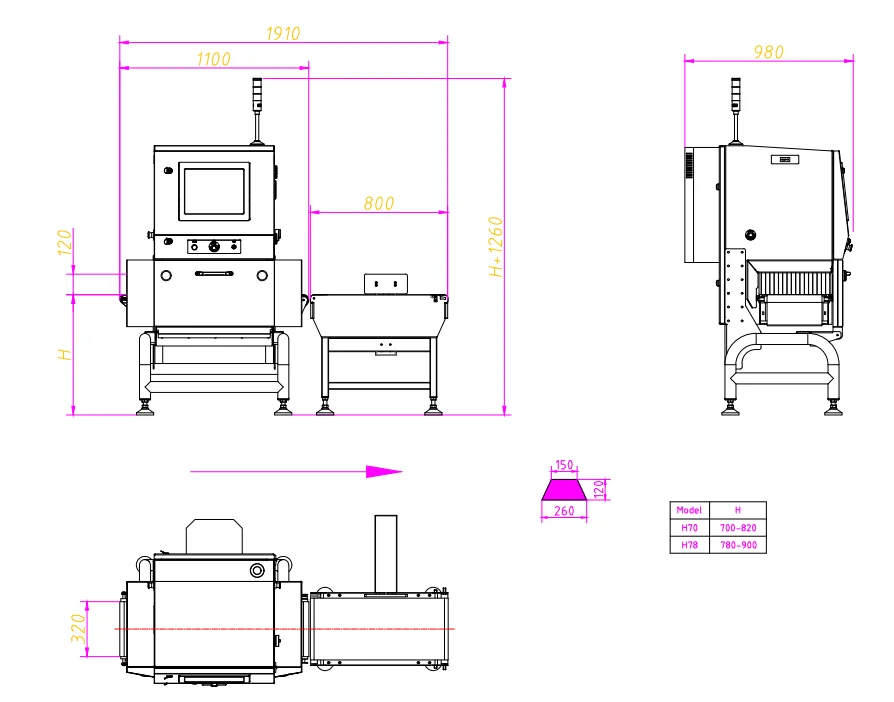

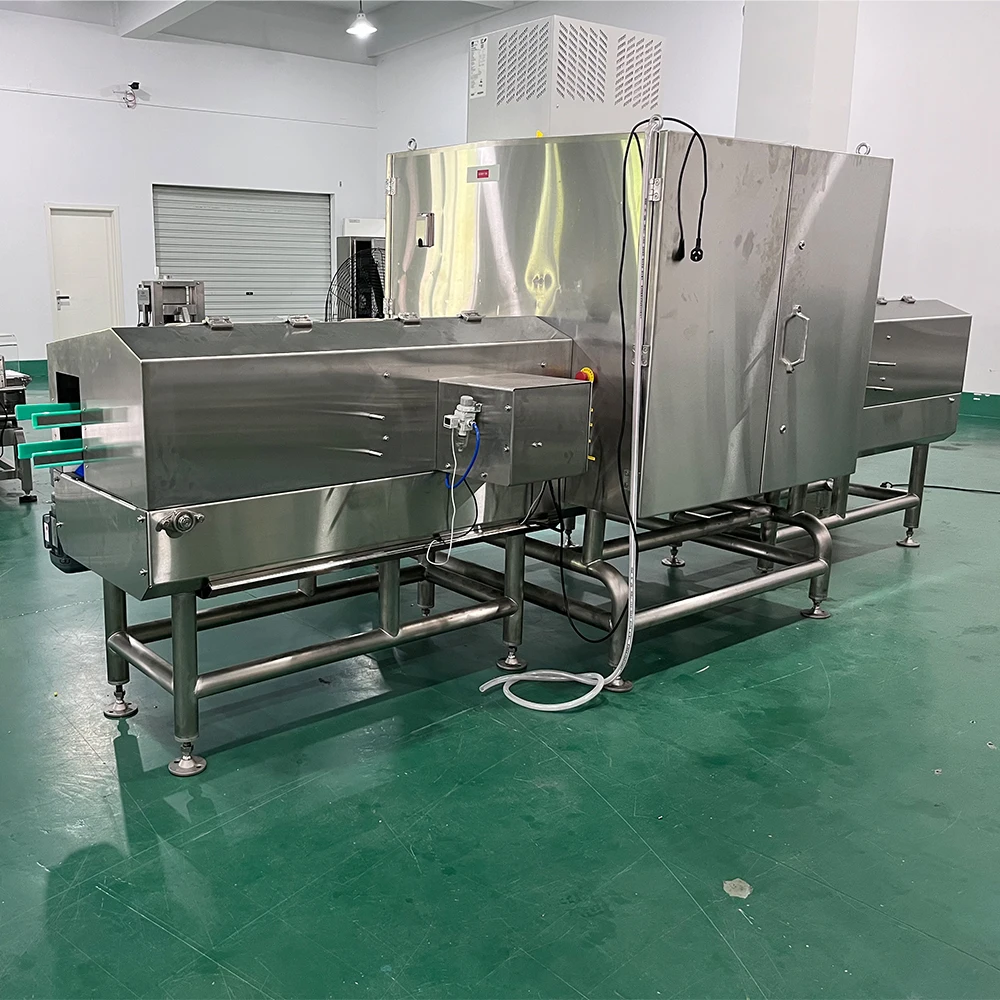

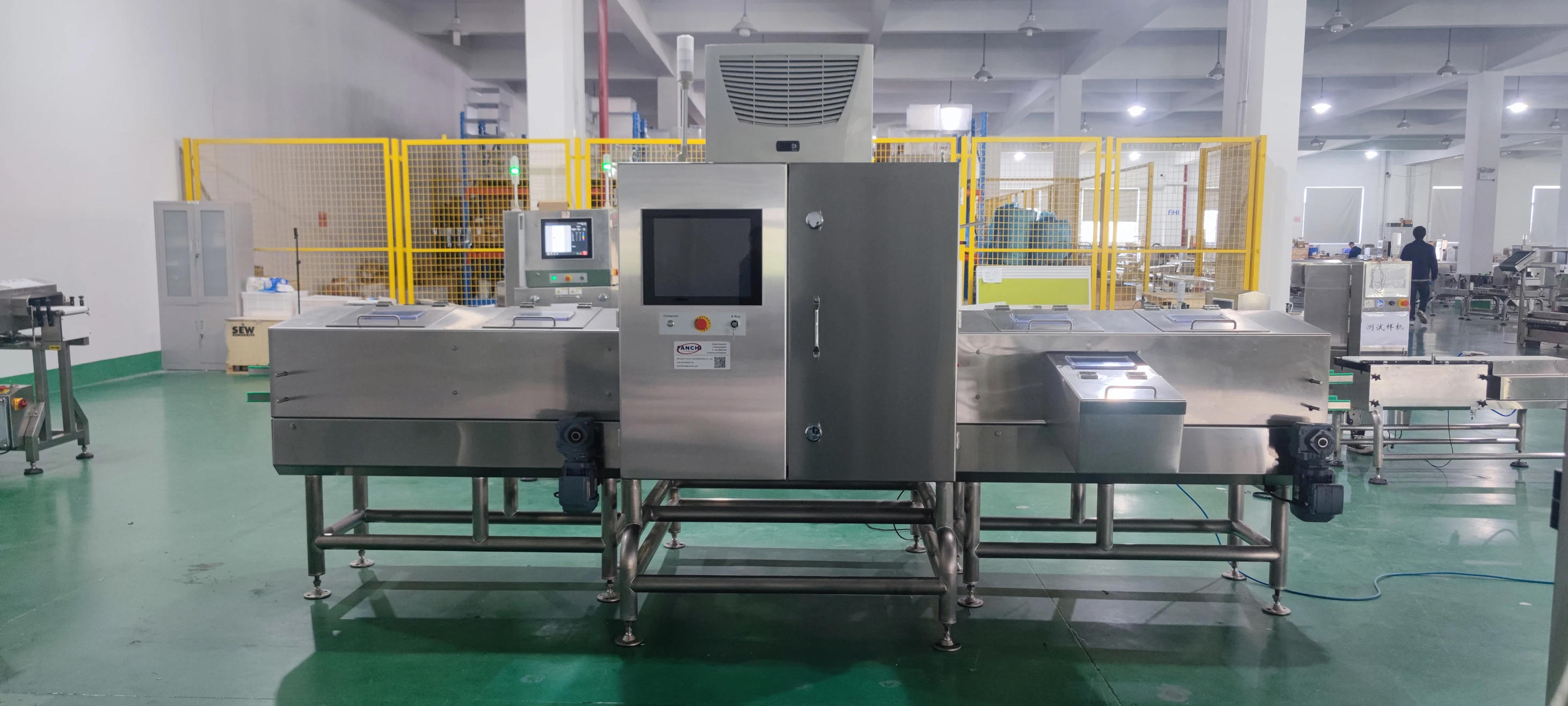

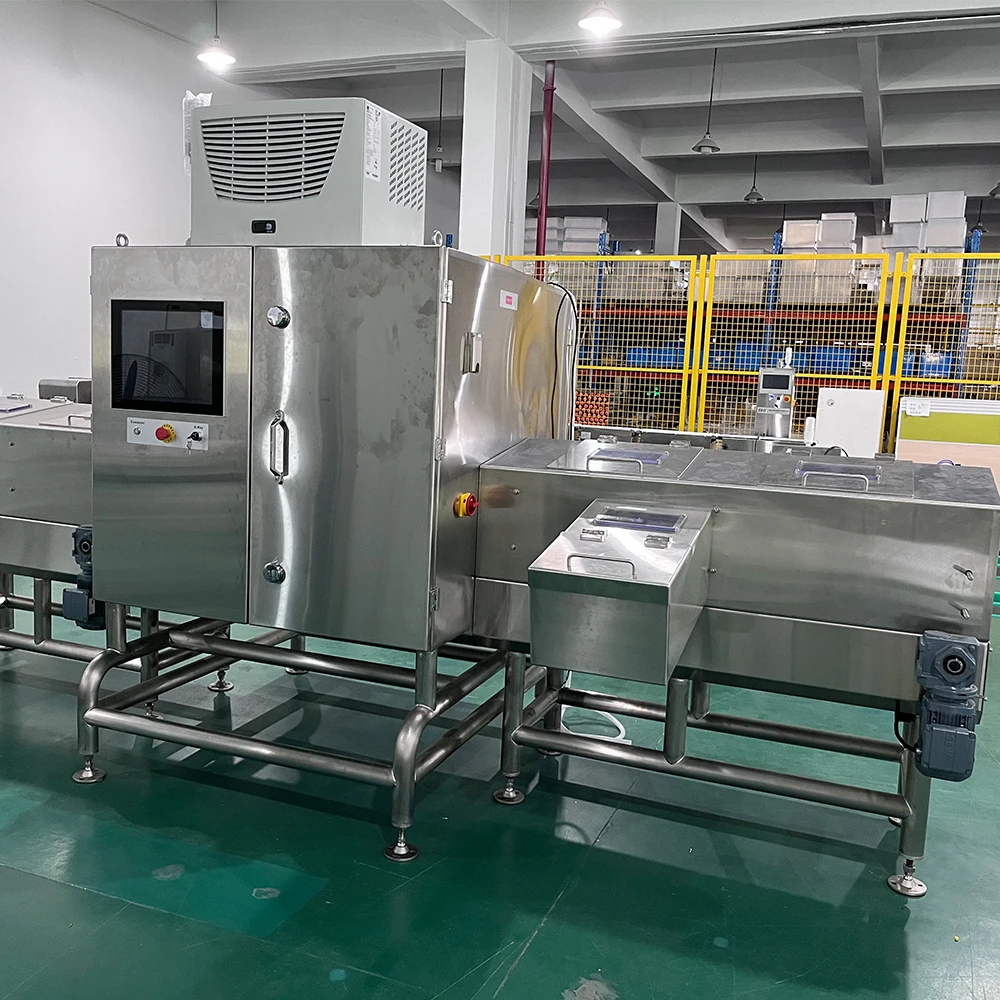

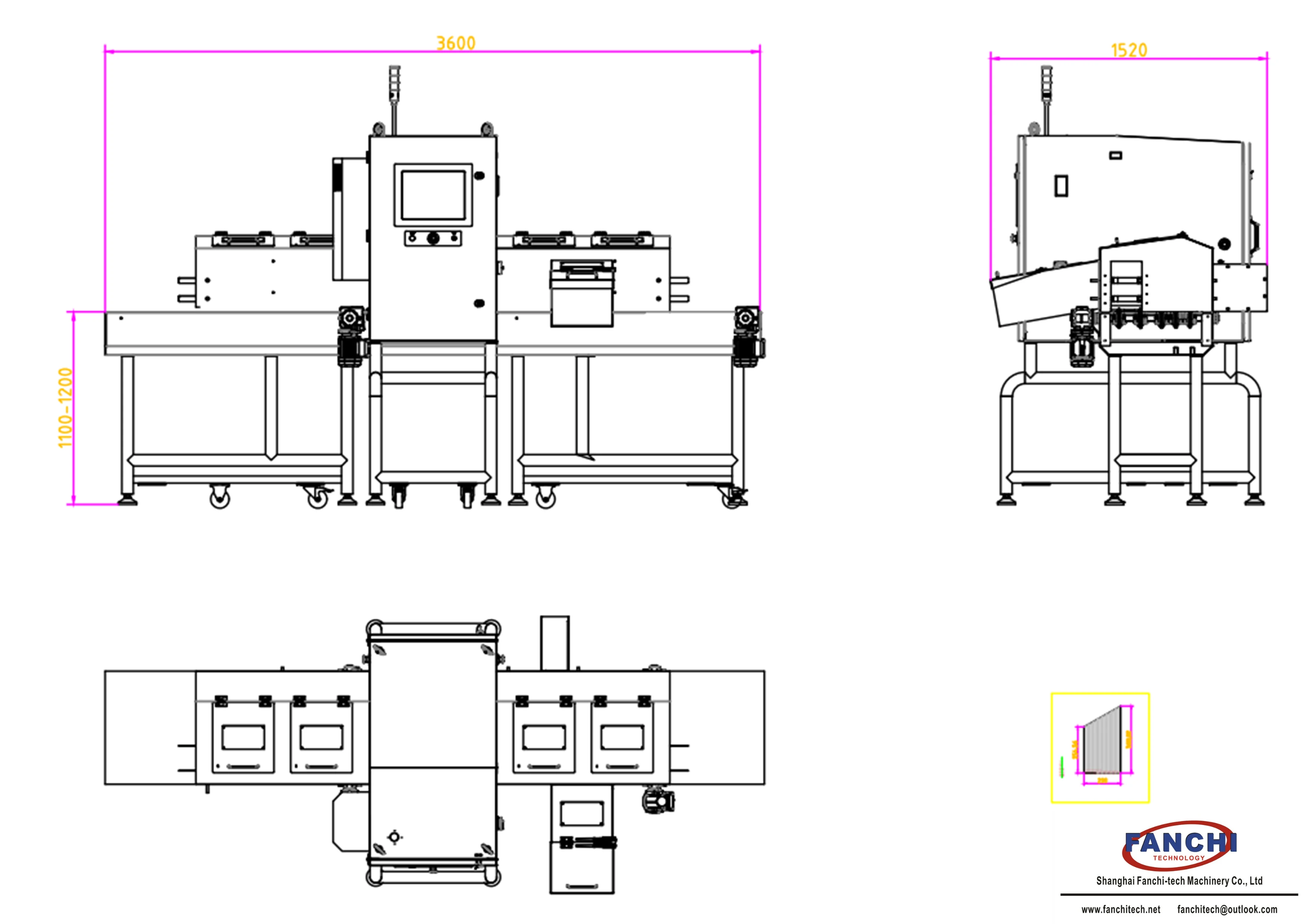

Fanchi-tech Dual-beam X-ray Inspection System
Right elevation
Front elevation
Left elevation

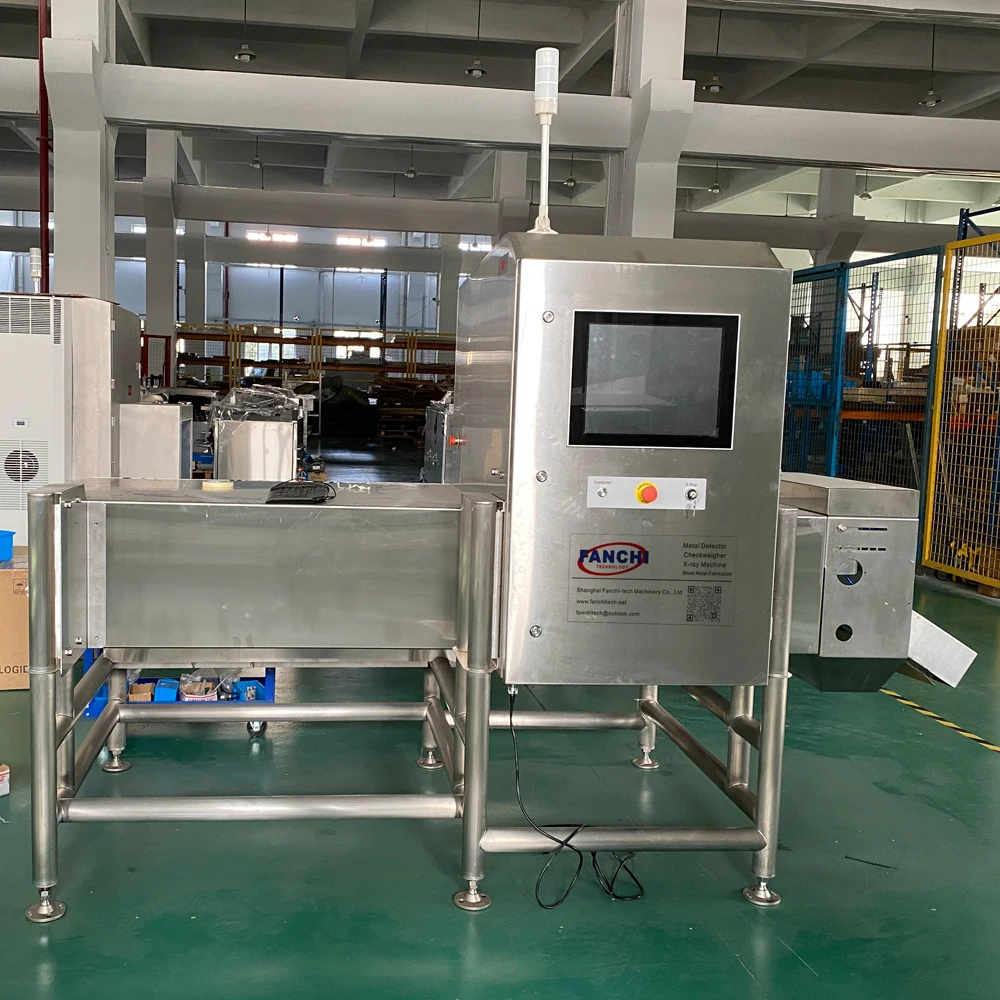

Combination Systems--Compact and Reliable Inspection
Fanchi's Dynamic X-ray Inspection Systems are available in combination with Checkweighers, Metal Detector, or labeling machine, which can save footprints greatly. Highly versatile system with a proven track record suits a wide range of packaged products. Simultaneous inspections including shape analysis, missing item and package check are available.
PRODUCT SPECIFICATIONS
Fanchi-Tech Standard X-Ray Inspection System
Model | FA-XIS3012 | FA-XIS4016 | FA-XIS5025 | FA-XIS6030 | FA-XIS8030 | ||||
Tunnel Size WxH(mm) | 300x120 | 400x160 | 500x250 | 600x300 | 800x300 | ||||
X-ray Tube Power(Max) | 80/210W | 210/350W | 210/350W | 350/480W | 350/480W | ||||
Stainless Steel304 Ball(mm) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | ||||
Wire(LxD) | 0.2x2 | 0.2x2 | 0.2x2 | 0.3x2 | 0.3x2 | ||||
Glass/Ceramic Ball(mm) | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 | ||||
Belt Speed(m/min) | 10-70 | 10-70 | 10-40 | 10-40 | 10-40 | ||||
Load Capacity(kg) | 5 | 10 | 25 | 50 | 50 | ||||
Min Conveyor Length(mm) | 1300 | 1300 | 1500 | 1500 | 1500 | ||||
Belt Type | PU Anti Static | ||||||||
Line Height Options | 700,750,800,850,900,950mm +/- 50mm(can be customized) | ||||||||
Operation Screen | 17-inch LCD Touch Screen | ||||||||
Memory | 100 kinds | ||||||||
X-ray Generator/Sensor | VJT/DT | ||||||||
Rejector | Flipper/Pusher/Flapper/Air Blasting/Drop-down/Heavy Pusher, etc | ||||||||
Air Supply | 5 to 8 Bar (10mm Outside Dia) 72-116 PSI | ||||||||
Operating Temperatures | 0-40℃ | ||||||||
IP Rating | IP66 | ||||||||
Material of Construction | Stainless Steel 304 | ||||||||
Power Supply | AC220V, 1phase, 50/60Hz | ||||||||
Data Retrieval | Via USB, Ethernet, etc | ||||||||
Operation System | Windows 10 | ||||||||
Radiation Safety Standard | EN 61010-02-091, CFR 21 part 1020, 40 | ||||||||
Fanchi-Tech Dual-Beam X-Ray Inspection System For Canned Products
Fanchi-tech Dual-beam x-ray system is specially designed for the complicated detection of glass particles in glass or plastic or metal containers. It also detects unwanted foreign objects such as metal, stones, ceramics or plastic with high density in the product. The FA-XIS1625D devices use a scanning hight up to 250 mm with a straight product tunnel for conveyor speed up to 70m/min.
The hygienic design with protection type IP66 for the product tunnel makes it particularly suitable for all companies and
industries that have to ensure high hygiene standards.
The hygienic design with protection type IP66 for the product tunnel makes it particularly suitable for all companies and
industries that have to ensure high hygiene standards.
Model | FA-XIS1625S | FA-XIS1625D | FA-CW700 | ||
Tunnel Size WxH(mm) | 160x250 | 160x250 | 0.1~60kg | ||
X-ray Tube Power(Max) | Single Side Beam: 80Kv, 210/350/480W | Dual-beam: 80Kv, 350/480W | 1g | ||
Min Conveyor Length(mm) | 3300 | 4000 | ±15g | ||
Sensitivity | S/S304: O.3mm; Wire(LxD): 0.3x2mm; Glass/Ceramic Ball: 1.5mm | 35pcs/min | 35pcs/min | ||
Belt Speed(m/min) | 10-70 | 600x1200 | 700x1200 | ||
Load Capacity(kg) | 25 | ||||
Belt Type | PU Anti Static | ||||
Line Height Options | 600,650,700,750,800,850,900mm +/- 50mm(can be customized) | ||||
Operation Screen | 17-inch LCD Touch Screen | ||||
Memory | 200 kinds | ||||
X-ray Generator/Sensor | VJT/DT | ||||
Rejector | Air blast rejector or Pusher, etc | ||||
Air Supply | 5 to 8 Bar (10mm Outside Dia) 72-116 PSI | ||||
Material of Construction | Stainless Steel 304 | ||||
Operation System | Windows 10 | ||||
Data Retrieval | Via USB, Ethernet, etc | ||||
Power Supply | AC220V, 1phase, 50/60Hz, 750W | ||||
Radiation Safety Standard | EN 61010-02-091, CFR 21 part 1020, 40 | ||||
Key Components
● US VJT X-ray Generator
● Finnish DT X-ray Detector/Receiver
● Danish Danfoss frequency converter

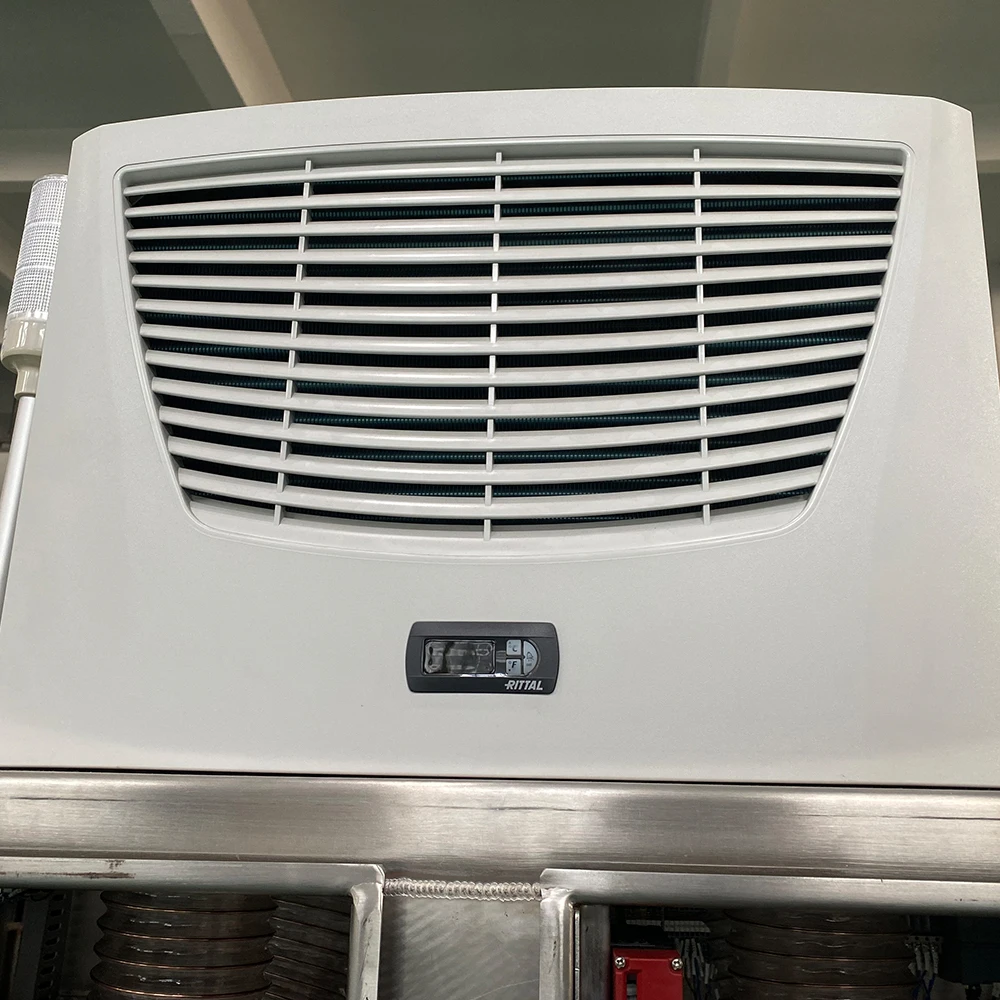

● German Pfannenberg industrial air conditioner
● Finnish DT X-ray Detector/Receiver
● Danish Danfoss frequency converter
● German Pfannenberg industrial air conditioner
● French Schneider electric unit
● US Interoll electric roller conveying system
● Taiwanese Advantech industrial computer and IEI touch screen
● US Interoll electric roller conveying system
● Taiwanese Advantech industrial computer and IEI touch screen
Successful Project
Company Profile
Company Profile
We’re a group company owning Fanchi and ZhuWei brands, founded in 2013, and now being an industry leader in the custom fabrication, finishing of sheet metal products and product inspection equipment. In Sheet Metal Fabrication Industry, our ISO-certified company handles everything from pre-production prototypes to high-volume production runs, while performing all fabrication and finishing in-house. This means we can provide high-quality, quick-turn parts at competitive prices. Our versatility means that, for example, we can design, fabricate, finish, silk screen, assemble and ship custom sheet metal enclosures and assemblies. We assure quality at every step of the process with computerized and in-process inspections, and regular troubleshooting. Working with OEM’s, assemblers, marketers, installers and servicers, we offer the “full package” of product development and fabrication, from start to finish. The typical products/projects we’ve made are including Electronic Equipment, Bill payment kiosks, Check sorters, Filter Enclosures, Electrical Control Cabinets, etc.
In Product Inspection Industry, we’ve been designing, manufacturing and supporting inspection equipment used to identify contaminants and product defects within the food, packaging and pharmaceutical industries, principally offering Metal Detectors, Checkweighers and X-Ray Inspection systems, believing that through superior product design and engineering the production of higher quality equipment with customer-satisfied service could be achieved.
Our quality and certification: our Quality Management System is at the heart of everything we do and combined with our measurement standards and procedures, it meets and exceeds the requirements of ISO 9001-2015. Besides, all our products are fully compliant with EU safety standards with CE Certificate, and our FA-CW series Checkweigher is even approved by U L in North-America(through our distributor in US).
With integration of our Sheet Metal Fabrication Business, our Product Inspection sector has the following advantages: short lead times, modular design and excellent availability of spare parts, coupled with our passion for customer service, allows our customers to: 1. Comply with, and exceed, product safety standards, weight legislation and retailer codes of practice, 2. Maximize production uptime 3. Be self-sufficient 4. Lower lifetime costs.
Certifications
Fanchi CE for Metal Detector
Fanchi CE for Checkweigher
Fanchi CE for X-ray Machine
UL Certificate Achieved by our Agent
Fanchi Group ISO Certificate
Radiation Leakage Report
After-sale Services
After-sale services
Fanchi-tech recognises that providing great service, with great people on time, every time shows you the value of their investment in
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
FAQ

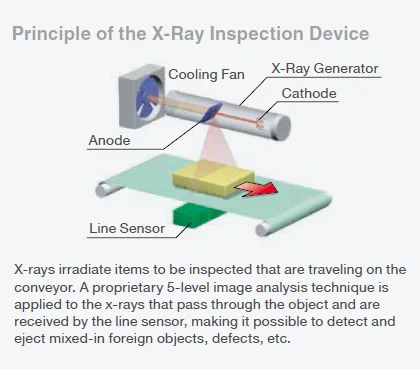

1. How does an x-ray inspection machine work?
A x-ray product inspection detects all substances whose density differs significantly from the product being inspected.
Contaminants with a density differential can include impurities, air bubbles, breaks, or other defects that can compromise the safety or integrity of a product.
Contaminants with a density differential can include impurities, air bubbles, breaks, or other defects that can compromise the safety or integrity of a product.

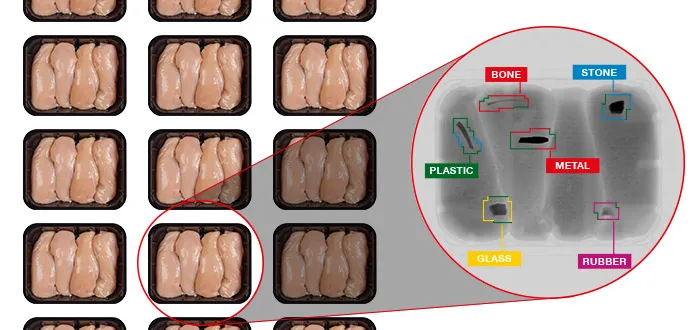

2. What is detectable by an x-ray inspection machine?
An x-ray inspection machine is designed to detect unwanted physical contaminants. An x-ray machine is able to detect: Metals, Glass, Ceramics, Hard Plastics, Stone, Bone, Teflon; X-ray inspection machines are unable to detect anything that floats on water. Some examples include nylon, rubber, ice, wood, insects, and hair.
3. What products are better suited to be inspected by an x-ray machine?
Contaminant detection is a critical requirement for many industries, including food and beverage, pharmaceuticals and cosmetics, chemicals and plastics, and textiles. But what type of inspection system is right for your application?
X-ray inspection and metal detection are both excellent options to protect your valuable products.
However, in the food industry, many packaged foods passing through a metal detector will cause a signal unbalance, mimicking the presence of metal contaminants. Metalized film packaging, like potato chip bags or candy wrappers, and prepared food in foil trays are best suited for x-ray inspection. In addition, products from farms that may contain rocks or glass are also great candidates for x-ray inspection.
X-ray inspection and metal detection are both excellent options to protect your valuable products.
However, in the food industry, many packaged foods passing through a metal detector will cause a signal unbalance, mimicking the presence of metal contaminants. Metalized film packaging, like potato chip bags or candy wrappers, and prepared food in foil trays are best suited for x-ray inspection. In addition, products from farms that may contain rocks or glass are also great candidates for x-ray inspection.
4. What factors affect x-ray sensitivity?
Fanchi-tech's X-ray Inspection Systems offer up to four x-ray beams sensitive enough to detect dense contaminants in a variety of containers. The ability to reliably provide relative density variation is key.
X-ray sensitivity can be affected by:
Product thickness, density and texture
Detection software
Line speed
Detector pixel size
X-ray sensitivity can be affected by:
Product thickness, density and texture
Detection software
Line speed
Detector pixel size
