Heat Oil Aging Resistant Wrap Surface Black Diesel Submersible An6 Braided Fuel Hose

Product Overview

Description

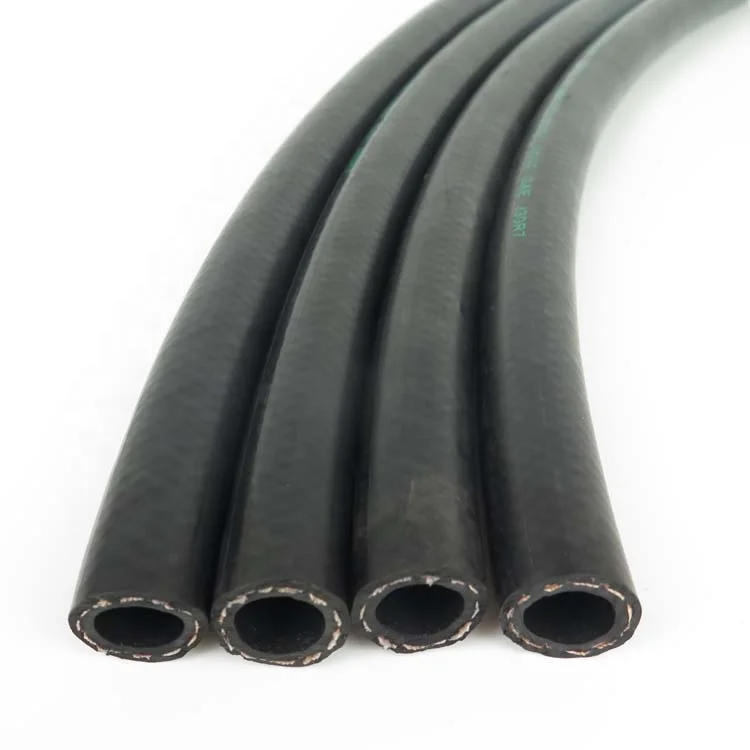

Heat Oil Aging-Resistant Wrap Surface Black Diesel Submersible An6 Braided Fuel Hose









APPLICATIONS

Push-on hose for low pressure lines, return lines, drain lines.

Used in fuel system or in the crankcase of internal combustion engines in mobile (truck, bus, off-highway, vehicles), stationary and marine applications

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water, diesel fuel, gasoline.



HOSE MARKING:YATAI FUEL HOSE SAE J30 R6 1/4″DN6 W.P.28BAR 410PSI

YATAI PART.REF.	HOSE  I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
TB J30 6	6	-4	1/4"	-	12,7	35	510	140	2030	76	0.13
TB J30 8	8	-5	5/16"	-	14,3	35	510	140	2030	76	0.16
TB J30 10	10	-6	3/8"	-	15,8	35	510	140	2030	76	0.18
TB J30 12	12	-8	1/2"	-	19,6	25	360	100	1450	127	0.24
TB J30 16	16	-10	5/8"	-	23,6	25	360	100	1450	150	0.32
TB J30 19	19	-12	3/4"	-	28,3	21	300	84	1210	180	0.47
TB J30 25	25	-16	1"	-	33,9	14	200	56	810	240	0.53



•


  CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C





•


  MAX OPERATING TEMPERATURE: 250°F 121°C





•


  INSERT: SHF TYPE





•


  TUBE: FUEL AND OIL RESISTANT SYNTHETIC RUBBER COMPOUND





•


  REINFORCEMENT: ONE TEXTILE BRAID





•


  COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER





•


  APPLICABLE SPECS: SAE J30 R6






FAQ:



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
