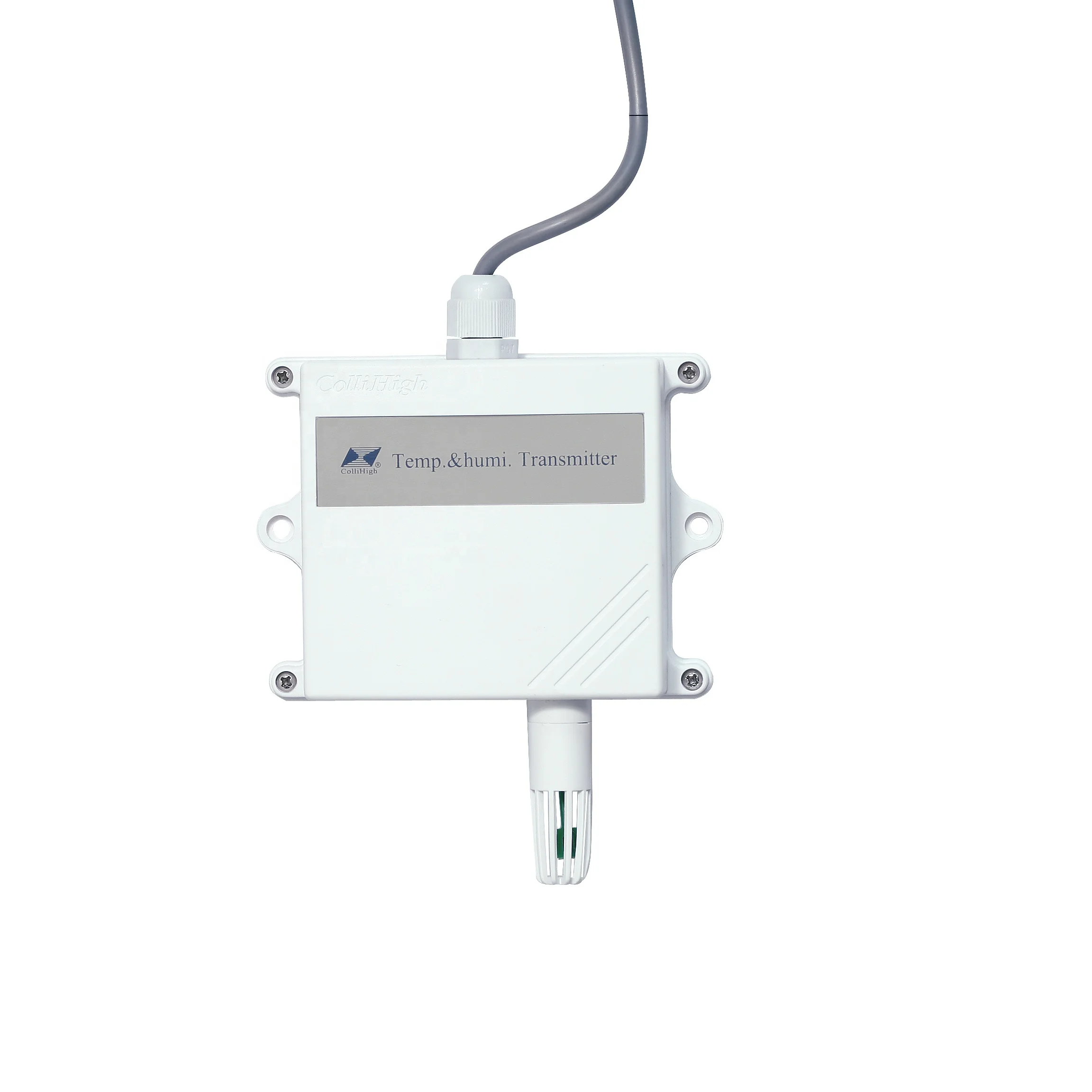

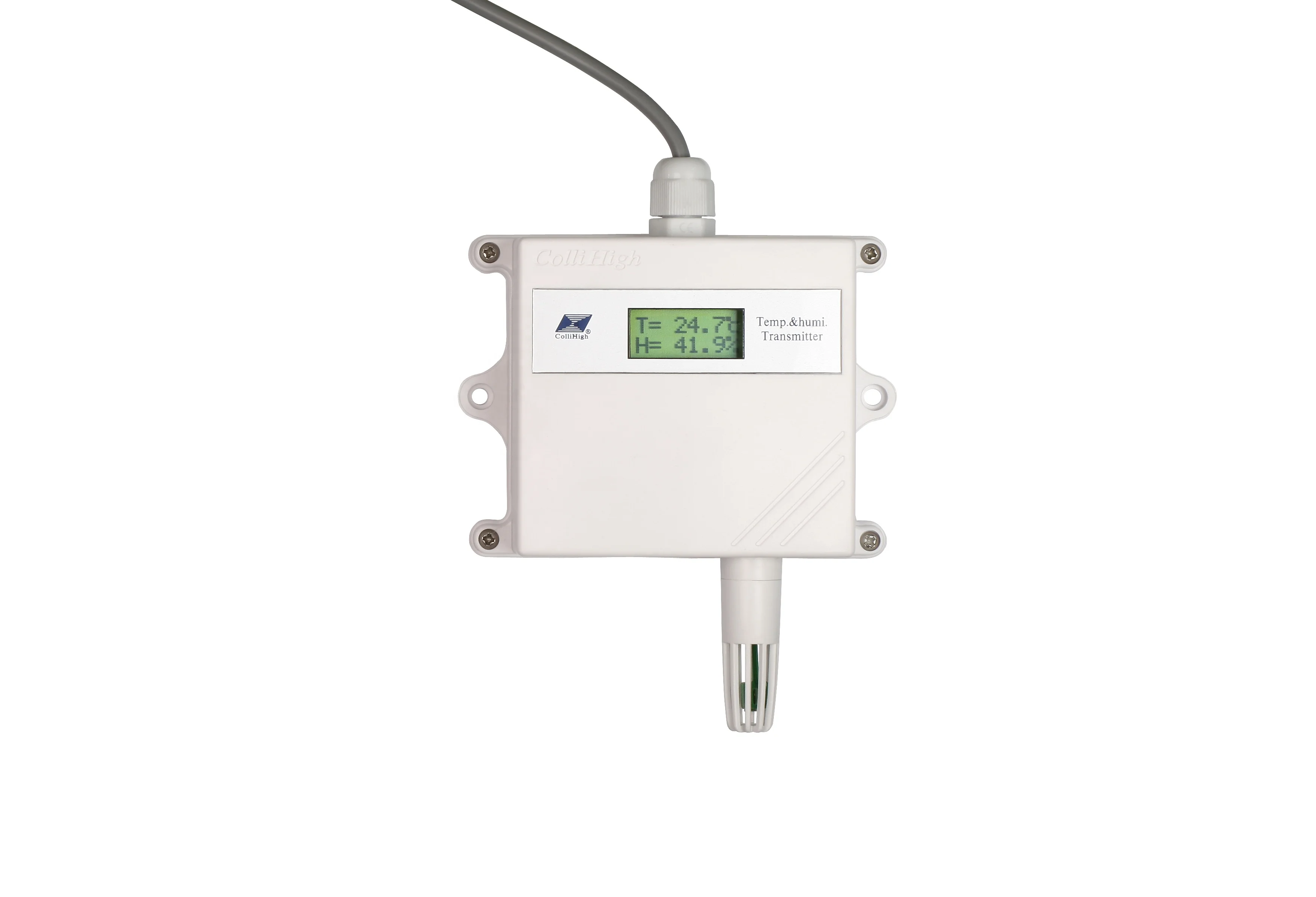

High quality humidity and temperature sensor with probe

Product Overview

Description

Cheap Wholesale Portable Anti-high Pressure Temperature transmitter



technical parameters
Dc power supply (default))	Current output type	DC 24V (22V~26V)
	Voltage output type	DC 24V (12V~24V)
	Network output type	DC 24V (12V~24V)
power dissipation	current output	≤1.2W
	voltage output	≤0.48W
	Network output	≤0.48W
A level	degree of accurancy	humidity	±2%RH (5%RH~95%RH,25℃)
		temperature	±0.5℃ (25℃)
B level	degree of accurancy	humidity	±3%RH (5%RH~95%RH,25℃)
		temperature	±0.5℃ (25℃)
One likes to stay at home	(-20℃~60℃)
Probe operating temperature	(-40℃~120℃)
long-term stability	humidity	≤1%RH/y
	temperature	≤0.1℃/y
response time	humidity	≤4s (1m/s air speed)
	temperature	≤15s (1m/s air speed)
output signal	Current output type	4mA~20mA
	Voltage output type	0V~5V
	Network output type	RS-485/RS-232
load capacity	Current output type	≤500Ω
	Voltage output type	output impedance≤250Ω
Note: power consumption with display increases by 0.12W







Specification selection
JWSK-6		Temperature and humidity transmitter
	AC				Three-wire 4mA ~ 20mA current output
	VB				0V~5V voltage output
	VC				0V~10V voltage output
	W1				RS-485Network bus output
	W2				RS-232Network bus output
		W			ABSPlastic wall-mounted (maximum range -20℃ ~ 60℃)
		W8			Metal wall type (maximum range -20℃ ~ 60℃)

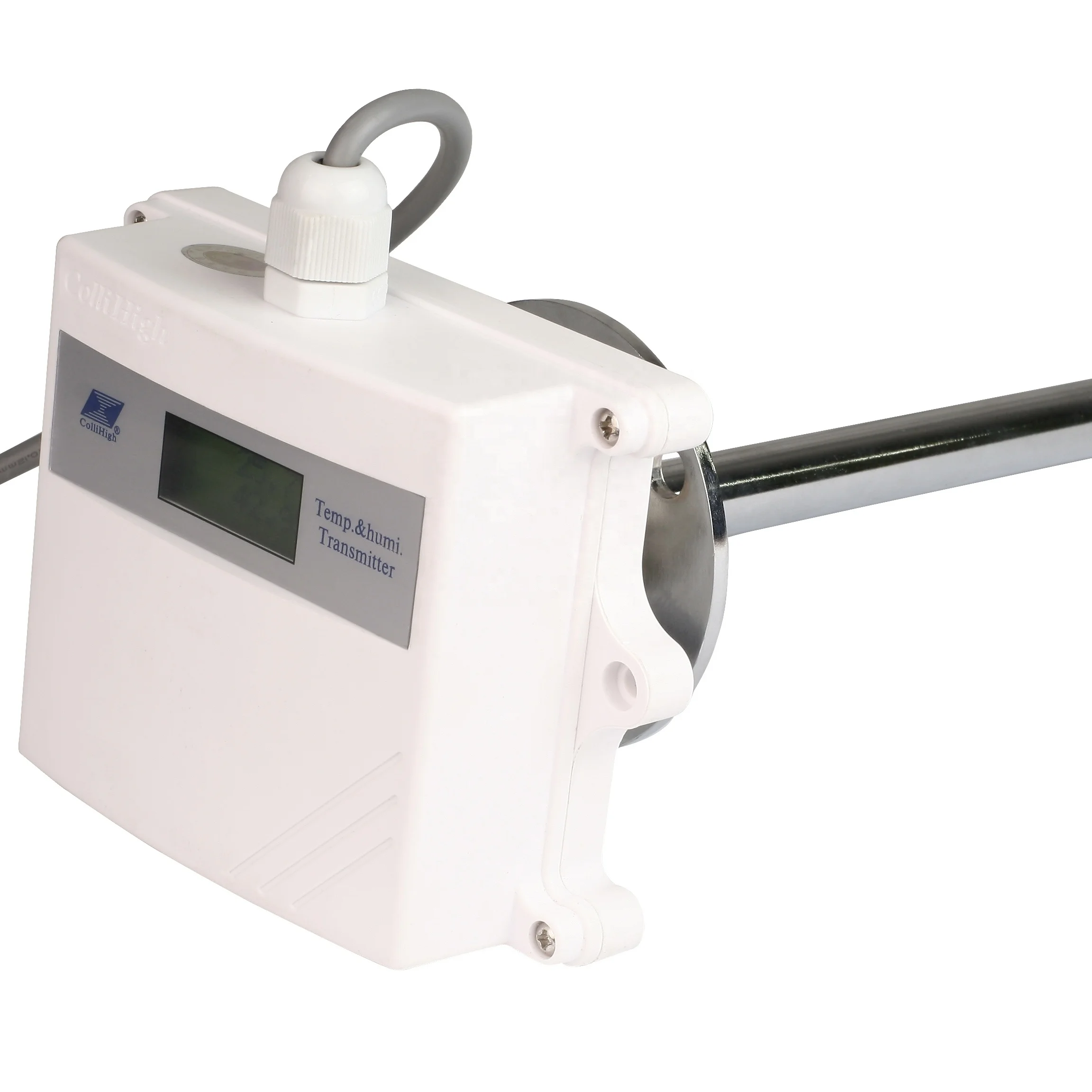

		D			A B S plastic flange pipe type (maximum range -40℃ ~ 80℃ transfer part -20℃ ~ 60℃)
		D5			Metal flange pipe type (maximum range -40℃ ~ 80℃ feeding part -20℃ ~ 60℃)
		D6			Metal thread pipe type (maximum range -40℃ ~ 80℃ feed part -20℃ ~ 60℃)
		C10			Separate installation with 10m cable	(maximum range -40℃ ~ 120℃ feeding part -20℃ ~ 60℃, with * meters Split type of cable)
		C05			Separate installation with 5m cable
		C02			Separate installation with 2m cable
		C01			Separate installation with 1m cable

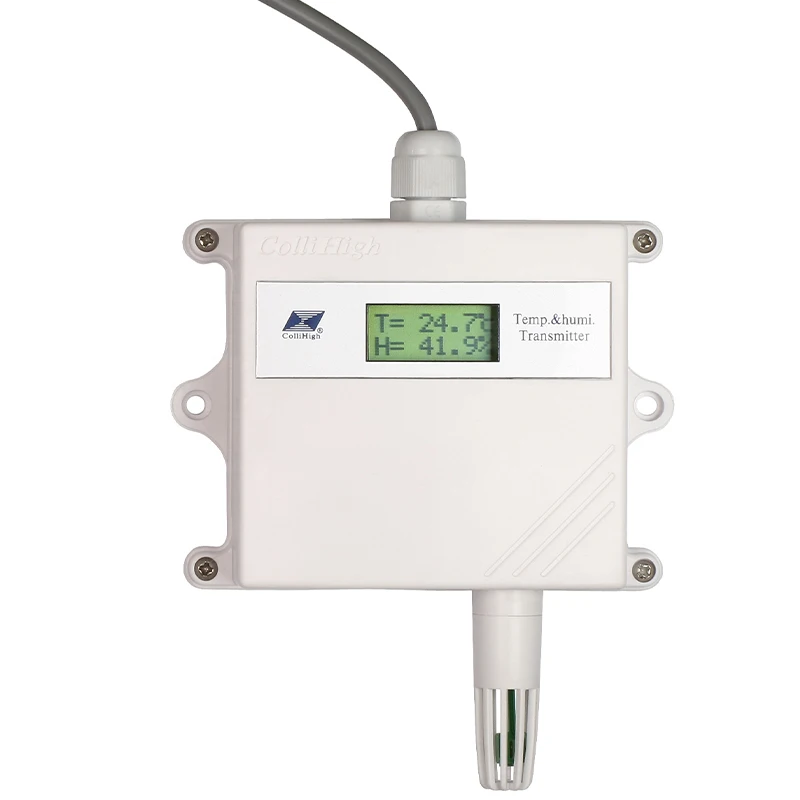

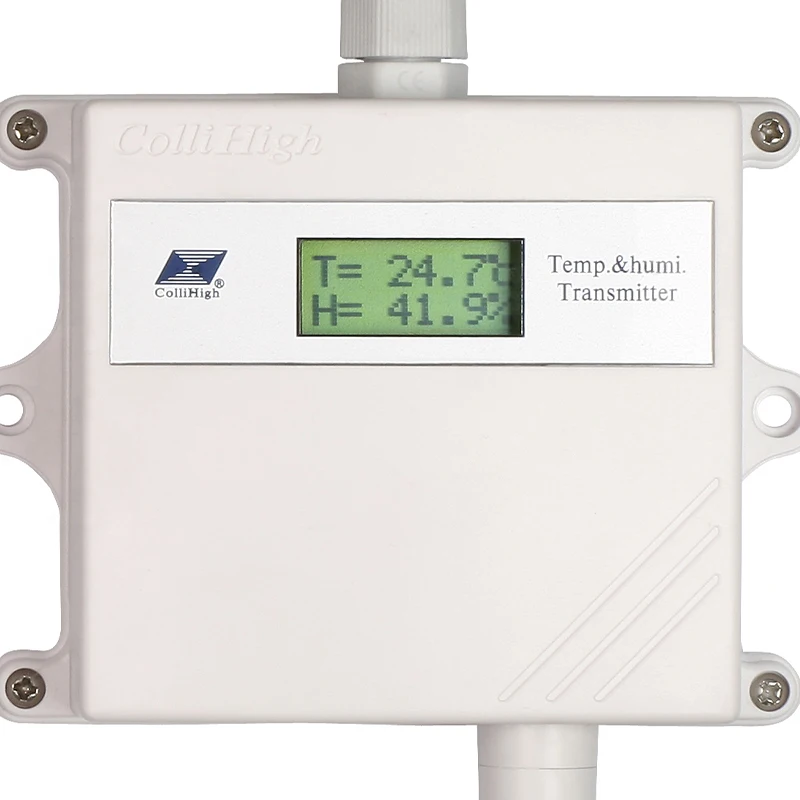

			D		Band liquid crystal display
				A	The accuracy grade is class A
				B	The accuracy grade is class B
