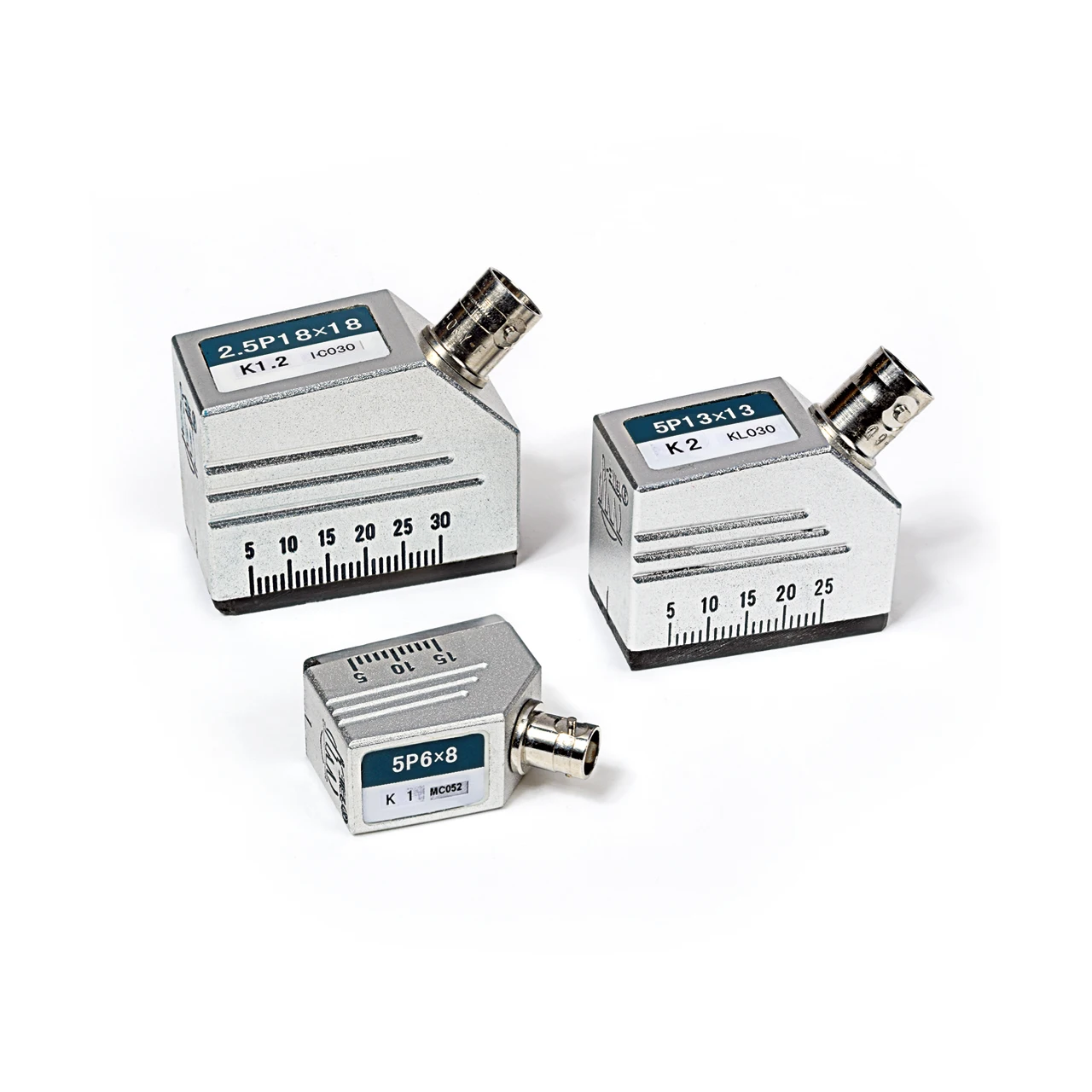

Angle beam probe big element 5MHz 13*13mm

Product Overview

Description

The transmission/reception of ultrasonic waves is performed by a piezoelectric wafer.
The function of the oblique block is to realize the conversion of the mode. When the incident angle (α) is between the first critical angle and the second critical angle, according to the refractive law of the ultrasonic at different acoustic impedance interfaces, only the existence of the transverse wave exists in the workpiece.
The sound absorbing material is used to absorb the noise scattered around the back of the wafer and around the oblique block.
The outer casing functions as support, protection, electromagnetic shielding, and the like.
The socket is an electrical signal interface that is connected to the instrument through the probe line.
The magnitude of the angle of refraction of the oblique probe is indicated by the K value.
The beam of the oblique probe is inclined to the surface of the probe, so it can be used to detect the area where the direct beam cannot reach, or the area where the direction of the defect and the detection surface are at an angle.



Models:





Frequency (MHz)	Element size (mm)	Type	Case	Receptacle
1	13*13	1P13*13 K1	B2	Q9
		1P13*13 K1.5
		1P13*13 K2
1.25	13*13	1.25P13*13 K0.8	B2
		1.25P13*13 K1
		1.25P13*13 K1.5
		1.25P13*13 K2
		1.25P13*13 K2.5
		1.25P13*13 K3
	13*13	1.25P18*18 K0.8	B1
		1.25P18*18 K1
		1.25P18*18 K1.5
		1.25P18*18 K2.0
		1.25P18*18 K2.5
		1.25P13*13 K3
2.5	10*16	2.5P10*16 K0.8	B2
		2.5P10*16 K1
		2.5P10*16 K2.5
		2.5P10*16 K2
		2.5P10*16 K2.5
		2.5P10*16 K3
	13*13	2.5P13*13 K0.8	B2
		2.5P13*13 K1
		2.5P13*13 K2.5
		2.5P13*13 K2
		2.5P13*13 K2.5
		2.5P13*13 K3
	18*18	2.5P18*18 K0.8	B1
		2.5P18*18 K1
		2.5P18*18 K2.5
		2.5P18*18 K2
		2.5P18*18 K2.5
		2.5P18*18 K3
5	10*16	5P10*16 K1	B2
		5P10*16 K0.8
		5P10*16 K1.5
		5P10*16 K2
		5P10*16 K2.5
		5P10*16 K3
	13*13	5P13*13 K0.8	B2
		5P13*13 K1
		5P13*13 K1.5
		5P13*13 K2
		5P13*13 K2.5
		5P13*13 K3



 * divided into two types: normal front and short front.
* Other specifications of probes can be customized according to customer needs, please contact us for details.
