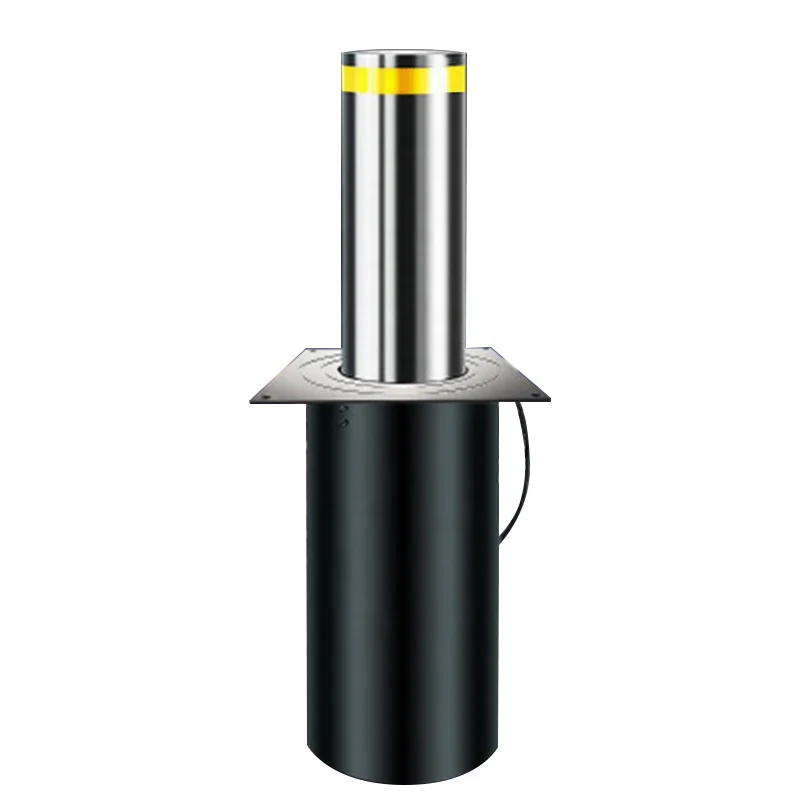

Traffic Safety Internal Lock Traffic Barrier Full Automatic 219 mm Hydraulic Rising Bollards HZ SS219

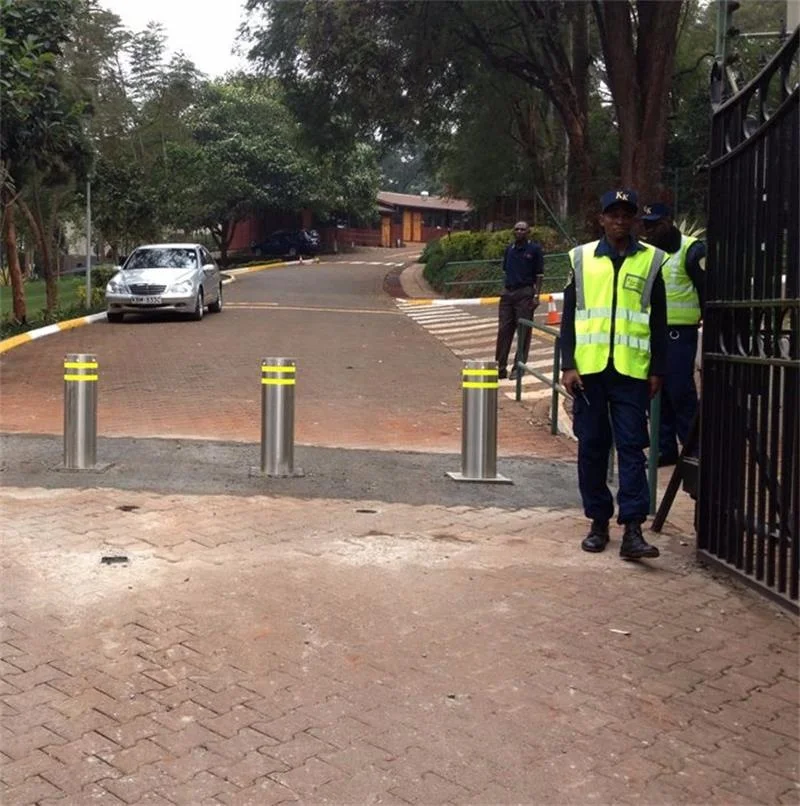

The rising bollards  are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.
The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.
The rising bollards can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)

1. The structure is sturdy and durable, with large load carrying capacity, stable operation and low noise.

Power supply (v): AC110-240V, 50Hz
Power (W): 550
Dimensions: length * width * height (mm) 360 * 360 * 1080 (error ± 10mm)
Lifting column diameter (mm): 219 (error ± 2mm)
Lifting column cylinder thickness (mm): 6 (can be customized according to customer needs)
Lifting height (mm): 600 (error ± 2mm)
Lifting time (seconds): 2~6
Pressure capacity: 120 tons of container trucks.
Anti-collision force: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)

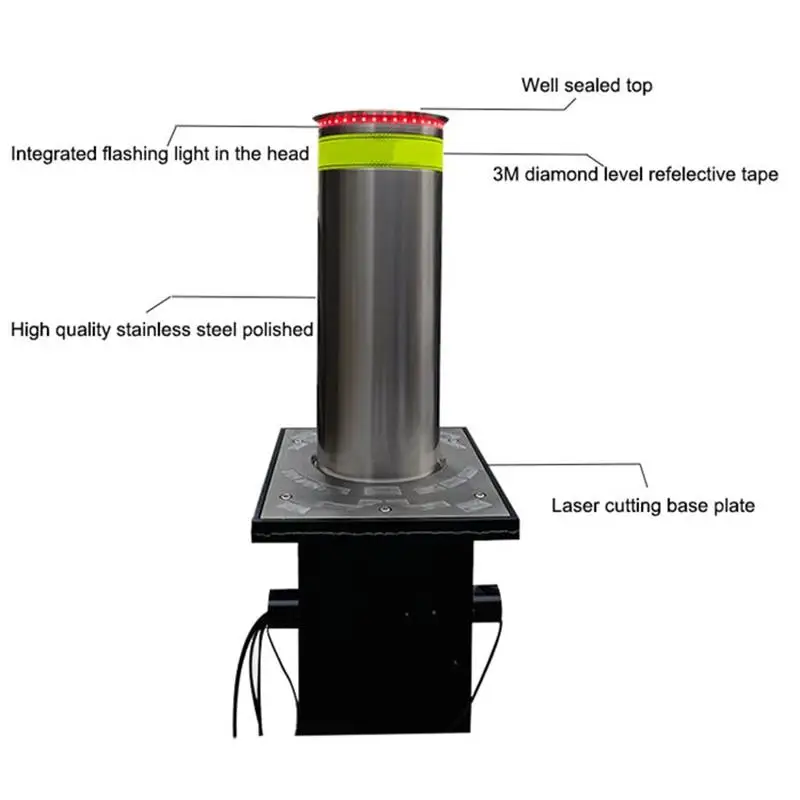

Surface treatment: 304 stainless steel surface wire drawing (can be processed according to customer requirements)
Protection level: up to IP68
Anti-destruction level: up to M30~M50
Working temperature (°C): -40~+75
Storage environment: -10 ° C --- 75 ° C, rain and moisture proof.

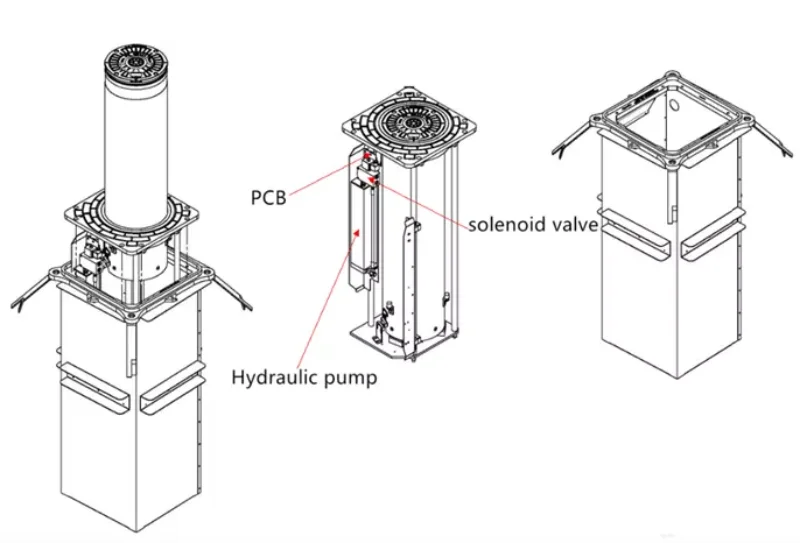

Drive unit: two-way integrated hydraulic
Weight (kg): 180

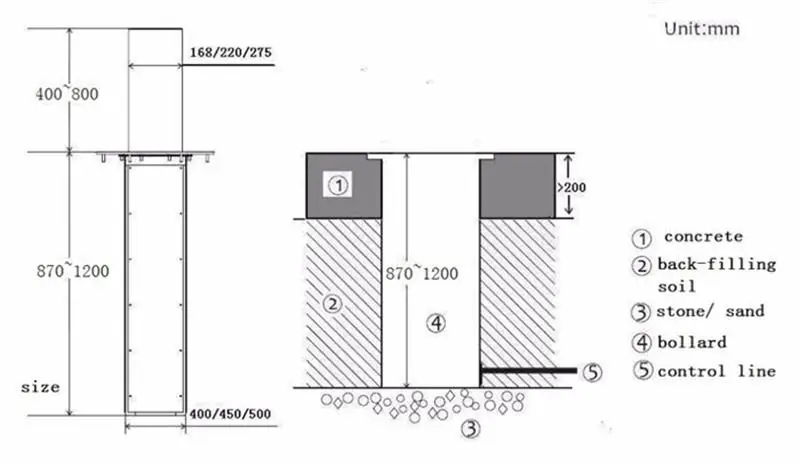

Installation and commissioning
The metal tripod turnstile with integrated design, only 10 minutes to complete the installation or dismantling, installation and commissioning were equipped with operating instructions.
