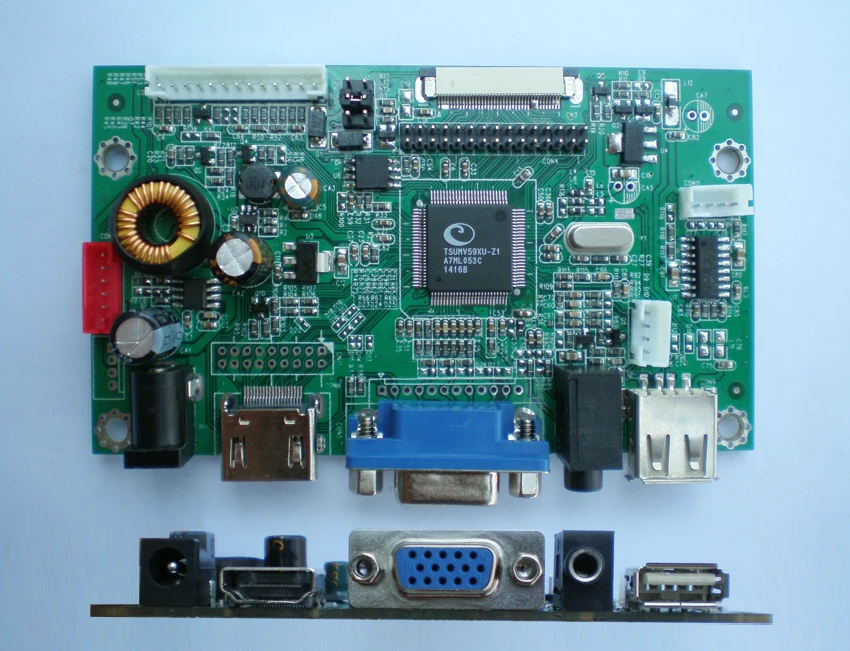

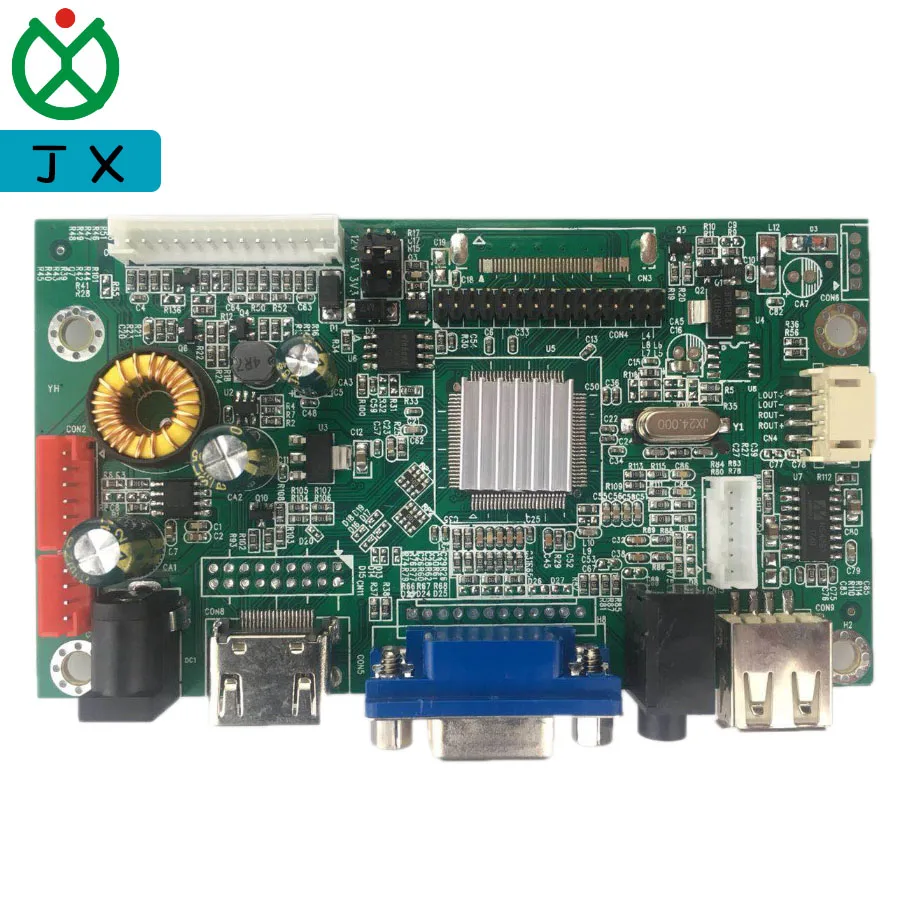

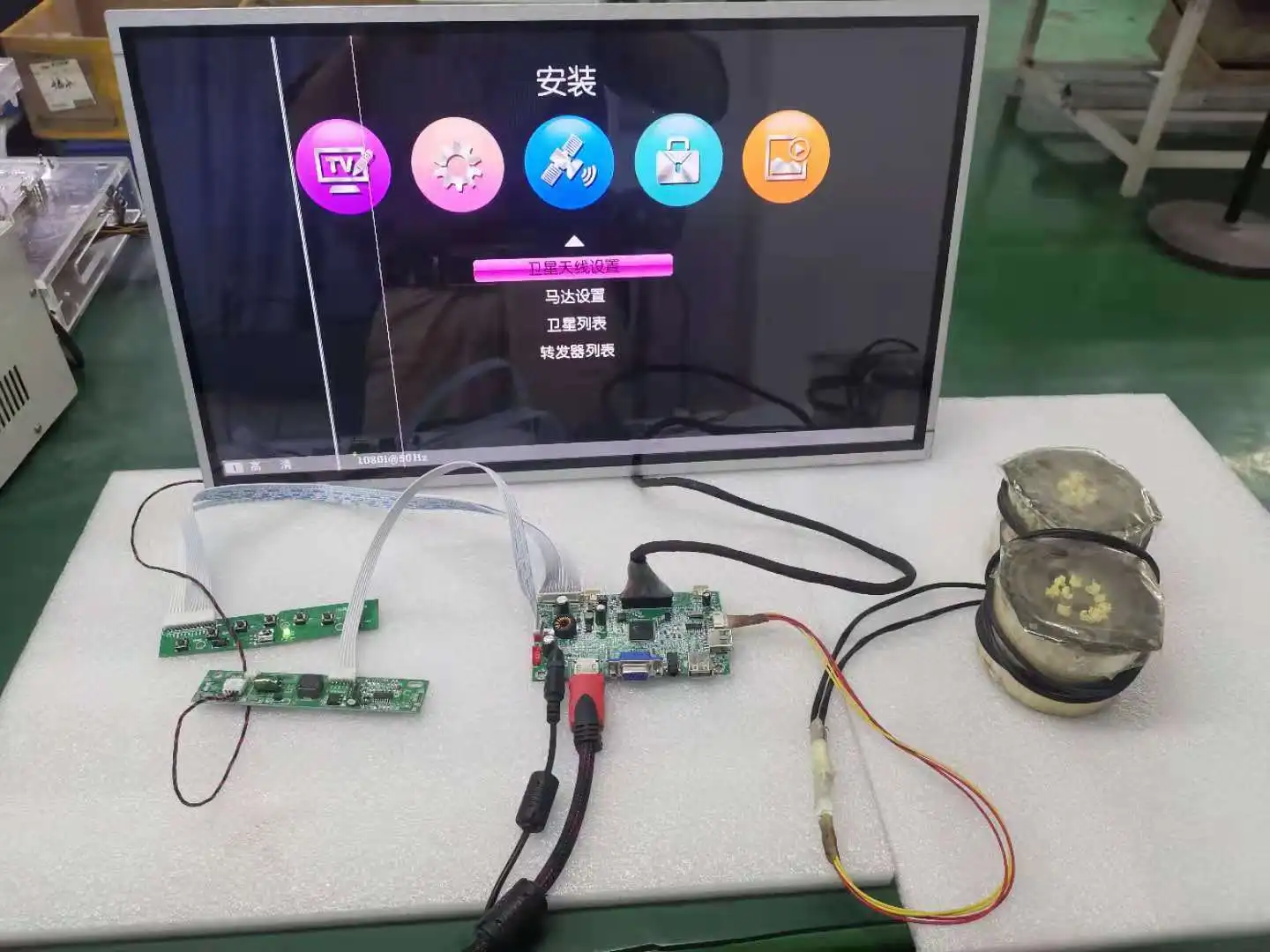

JX V59/56UHV Mstar V59/V56 один выход LVDS плата контроллера с VGA CVBS HD MI usb плеер монитор интерфейс экрана в сборе
- Category: LCD Boards & Accessories >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (62436499454):
Product Overview
Description
LCD Controller Board with VGA and HD MI Interface Assembly
Product Description

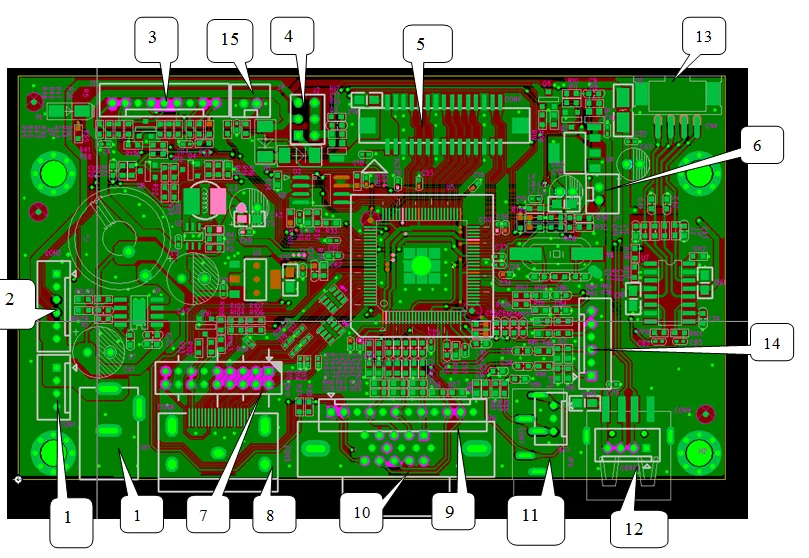

2.Main interface definitions
no. | description | no. | description |
1 | power input connector | 2 | Backlight control connector |
3 | Indicator light, IR, key board connector | 4 | Panel voltage select connector (3.3/5/12V) |
5 | LVDS signal output connector | 6 | LVDS signal output FFC block |
7 | HD MI internal input connector | 8 | HD MI input terminal |
9 | The built-in VGA signal input needle | 10 | VGA input terminal |
11 | VGA sound input terminal | 12 | USB signal input terminal |
13 | Speaker output connector | 14 | AV video input, left and right sound |
2,Backlight control connector
Pin no. | name | Pin no. | name |
1 | GND | 4 | BL_EN |
2 | GND | 5 | +12V |
3 | BL_ADJ | 6 | +12V |
3,Indicator light, IR, key board connector
Pin no. | name | Pin no. | name |
1 | CH- | 8 | LED-G |
2 | CH+ | 9 | LED-R |
3 | MENU | 10 | POWER |
4 | SOURCE | 11 | GND |
5 | VOL- | 12 | IR-IN |
6 | VOL+ | 13 | VCC |
7 | GND |
|
|

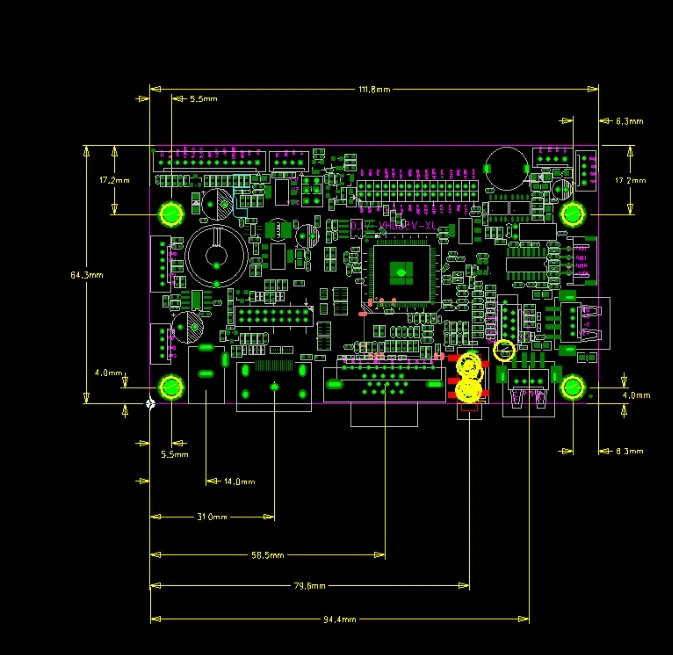

PCB structure
Specifications of the V59 AD Board:
Model: | JX-V59-0001 |
Size : | 64.3x94.4mm |
Amplifer: | 2*3W |
Screen Voltage: | 3.3V/5V/12V |
Key function: | power/menu/source/up/down/left/right |
HD MI: | Input |
VGA: | Input |
USB: | Input |
Working voltage: | 11.25~13.25V |
Storage temerature: | -40~85°C |
Brand: | JX/OEM/HYY/SOL/ODM |
About Us
Shenzhen Jingxin Quartz Technology Co., Ltd is located in Shenzhen China. We are one of the most professional electronic wholesalers for 10 years, with an excellent and experienced R&D team, we provide you one-stop service, competitive price and advantage help to save your purchase cost and precious time.
FAQ
1. Quality of products
All of our product will be testing before shipment. So you can be assured the quality of our products. However, If you found any problem after received the goods, Please feel free to contact us at any time. We will solve your problems at the first time .
Contact Us
We Recommend
LVDS input, MiniHDMI output, LVDS-HDMI lcd screen converter
US $8.00-$28.00

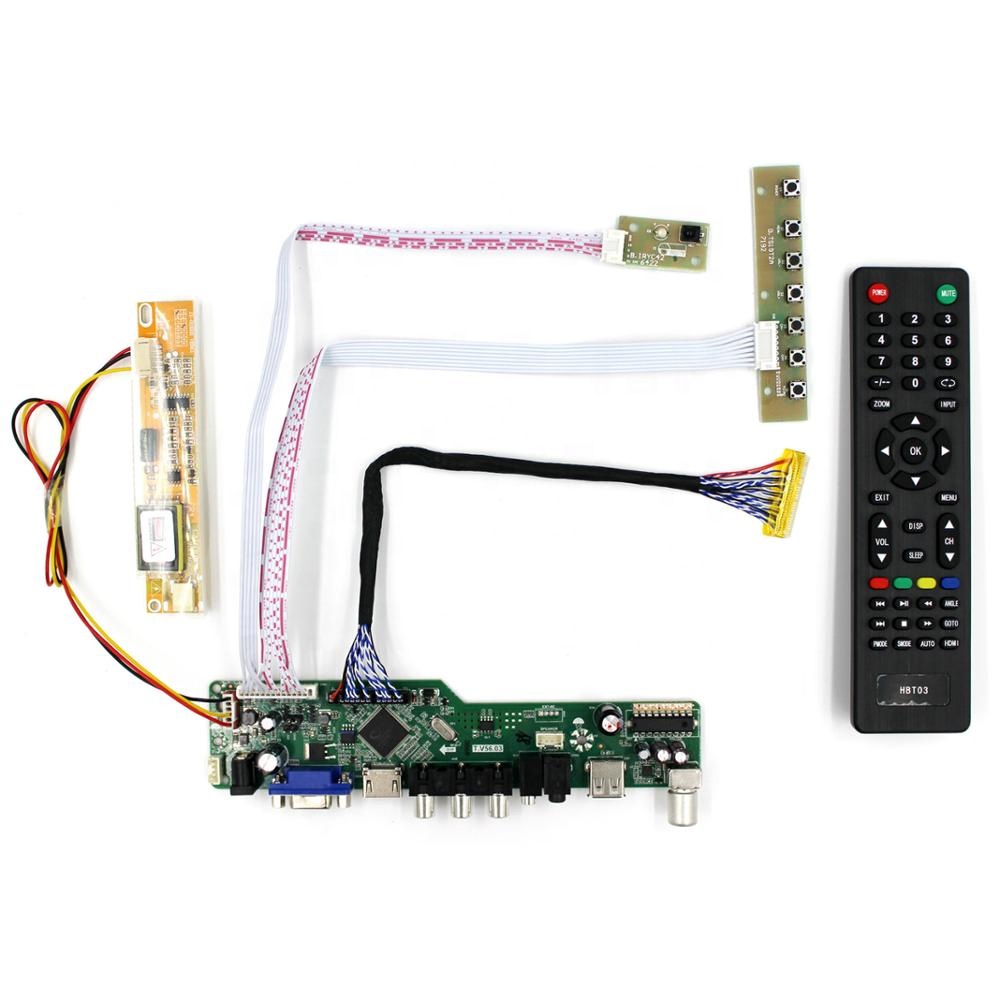

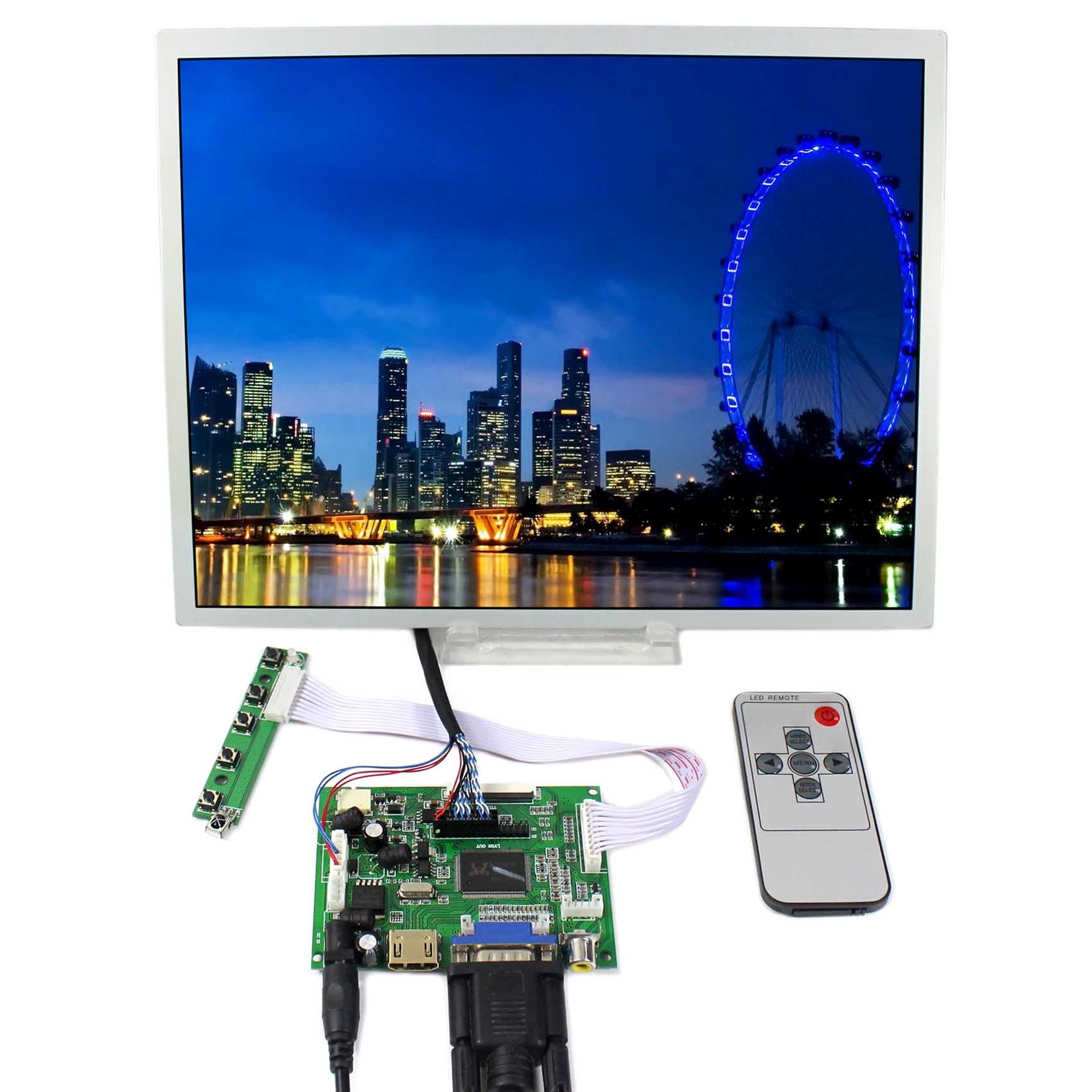

TV board/LCD controller Board work for 1440x900 30Pin lcd Panel
