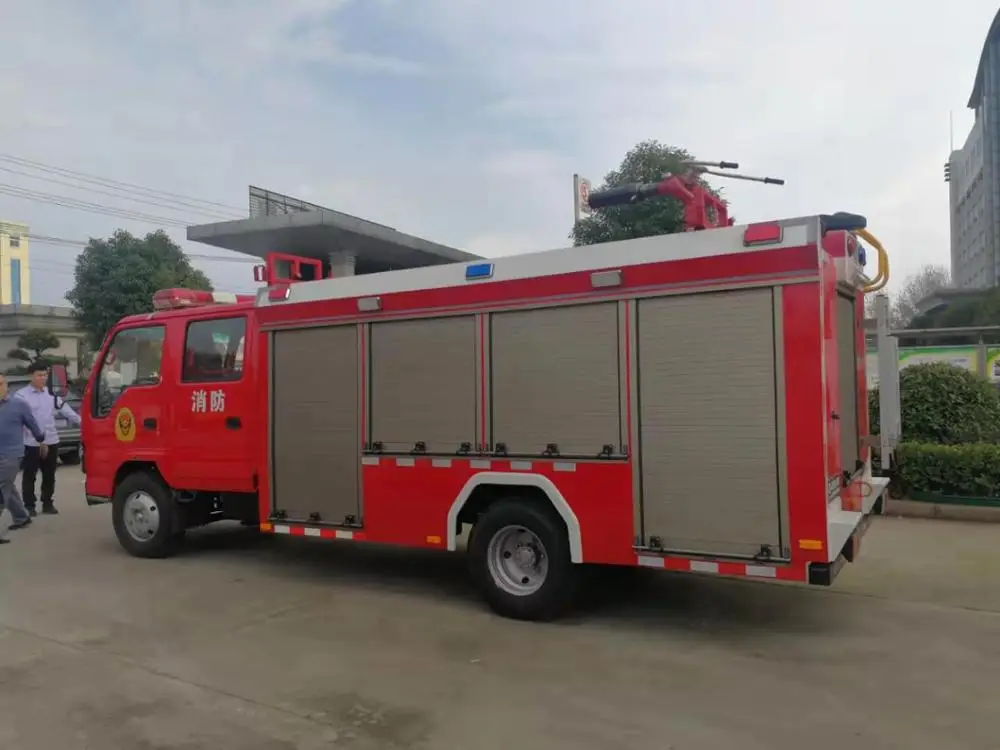

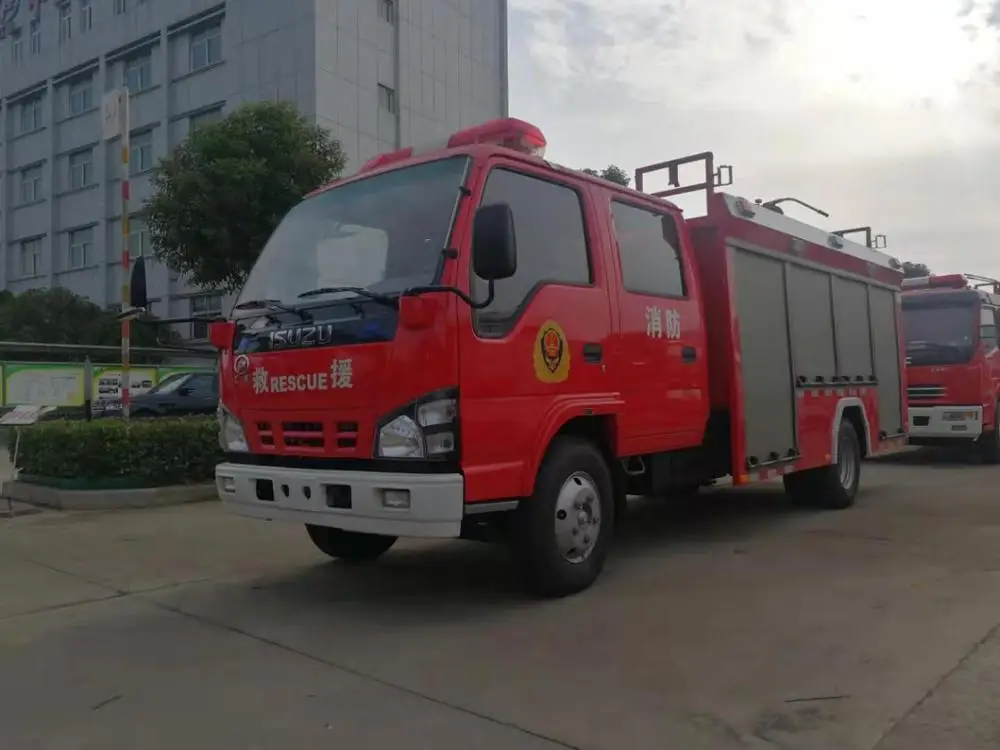

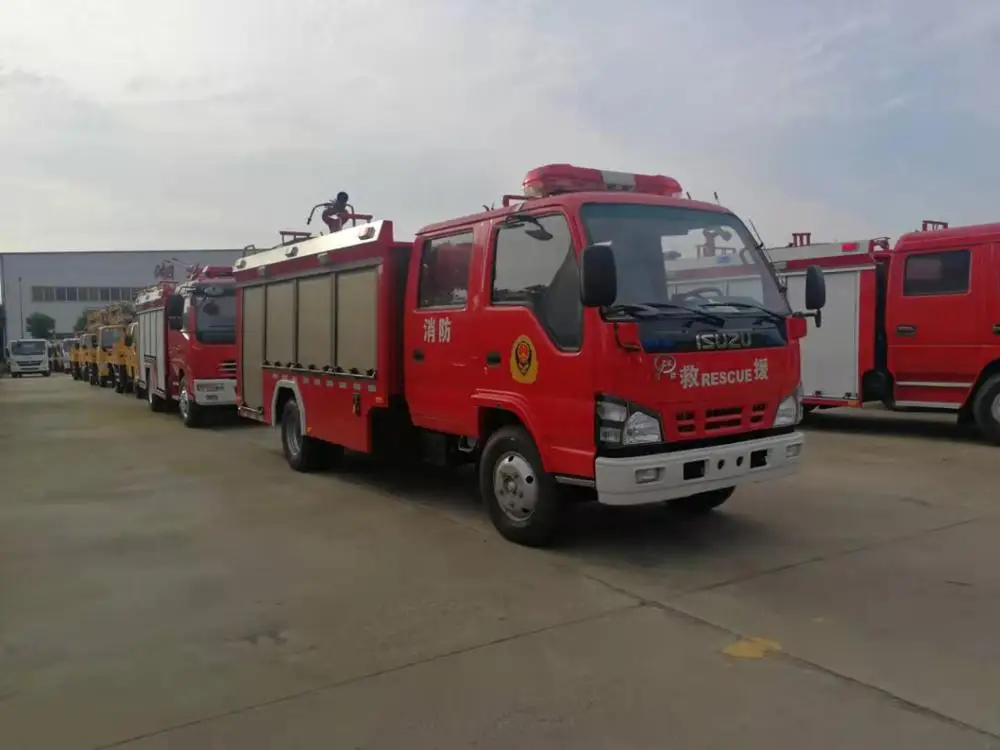

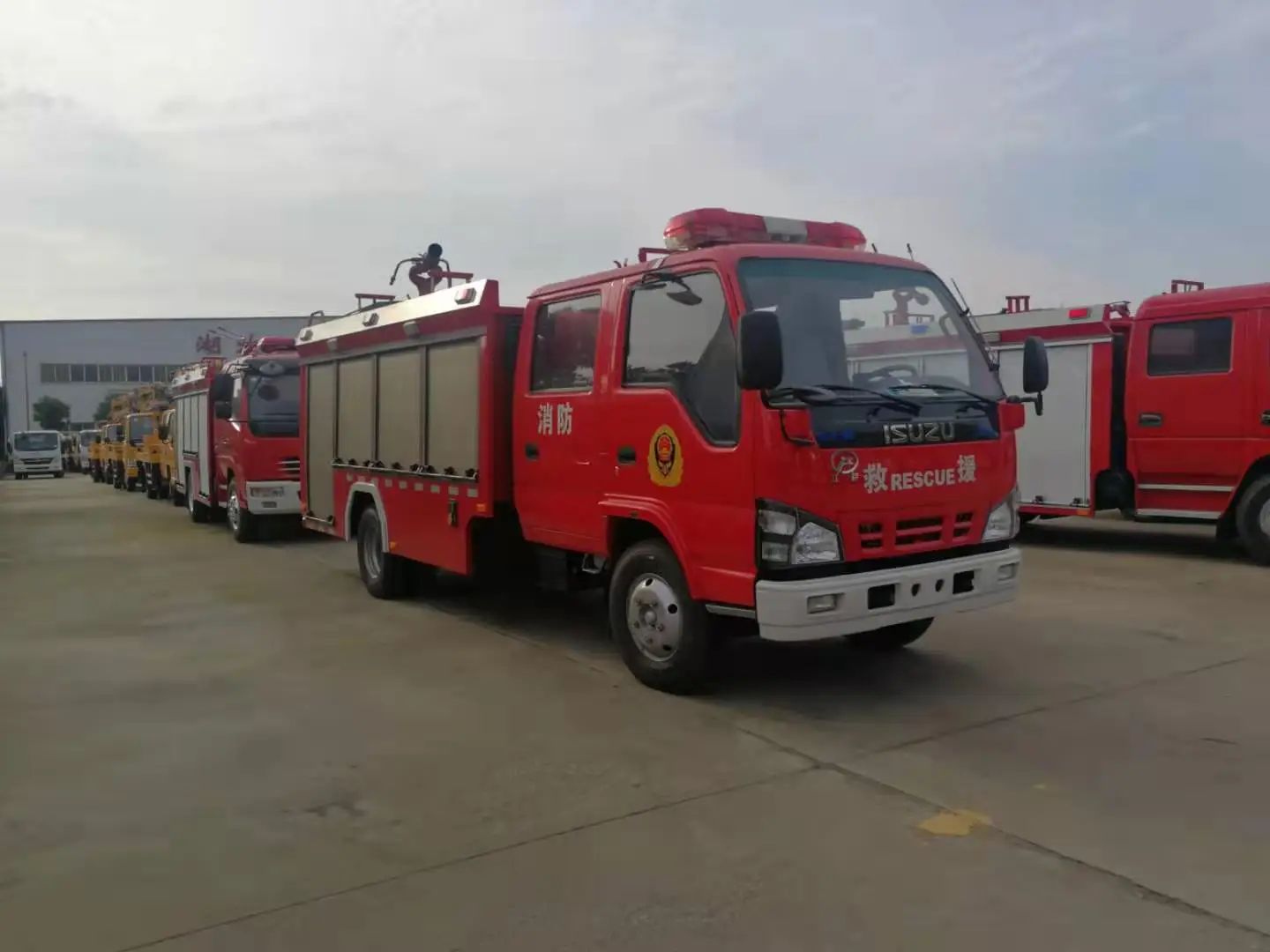

China forest fire fighting Mini foam military fire engine

Product Overview

Description

China forest fire fighting Mini foam military fire engine

Specifications
Item	Specifications	Item	Specifications
Truck
Name	China forest fire fighting Mini foam military fire engine
Model	JDF5070GXFPM20/Q6	Gross Weight	6750kg
Overall dimensions	6805*1960*2950mm	Curb Weight	4525kg
Wheelbase	3815mm	Approach angle	24°
Front Track	1504mm	Departure Angle	14°
Rear Track	1425mm	Front Overhang	1015mm
Number of axles	2	Rear Overhang	1835mm
Max speed	95km/h	Number of Tyres	6
Traction system	4×2	Tyre	7.00-16LT 14PR
Transmission	manual	Allowable Cab Passengers	2+3
Chassis
Model	QL1070BUKWY	Leaf Spring	8/6+5
Engine (Motor)
Brand	ISUZU	Type	Diesel
Model	4KH1CN6LB	Displacement	2999ml
Horse power	120hp	Emission standard	Euro 5
Equipment
Tanker Capacity	2500L	Tanker Material	carbon steel
Flow	30L/S	Low Pressure Pump	CB10/30
Pressure	1.0MPa	Fire distance (water)	50M





Specifications

1.We are professional manufacturers to do the special vehicles . We are supply all brands of

special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng

 all available .

2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
4.CB10/30 fire pump manufactured by Shanghai xiongzhen fire fighting equipment co., LTD.
5.PS30W fire gun manufactured by chengdu west fire fighting machinery co., LTD.



1.The total volume of the tank: 1.838m3; the liquid carrying capacity of the watertank is 1250kg; the tank volume: 1.25m3; the tank size (length X width x height): 1210 x 1000 x 1080 (mm);



2.B class foam tank liquid carrying capacity is 600kg; tank volume: 0.588 cubic meters; tank size (length * width * height): 570 x 1000 x 1080 (mm);



3.Class B foam liquid density is 1.02g/mL; firemen calculated by 75 kg/ person; when air brake system is installed,



4.Material of side protection and rear lower protection device: Q235, the side protection is an integral structure; connection mode of rear lower protection device: bolt connection; section size (width X height): 100 x 100 (mm), height from the ground: 445mm;
