Model Features
1. Highest temperature reaching 180℃

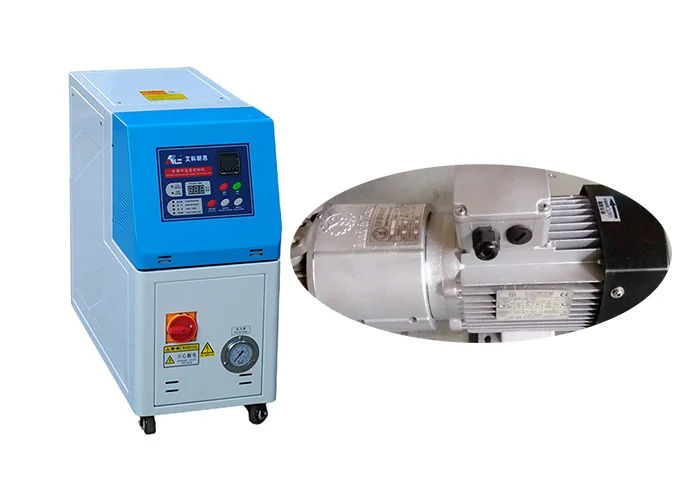

2. No seal magnetic drive pump , never leak
3. The panel control adopted micro,easy operation
4. Automatic exhaust function as starting up the machine
5. Outlet and inlet temperature display
6. Forced cooling
7. Remote switch function
8. System safety valve
9. By-pass pressure release loop for hot water
10. Electrical part omron, FUJI, Schneider, LG, TE original authentic
11. S.S.R. control
12. stainless steel integrated pipelines for less pipe resistance and rust
13. Isolated electric control box , to extend the life of appliances
14. Perfect safety protection , fault display, easy repair and maintenance without professionals
|
Model |
Unit |
ATCW-1610-TC |
ATCDW-1610-TC |
ATCW-1810-TC |
ATCDW-1810-TC |
ATCW-1815-TC |
ATCDW-1815-TC |
|
Control range |
℃ |
40℃-160℃ |
40℃-180℃ |
40℃-180℃ |
|||
|
Temp.control accuracy |
℃ |
PID±0.1℃ or ±1℃ |
|||||
|
Power supply |
|
AC 3P+PE 380V 50Hz (6M ) |
|||||
|
Heat transfer medium |
|
Water |
|||||
|
Cooling method |
|
Direct cooling |
Indirect cooling |
||||
|
Heating capacity |
KW |
9 |
9+9 |
9 |
9+9 |
9 |
9+9 |
|
Pump power |
HP |
1 |
1+1 |
1 |
1+1 |
1.5 |
1.5+1.5 |
|
Max pump flow |
L/min |
120 |
120+120 |
120 |
120+120 |
50 |
50+50 |
|
Max system pressure |
kg/cm2 |
8 |
8 |
10 |
10 |
10 |
10 |
|
Cooling water supply |
kg/cm2 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Power supply |
KW |
9.75 |
19.5 |
9.75 |
19.5 |
10.5 |
20.5 |
|
Cooling water pipe |
INCH |
1/2 |
3/4 |
1/2 |
3/4 |
1/2 |
3/4 |
|
Circulation water pipe |
INCH |
3/8×4 |
(3/8×4)×2 |
3/8×4 |
(3/8×4)×2 |
3/8×4 |
(3/8×4)×2 |
|
Size (L×W×H) |
CM |
68×32×70 |
86×42×70 |
68×32×70 |
86×42×70 |
68×32×70 |
86×42×70 |
|
Weight |
kg |
75 |
140 |
75 |
140 |
80 |
145 |
