gypsum board machine/gypsum board making machines
US $7500-$12000
prefabricated concrete slab homes making machine
- Category: >>>
- Supplier: Hubei Tengcang Building Materials Technology Co. Ltd.
Share on (62437879828):
Product Overview
Description
Product Description

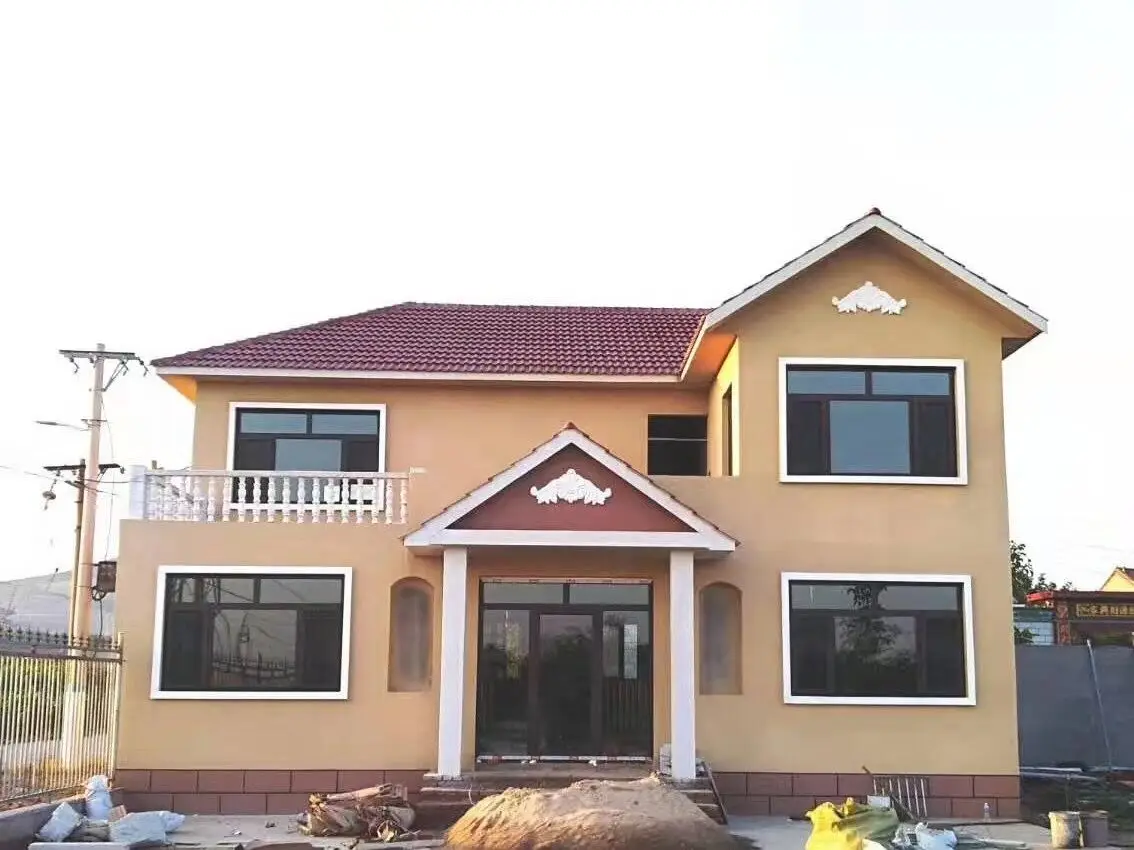

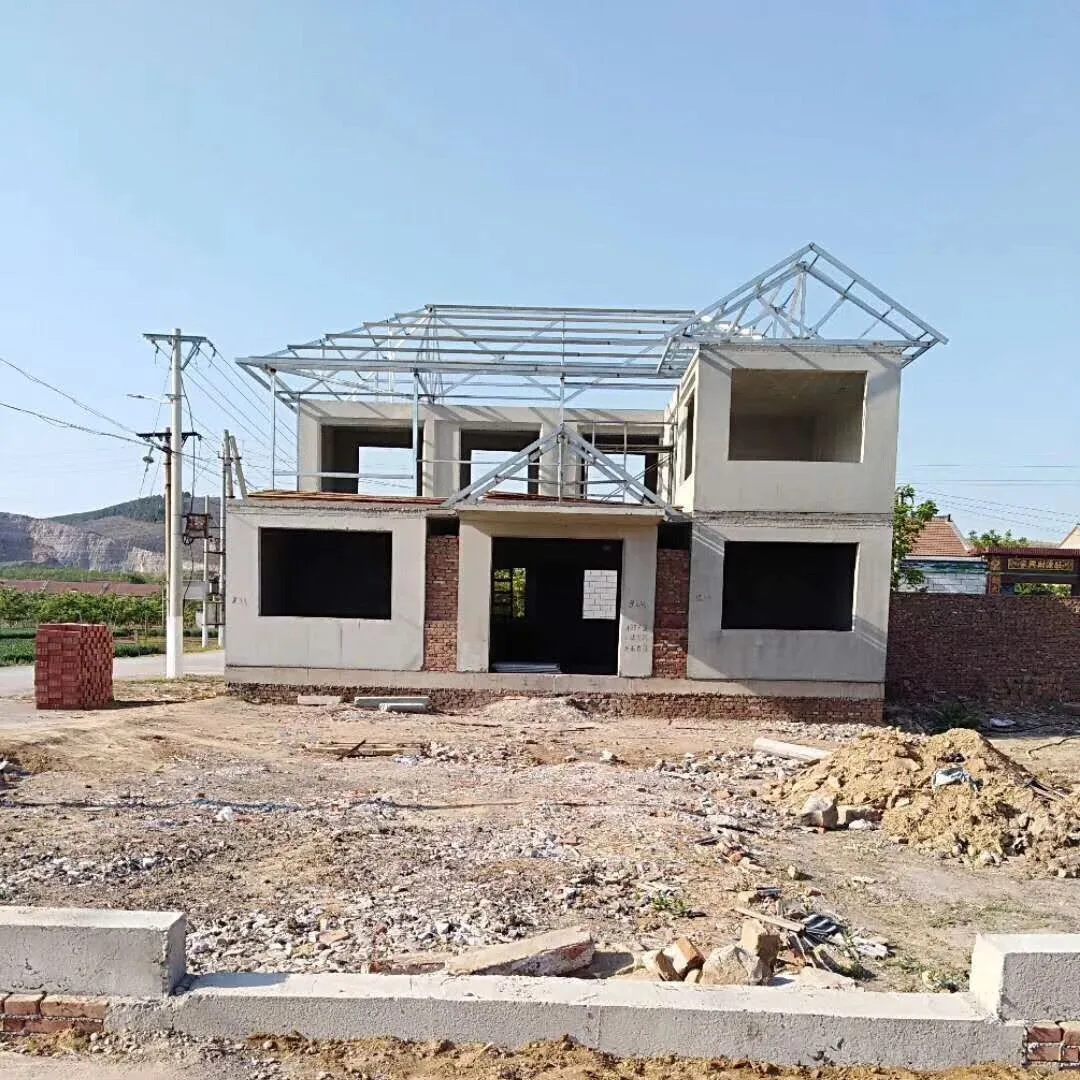

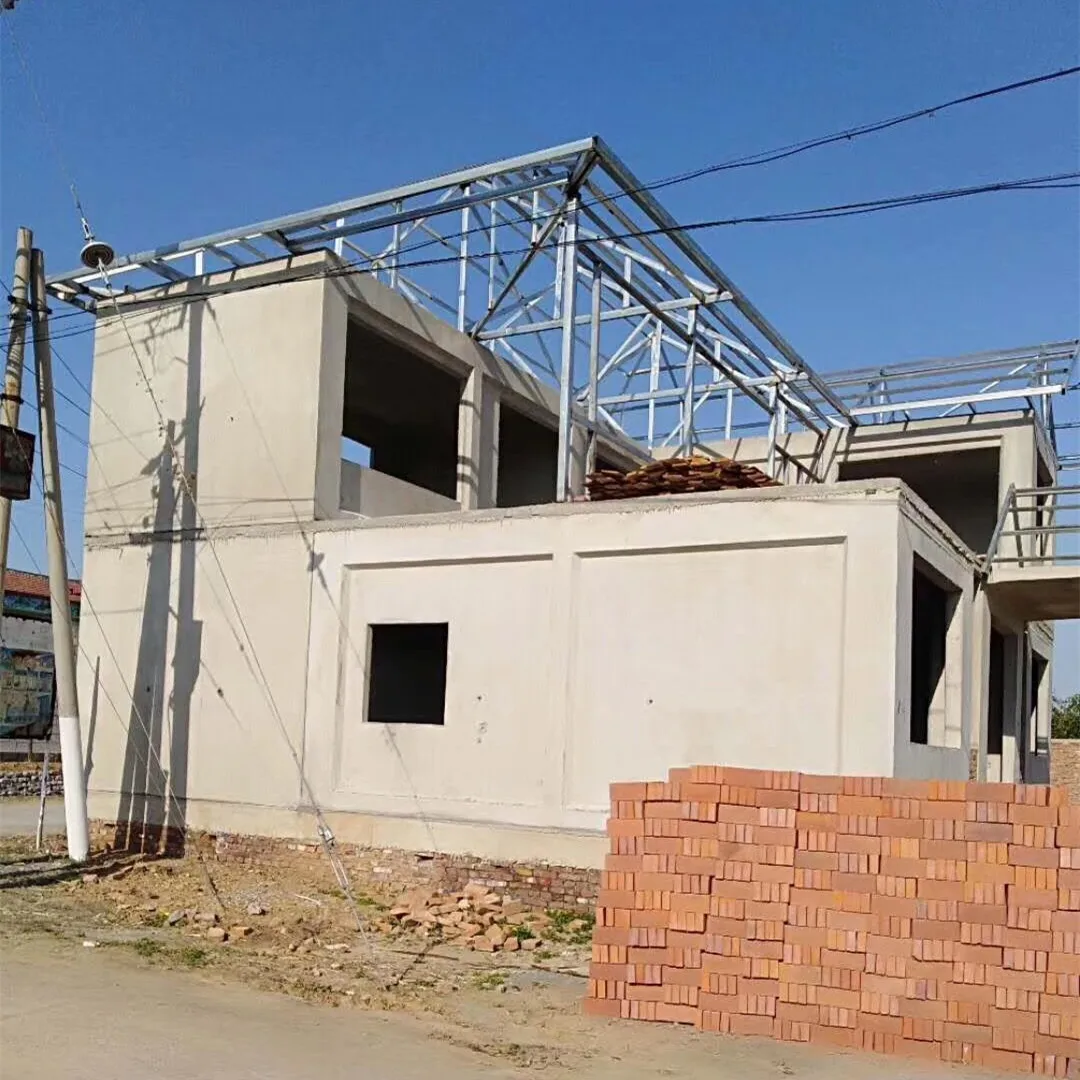

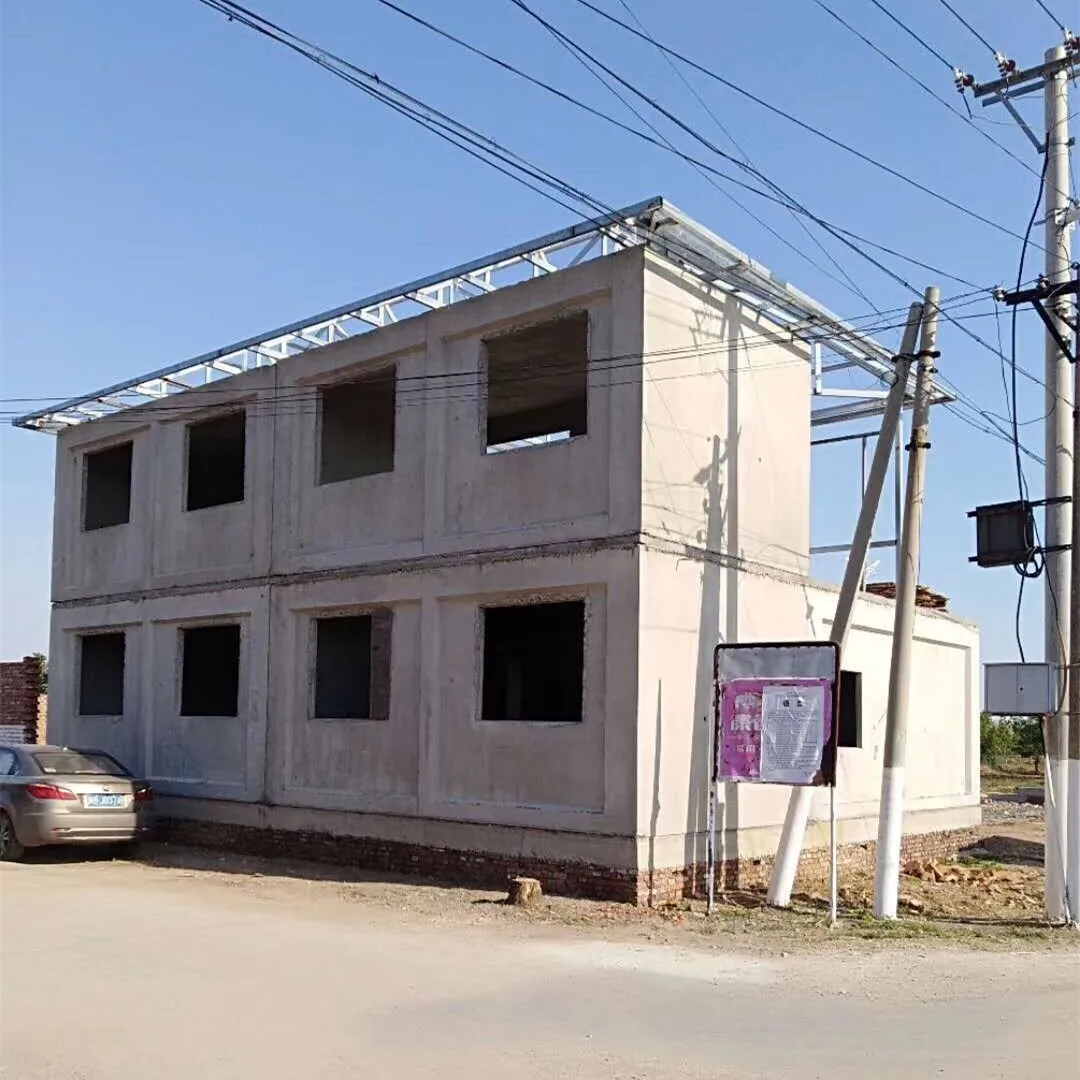

Concrete modular house is also called precast concrete house,belonging to concrete assembly building.It is a new type of construction method with good energy saving and low construction cost. It adopts reinforced concrete structure, which is prefabricated into unit modules in the factory through special equipment, and then directly transported to the site for assembly. The level of prefabrication is high, the size is accurate, the construction speed is very fast, It realized the industrial production of concrete houses
We need six machines to finished the production
- Concrete modular house features
1)The cost of building houses is low
2)Extreme speed of construction
3)Earthquake resistance
4)Wind-resistant.
5)Long life
2)Extreme speed of construction
3)Earthquake resistance
4)Wind-resistant.
5)Long life
6)Fire retardant
7)Sound insulation
8)Insulation
9)Energy-saving and environmentalprotection
10)Flexible assembly
7)Sound insulation
8)Insulation
9)Energy-saving and environmentalprotection
10)Flexible assembly
Detailed Images
Accessories And Tools:
Concrete Hopper 、Welder 、Wire Tope 、U-shaped Buckle 、Vibrating Rod、Cover Box .... And Others.
The production process of concrete modular house

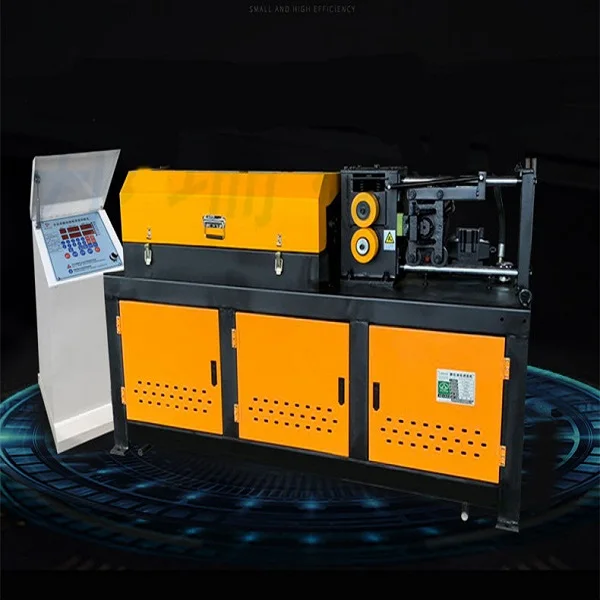

1.Processing the rebar by CNC rebar Machine ,and weave the rebar （reinforcement）into grid and cover it on the inner chassis of forming machine.

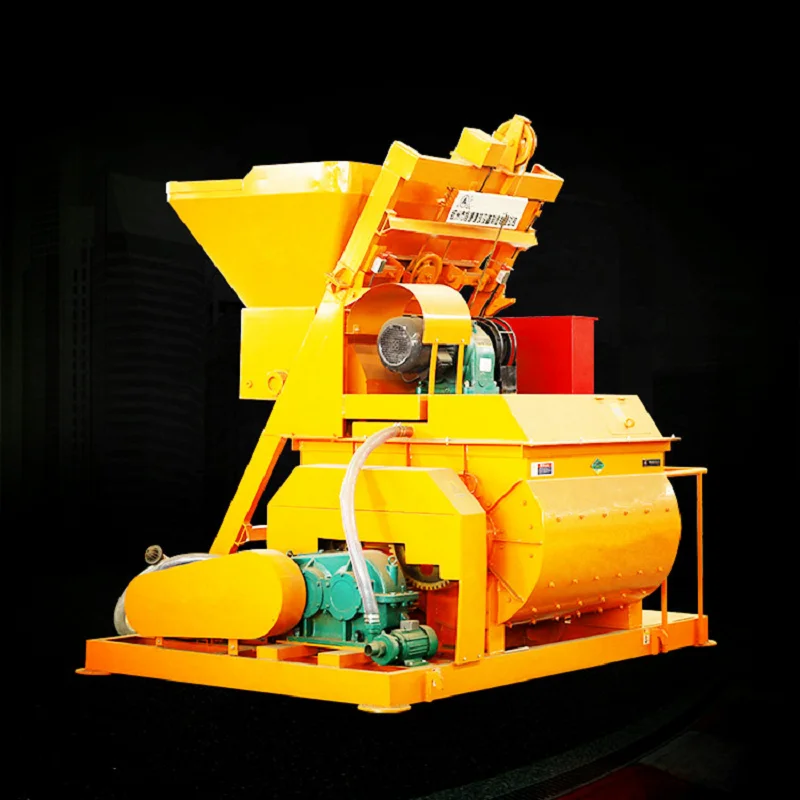

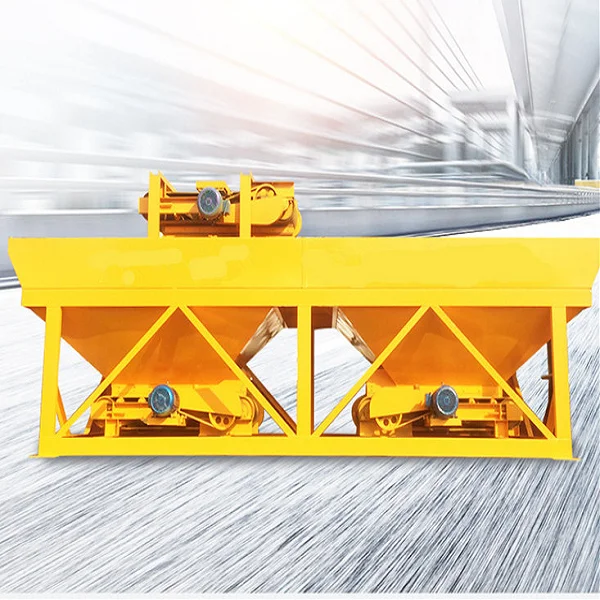

2.Producing the concrete by the concrete machines.

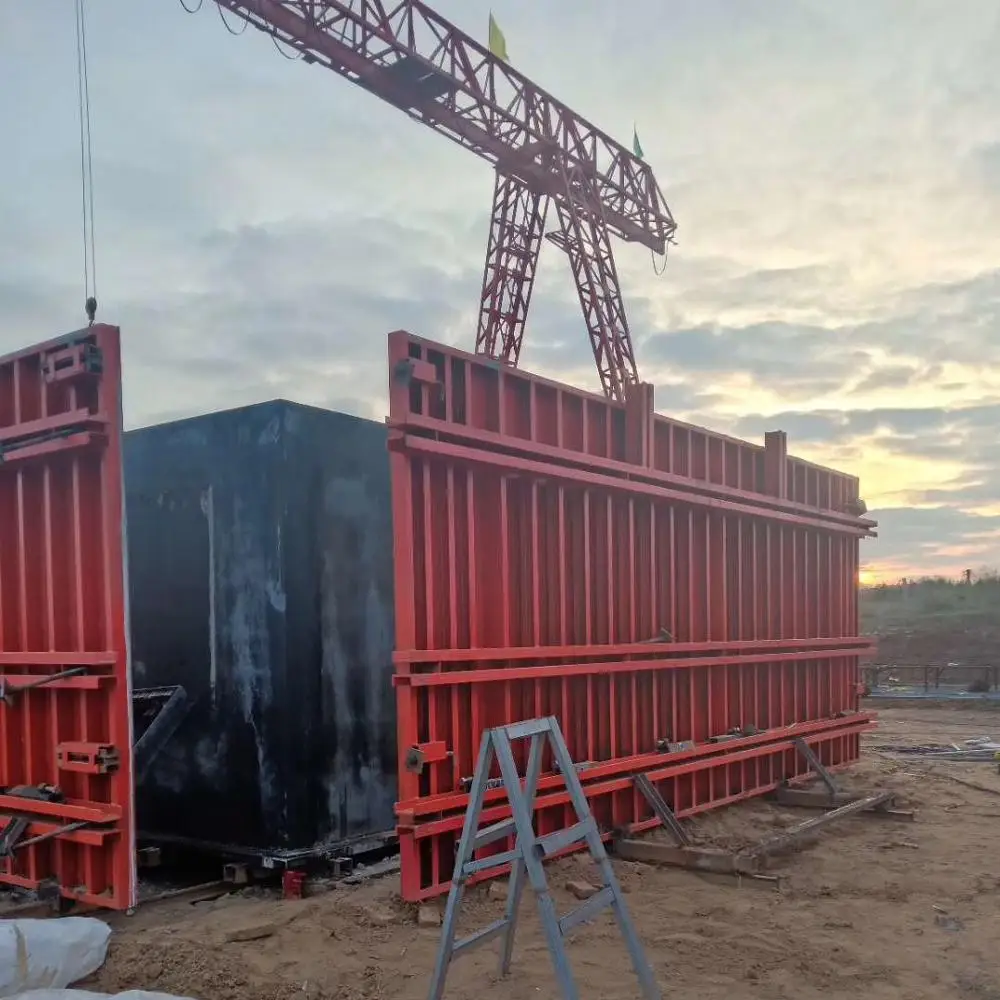

3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full
4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .

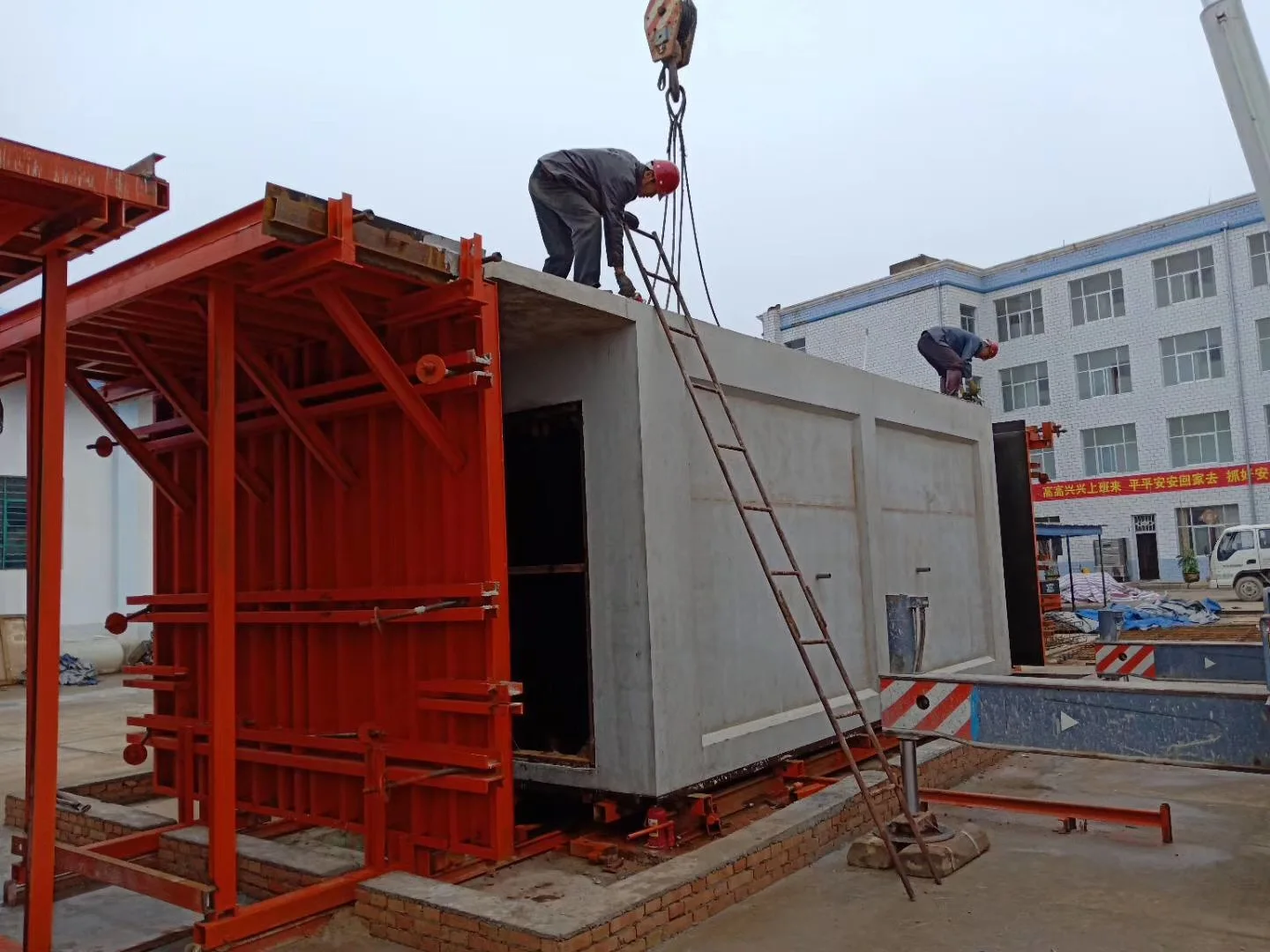

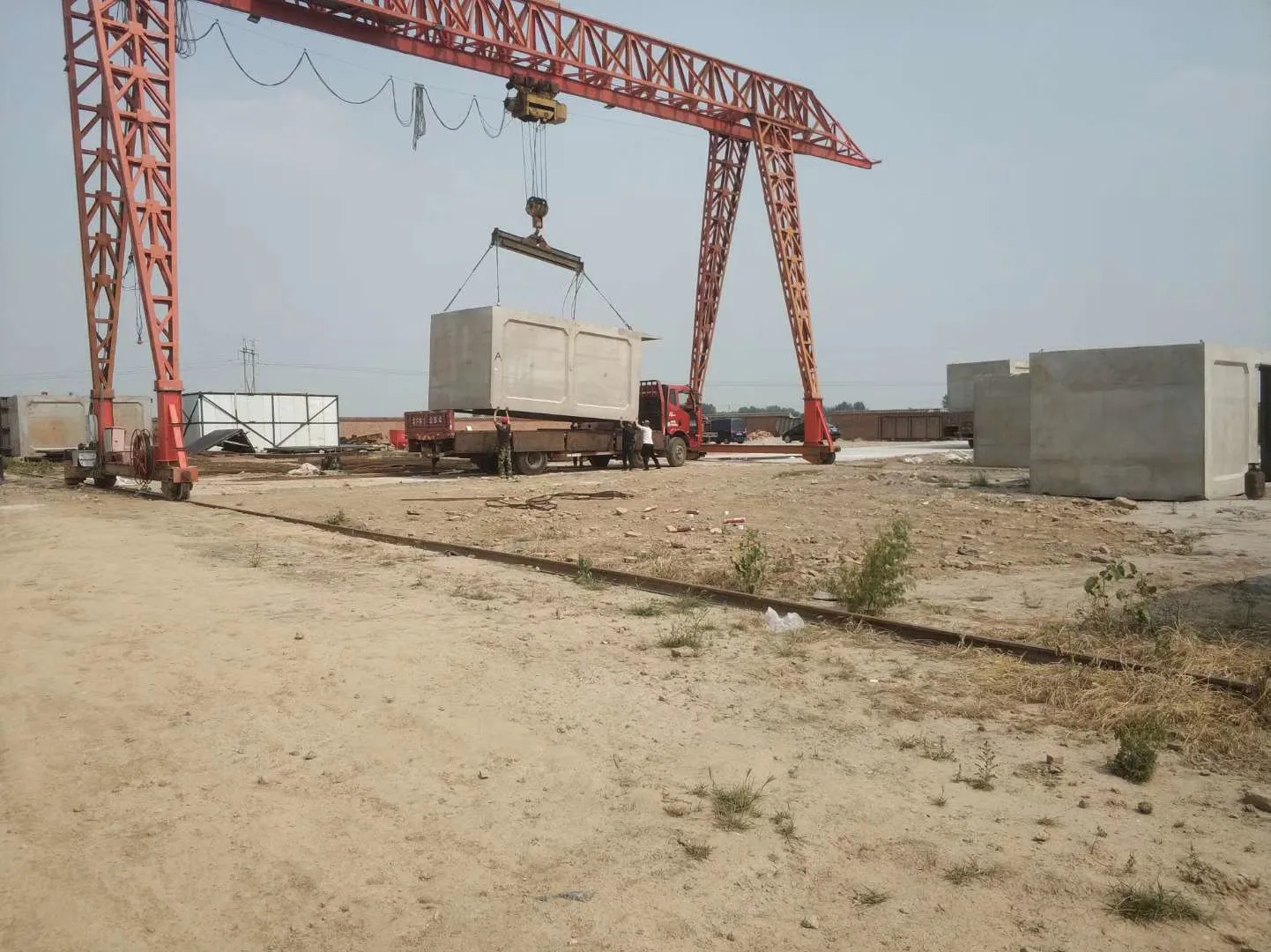

5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.
2.Producing the concrete by the concrete machines.
3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full
4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .
5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.
We can purchase tool equipment for our customers or can be search and purchase locally
Item | Rail mounted truss type gantry crane | Lifting capacity | 32ton |
Crane Span | 26m | Lifting height | 12m |
Cantilevers | Left 7m, right 7m | Electric Control System | CHINT Brand |
Hoist type | Electric Wire Rope Hoist | Cross traveling speed | 16m/min |
Lifting power | 18.5kw | Long traveling speed | 77.5m/min |
Total power | 33.9kw | Cross traveling power | 2*2.2kw |
Working duty | A3 | Long traveling power | 2*5.5kw |
Power supply | 380v,50hz,3phase | Max wheel load | 338.5KN |
Control | Pendant with cable | Insulation class | F |
Lifting speed | 3m/min | ISO & CE certification | Include |
Bearings | LYC | Wire rope core | Fibre |
/ | / | Overload limiter | include |
Advantage
It is characterized by earthquake resistant and wind resistant, moisture proof and fireproof , sound insulation and heat insulation.
Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world.
Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world.
Packing&Shipping
Company Introduction
Hubei Tengcang building material technology company have built a new five-star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff, are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise
FAQ
1.What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost
effective for you.
2.Are you factory or trading company?
We are factory
3. How big land I need to get for build a factory?
The land size should be 80m*40m at least.
4. Does the concrete module can be customized to be any size?
No, at present, the general sizes of one concrete module are:
effective for you.
2.Are you factory or trading company?
We are factory
3. How big land I need to get for build a factory?
The land size should be 80m*40m at least.
4. Does the concrete module can be customized to be any size?
No, at present, the general sizes of one concrete module are:
Width*length: 3*6m, 3.3*6m, 3.3*6.3m, 3.3*6.6m, 3.5*7m, 3.6*6m, 3.6*6.6m, 3.6*7.2m.
Height: 2.9-3.2m,
Length of eaves: 0-1.5m.
