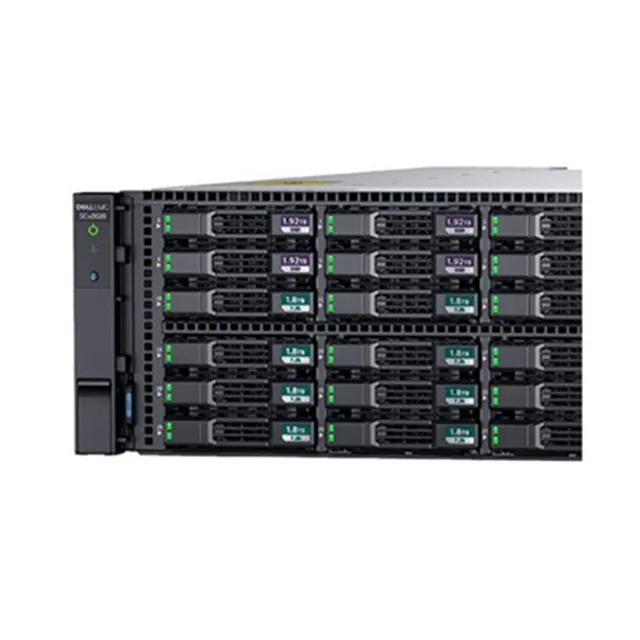

Factory price Dell SCv3000 Series Storage Arrays
- Category: Networking Storage >>>
- Supplier: Beijing Haoyue Weiye Science & Technology Co. Ltd.
Share on (62441208145):
Product Overview
Description
Product Description

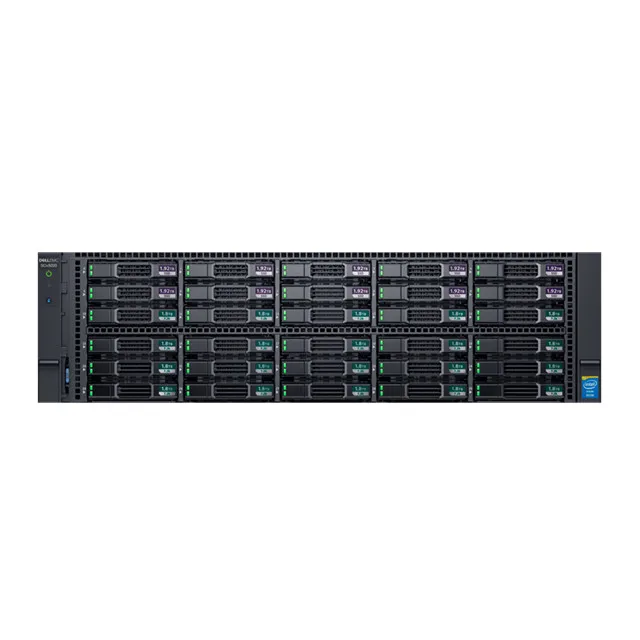

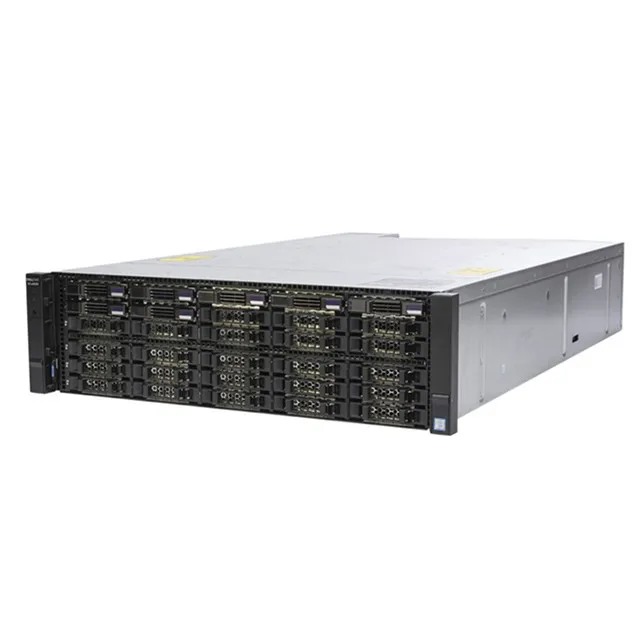

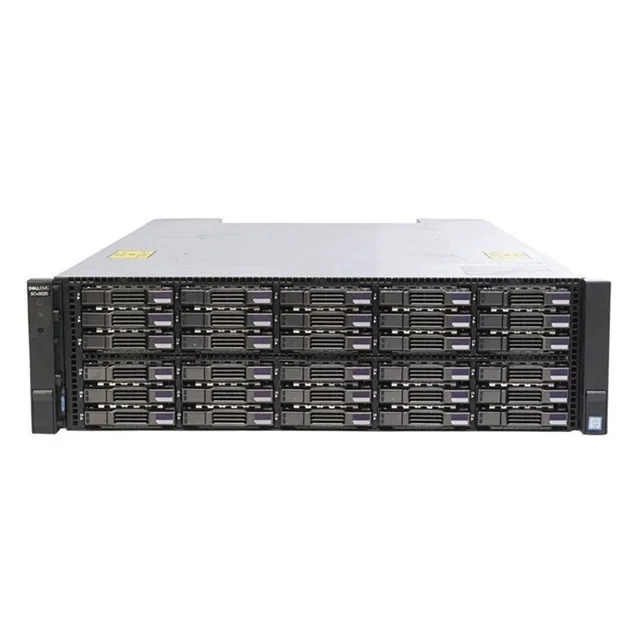

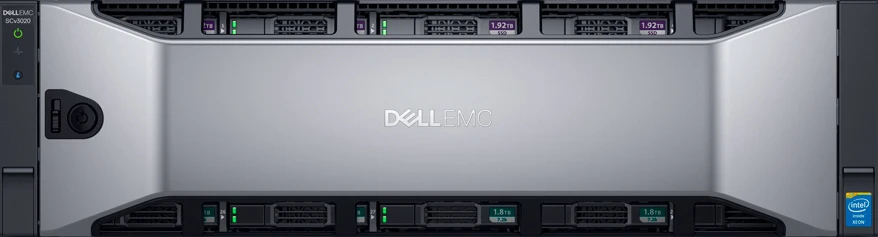

Factory price Dell EMC SCv3000 Series Storage Arrays
SCv3000 Series Models
The base array is available in two 3U “all-in-one” configurations. Both models include dual controllers with 6-core Intel
processors, 32GB memory (16GB per controller) and flexible 10Gb iSCSI, 12Gb SAS or 16Gb FC network connections.
* SCv3000 – (16) 3.5” drive slots
* SCv3020 – (30) 2.5” drive slots
Optional expansion enclosures let you scale up to 222 drives, or 1PB per array* – with even larger scale-out potential in
federated multi-array systems. All three expansion enclosures may be used with either base array. All array and expansion
enclosure models support a variety of SSD, 15K, 10K and NLSAS drives (including FIPS-certified SEDs).
* SCv300 – (12) 3.5” drive slots, 2U
* SCv320 – (24) 2.5” drive slots, 2U
* SCv360 – (60) 3.5” drive slots, 4U*
The base array is available in two 3U “all-in-one” configurations. Both models include dual controllers with 6-core Intel
processors, 32GB memory (16GB per controller) and flexible 10Gb iSCSI, 12Gb SAS or 16Gb FC network connections.
* SCv3000 – (16) 3.5” drive slots
* SCv3020 – (30) 2.5” drive slots
Optional expansion enclosures let you scale up to 222 drives, or 1PB per array* – with even larger scale-out potential in
federated multi-array systems. All three expansion enclosures may be used with either base array. All array and expansion
enclosure models support a variety of SSD, 15K, 10K and NLSAS drives (including FIPS-certified SEDs).
* SCv300 – (12) 3.5” drive slots, 2U
* SCv320 – (24) 2.5” drive slots, 2U
* SCv360 – (60) 3.5” drive slots, 4U*
Specification
Chassis format | All-in-one (dual controllers, internal drive bays, networking) with expansion options |
Rack size | 3U |
Controllers | 2 hot-swappable per chassis (dual active) |
Processors | Intel® Xeon® Processor E5-2603v4, 1.7GHz, 6 cores |
Internal storage capacity | SCv3000: 16 x 3.5” drive bays SCv3020: 30 x 2.5” drive bays |
System memory | 32GB per SCv3xxx array (16GB per controller) |
Operating System | Dell Storage Center OS (SCOS) 7.2 or greater |
Maximum drive count | 222 (internal plus external expansion), more in federated systems |
Max raw capacity | 1PB per array (SSD or HDD) 7 , more in federated systems7 |
MEMORY | 16GB 2X8GB DDR4 2666MHz UDIMM Non-ECC Memory |
SYSTEMS MANAGEMENT | Intel vPro Technology Enabled |
Max 16Gb FC ports | 8 per array (SFP+) |
Max 10Gb/1Gb iSCSI ports | Up to 8 SFP+ or BaseT ports per array |
Max 12Gb SAS ports | Up to 8 12Gb SAS ports |
Management ports | 2 per array (1Gb BASE-T) |
Back-end expansion protocols | 12Gb SAS |
Array configurations | All-flash, hybrid or HDD arrays |
Power/wattage | 2 hot-swappable 1485W power supplies; 1485W maximum power |
Details Images
Related Products
Packing&Shipping
Original Dell Packing
