Note:When you need other tungsten wolfram electrodes, please send us the inquiry including
designation and length*diameter.
Chemical Composition:
2.4*175mm 2 percent thoriated red tungsten rod
tungsten electrode composition

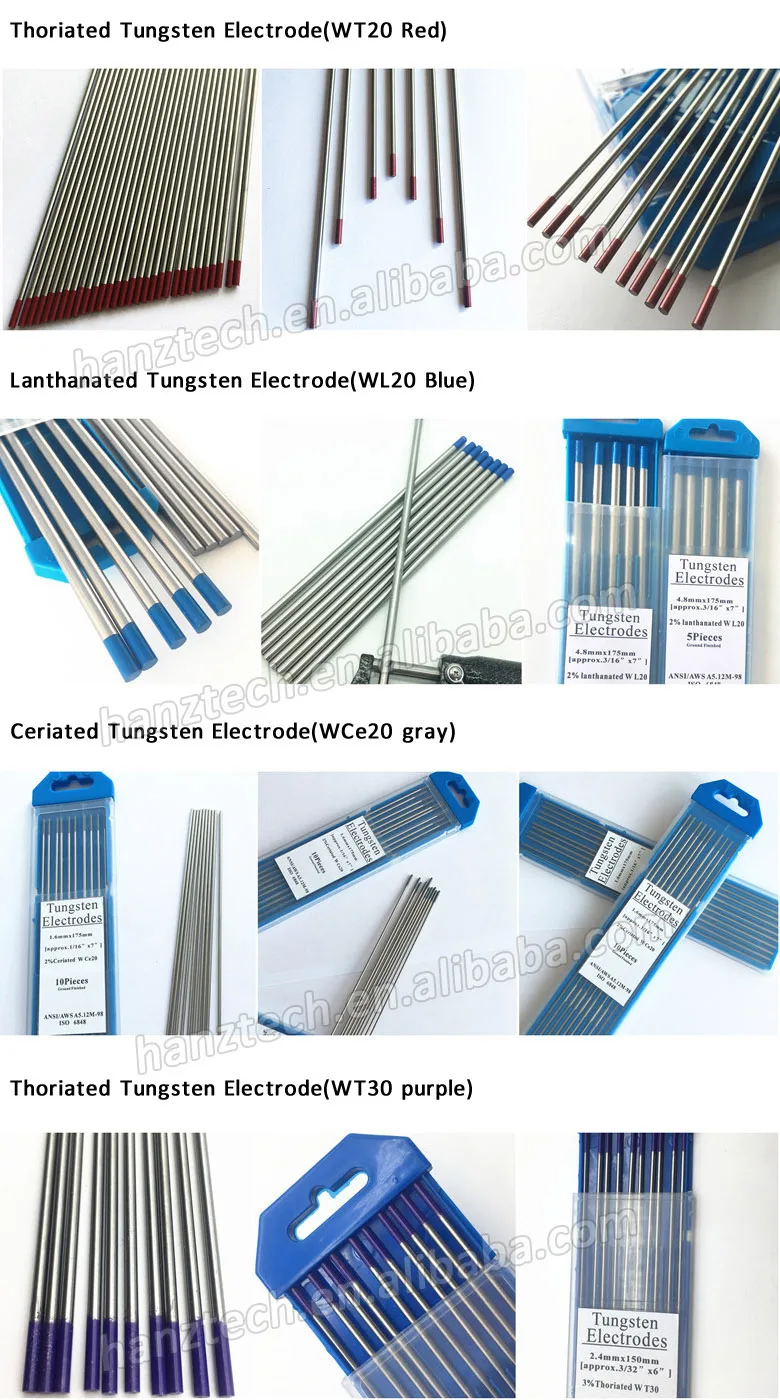

Color mark
Grade
Dioxide
Dioxide in %
Impurities %
tungsten %
WT10
ThO2
0.80-1.20
≤0.02
Remainder
Yellow
WT20
ThO2
1.70-2.20
≤0.02
Remainder
Red
WT30
ThO2
2.80-3.20
≤0.02
Remainder
Purple
WT40
ThO2
3.80-4.20
≤0.02
Remainder
Orange
WC20
CeO2
1.80-2.20
≤0.02
Remainder
Grey
WL10
La2o3
0.90-1.20
≤0.02
Remainder
Black
WL15
La2o3
1.40-1.60
≤0.02
Remainder
Gold
WL20
La2o3
1.90-2.10
≤0.02
Remainder
Blue
WZr3
ZrO2
0.15-0.50
≤0.02
Remainder
Brown
WZr8
ZrO2
0.70-0.90
≤0.02
Remainder
White
WP
-
-
≤0.02
99.8
Green
WY
YO2
1.80-2.20
≤0.02
Remainder
Sky blue
WS2
YO2
1.80-2.20
≤0.02
Remainder
Turquoise
Size:
2.4*175mm 2 percent thoriated red tungsten rod
Diameter
Diameter tolerance
Length
Length tolerance
mm
inch
mm
mm
mm
1
1/25
(+/-)0.01
50,75,150,175
(+/-)1.0
1.2
6/125
(+/-)0.01
50,75,150,175
(+/-)1.0
1.6
1/16
(+/-)0.02
50,75,150,175
(+/-)1.0
2
2/25
(+/-)0.02
50,75,150,175
(+/-)1.0
2.4
3/32
(+/-)0.02
50,75,150,175
(+/-)1.0
3
3/25
(+/-)0.03
50,75,150,175
(+/-)1.0
3.2
1/8
(+/-)0.04
50,75,150,175
(+/-)1.0
4
5/32
(+/-)0.04
50,75,150,175
(+/-)1.0
4.8
3/16
(+/-)0.04
50,75,150,175
(+/-)1.0
5
1/5
(+/-)0.04
50,75,150,175
(+/-)1.0
6
15/64
(+/-)0.04
50,75,150,175
(+/-)1.0
6.4
1/4
(+/-)0.04
50,75,150,175
(+/-)1.0
8
5/16
(+/-)0.04
50,75,150,175
(+/-)1.0
10
2/5
(+/-)0.04
50,75,150,175
(+/-)1.0
Appliaction&Feature
Application

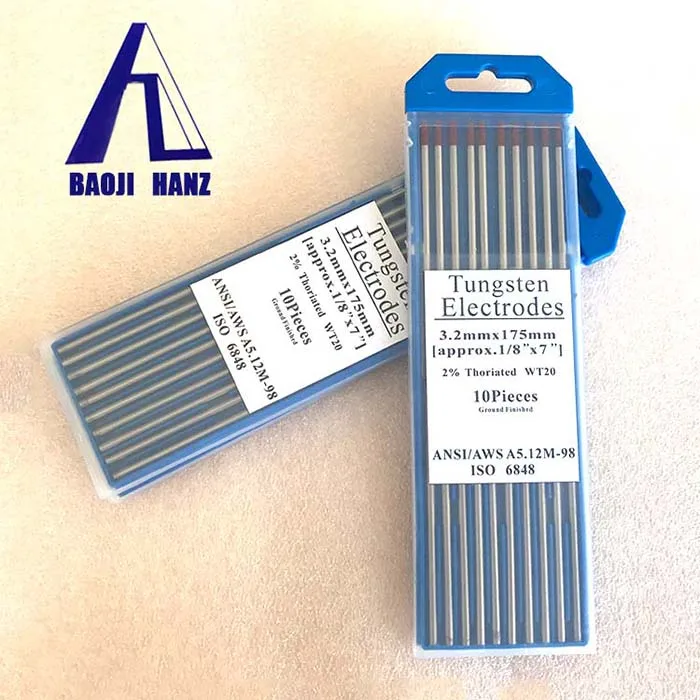

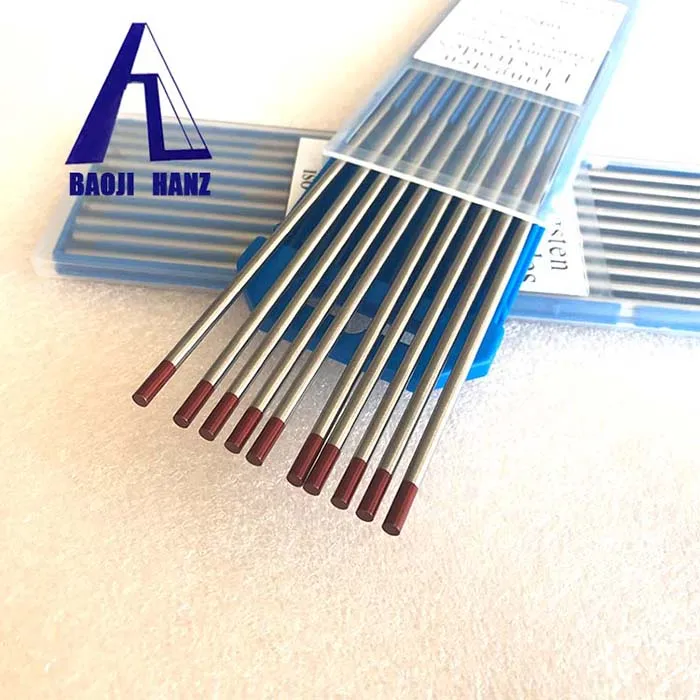

2.4*175mm 2 percent thoriated red tungsten rod
2.4*175mm 2 percent thoriated red tungsten rod:
1. It used when arc welding with the Tungsten Inert gas (TIG) process or when plasma welding.
2. In both processes the electrode, arc and weld pool are protected from atmospheric contamination by an inert gas.
3. It used because it can withstand very high temperatures with minimal melting or erosion.
4. it made by powder metallurgy and are formed to size after sintering.
Feature of 2.4*175mm 2 percent thoriated red tungsten rod
• Low electronic function
• Good conductivity
• Good electron emission ability
• Good mechanical cutting performance
• High elastic modulus, Low vapour pressure
• High recrystallization temperature
Advantage:

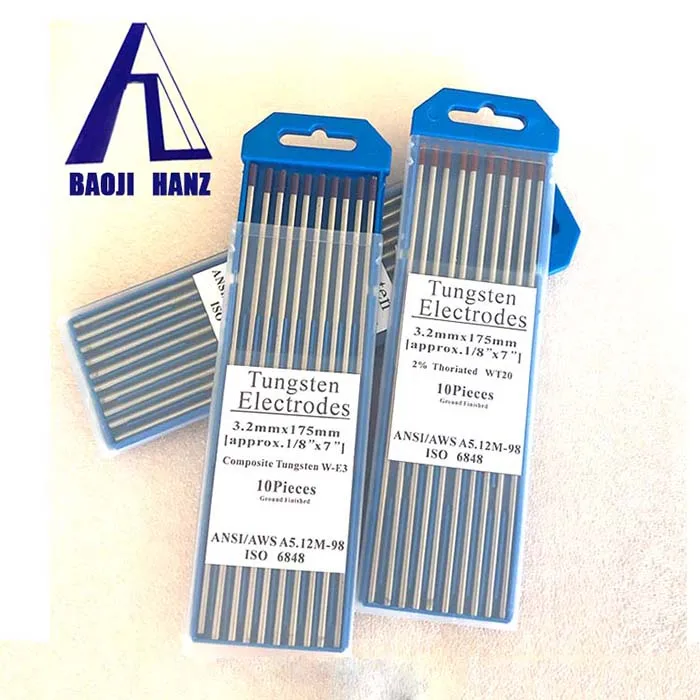

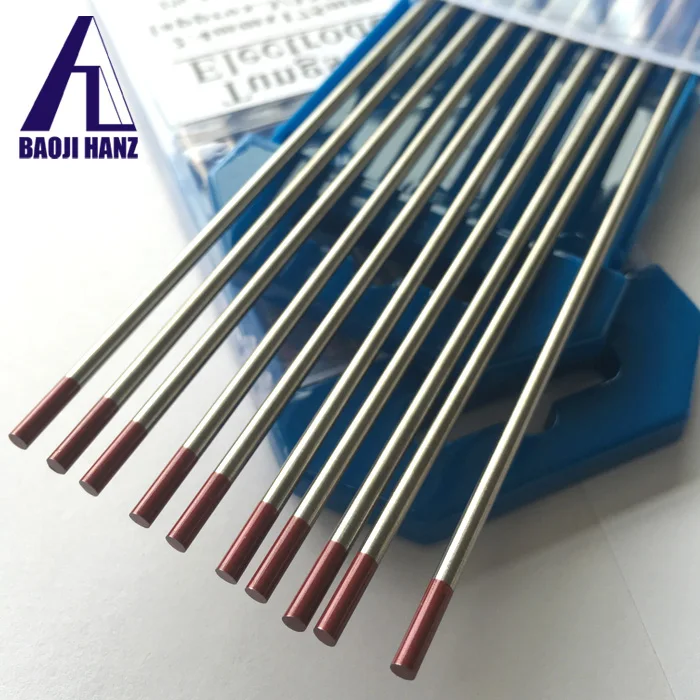

2.4*175mm 2 percent thoriated red tungsten rod

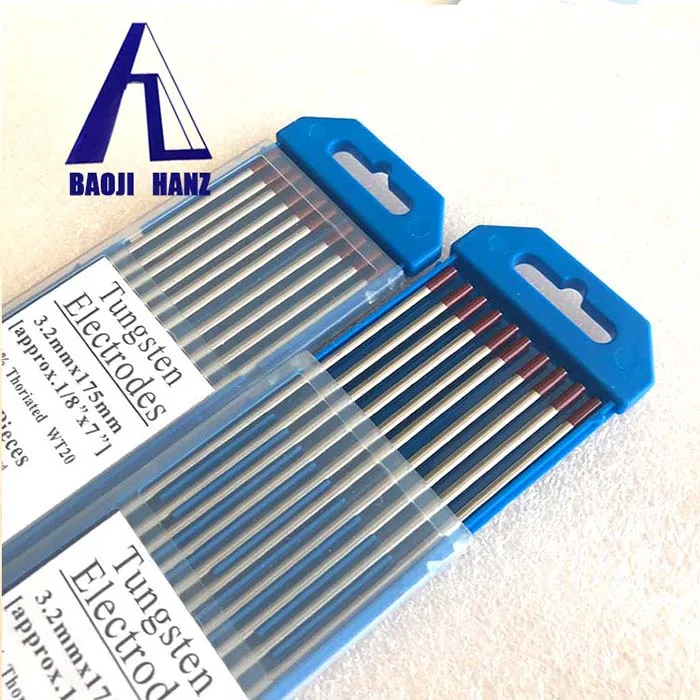

2.4*175mm 2 percent thoriated red tungsten rod
Company Information
Baoji Hanz Advantage
1. Ability to customize;
2. Has items in stock;
3. Short lead time;
4. Exported to many counrises before;
5. Has a factory
Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing all shapes of tungsten, molybdenum, tantalum, niobium , titanium, nickel products and other alloy.
2.4*175mm 2 percent thoriated red tungsten rod
Our Certifications

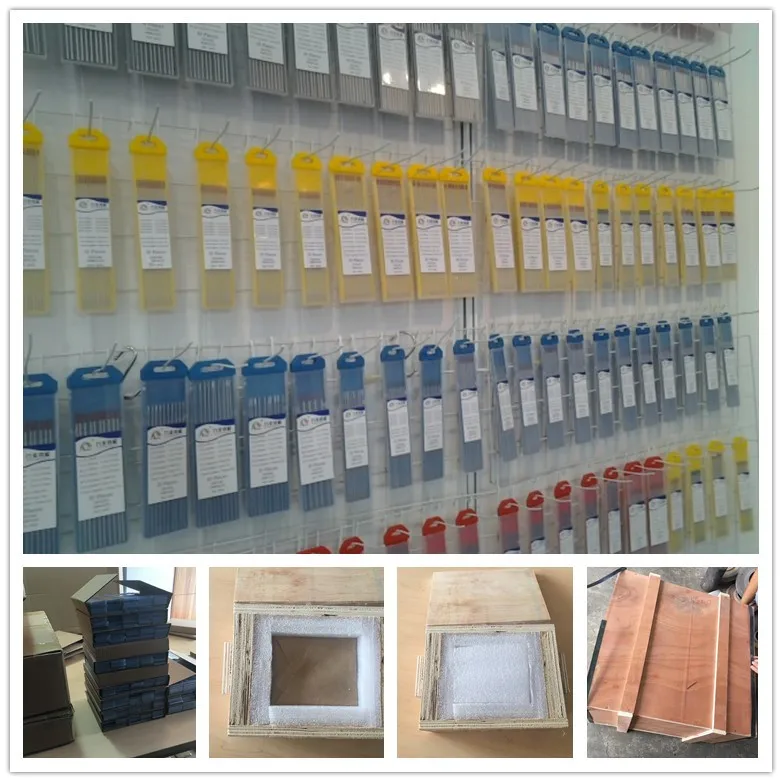

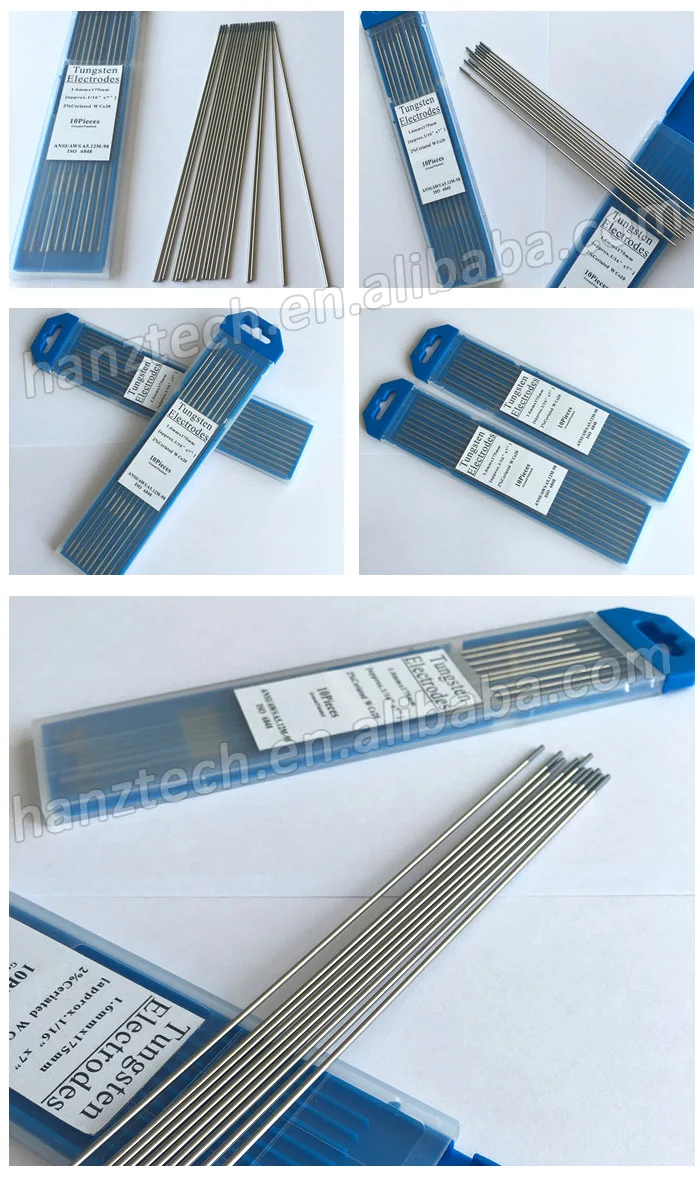

Packaging & Shipping
Packaging
2.4*175mm 2 percent thoriated red tungsten rod
• 10pcs in plastic case
• one carton box with 1000pcs inside
• protective bubble inside
Note: your special request will be available for the package of tungsten electrode.
Shipping
TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport are available.Depends on your demands, we will try our best to choose the most suitable way for your tungsten wolfram electrodes.
After we send the product, we will send the track number to you with Email, and also we will track this order until you can received successfully.

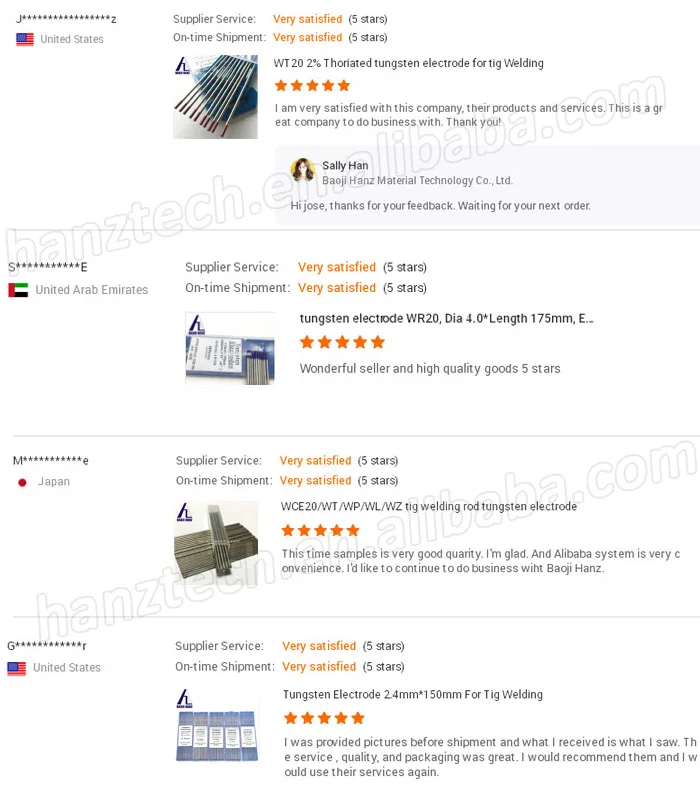

Buyers Feedback
2.4*175mm 2 percent thoriated red tungsten rod

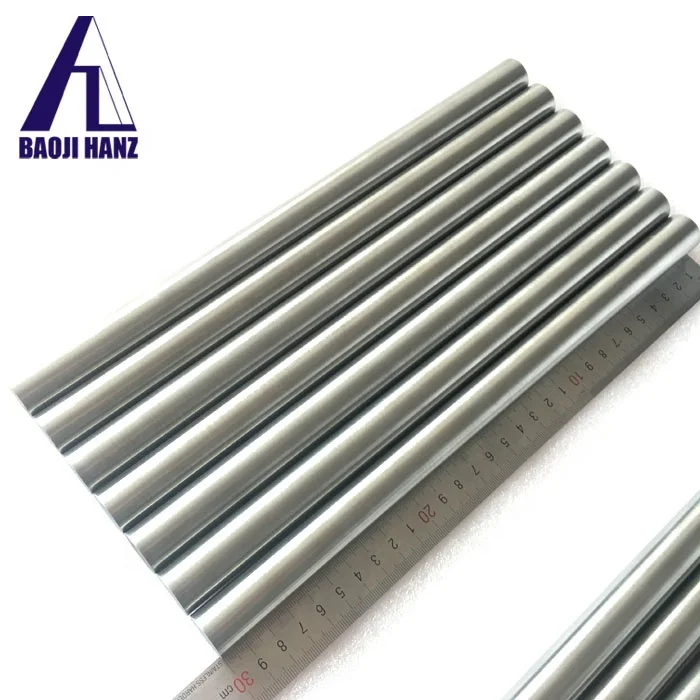

W Related
2.4*175mm 2 percent thoriated red tungsten rod
FAQ
1.Q:Are you a factory or trading company? A:We are a factory.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours train from Xi'an. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples? A: We are honored to offer you samples, but sample cost and shipping cost should be paid.
4.Q:How does your factory do regarding quality control? A:Quality is priority. Hanz people always attach great importance to quality controlling from the very beginning to the very end.
Payment terms
1. Sample order: west-union, Paypal, Escrow and T/T100% are accepted.
2. Big order: T/T100%, full payment advanced, L/C are accepted.
Our Service
1. Competitive price.
2. Our strengths over other suppliers.
3. Reliable quality on the base of the same price.
4. 100% Timely delivery as your as your requirements.
5. Professional service to cut much purchasing costs down.
6. We offer discount for old customers
7. We do our best to meet the requirements of customers.
8. Faced with problems related with products,please feel free to contact us.
We will try our best to help you.
Contact
2.4*175mm 2 percent thoriated red tungsten rod
If you have any interested in our products, contact us freely by click the below bottom,
Main product : Tungsten, molybdenum, tantalum, niobium, titanium, nitinol.
Shape form: wire, bar, plate, sheet, cube, beads, parts and so on.
Send us your dimensions, requirements, quantity, application and drawings, we will reply within 24 hours.
