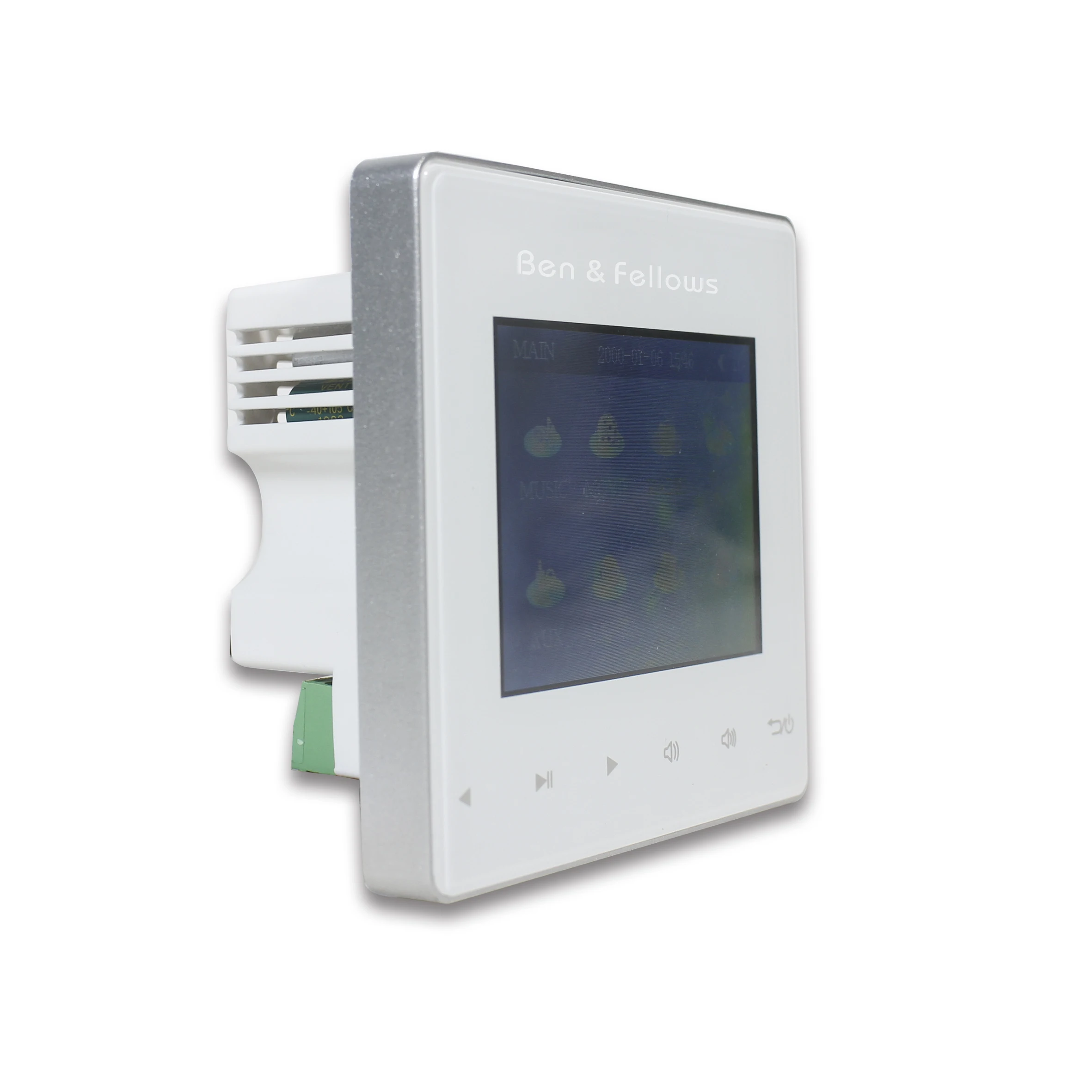

Bluetooth USB Mini 4-CH 25w pa Home Audio In Wall Mounted Amplifier





Description

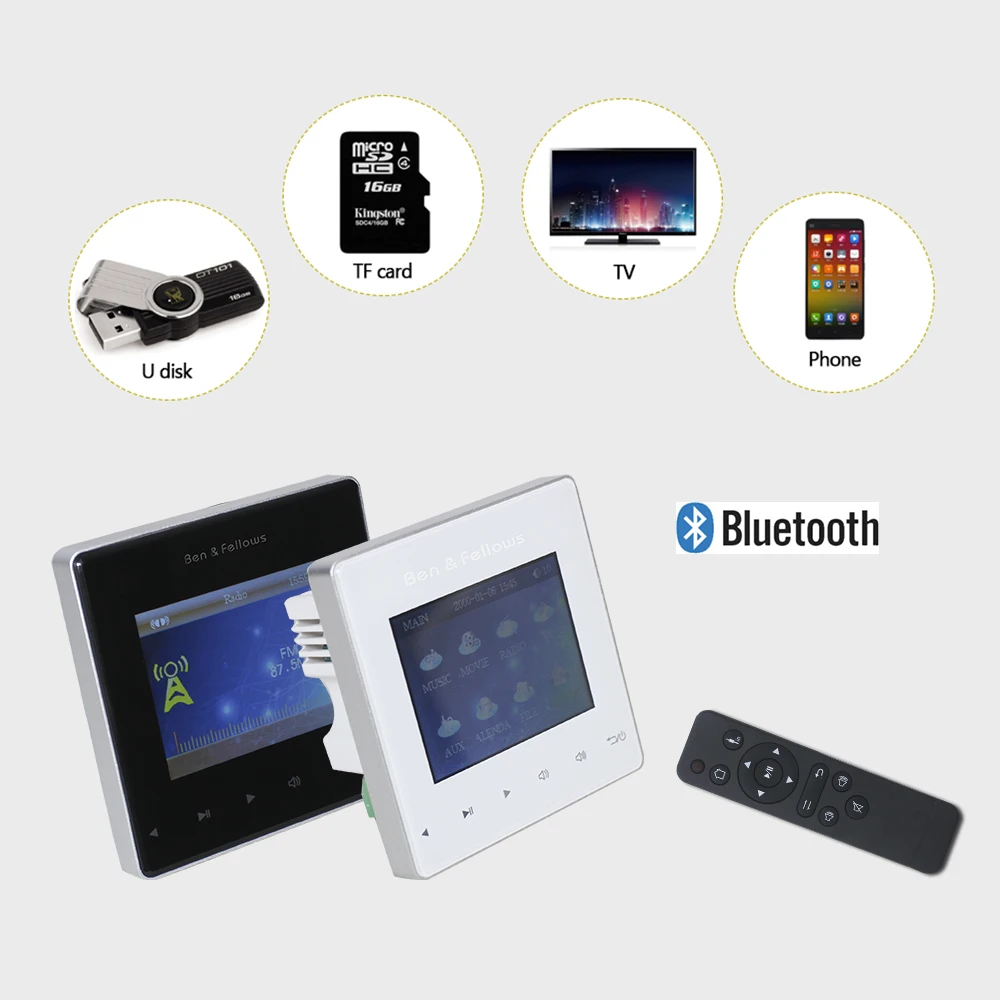

This 4 channel small bluetooth multi-home audio system equipped with micro USB/TF can power 4 to 8 pieces of speakers in your home or small commercial area. It uses a high-efficiency class-D amplifier for a maximum output of 4*25 watts, low-impedance speakers. The cool display shows relevant track music info. Plus, you can control everything –seek, change tracks, and adjust the volume – using the included wireless infrared remote controller.

Features

Adopt Bluetooth wireless connection technology.
Built-in all-digital auto-tuning radio, 30 radio stations.
Support play songs automatically when power on.
Standard 86 Mounted on the wall for easy control.

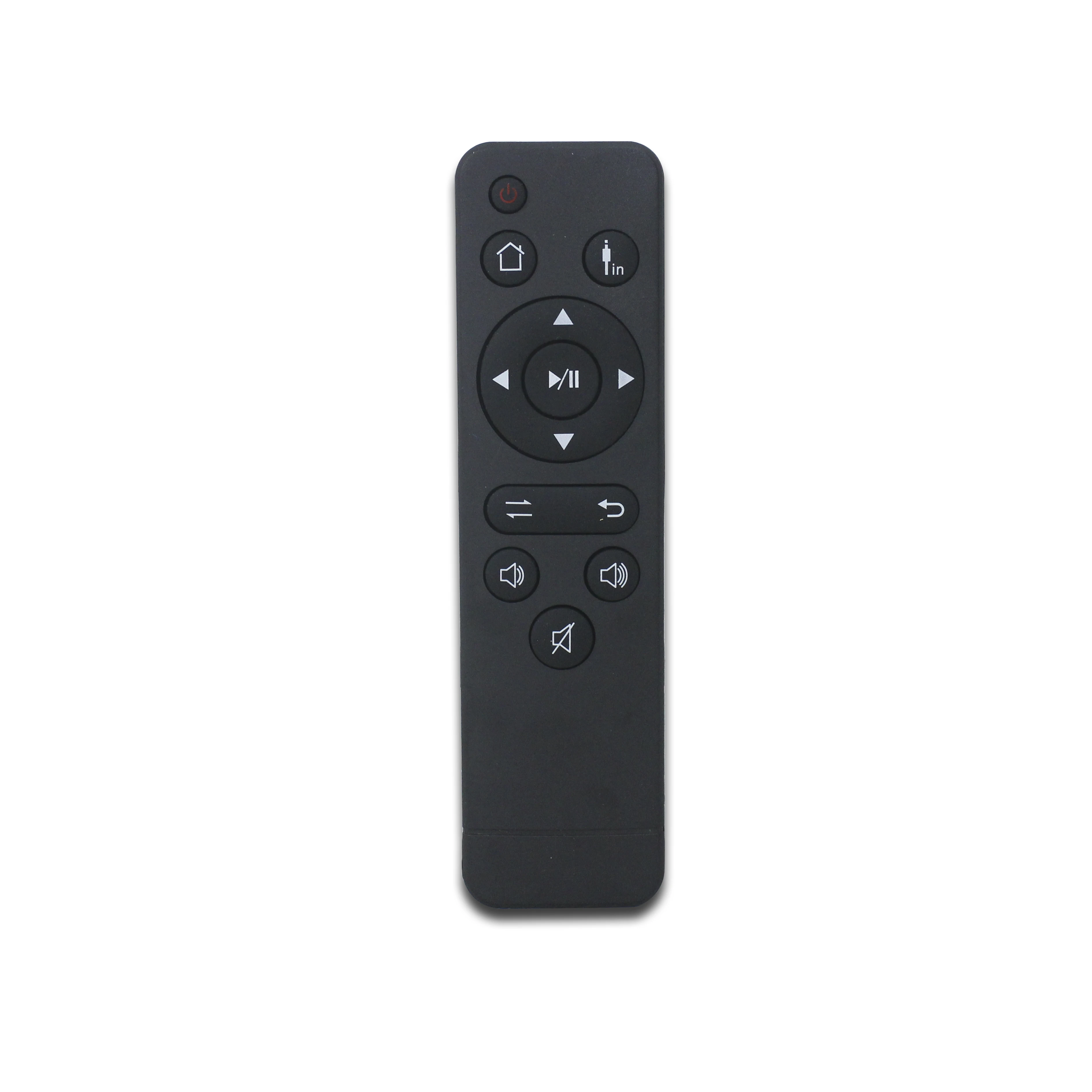

With wireless remote control.
Support linkage trigger doorbell.
Support USB and SD card storage.
Support audio input and output function with secure and fast connect phoenix connectors.
Color LCD display, and light touch button rim for easy control of the music system.
Suitable for homes, commercial areas, kid’s room, etc

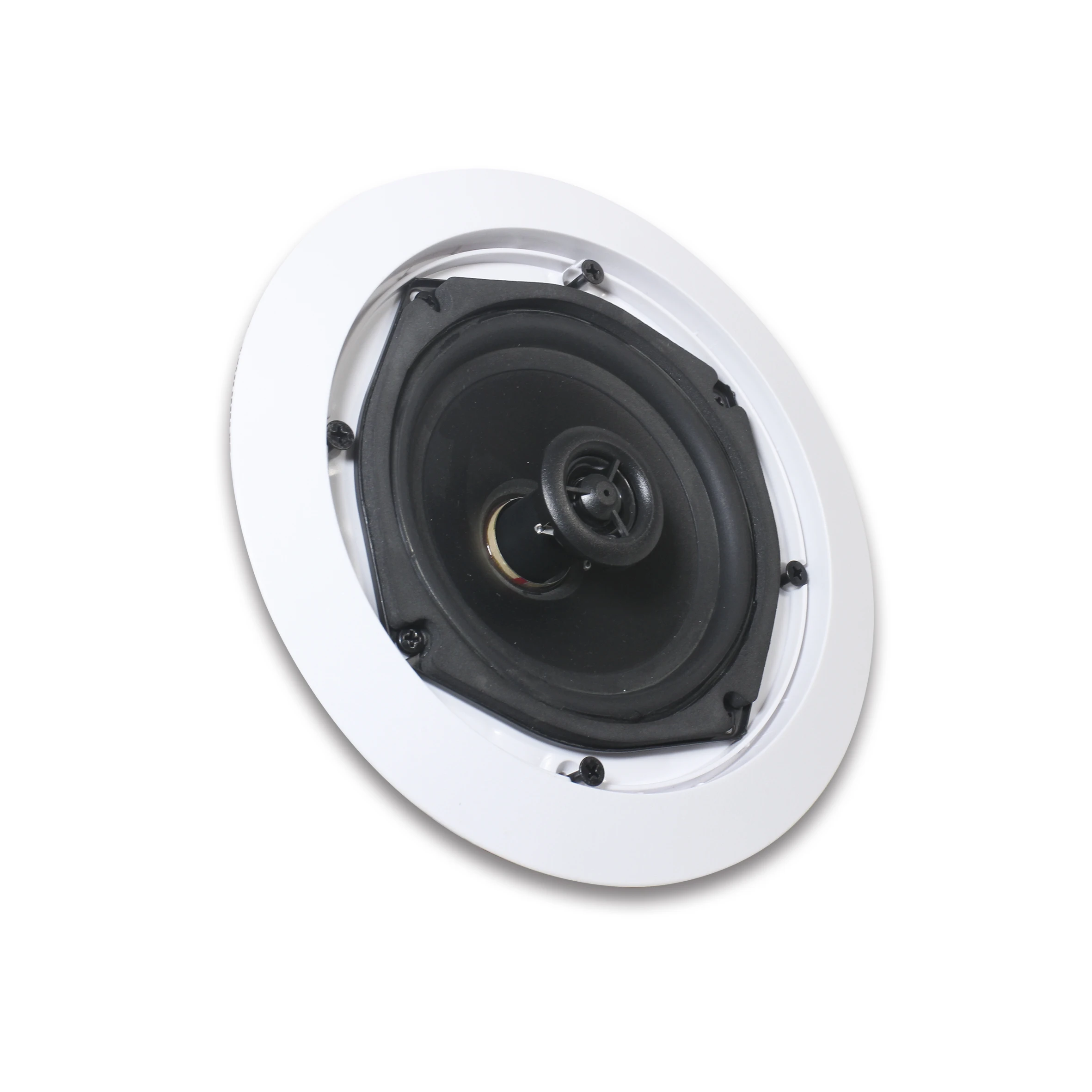

5'' coaxial ceiling speaker at high performance.
Elegant design and high end souond quality
Good for PA and BGM.

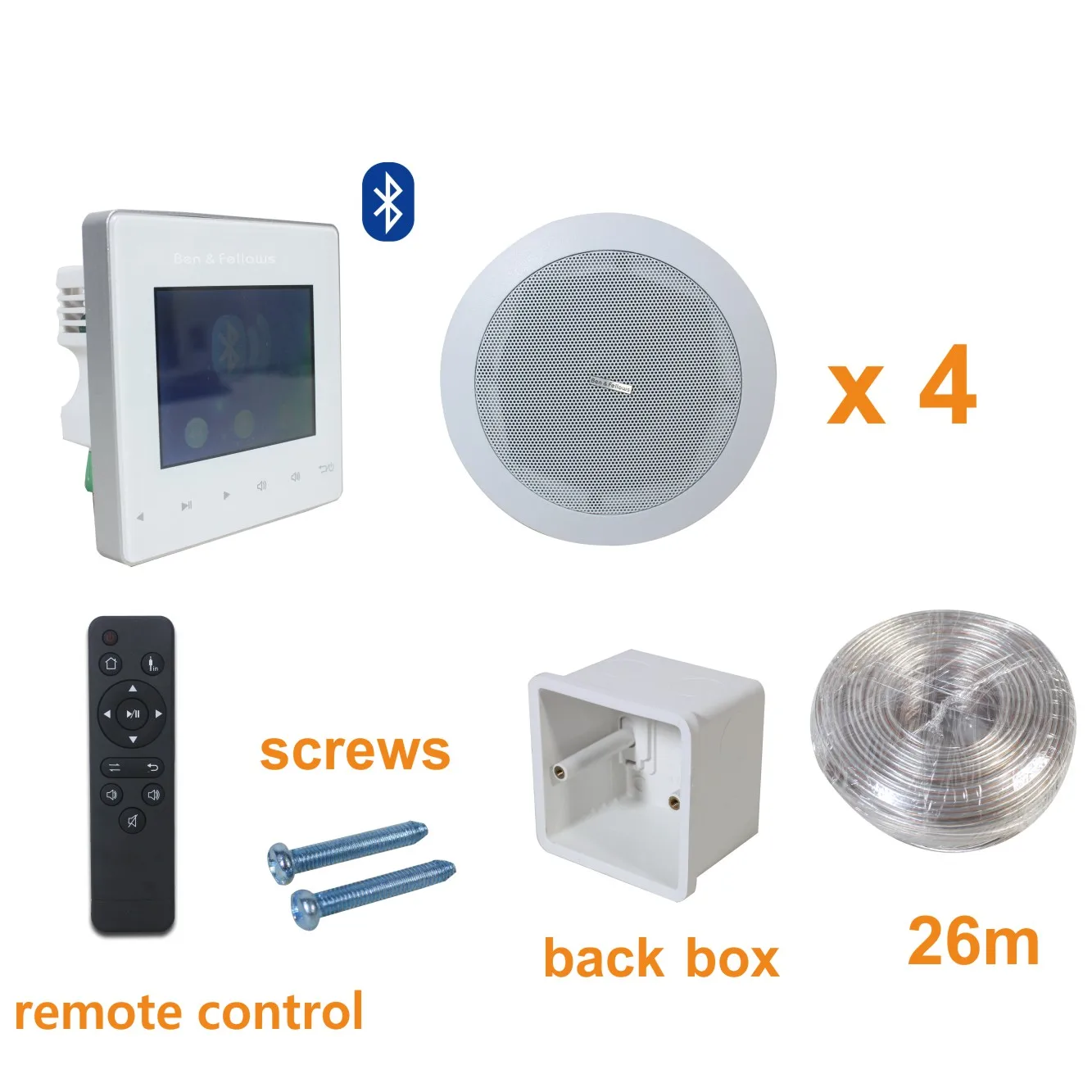

Various packaegs are available.
1. Packed with 4  to 8 pieces of ceiling speakers
2. Packed with 4 pieces of wall speakers

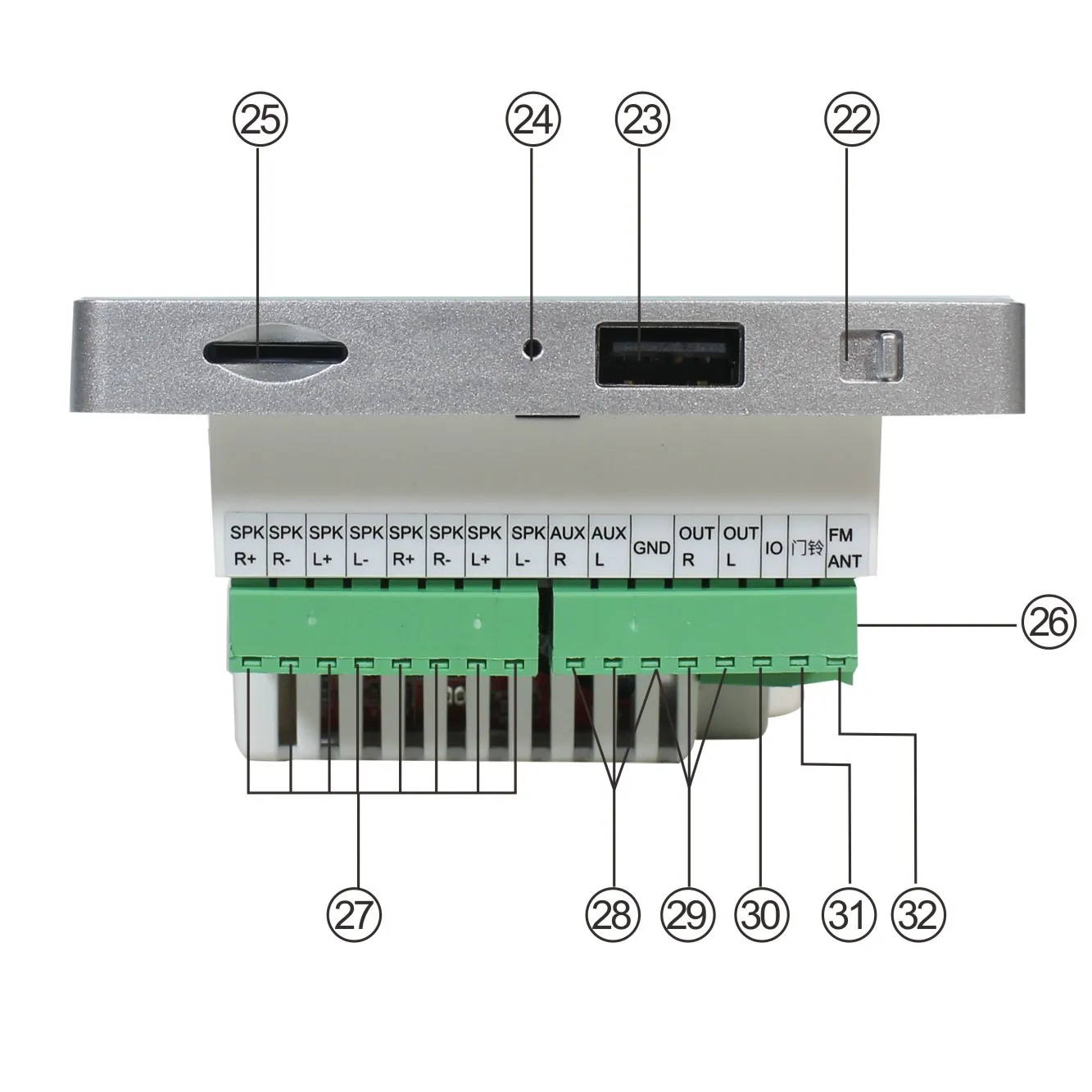

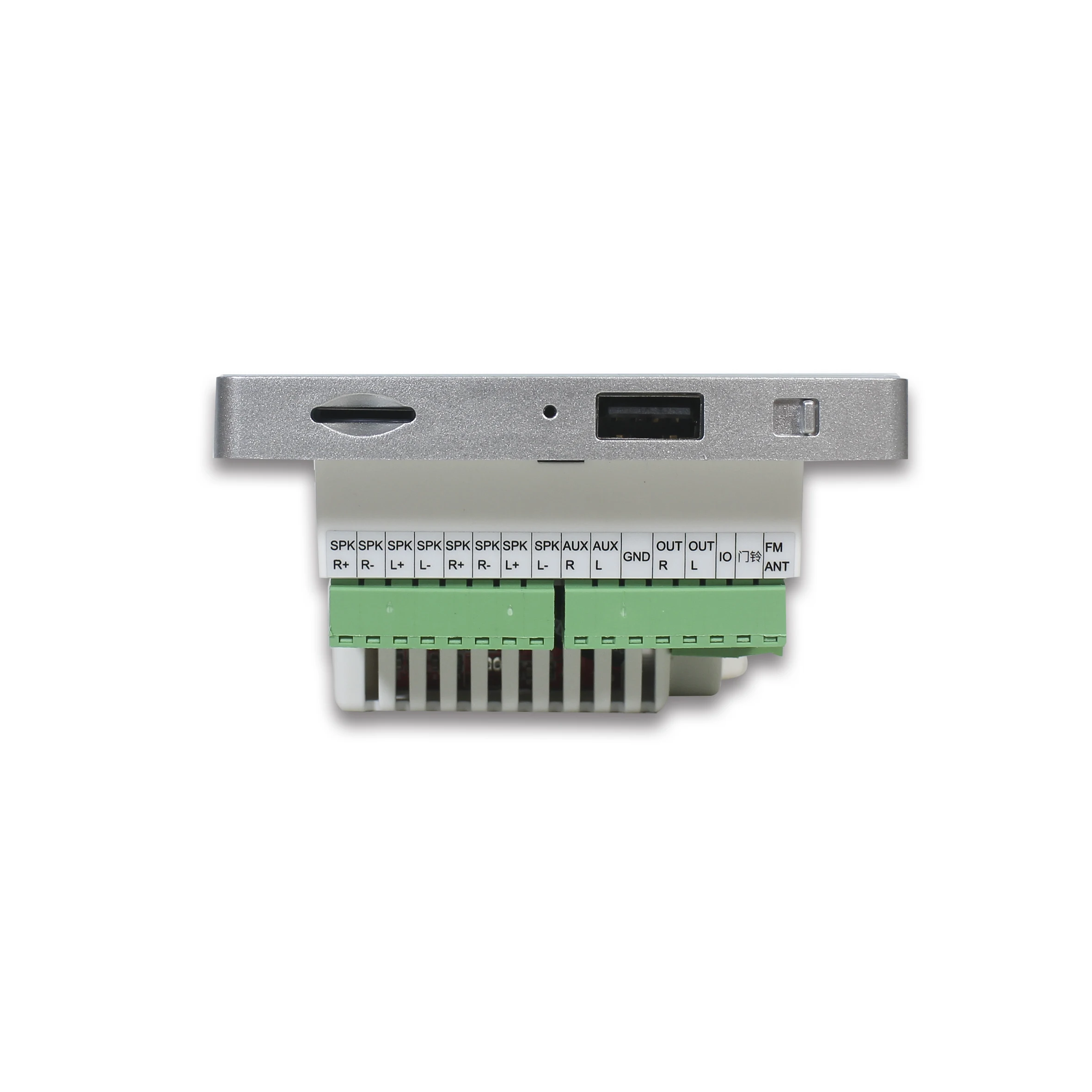

22. Power switch: Turn left, power on. Turn right, power off
23. USB port: Support connecting 1.1, 2.0 32GB standard U disk
24. Reset button: Press this button to restore the factory settings.
25. TF card interface: Insert TF card notch to the right card socket,
which can support a maximum capacity of 32G.

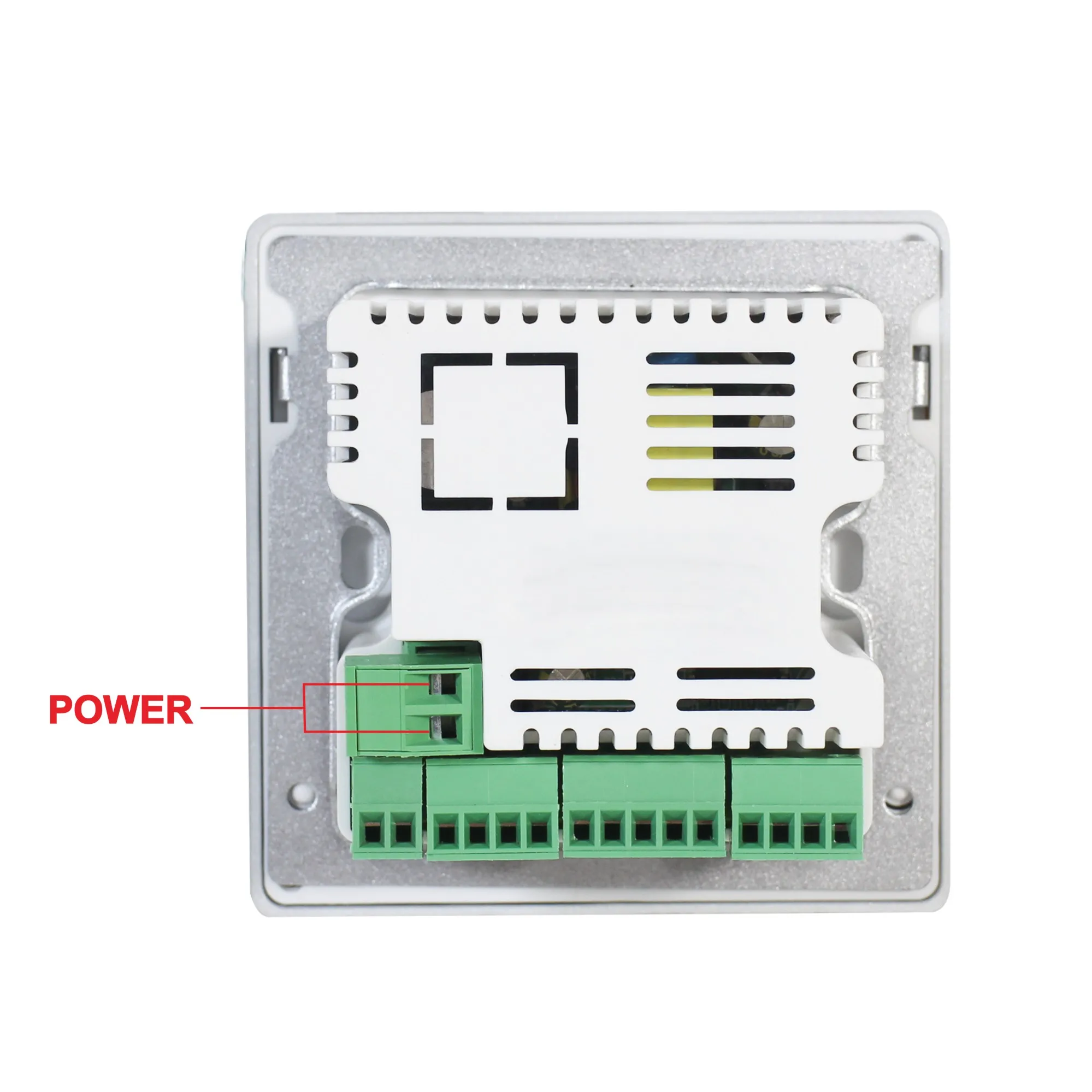

26. 110-250V AC power supply
27. Speaker: SPK R+ SPK R-. SPK L+ SPK L-.
28. Audio output: OUT R +OUT L+GND.
29. Audio input: AUX L + AUX R + GND.
30. Trigger the doorbell: GND+DB
31. Timing output
32. FM antenna





Specifications
















































































ModelAmplifier
Output power2*25W/4*25W
Speaker Impedance4-8ohm
Expand TF card memory32GB
Display4inch capacitive touch screen
Resolution480*480 IPS
Bluetooth wireless range≤10M
USBOTG USB, 32G can be read
THD0.03% (1W.1KHZ)
Frequency response20 Hz-20 kHz (/-2dB)
SNR98db
Sound effectOrdinary, rock, classical, jazz, pop, etc.
Music formatMp3, WMA, WAV, AAC, FL AC, WAW, APE, etc.
Video formatMPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB,AVI, 3GP, H, 264, etc.
Photo formatJPGE, BMP, GIF, PNG, etc.
Power Requirements110-250VAC

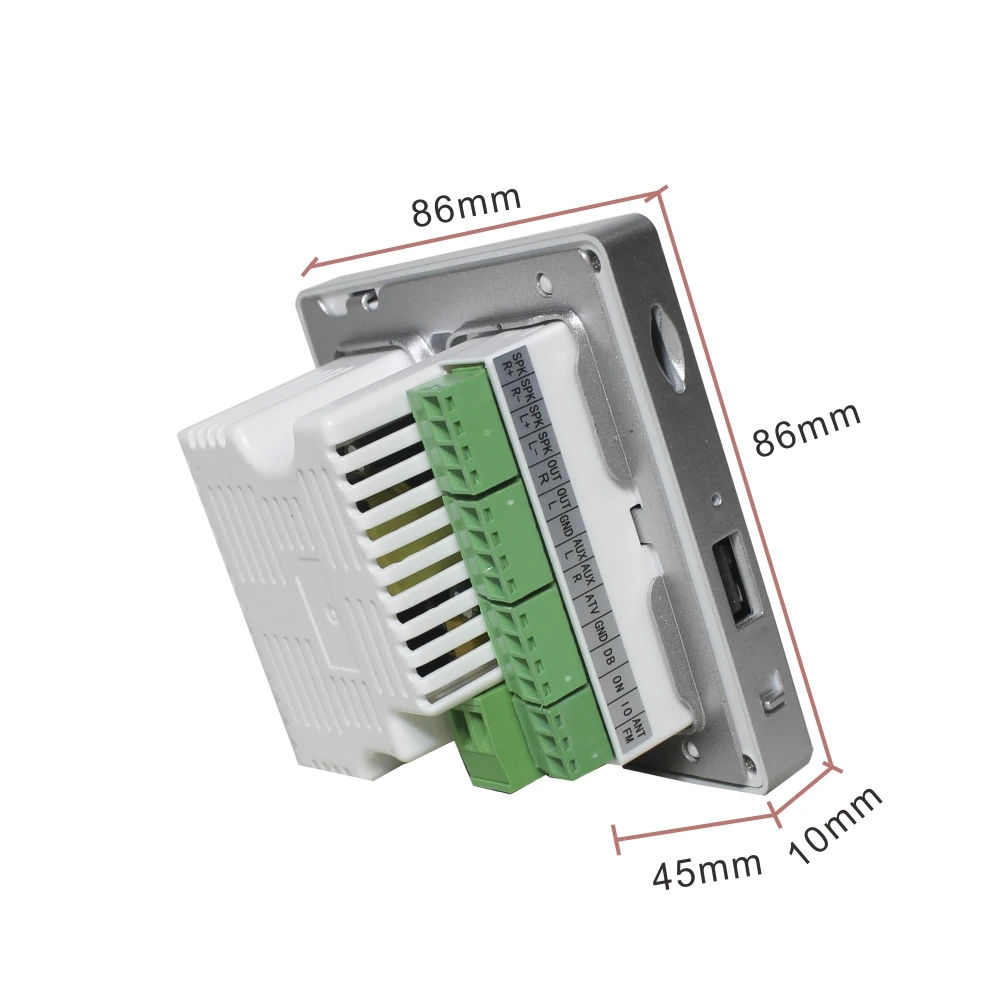

Dimension86*86*11mm
Weight0.42kg

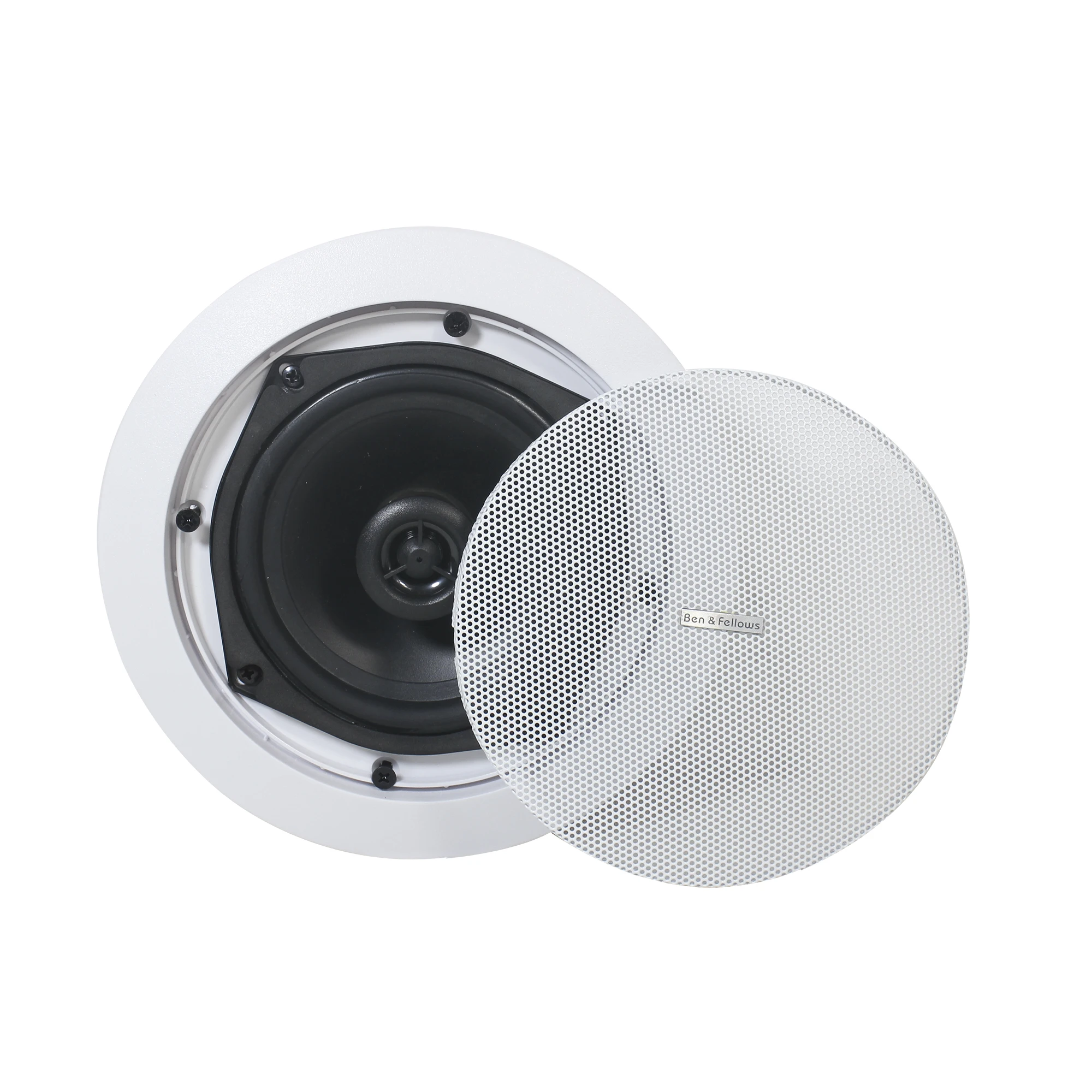

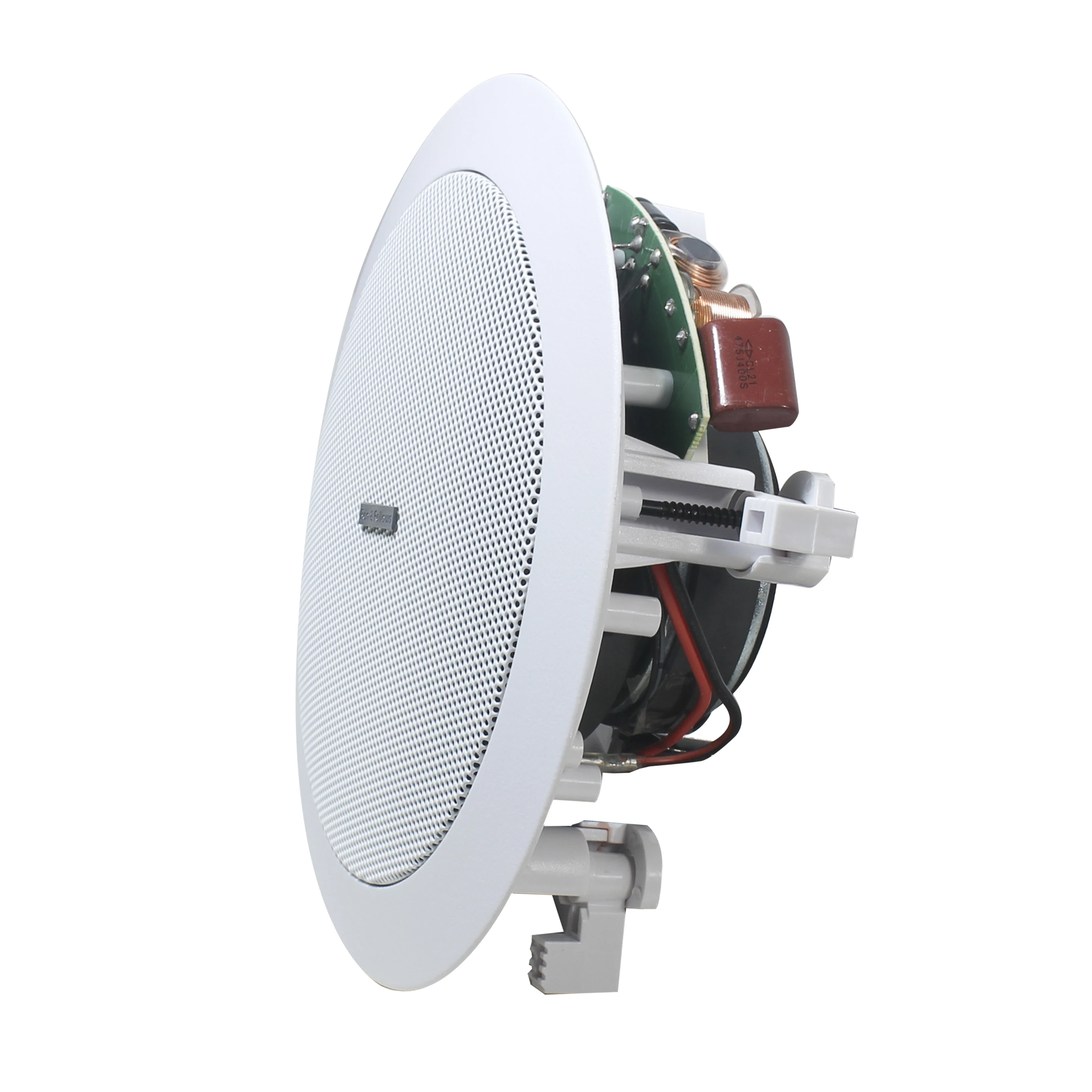

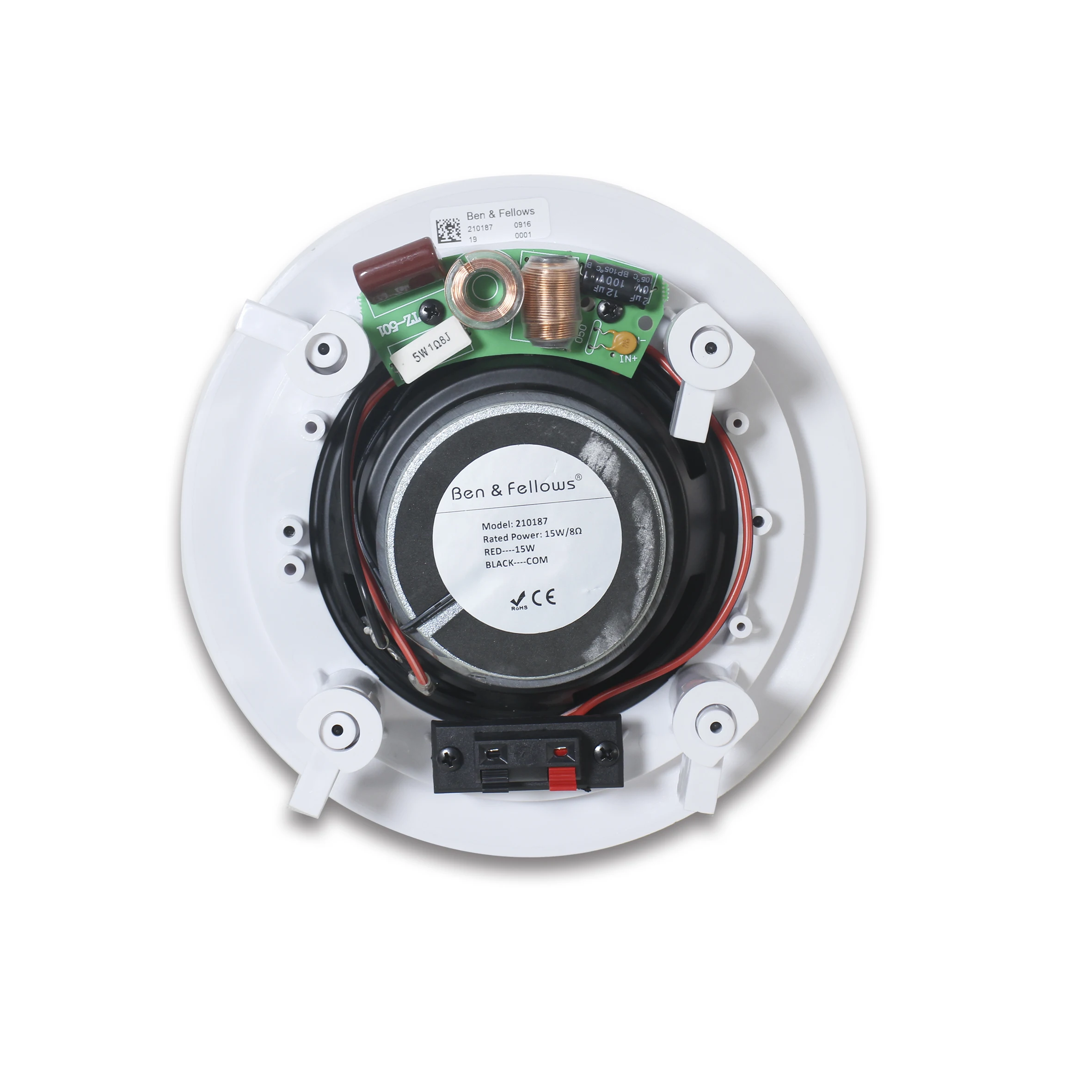

MODEL

Speaker


Power RMS15W at 8 ohm
Power Peak50W at 8 ohm
Max SPL@ 1M103dB
SPL( 1W/1M)92dB
Freq. Response20Hz-20KHz
Cutout SizeDia 170mm
InstallationInceiling
Enclosure MaterialABS
Weight1.1KG
FinishWhite
Product SizeDia203x80mm(H)
Speakers1" x1 (TREBLE) 5.25"x1(BASS)
