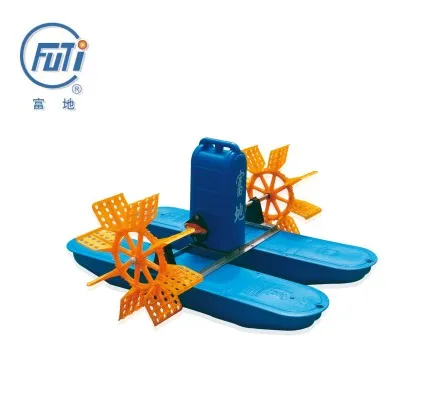

Waste Water 0.75KW 1HP Electric 2 Impellers Fish Shrimp Pond Paddle Wheel Aerator
- Category: Aquaculture Machine Aerators >>>
- Supplier: Zhejiang Fordy Imp. & Exp. Co. Ltd.
Share on (62451048432):
Product Overview
Description
Product Description
DESCRIPTION | ||||||||
Model | spare parts | unit | special | material | ||||
SC-0.75 | Cast Iron Motor | 1 | Inductrial motor, motor to be made according to the customer's requiry for the voltage | cast iron, aluminum motor fan, 100% new copper | ||||
Cast iron Reducer | 1 | arcuate bevel gear, mechanical seal, 50Hz/60Hz | cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface | |||||
Motor Cover | 1 | weight: 2.1kgs | HDPE made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure | |||||
202 Nylon impeller | 2 | 660*210MM, weight: 2.5Kgs | Nylon,2Pieces Impeller & 8 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials | |||||
Floats | 2 | 1640*327*186mm | HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water | |||||
movable joint | 2 | hole: 25.5mm | cast iron or stainless steel(depends on customer's requiry) | |||||
shaft | 2 | length:470mm | iron stainless steel 304(SUS 304) solid shaft | |||||
bearing base set | 2 | adjustable bearing base | 25mm diameter 100% new raw materials | |||||
frame | 1 | 910mm | stainless steel 304(SUS 304) | |||||
bolt and nut bag | 1 | stainless steel 304(SUS 304) | ||||||
quantity in one container | 20FT: 85sets | 40FT 170 sets 40HQ: 215 sets | ||||||
CHARACTERISTICS | ||||||||
1.Arcuate bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models. | ||||||||
2.Arcuate bevel gear is made of chromium-manganese-titanium with cartonitriding on the surface, Long life span and high rigidity are available | ||||||||
3. mechanical seal is adopted which life span is 2 or 3 times longer than oil seal | ||||||||
4. protector inside motor is available to avoid motor being burnt accidentally | ||||||||
5. HDPE flat, Nylon impeller, stainless steel solid shaft, and frame are available | ||||||||
6. the housing of motor and reducer is electrophoresis, the anti-corrosion performance is much better | ||||||||

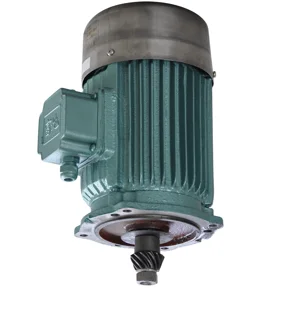

MainPart:Motor
Brand:FUTI
Original:China
Power:0.75Kw(1HP)
Phase:3phs 1phs
RPM1440/50HZ 1700/60HZ
Our high-efficiency motor is made of 100% new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and inspection procedures. good quality, longevity, lower amp, low power comsumption
Main part:Cast iron
Brand:FUTI
Original:China
Ratio 1:14 1:16.8
oilLiter0.8L
cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface, oxygen transfer capacity is 36.3% higher, power efficiency is 36.8% and save at least 20% electric energy than traditional models, mechanical seal on it
MAIN SPARE PARTS DETAILS：cast iron movable joint
MAIN SPARE PARTS DETAILS：Bearing Base Set
adjustable 3 in 1
plastic bearing, easy
for replace ment
no aging or cracking
problem
plastic bearing, easy
for replace ment
no aging or cracking
problem
Main Part:Impeller
material:Nylon
Size:660*210mm
weight 2.5kgs
Original:China
2 Pieces Impeller & 8 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials
Main Part

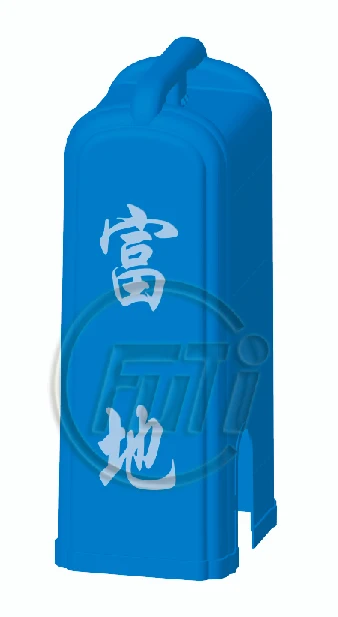

motor cover

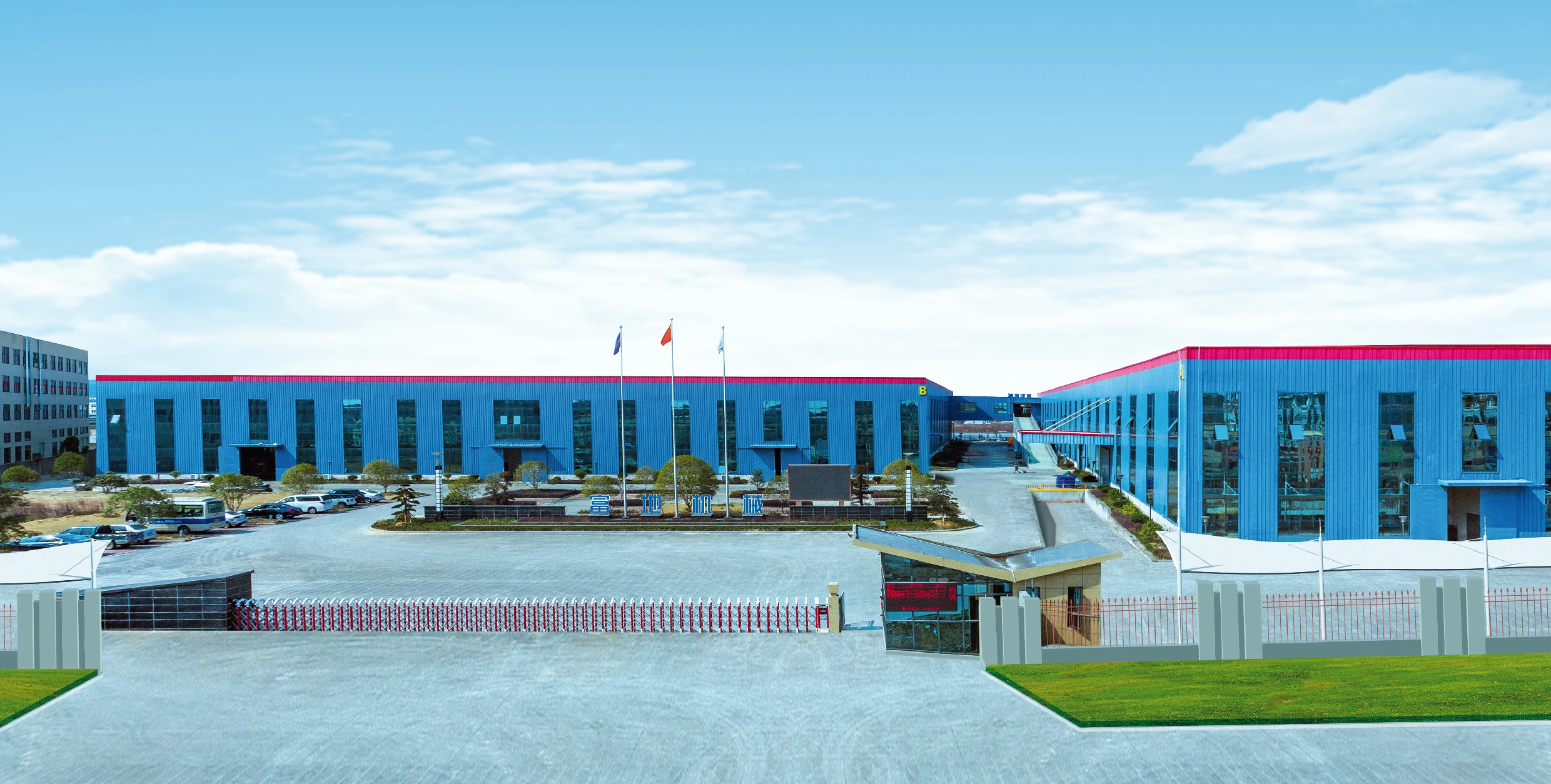

Company Profile

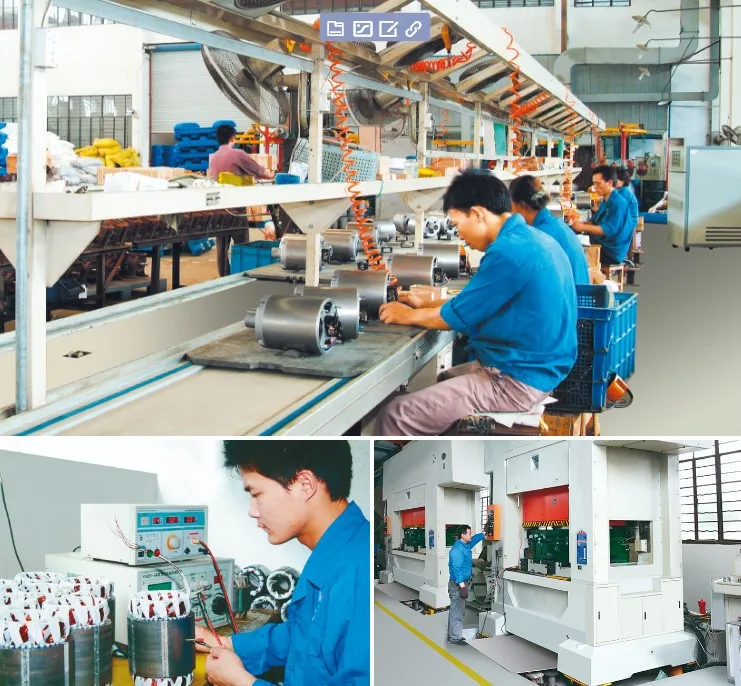

Production Process
Certifications
Exhibition photos

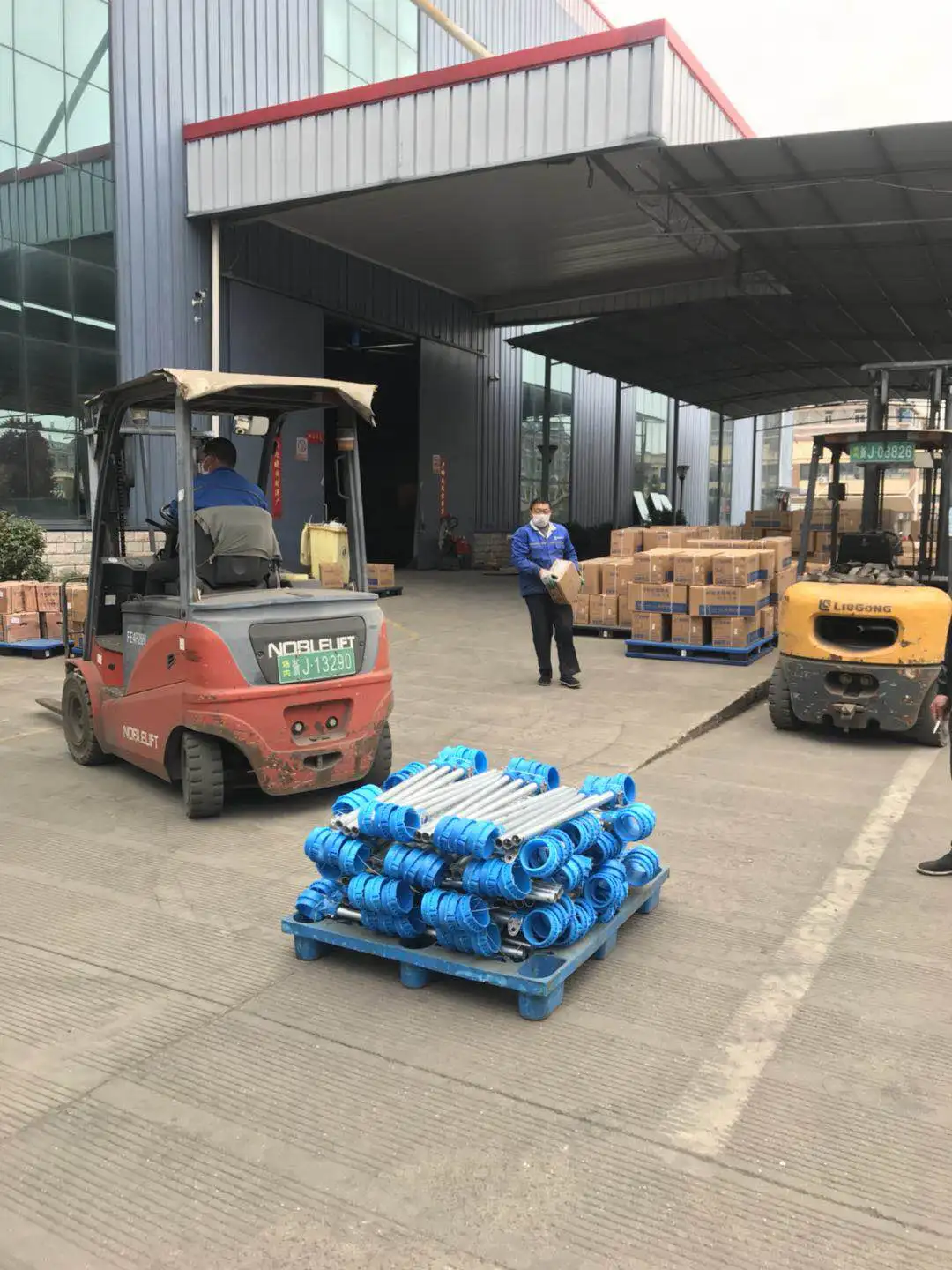

Packaging Logistics
