High Temperature Graphite Packing With Inconel Wire And Corrosion Inhibitor
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.
Share on (62451074548):
Product Overview
Description

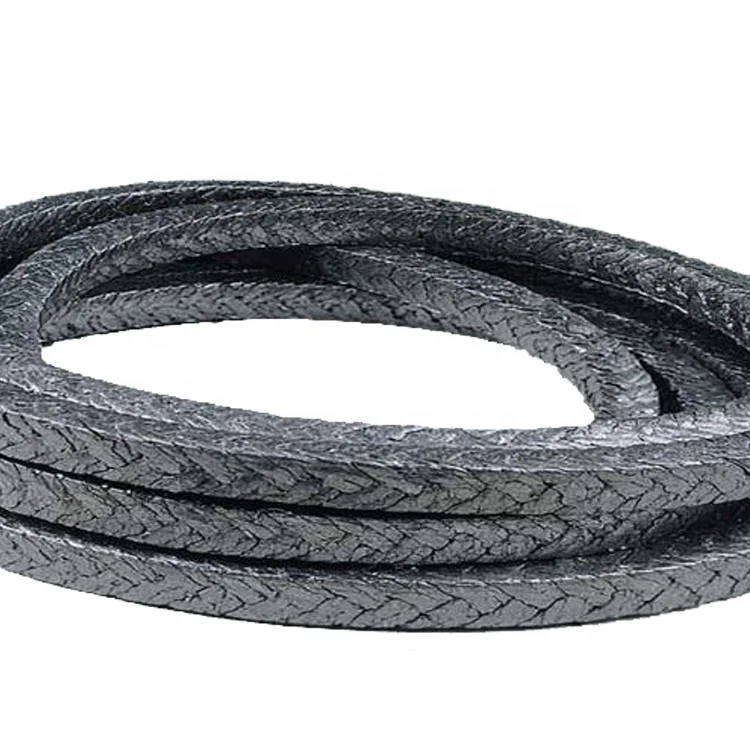

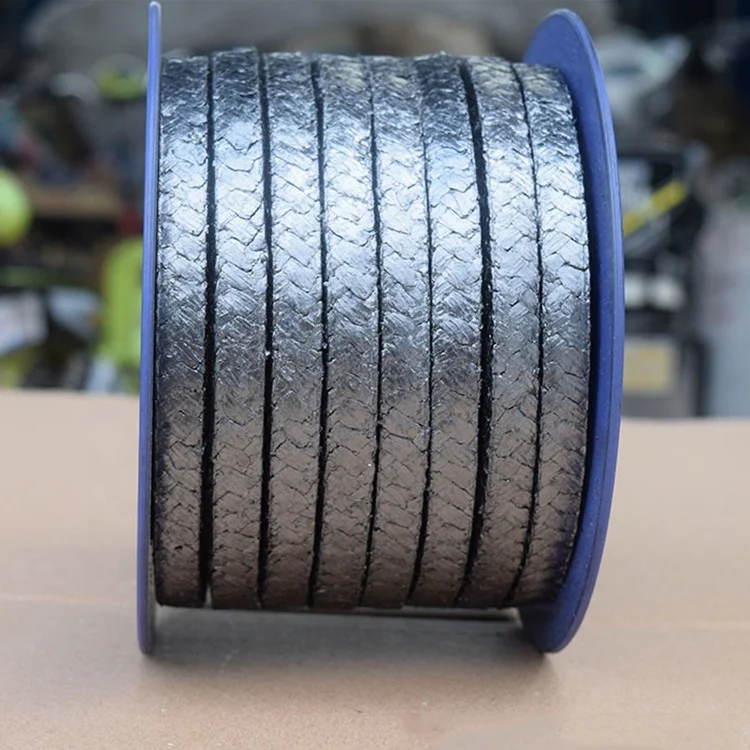

High Temperature Graphite Packing With Inconel Wire And Corrosion Inhibitor
Product Description
Hitex-240E--Graphite Packing Reinforced With Inconel Wire
Braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire. It retains all the inherent benefits of Hitex-240 pure graphite packing, good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength, Normal for valve with high pressure.
Other metal materials, nickel, stainless steel etc. on request.
Hitex-240EK-Graphite Packing With Inconel Wire And Corrosion Inhibitor
Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.
Application
Style Hitex-240E & Hitex-240EK is a multi-service packing capable of a wide variety of uses throughout a plant. It is particularly suited for use in high temperature, high pressure steam service. In addition, it can also handle most chemicals, acids and alkalis. It is excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.
*Precaution: in oxidizing environment.
*Recommendation: May use with Hitex-244 anti-extrusion packing rings.
Parameters
| Valves | Agitators |
Pressure | 400Bar | 50Bar |
Shaft Speed | 2m/s | 2m/s |
Density | 1.1~1.4g/cm3(+3% for 240EK) | |
Temperature | -220~+550°C (+650°C with steam) | |
PH range | 0~14 | |
Specification
Dimensions | ||||||||||||
Size mm | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 25 |
appr. m/kg | 43.7 | 28 | 19.5 | 10.9 | 7.0 | 4.8 | 3.5 | 3.1 | 2.7 | 2.2 | 1.7 | 1.1 |
Appr. ft/lb | 65 | 25 | 28.9 | 16.2 | 10.4 | 7.2 | 5.3 | 4.7 | 4.1 | 3.3 | 2.5 | 1.6 |

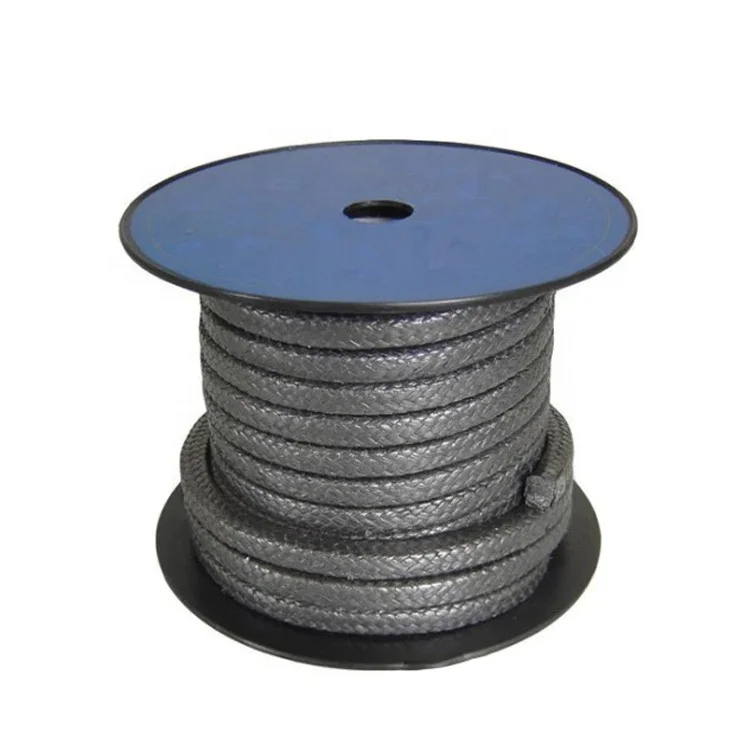

Kg/roll | 5 | |||||||||||
*Weight of Hitex-240EK: approx. 3% greater than Hitex-PK240E.

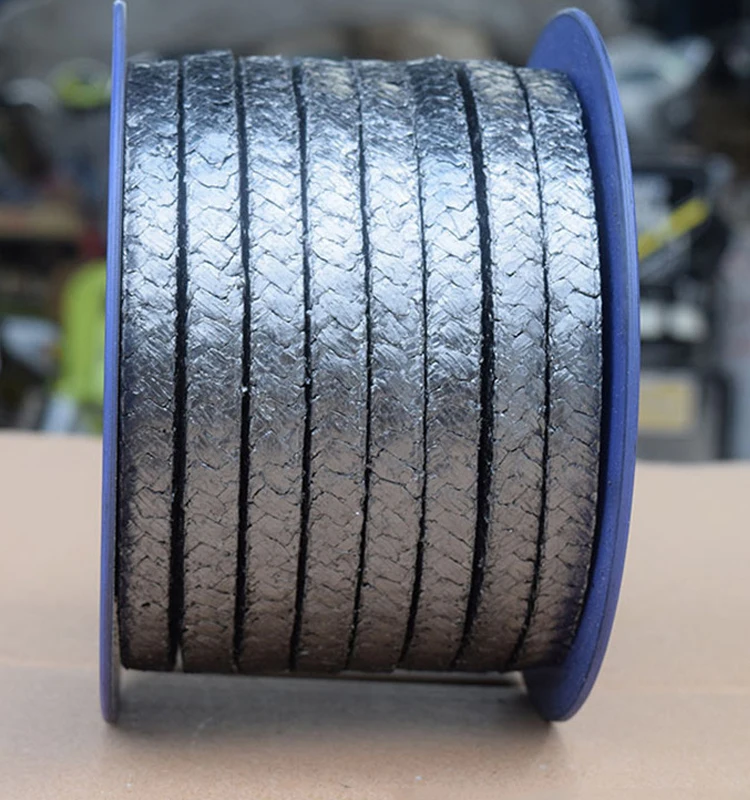

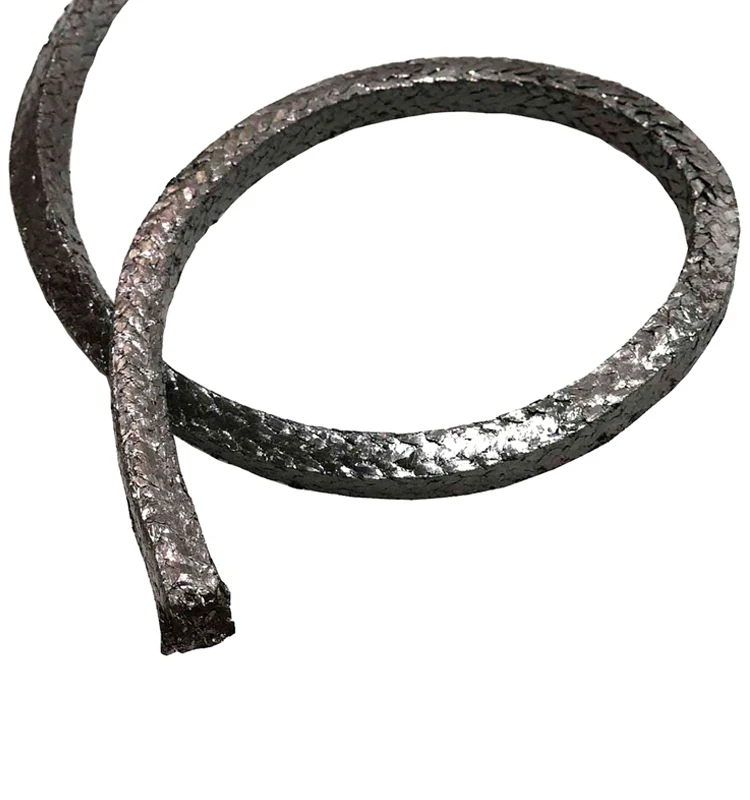

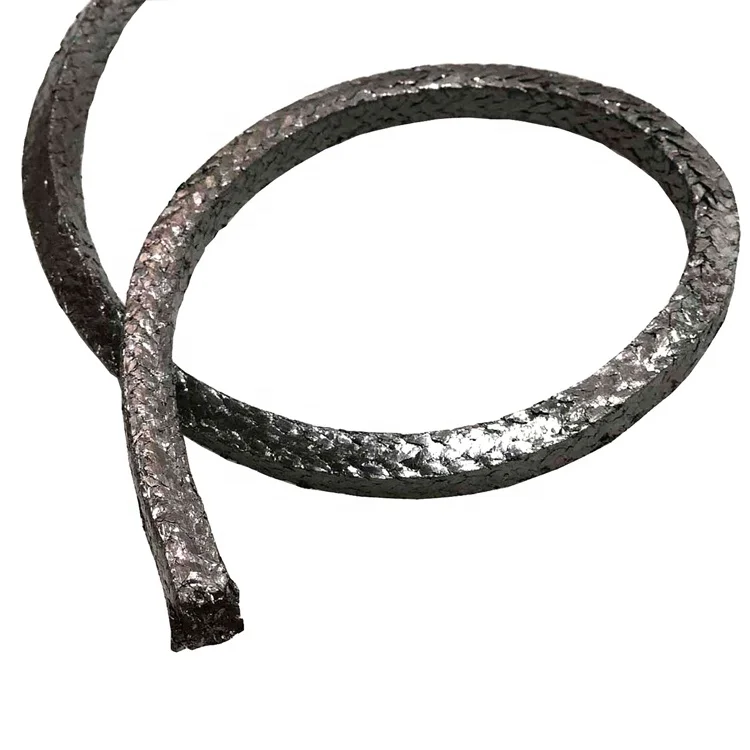

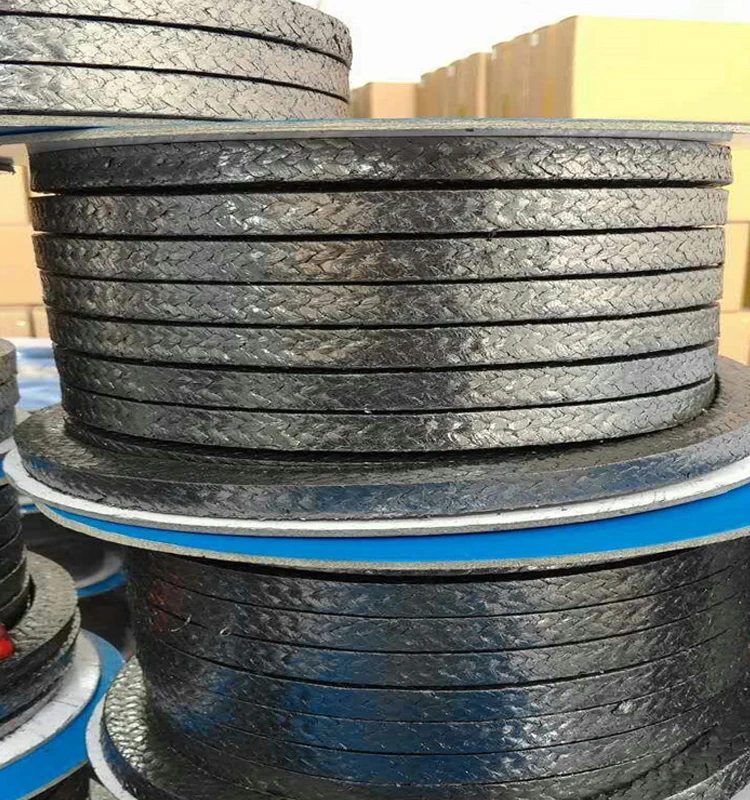

Detailed Images
About US
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A

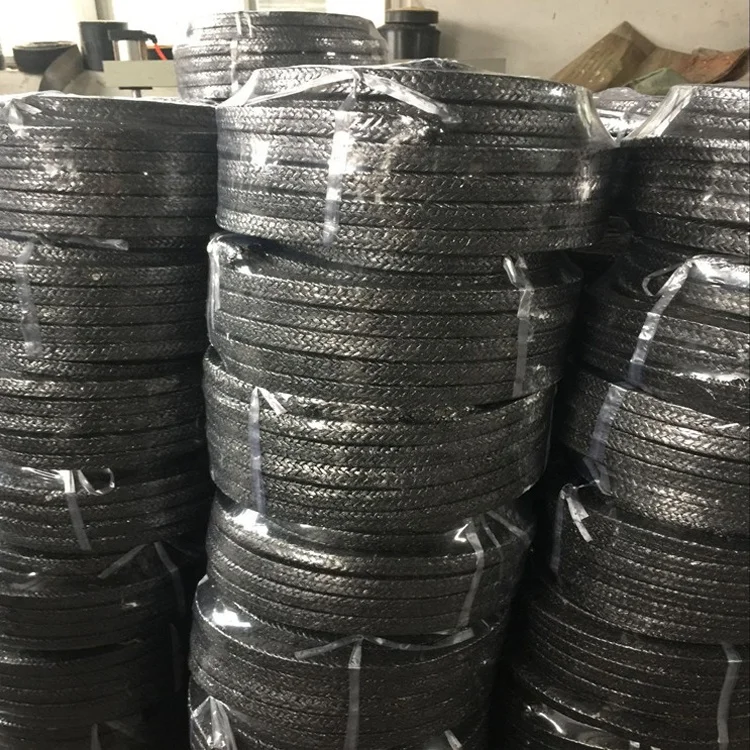

Packaging & Shipping
