Steel Bar Truss Deck Roll Forming Machine Steel Tile Galvanized Sheet(gi),cold Roll Steel(crc) 0.5 0.6mm Rolling Thinckness 90mm

Share on (62451943296):


Price:$29,800.00

Quantity:


Product Overview

Description

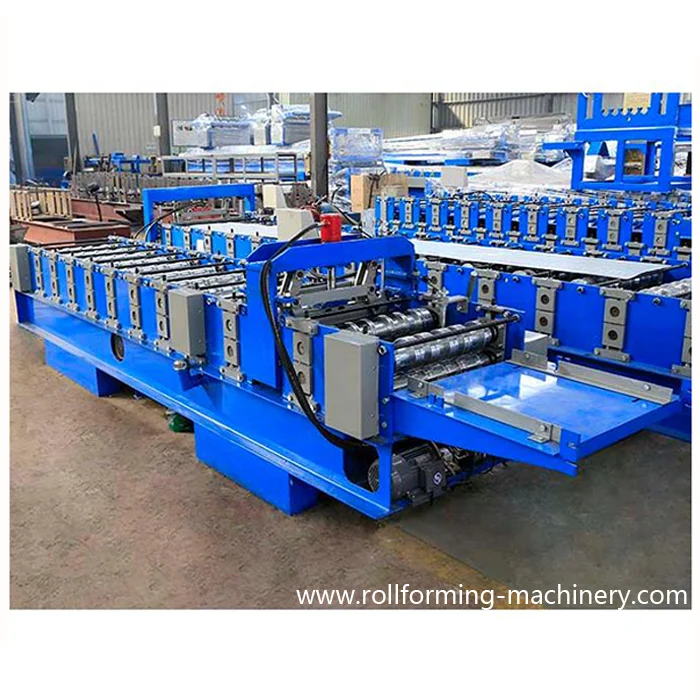

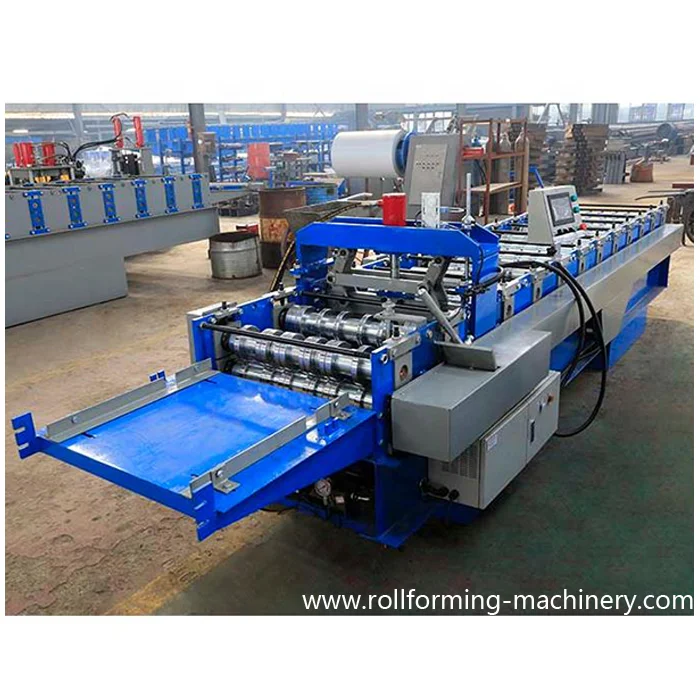

Steel Bar Truss Deck Roll Forming Machine







1.Main features of steel bar truss deck roll foming machine
The advantanges of floor decking machine are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material, no waste.
3.Easy operation, low maintenance cost


2.Detailed Images of steel bar truss deck roll forming machine
Machine parts

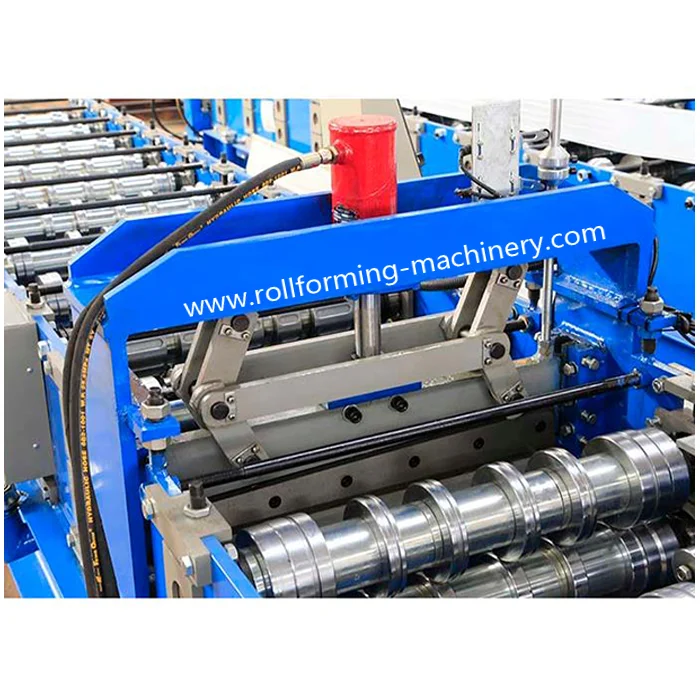

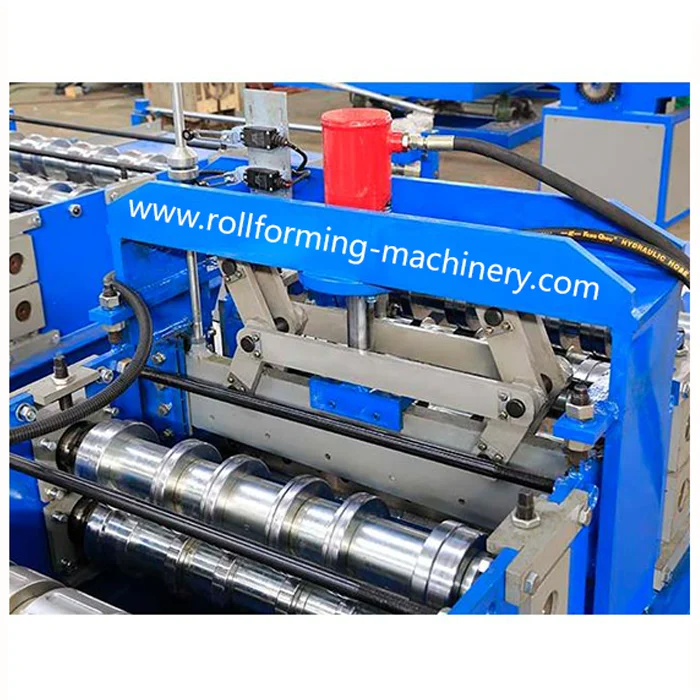

1)Steel bar truss deck roll forming machine pre-cuttr
Brand: BMS Original: China
With feeding material guide.
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:2.2KW, Hydraulic pressure range:0-16Mpa

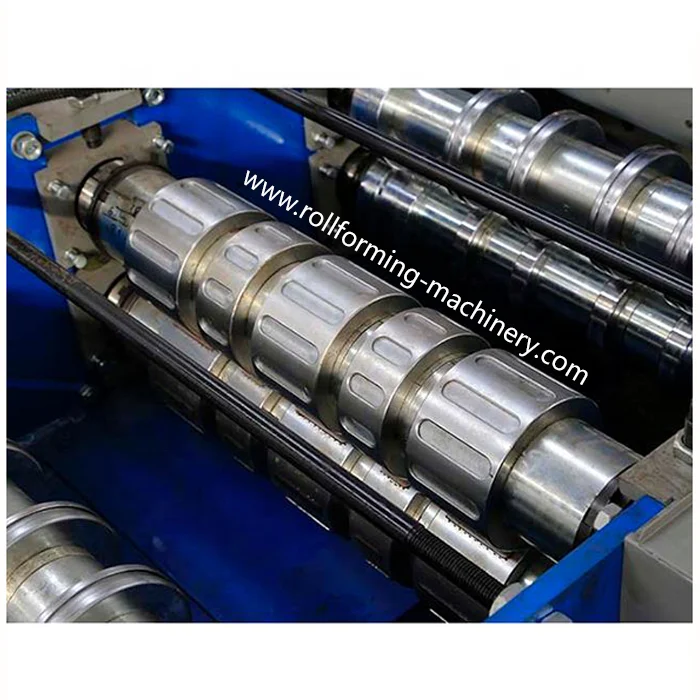

2) Steel bar truss deck roll forming machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heats Treatment.
With black treatment or Hard-Chrome Coating for options.
Body farmemade form 350# H type steel by welding

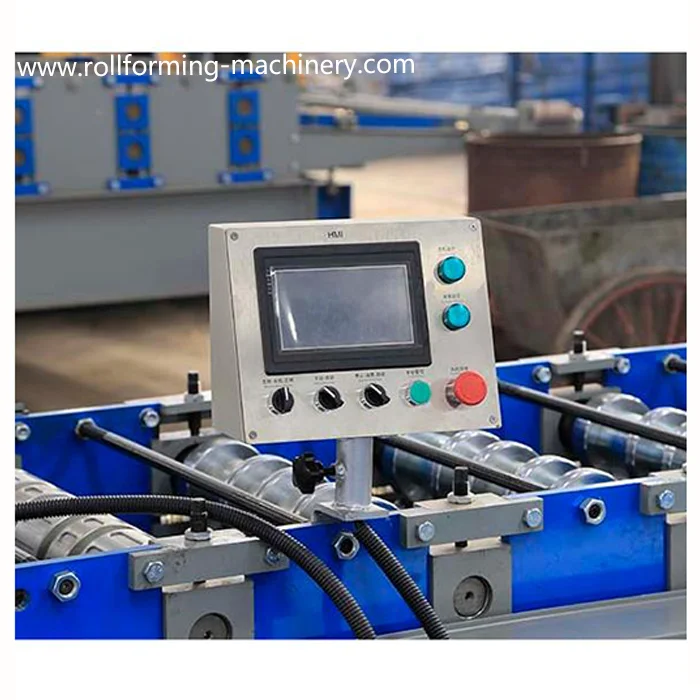

3)Steel bae truss deck roll forming machine touch screen

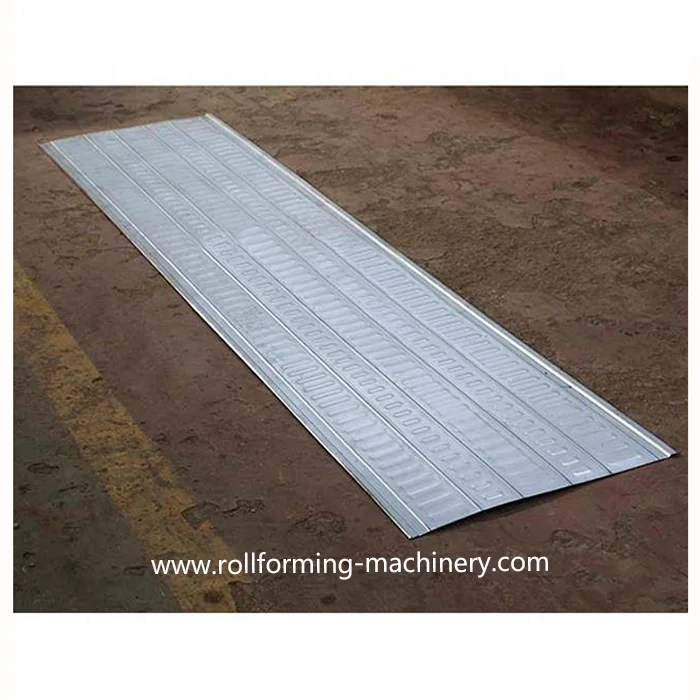

4)Steel bar truss deck roll forming machine prdduct show

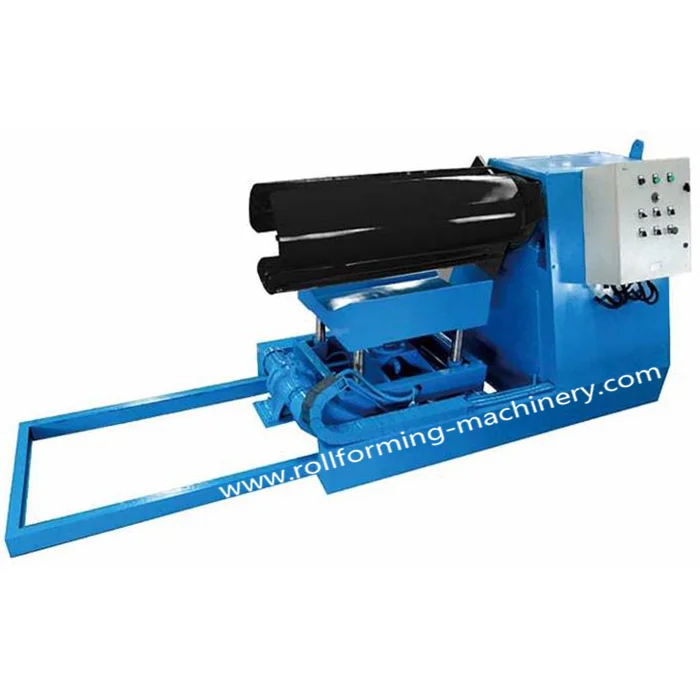

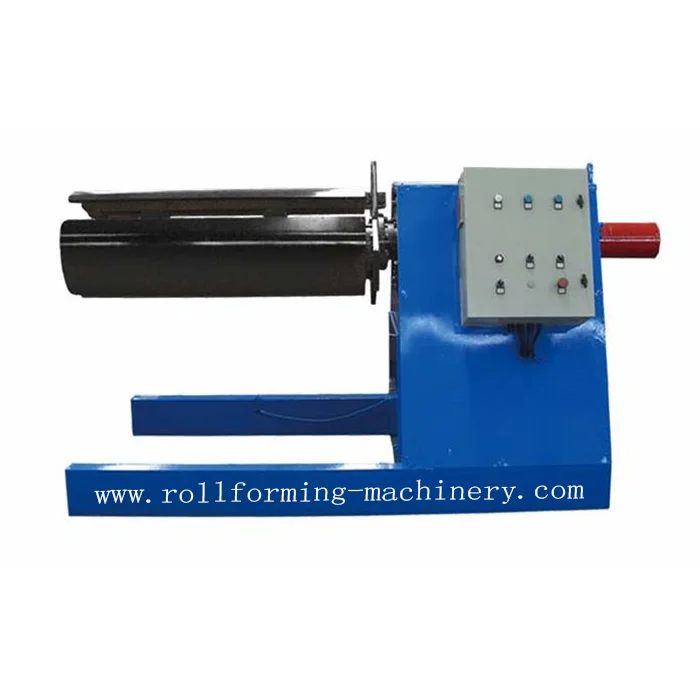

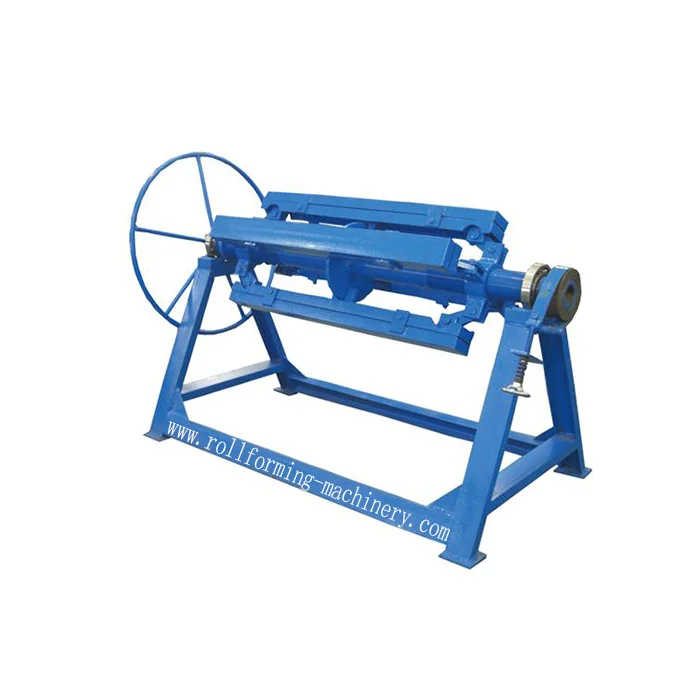

5)Steel bar truss deck roll forming machine decoiler
ManualDecoiler:one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm,coil ID range 508mm±30mm
Capaccity: 5-9 Ton




With 6 tons hudraulic decoiler for option






6)Steel bar deck roll forming machine exit rack
Un-powered,one unit


Other detailes of steel bar truss deck roll forming machine
Suitable for material with thickness 0.5-0.6mm
Shafts manufactured form 45#,Main shaft diameter=φ65mm,precision machined
Motor driving, Gear chain trannsmission, 11 steps to form
Main motor: 5.5KW ,Hydraulic motor: 2.2KW
Frequency speed control. Forming speed approx.12-15m/min


PLC Control System(Touch screen brand:German Schneider
Electric/Taiwan WEINVEW, Inverter, brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance ≤ ± 2mm
Control Voltang 24V
User's manualin English



After-sale service of floor decking roll forming machine
1. The warranty of purlin floor decking roll forming machine is one year after the client receives the machine
Within the one year ,we will courie the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost


Terms of trade
1. Minimum order quantity (MQO): 1 piece2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of loading: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand,
Philippines, Myanmar, Vietnam, south, Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
