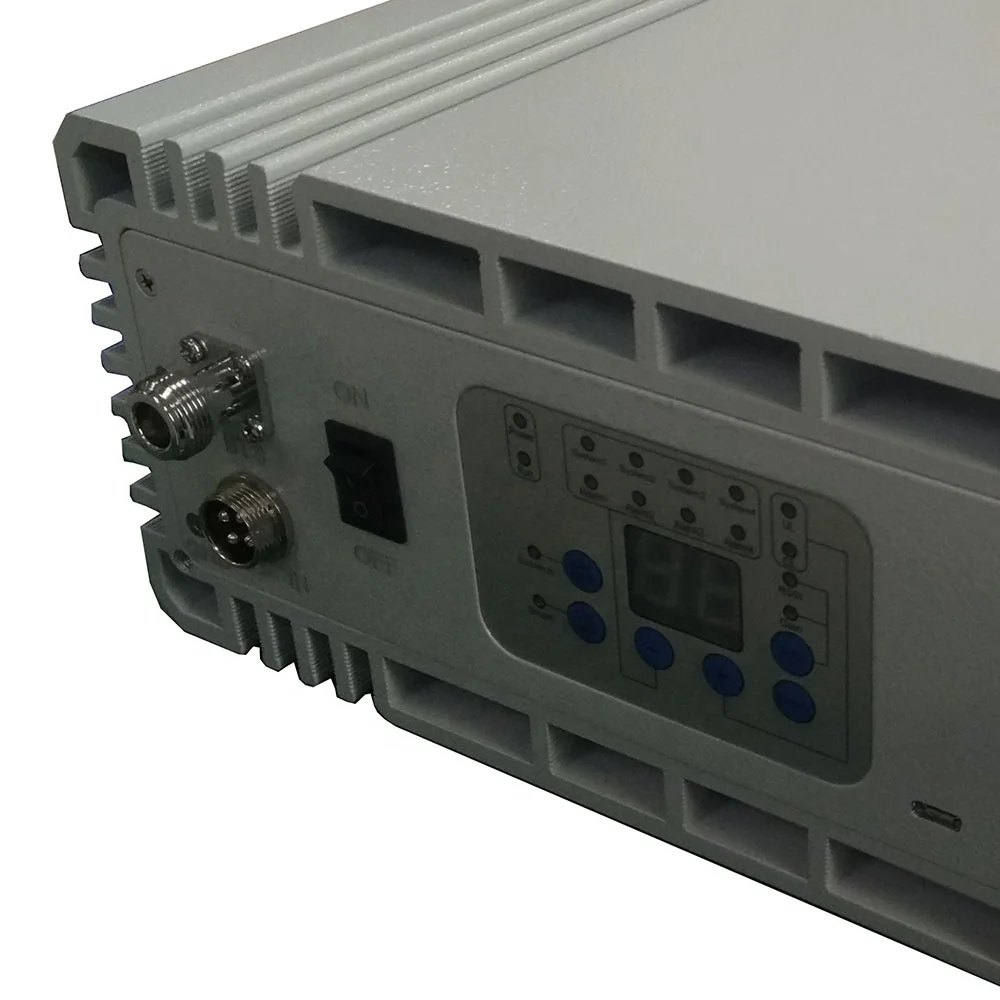

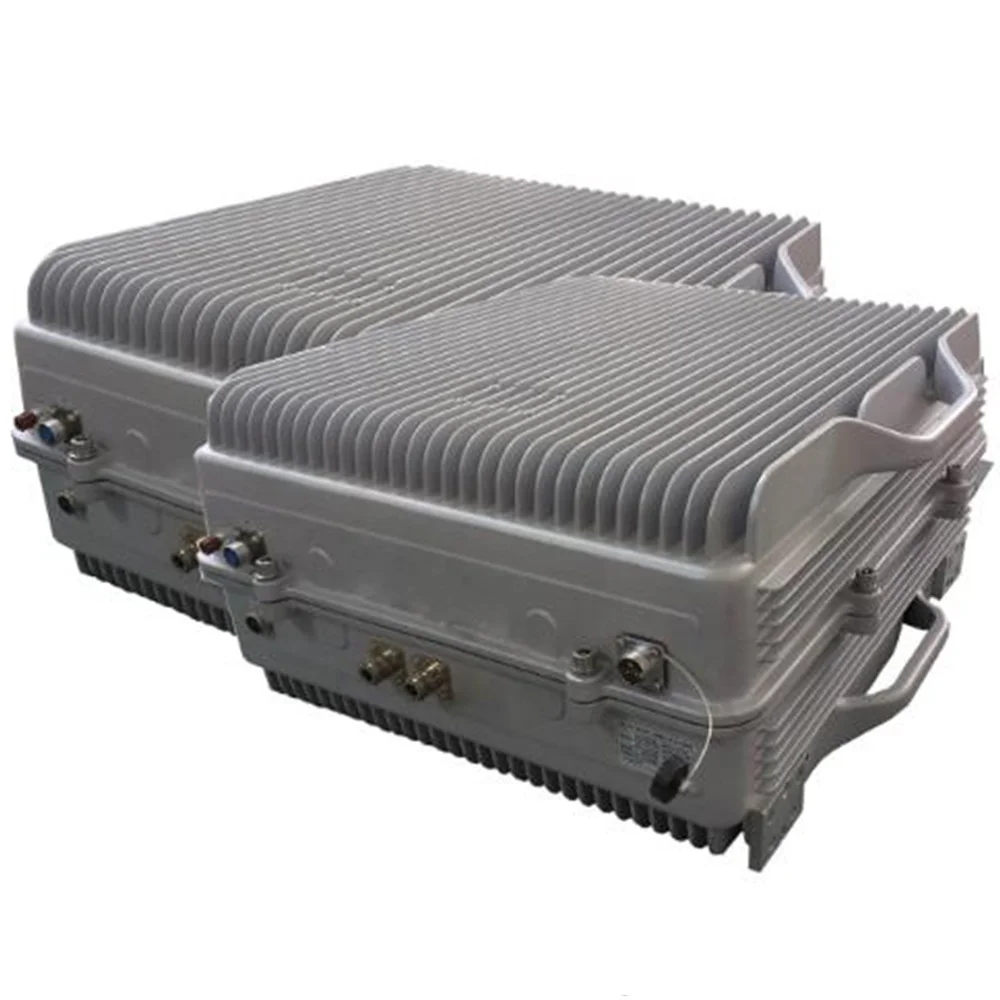

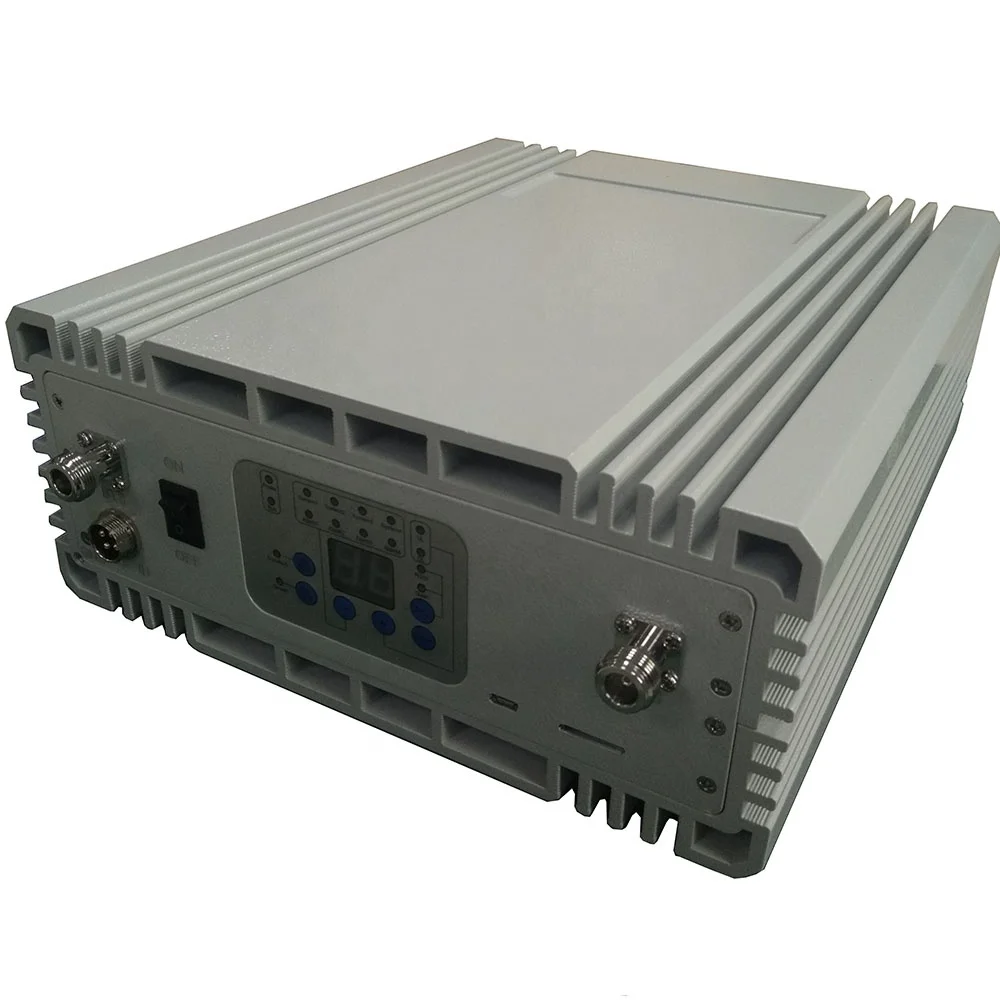

wireless network signal Repeater booster BDA Bi Direction Amplifier
- Category: Repeater >>>
- Supplier: Raynool Technology Co. Ltd.
Share on (62456887690):
Product Overview
Description
Product Description
Specification
Item | Master unit | Remote unit | |
Working Frequency uplink | 832MHz-868 MHz/ 880MHz-915 MHz/ 1710MHz-1785MHz/ 1920MHz-1980MHz /2500MHz-2570MHz | ||
Working Frequency downlink | 791MHz-821MHz/ 925MHz-960MHz/ 1805MHz-1880MHz/ 2110MHz-2170MHz/ 2620MHz-2690MHz | ||
Transmission distance | 20km | ||
Maximum input power | 10dBm | ||
Maximun output power | 33±2 dBm for each band | ||
System gain | 45±3 dB | ||
VSWR | 1.5 | ||
Noise Figure@1RU Connection | 5 dB | ||
Optical Output power | 0±3 dBm@1310mm / 0±3@1550mm | ||
Impedance | 50 ohm | ||
Operating Temperature | -25℃ to 55℃ | ||
Power supply | 220V | ||
Local control | 1 USB or RJ45 port, 2 wifi hotpot | ||
Active DAS

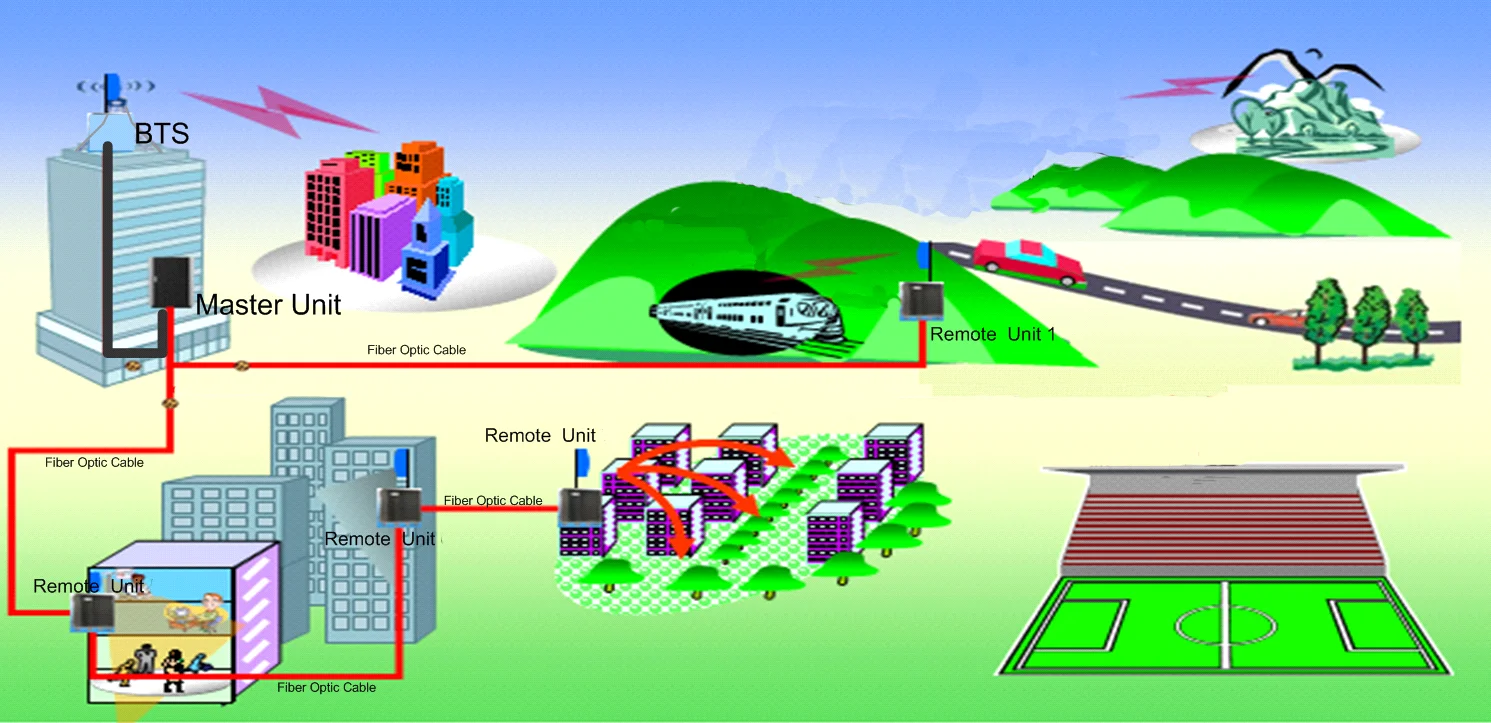

With the development of mobile communication technology, more and more new communication technologies(such as 4G) are being used nowadays. As a result, telecom operators have to run multiple systems simultaneously and provide multi-system services(2G/3G/4G) in one coverage area, resulting in the difficulty of installation and transmission of equipments. For the above mentioned reasons, Multi-Band Active DAS is designed to solve the problems of weak mobile signal in the place that is far away from the Base Transceiver Station(BTS) and has fiber optic cable network underground. The system consists of two parts: Master Unit and Remote Unit. The Master unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features
1 Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding.
2 Tx/Rx control and alarm messages can be transmitted via one fiber optic cable.
3 Stable and improved signal transmission quality.
4 One Master Unit can support up to 4 Remote Units to maximize utilization of fiber optic cable.
5 RJ45 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the Active DAS.
2 Tx/Rx control and alarm messages can be transmitted via one fiber optic cable.
3 Stable and improved signal transmission quality.
4 One Master Unit can support up to 4 Remote Units to maximize utilization of fiber optic cable.
5 RJ45 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the Active DAS.
Application
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Outdoor:
Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …
Indoor:
Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …
Outdoor:
Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …
Indoor:
Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …
