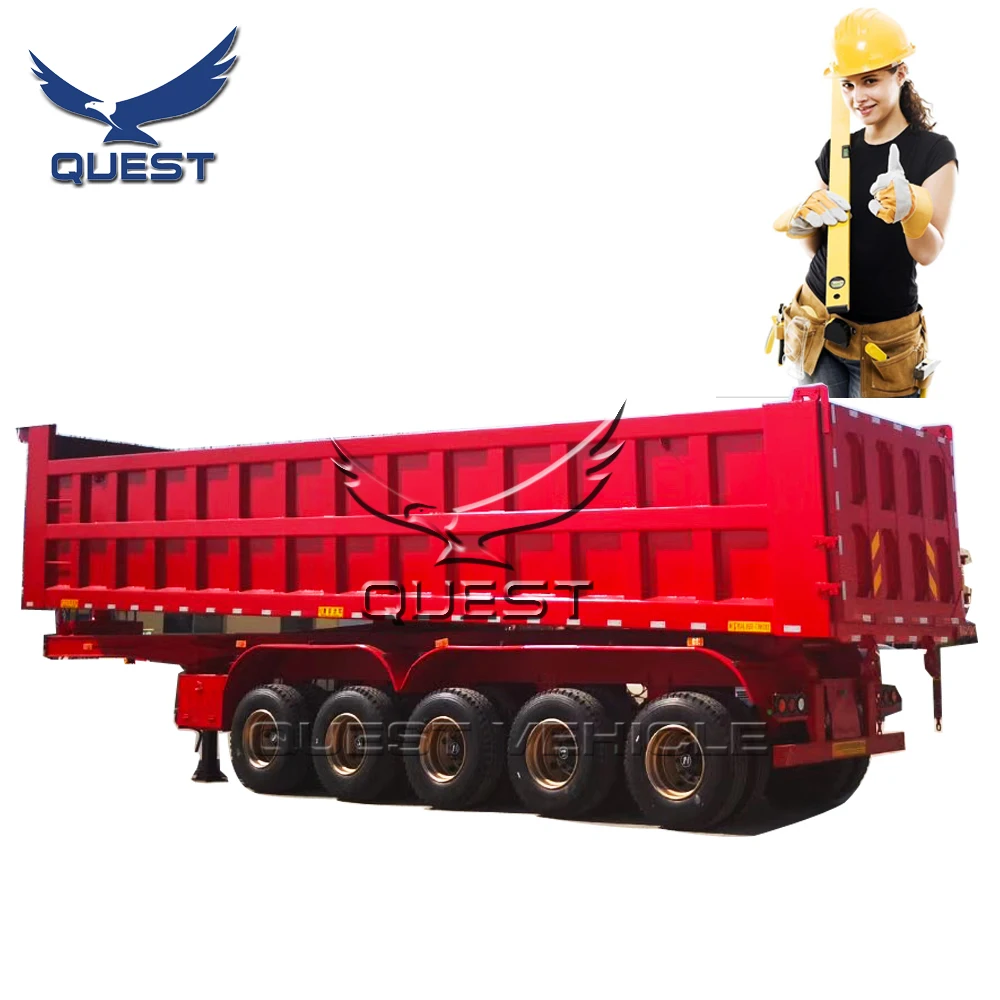

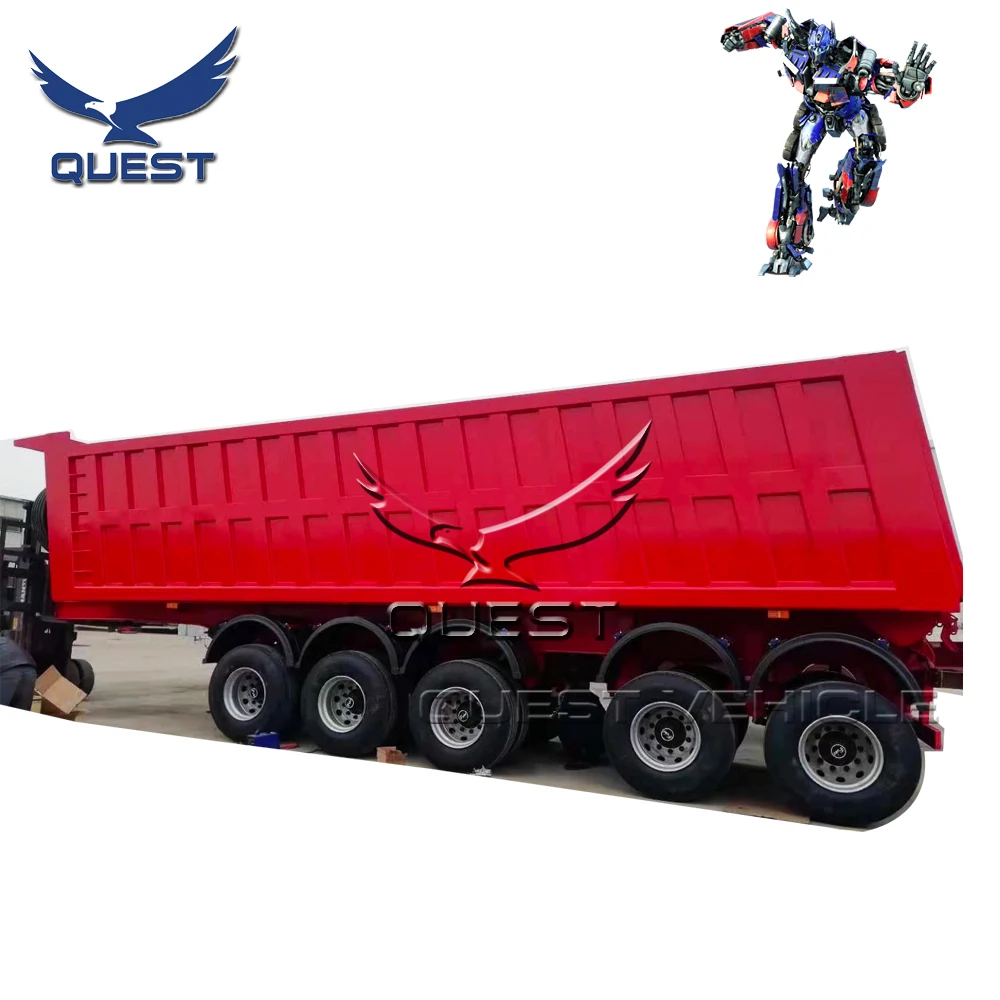

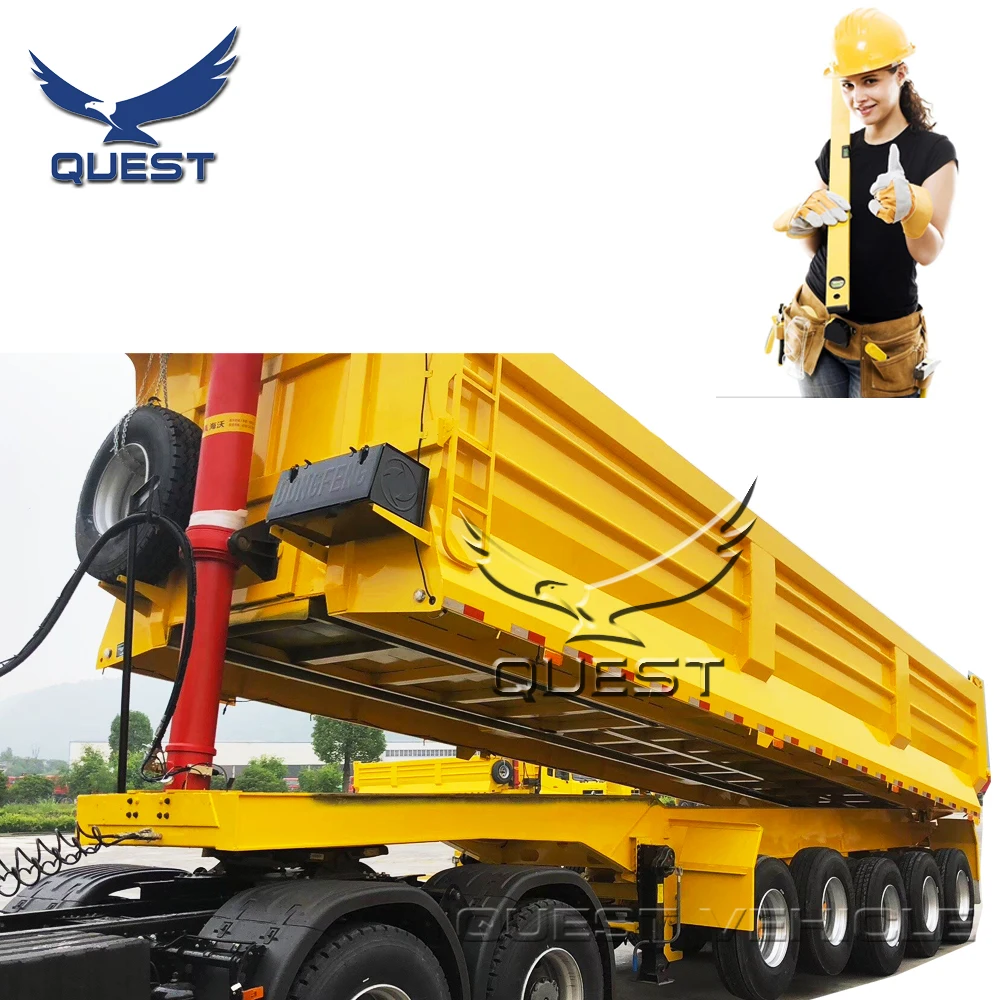

Chinese Truck Trailer Manufacturer 5 Axle Rear Dump Semi Trailer Tipping Trailer For Sale
Related Products
Product Description

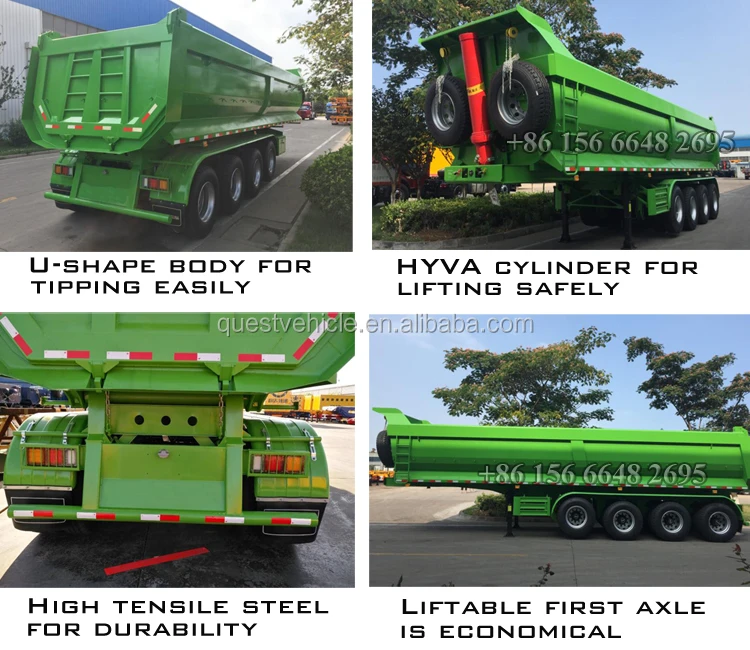

DUMP SEMI TRAILER DETAILS

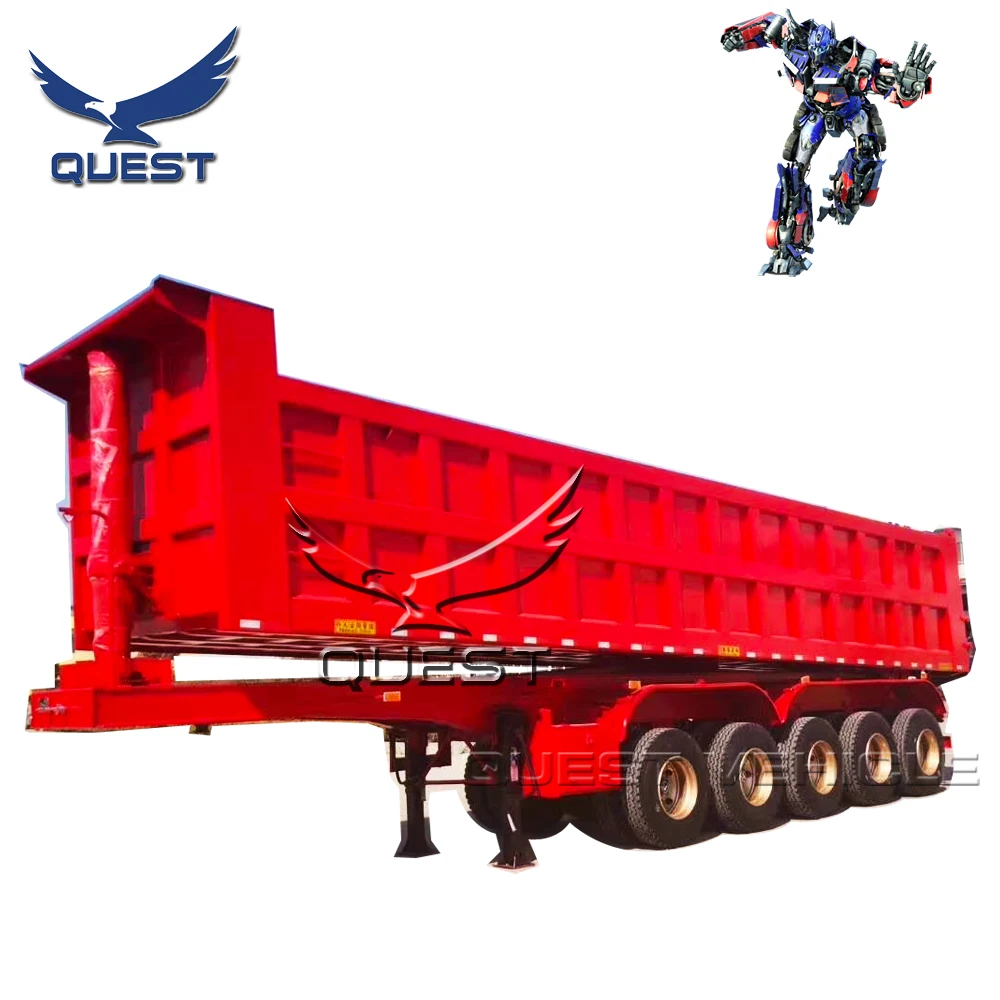

This U shape rear dump semi trailer is used to transport and tipping sand, stone, grain, etc.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this dump trailer more frequent and strong.
3>Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Less Maintenance, Better Performance!
Items | Dump semi trailer QUEST - D50 | Dump semi trailer QUEST - D70 |
Loading Capacity | 40-50 tons | 50-70 tons |
Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle |
Tyre | 12 pieces, 12.00R20 | 16 pieces, 12.00R20 |
Dimensions(LxWxH) | 9750 to 12000mm x 2500 x 3200mm | |
Tare weight | 10 tons to 12 tons | |
Axle spacing | 1310mm | |
Rims | 8.5-20, 9.0-20 | |
Suspension System | Leaf spring suspension / air suspension | |
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
Main Beam | Height 500mm Q345 | |
Chassis | upper 14mm, lower 16mm. Mid web 12mm | |
Dump Box Thickness | Bottom 8mm Side 6mm | |
Hydraulic Cylinder | HYVA | |
Kingpin | 2’ or 3.5’ interchangeable | |
Landing Gear | 28 Tons , Two speed manual operation | |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
Tool Box | One tool box with a set of standard trailer tools | |
Spare Tyre Carrier | One piece or two pieces | |
Packaging & Shipping
1. Normally, shipping semi trailers need Bulk Vessel or RoRo Vessel.
2. For some trailers, like flatbed trailer, chassis trailer, short low bed trailer, howo trucks, we can use container ship, 40HQ, 45FT and Flat Rack.
Company Information
Quest Vehicle manufactures many kinds of semi trailers, in which 4 axle dump trailer is one of the main products. Nowadays, over 100 countries are using 4 axle dump trailers made in QUEST. Our slogan 'WE BUILT TO LAST' encourages us to focus on quality, care about customers' demand and bring good name to semi trailers made in China. Checking the following information, you'll know what I am saying is very serious.
