Gold Extraction Double Impeller Cyanide Leaching Agitation Tank

Double impeller leaching and stirring tank is a cyanide leaching and stirring equipment designed with reference to international advanced technology. This equipment is mainly suitable for gold leaching, adsorption and other mixing operations with small specific gravity, low viscosity, slow sedimentation speed, ore particle size of -200 mesh and more than 90%, and slurry concentration of less than 45%. It has the characteristics of double-layer impeller, uniform stirring, low energy consumption, long service life, and even aeration. It is deeply favored by customers of gold dressing mines.

Working principle

When the double impeller leaching mixing tank is working, the pulp will flow from the top to the bottom under the drag and stirring action of the double impeller, diffuse through the surrounding damping plate, and feed air at the lower end of the shaft to mix with the pulp Circulate upward to form a uniform suspension mixture.

Advantages:

The flow of the ore stream is stable, the slurry is mixed uniformly, and the power consumption is low;

The air enters the groove through the hollow shaft of the transmission, and is agitated by the blades, so that the air is evenly dispersed;

Compact structure and easy maintenance;

The hollow shaft is ventilated to the bottom, and air enters the tank through it, dispersed evenly with small bubbles;

Using two new impellers, the diameter of the impeller of the stirring tank is large, the rotation speed is low, and the power consumption of the stirring is small, which can reduce the wear of the char;

The stirring intensity is moderate, and the concentration and fineness distribution of the slurry in the tank are consistent, which can improve the leaching rate of cyanide and the adsorption rate of carbon;

The impeller of the leaching mixing tank is lined with wear-resistant rubber, which has a low speed and a long service life.

A standard package in wooden boxes or containers.

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.

We can not only provide good quality sand making machine,  but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.

Pre-sale services:

(1) The advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

 After-sale services :

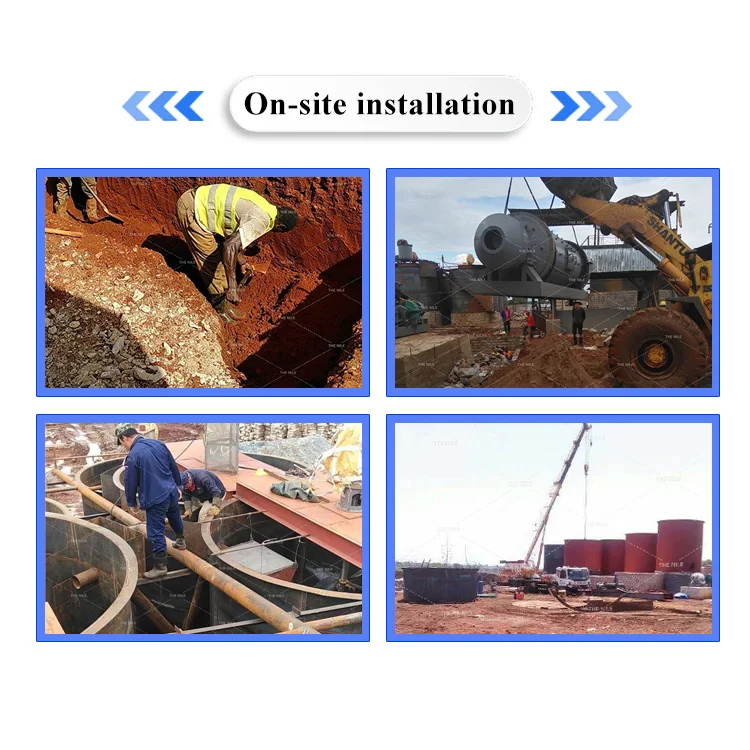

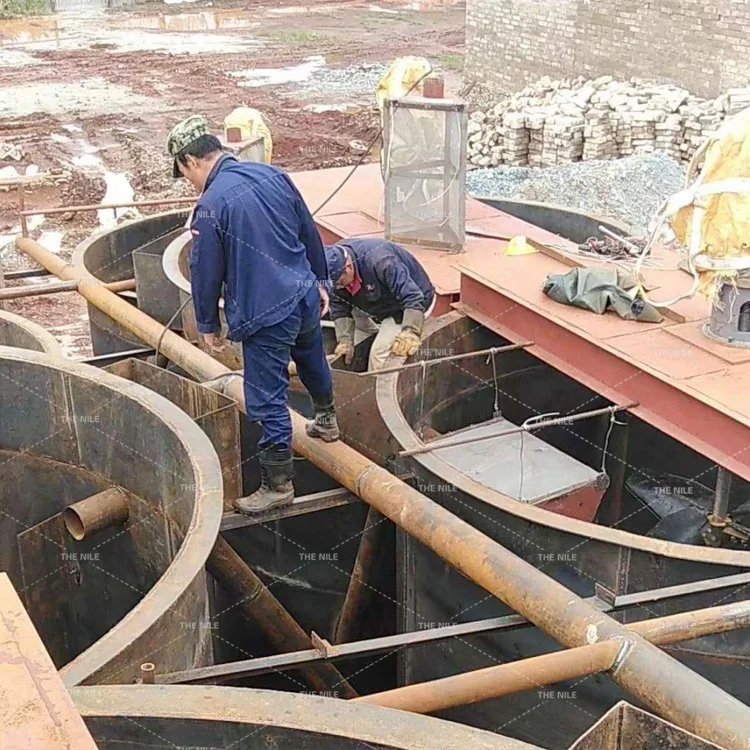

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

Q1: Are you factory or trade company?
A1: We are factory.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q5: What about the payment method?

A5:T/T, L/C Paypal is available

Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
