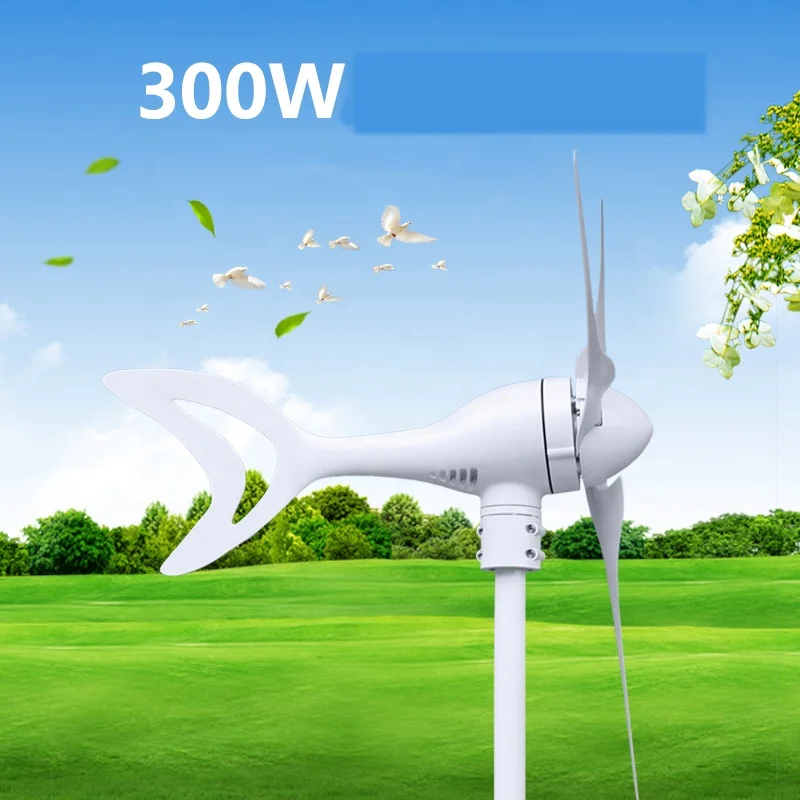

Ветровая генераторная турбина Бытовая ветровая турбина 12V/24v ветроэнергетическое оборудование 300w

Share on (62460199771):


Price:85,00 $ - 97,00 $

Quantity:


Product Overview

Description



Product description

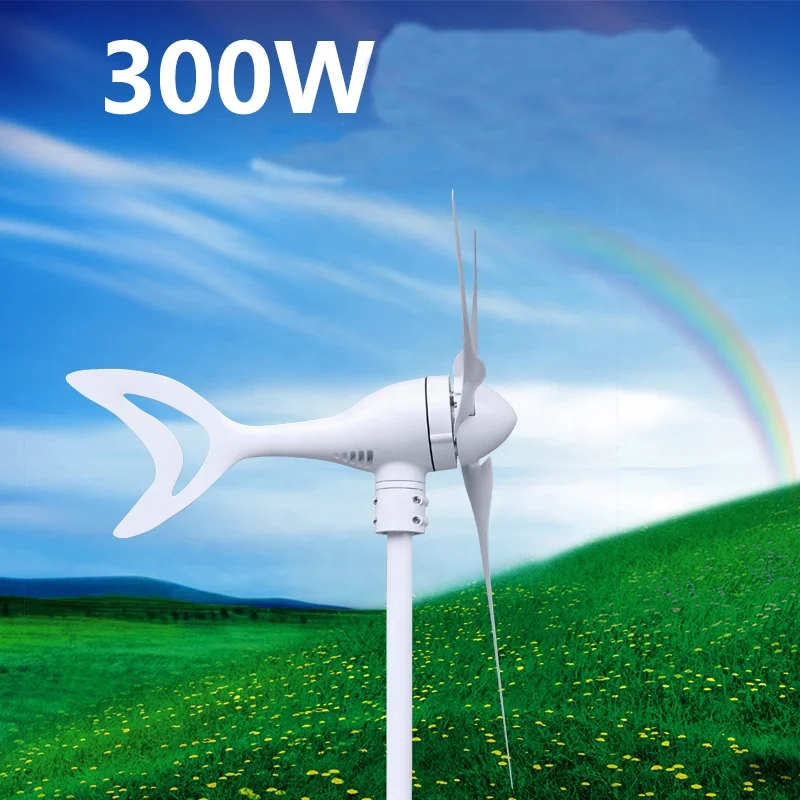

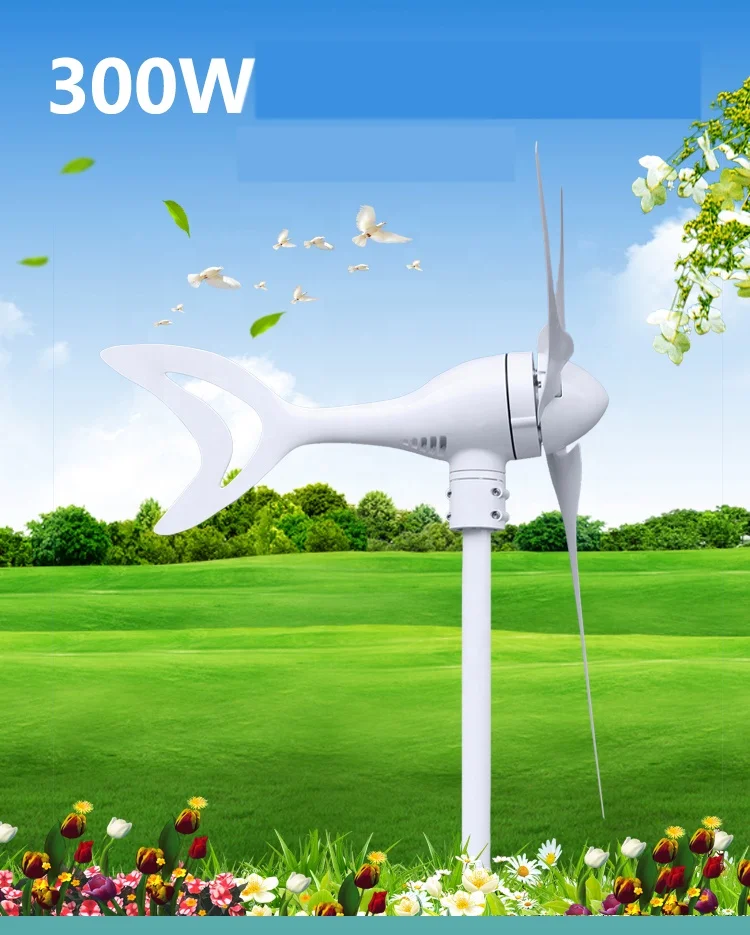

wind turbine generator household wind turbine 12V/24v wind power generation 300w






































































































































































 Parameter
Item numberJLK-P50JLK-P100JLK-P300JLK-P400
Blade Name(name it according to its appearance)HyacinthHyacinthDolphinDolphin
Rated power50W100W300W400W
Rated DC voltageDC12V/24VDC12V24VDC12V/24VDC12V/24V
Rated current4.4A/2.2A8.8A/4.4A25A/12.5A25A/12.5A
Rated rotating rated1050r/m860r/m1260r/m1260r/m
Max power65W115W380W480W
Start-up wind speed3.0m/s     3.0m/s     3.5m/s3.5m/s
Cut-in wind speed3.5m/s     3.5m/s     3.5m/s3.5m/s
Cut-out wind speed15m/s15m/s18m/s18m/s
Security wind speed45m/s45m/s45m/s45m/s
Rated wind speed012m/s12m/s12m/s12m/s
EngineThree-phase permanent magnet generatorThree-phase permanent magnet generatorThree-phase permanent magnet generator
Rotor diameter1050mm1220mm1220mm
Number of blades3pcs3pcs6cs3pcs
Blades materialCarbon fiber reinforced plasticsCarbon fiber reinforced plasticsCarbon fiber reinforced plastics
Out of line anti-winding deviceOverall three-phase commutatorOverall three-phase commutatorOverall three-phase commutator
Wind protectionTip stall protection +turned protection +electromagnetic brakeTip stall protection +turned protection +electromagnetic brakeTip stall protection +turned protection +electromagnetic brake
Life span10years15years15years
Equipment surface protectionGalvanization plastic coatingGalvanization plastic coatingGalvanization plastic coating
Working temperature-45°C-70°C-45°C-70°C-45°C-70°C
Net Weight2.6KG2.8KG5.85KG7.2KG
Gross Weight3.2KG3.5KG6.6KG8KG
PackageCarton with foam

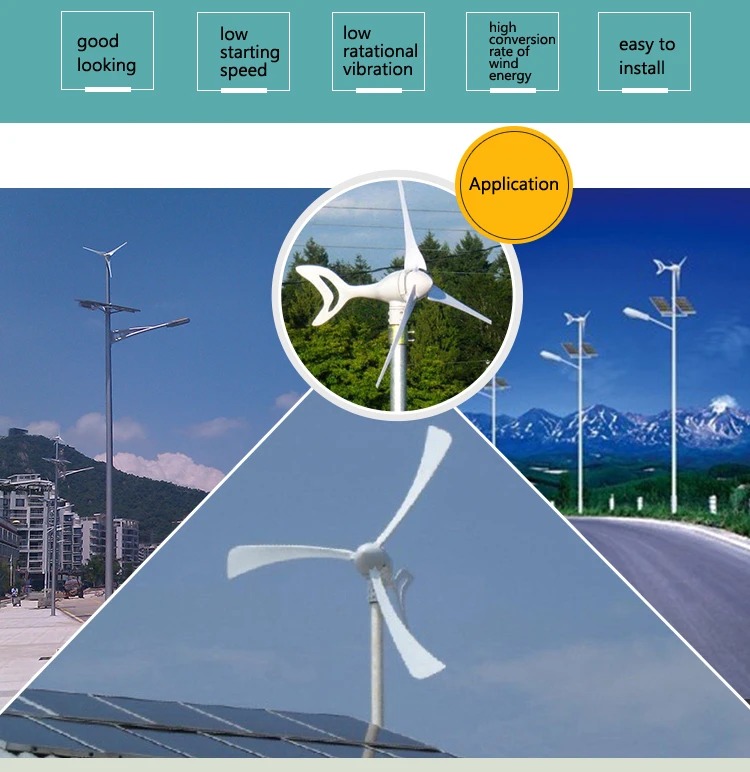

high lights


1.low start up speed; high wind energy utilization; beautiful appearance; low vibration
2.Human friendly design, easy installation, maintenance and repair.
3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4.the generators, adopting permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability

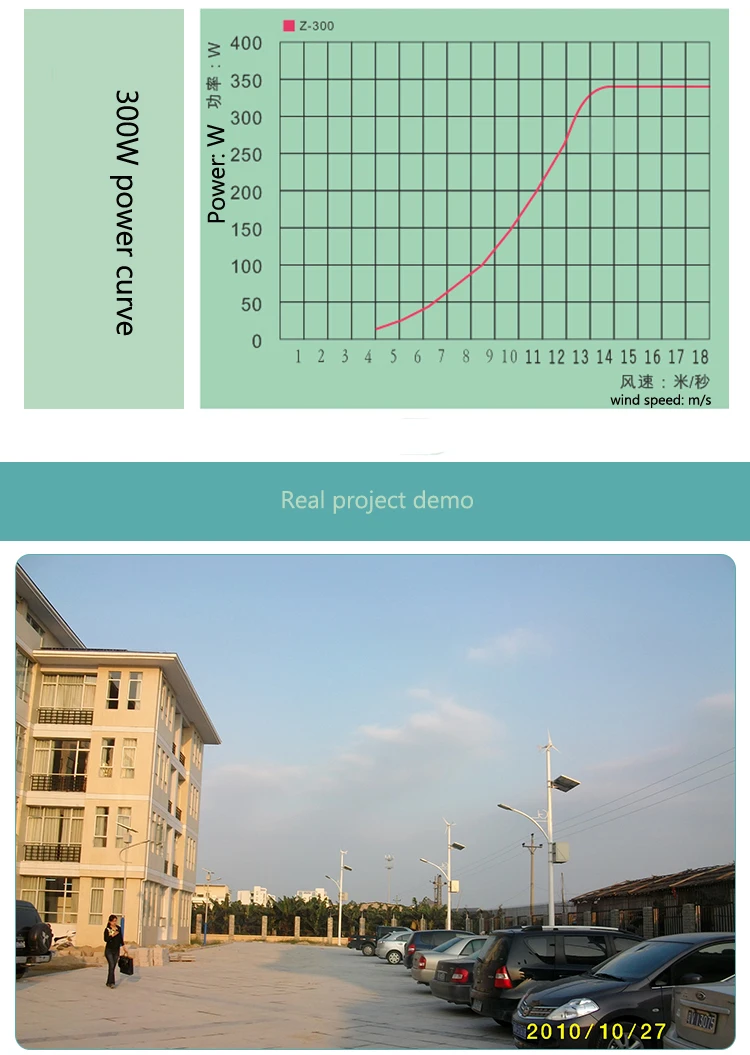

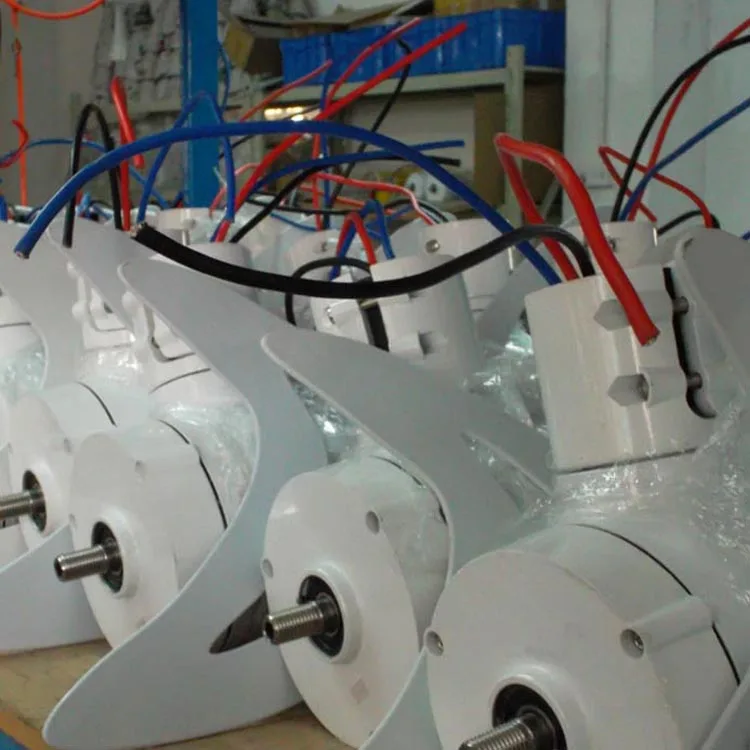

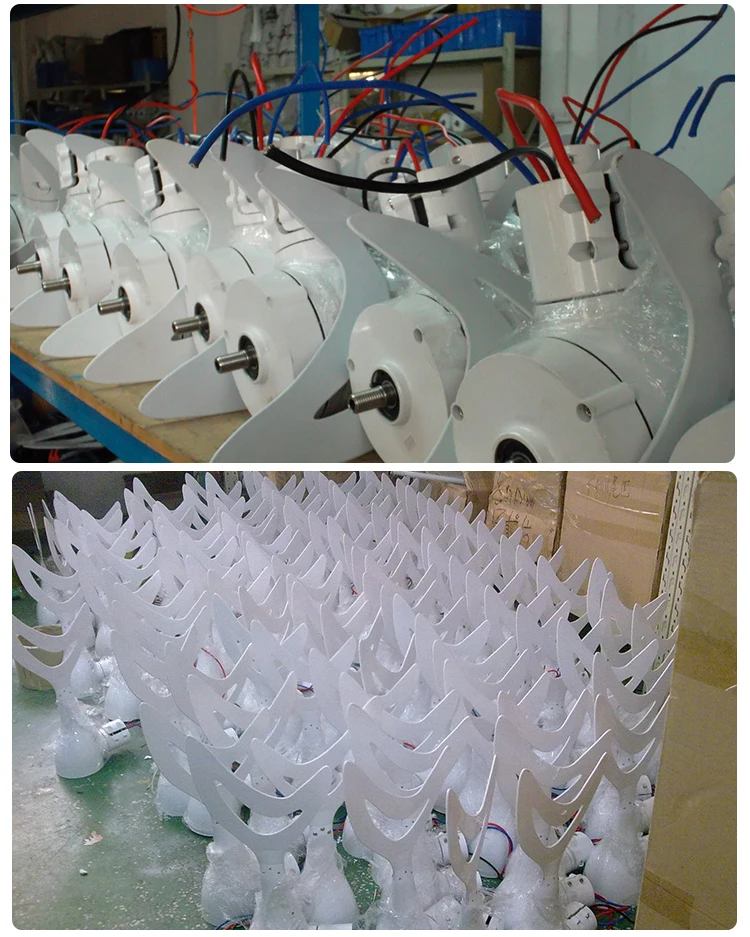

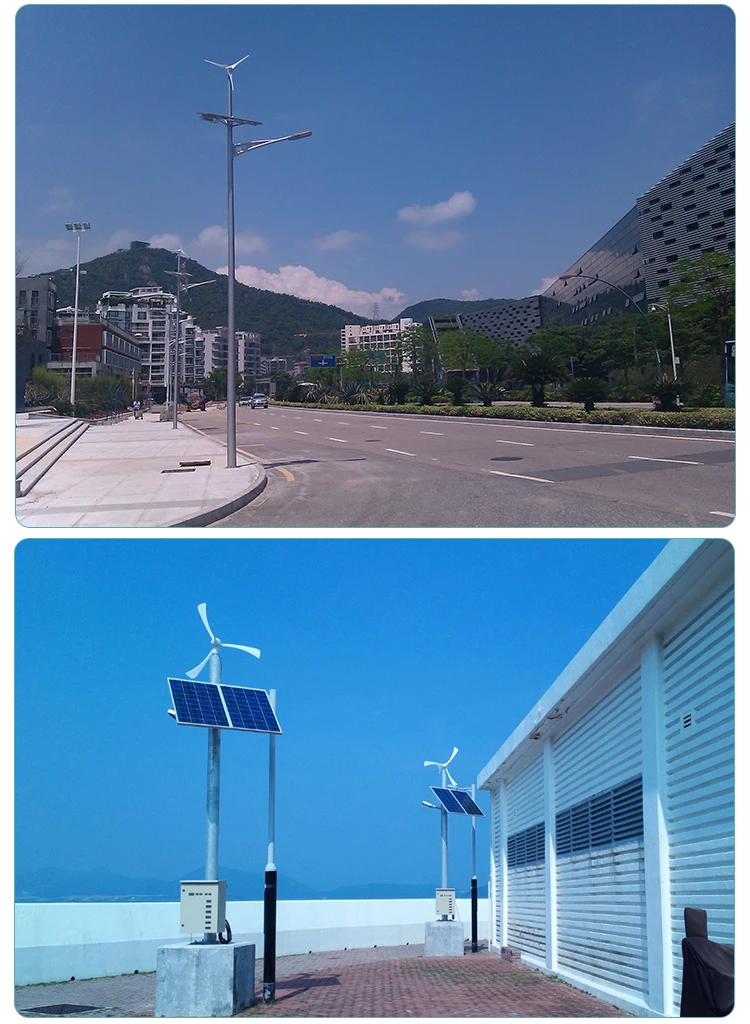

Product Show

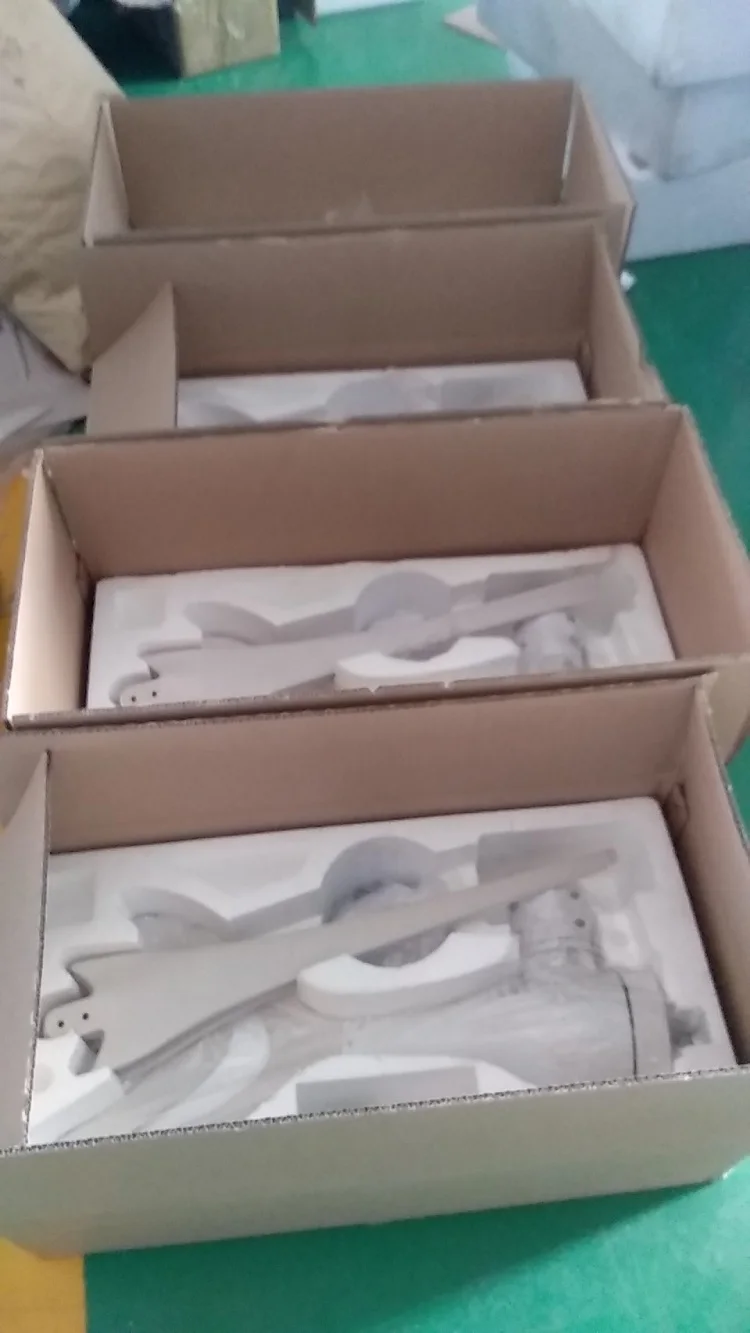

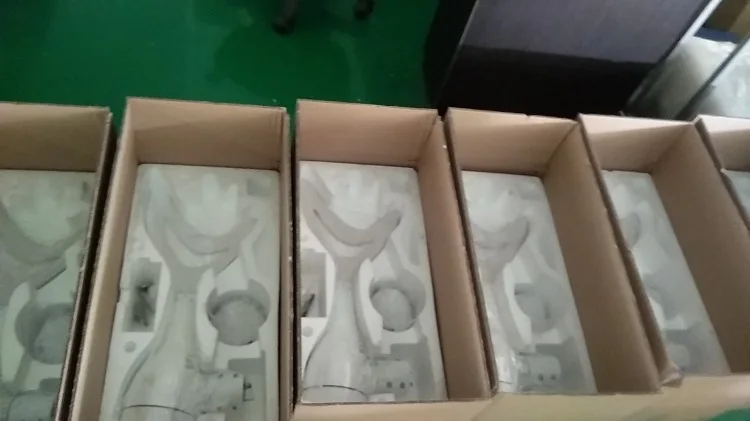

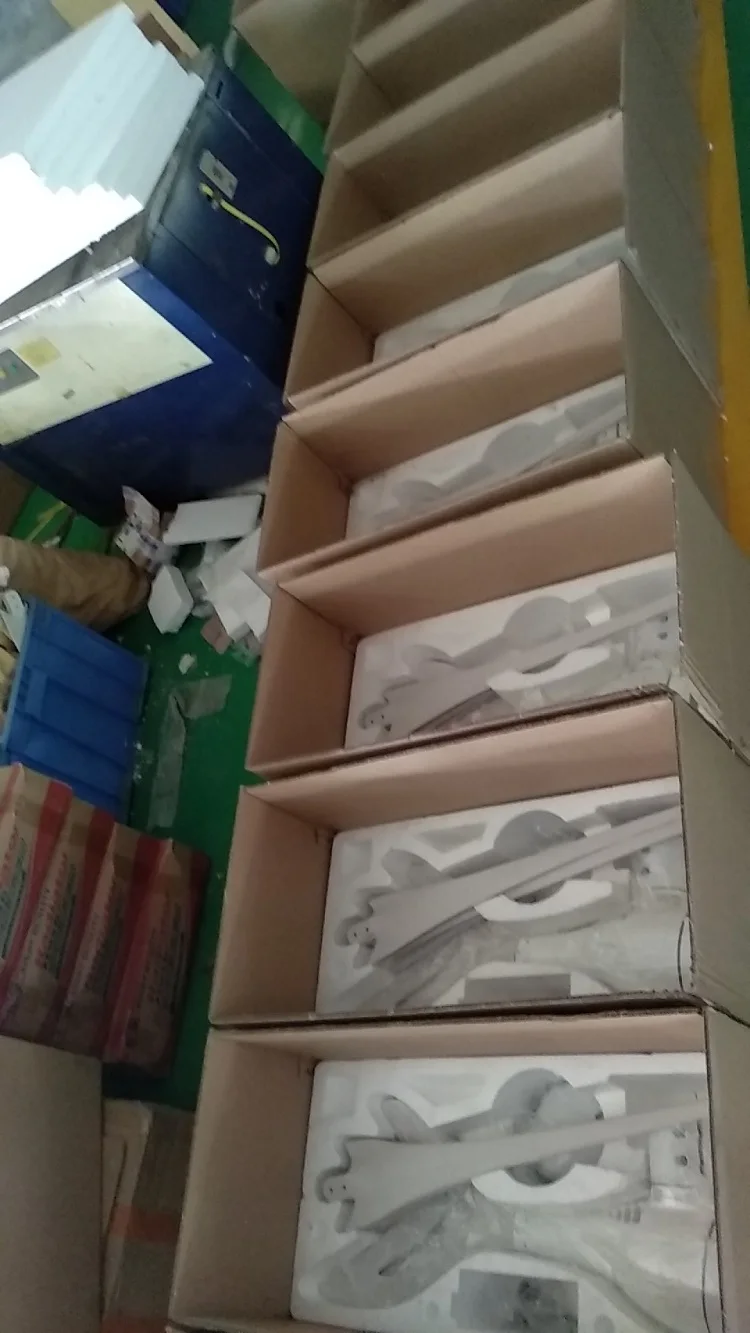

Packaging & Shipping
