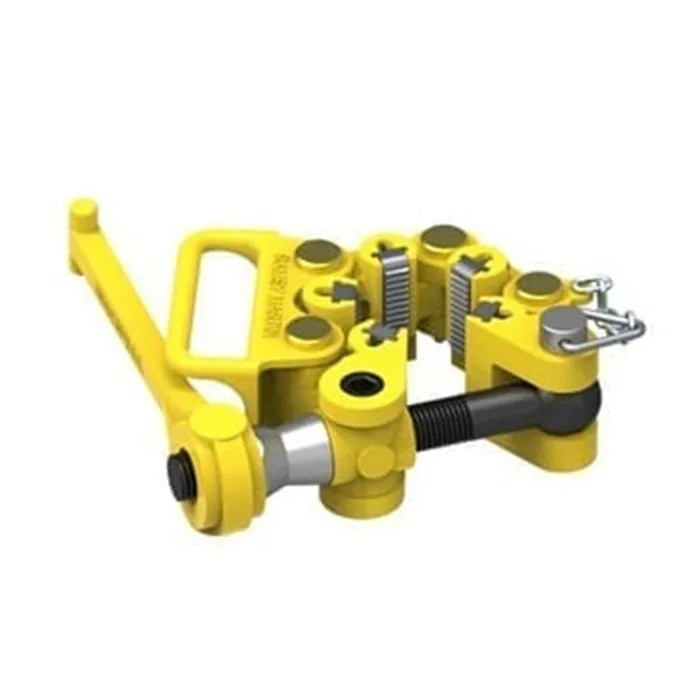

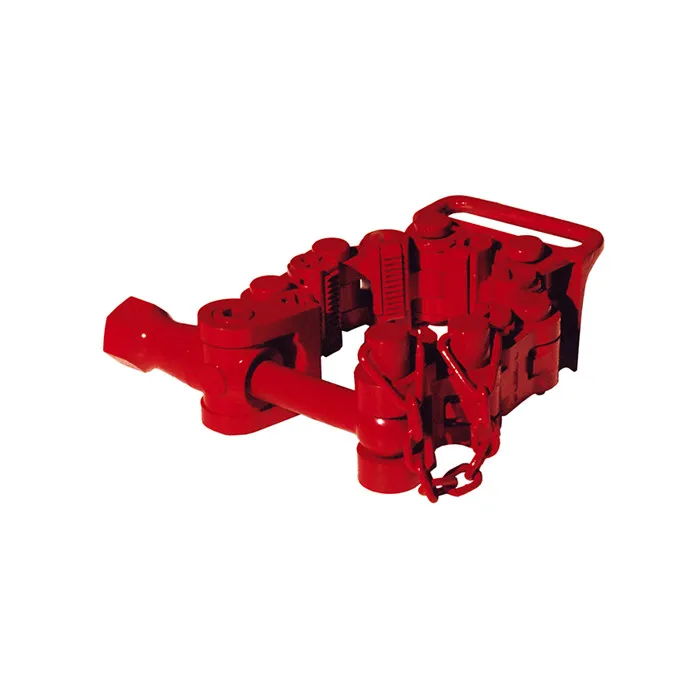

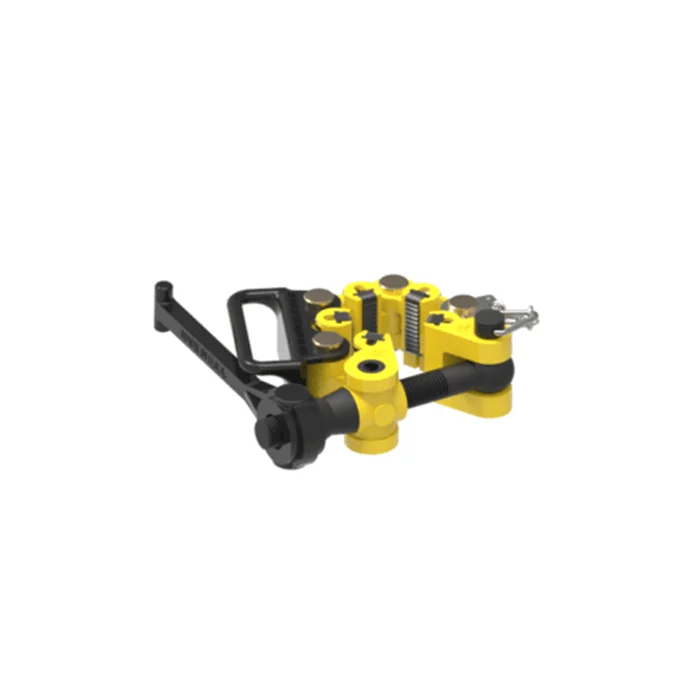

API standard drilling wellhead safety clamps type WA T for oil drilling rig tools
- Category: >>>
- Supplier: Shandong Great Petroleum Equipment Co. Ltd.
Share on (62461416243):
Product Overview
Description
Product Description
Safety Clamps are necessary tools for handling drill collars; flush joint pipes and small shoulder pipes. They are designed and manufactured according to API Spec 7K.

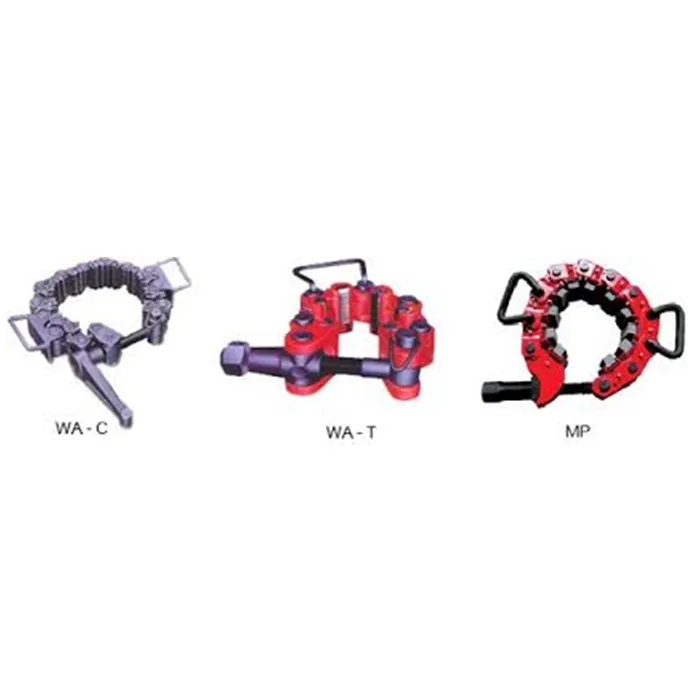

There are three types of safety clamps: Type WA-T, WA-C and type MP.
Safety Clamps could adjust pipes to different sizes by changing the quantity of chain links, can accommodate pipes from 1.1/8 to 4.1/2inch.
Safety Clamps adopts multi-link design, which provides uniform pressure around the pipe to minimize the risks of crushing the pipe or damaging the surface. Each link, complete with the taper slip, is interchangeable as a unit.
Safety Clamp Type C and T are necessary tools for handling flush joint pipes and drill collar. They can accommodate pipe from 1-1/8 to 15-5/8inch. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Type |
Pipe O.D. (in) |
No. of Chain Links |
WA-T | 1 1/8-2 | 4 |
2 1/8-3 1/4 | 5 | |
3 1/2-4 1/2 | 6 | |
WA-C | 3 1/2-4 5/8 | 7 |
4 1/2-5 5/8 | 8 | |
5 1/2-6 5/8 | 9 | |
6 1/2-7 5/8 | 10 | |
7 1/2-8 5/8 | 11 | |
8 1/2-9 5/8 | 12 | |
9 1/2-10 5/8 | 13 | |
10 1/2-11 5/8 | 14 | |
11 1/2-12 5/8 | 15 | |
12 1/2-13 5/8 | 16 | |
13 1/2-14 5/8 | 17 | |
14 1/2-15 5/8 | 18 |
