New Spectacle Wearing Plates Cutting Rings Thrust Rings with 6 Months Warranty for Manufacturing Plants Building Material Shops
- Category: >>>
- Supplier: Hebei Jida Heavy Industry Machinery Co. ltd.
Share on (62461810026):
Product Overview
Description
Product Description
Name | Concrete Pump Wear Plate & Cutting Ring | ||
Specification | Wear plate | 200 | |
Wear plate | φ230 | ||
Wear plate | φ260 | ||
Wear plate | φ230 | ||
Wear plate | φ200 | ||
Wear plate | φ260 | ||
Cutting ring | S60-φ200 | ||
Cutting ring | φ230-s | ||
Cutting ring | φ260-s | ||
Cutting ring | φ230-Z | ||
Cutting ring | φ200-Z | ||
Cutting ring | φ260-Z | ||
PM | |||
Cutting ring | PM | ||
In the concrete pump truck, the wear plate and the cutting ring cooperate with each other, and they mainly work with the rubber spring. Through the pressure self-balancing and the rubber spring automatically compensates the gap, the floating cutting ring has the function of self-sealing, so as to increase the conveying pressure of the S pipe valve. S tube can withstand thousands of swings by these two things.It looks very simple while the requirement for quality is very high,the hard alloy structure will be adopted to increase the service life of the eye plate.

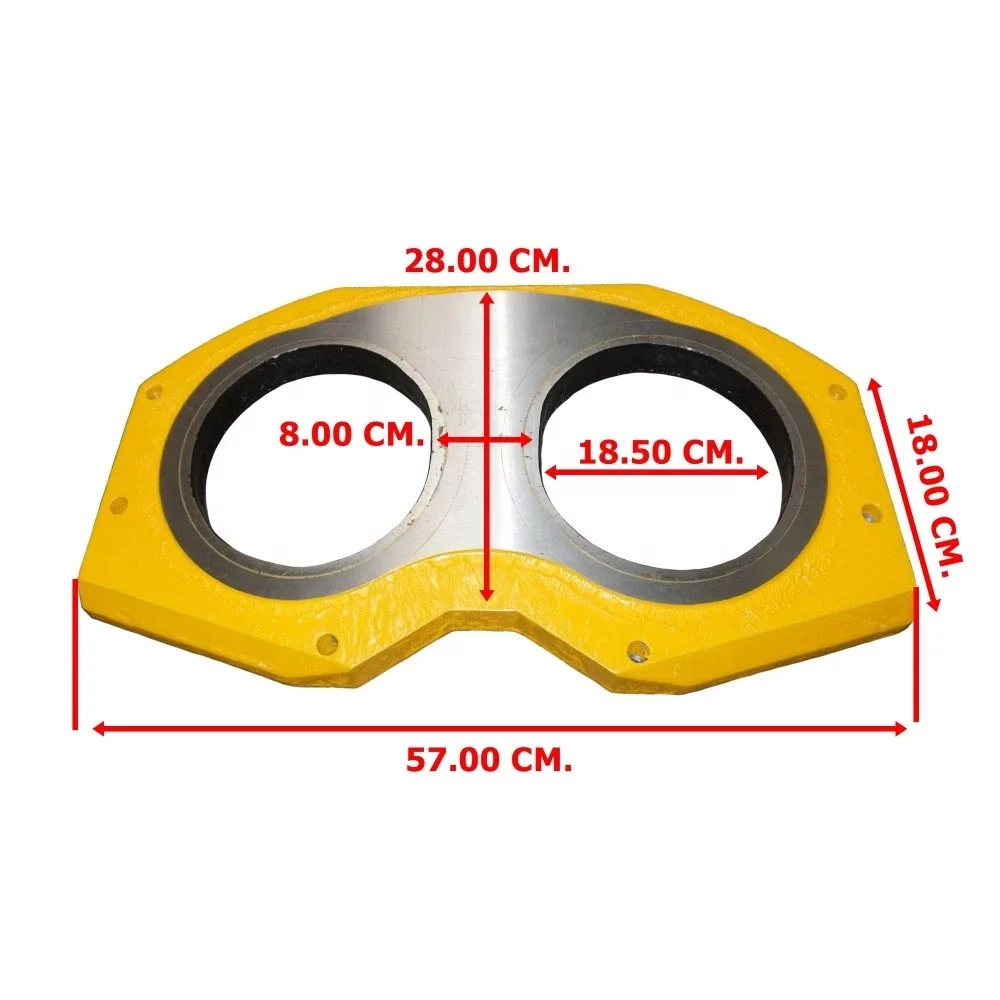

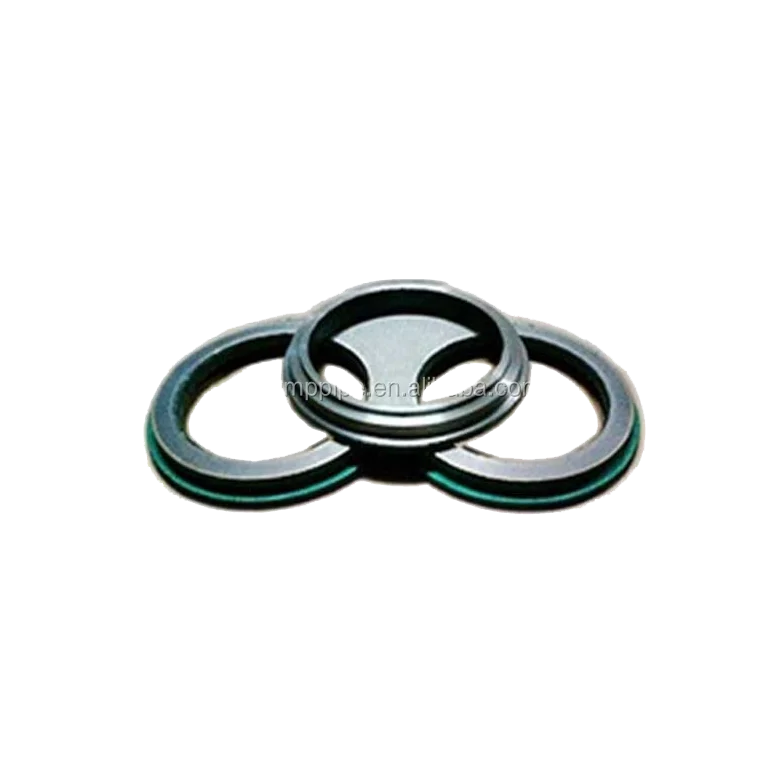

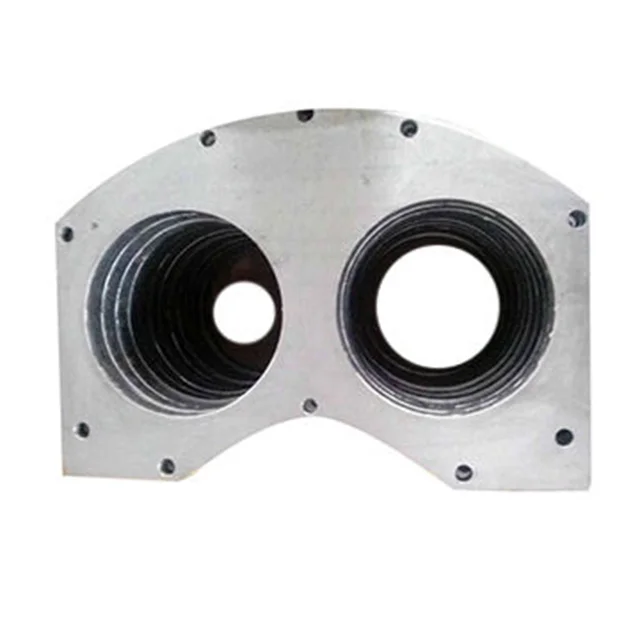

Wear Plate & Cutting Ring
Specifications: ordinary type/double alloy/Inlay type/Full alloy
Alloy thickness: 5.3mm
Quality assurance:no less than 25 thousand square meters
Performance characteristics: hard alloy wear plate has extremely high hardness, strength and excellent wear resistance, which is a relatively ideal material for wear plate.
Material: using hard alloy as wear-resistant material, its hardness and wear resistance are greatly improved compared with the welding layer.
1. Hard alloy wear plate and cutting ring:
Widely used in concrete machinery, it has the advantages of high strength, strong impact resistance, high bending strength, good wear resistance, tight structure, good bonding performance and high completion volume.
Under normal circumstances that no manual operation is improper, 2.5-30 thousand cubic meters are reserved for the wear plate and 1.2-15 thousand cubic meters for cutting ring.
2. S pipe:
S pipe body is welded with 16Mn high quality steel, which is better than ordinary casting. Under normal circumstances that no manual operation is improper, 50 thousand cubic meters are reserved for the S pipe.
We offer complete specifications and guaranteed quality concrete pump parts. We can produce according to the drawings provided by customers or the used products.
Detailed Images

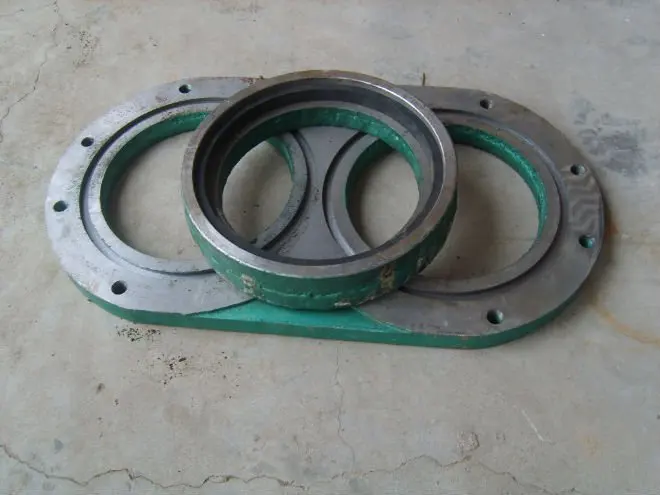

In the concrete pump truck, the Wear Plate and the cutting ring cooperate with each other, and they mainly work with the rubber spring. Through the pressure self-balancing and the rubber spring automatically compensates the gap, the floating cutting ring has the function of self-sealing, so as to increase the conveying pressure of the S pipe valve. S tube can withstand thousands of swings by these two things, so it looks very simple, in fact, the requirement for quality is very high, in general, in order to increase the service life of the Wear Plate, the hard alloy structure will be adopted.

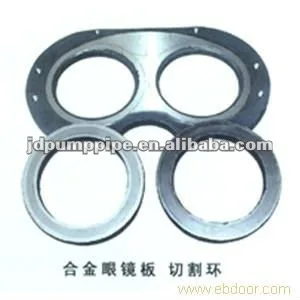

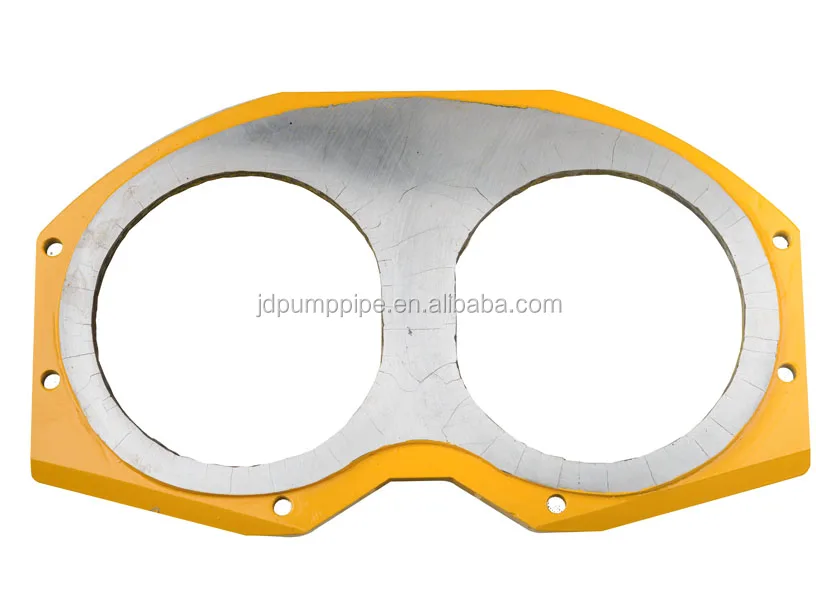

1. Hard alloy Wear Plate and cutting ring:
Widely used in concrete machinery, it has the advantages of high strength, strong impact resistance, high bending strength, good wear resistance, tight structure, good bonding performance and high completion volume. Under normal circumstances without improper manual operation, 2.5-30 thousand cubic meters are reserved for the Wear Plate and 1.2-15 thousand cubic meters for Cutting Ring.

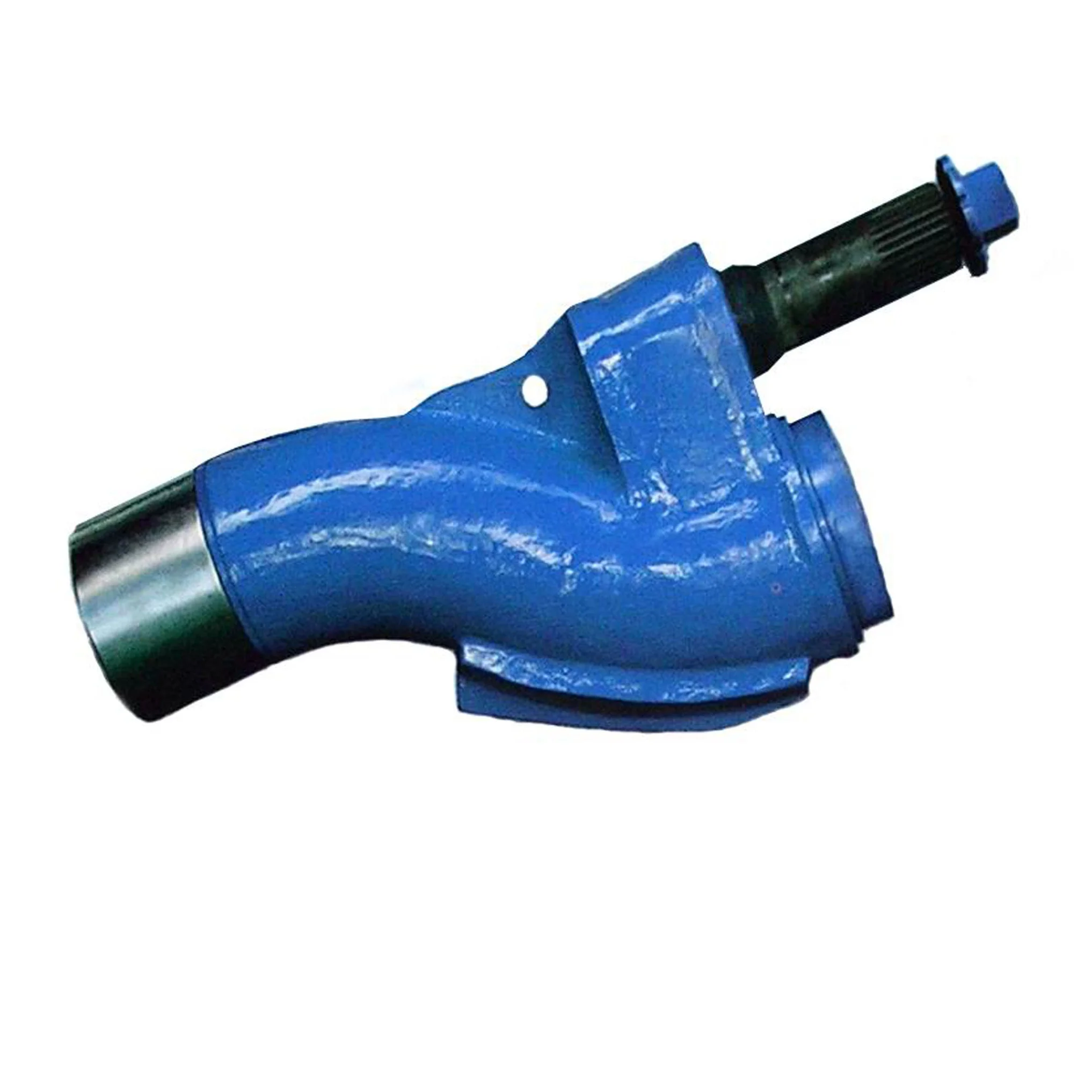

2. S pipe valve / S tube
The S pipe body is welded with 16Mn high quality steel, which is better than ordinary casting. Under normal circumstances without improper manual operation，50 thousand cubic meters are reserved for the S tube.
