The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.
Functions
1.Rapid drying speed, which just takes 5-15 seconds. 2.Suitable for thermo-sensitive material and keep the origin state. 3.Simple processing and easy operation, which is suitable for continuous production. 4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity. 5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
Technical Data
Model
5
25
50
100
150
200-2000
Inlet temperature
350°C
Outlet temperature
80-90°C
Max. evaporation(kg/h)
5
25
50
100
150
200-2000
Centrifugal spraying nozzle transmission mode
compressed air transmission
mechanical transmission
Rotation speed (r.p.m)
25000
22000
21500
18000
18000
15000
Spray disc diameter
50mm
100mm
120mm
140mm
150mm
180-340mm
thermal source
electricity
electricity
electricity + steam, fuel, oil, fuelgas
solved by user
Max. electric heating power (kw)
8
31.5
60
81
99
Overall dimension
1.8*0.93*2.2
3*2.7*4.26
3.7*3.2*5.1
4.6*4.2*6
5.5*4.5*7
optional
Powder recollection (%)
95
95
95
95
95
95

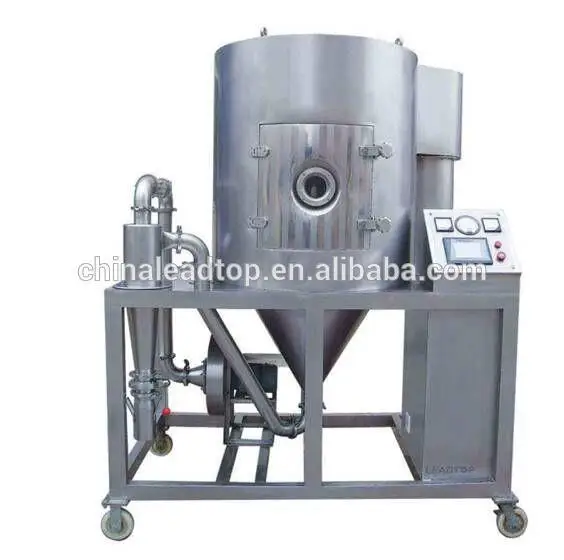

Machine Details
