High efficiency and large capacity dust suppressor Spray fog truck anti-dust truck
1.Milti-functional Road Sprinkler can be used in many fields. Such as :road cleaning .plants watering. dust suppression .drug spraying.aseptic sprayer.transport drink water .agriculture planting. Besides that,it can spray Alcohol disinfectant and 84 disinfectant to disinfect public areas
2.Optional chassis: NORTH BENZ,FAW,FOTON,SHANAXI,JAC,JMC,ISUZU,SINOTTUK, DONGFENG
Specifications
Item
Specifications
Item
Specifications
Truck
Name
High efficiency and large capacity dust suppressor Spray fog truck anti-dust truck
Model
CLW5250GPSZ5
Gross Weight
25000kg
Overall dimensions
9650*2500*3000mm
Curb Weight
11370kg
Wheelbase
4350+1350
Approach angle
13°
Front Track
2035mm
Departure Angle
20°
Rear Track
1850mm
Front Overhang
1320mm
Number of axles
3
Rear Overhang
2630mm
Max speed
101km/h
Number of Tyres
10
Traction system
6*4
Tyre
11.00R20
Transmission
manual
Allowable Cab Passengers
3
Chassis
Brand
Sinotruk
Drive type
RDH or LDH
Model
ZZ1251N464GE1
Leaf Spring
2020/3/5
Upper
Volume of tank
17 CBM
Tank Material
Carbon steel
Thickness
4-5mm
Loading
Water
Tank
Anti-rust coating inside tank
Color
Customerized
Engine (Motor)
Brand
Sinotruk
Type
Diesel
Model
MC07.24-50
Displacement
6870ml
Horse power
240hp
Emission standard
Euro 5
Structure
Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Equipment
Gearbox
5 forwards & 1 reverse
Steering Gear
Hydraulic steering
Clutch
Reinforced diaphragm clutch
Brakes
Dual circuit compressed air brake
Water Pump
Suction height >6m
High-pressure spray pump
>100m
Sprinkler width
>14m
Others equipment
fire valve,water valve, and filter gauze
Remark

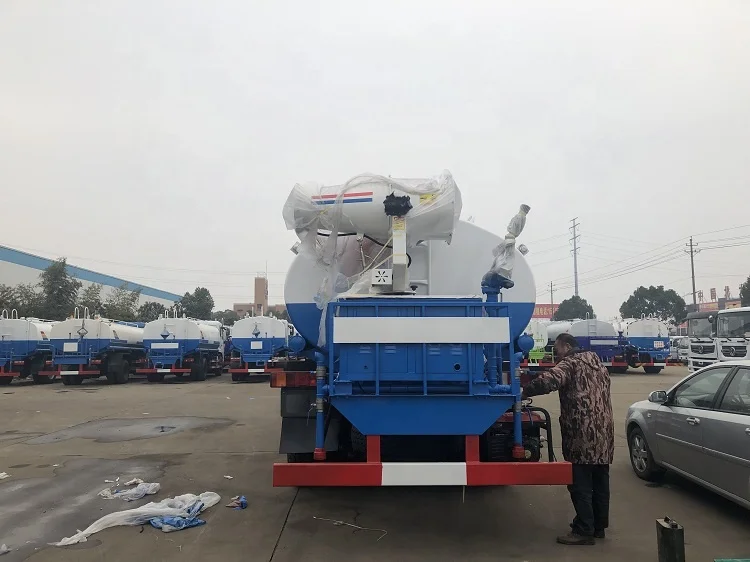

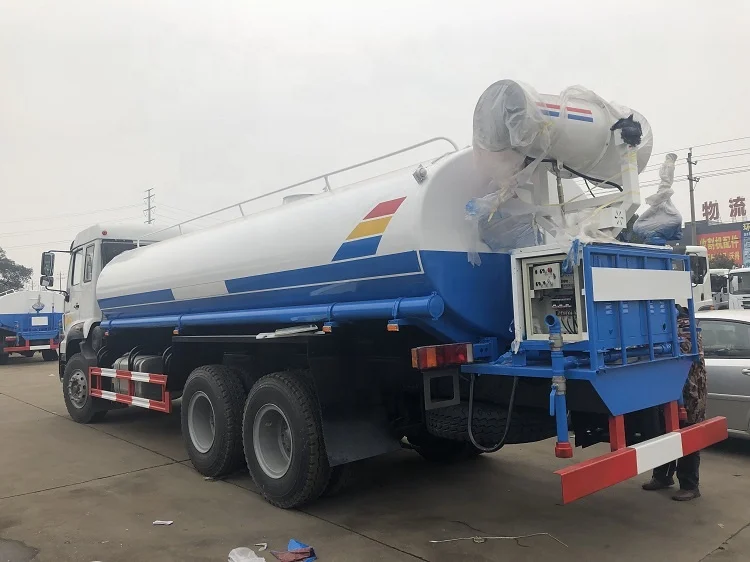

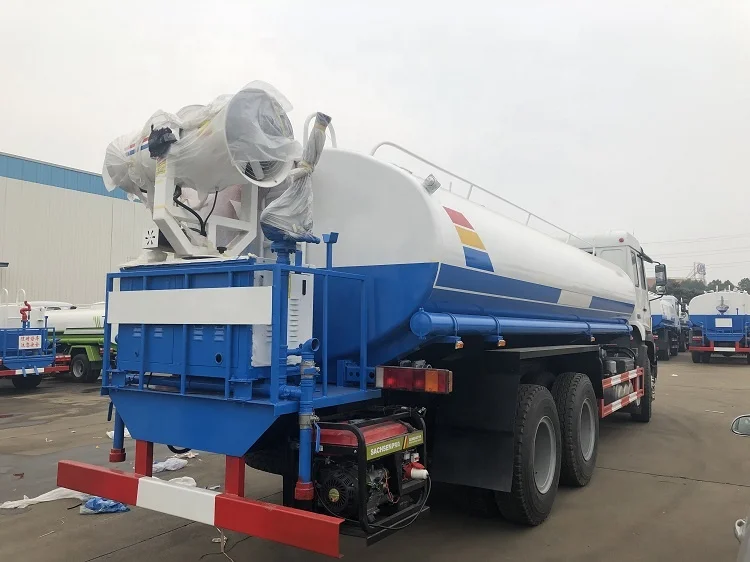

The water spraying truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker trucks is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
