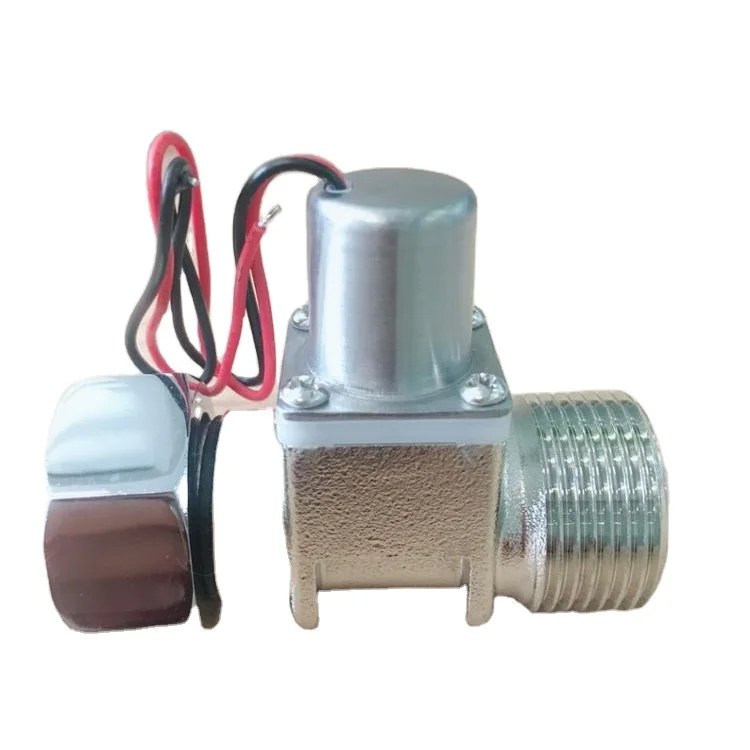

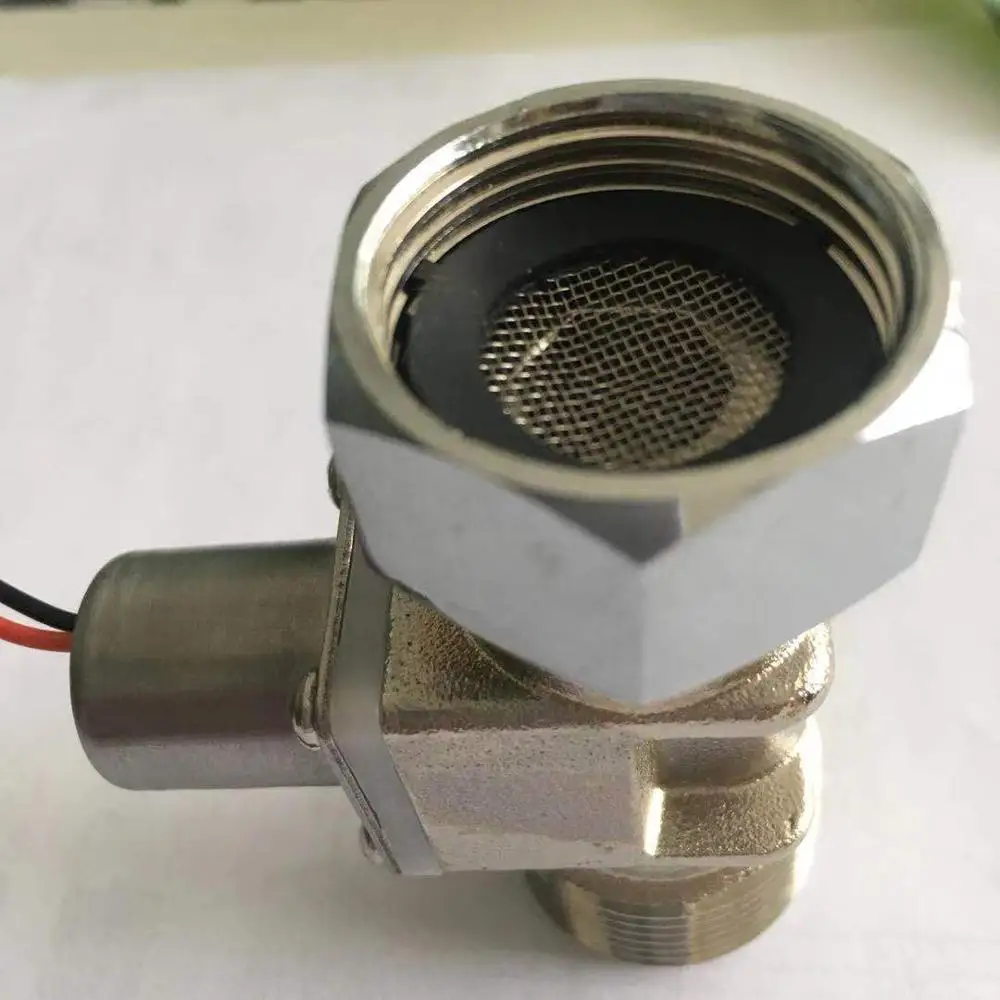

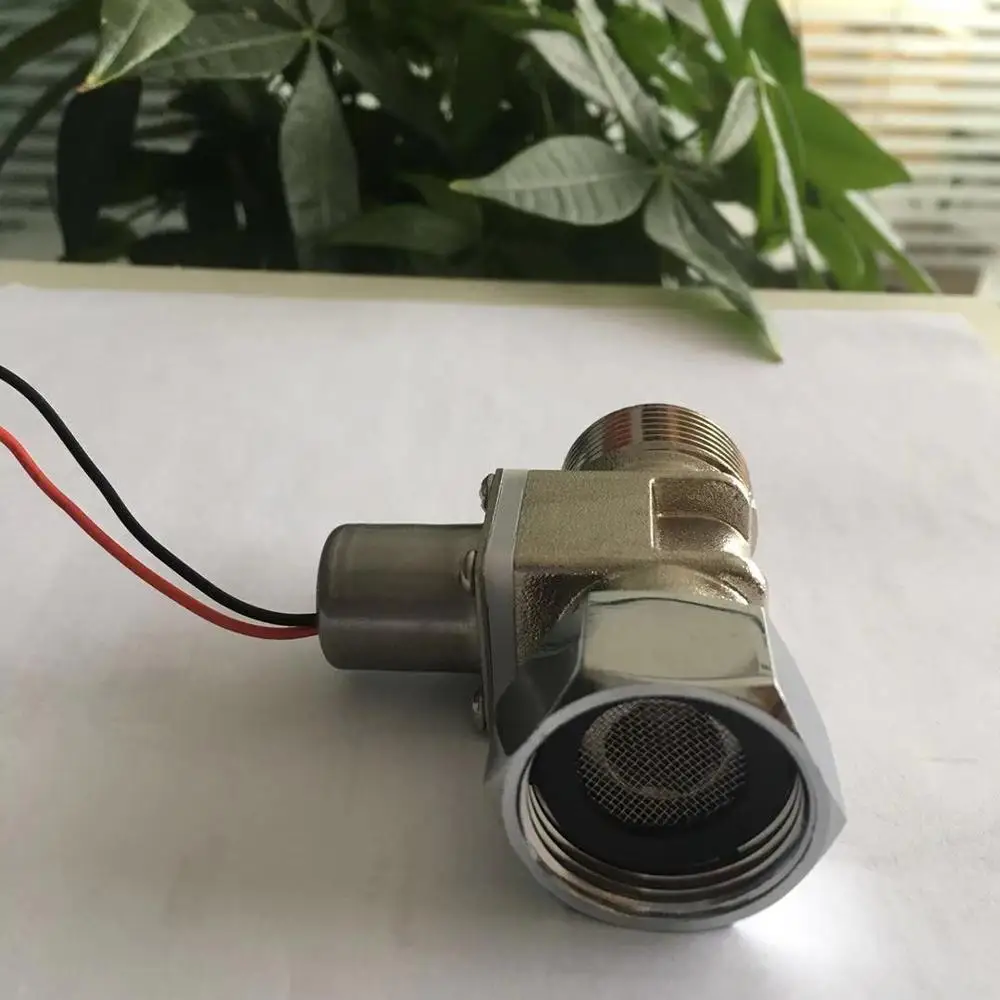

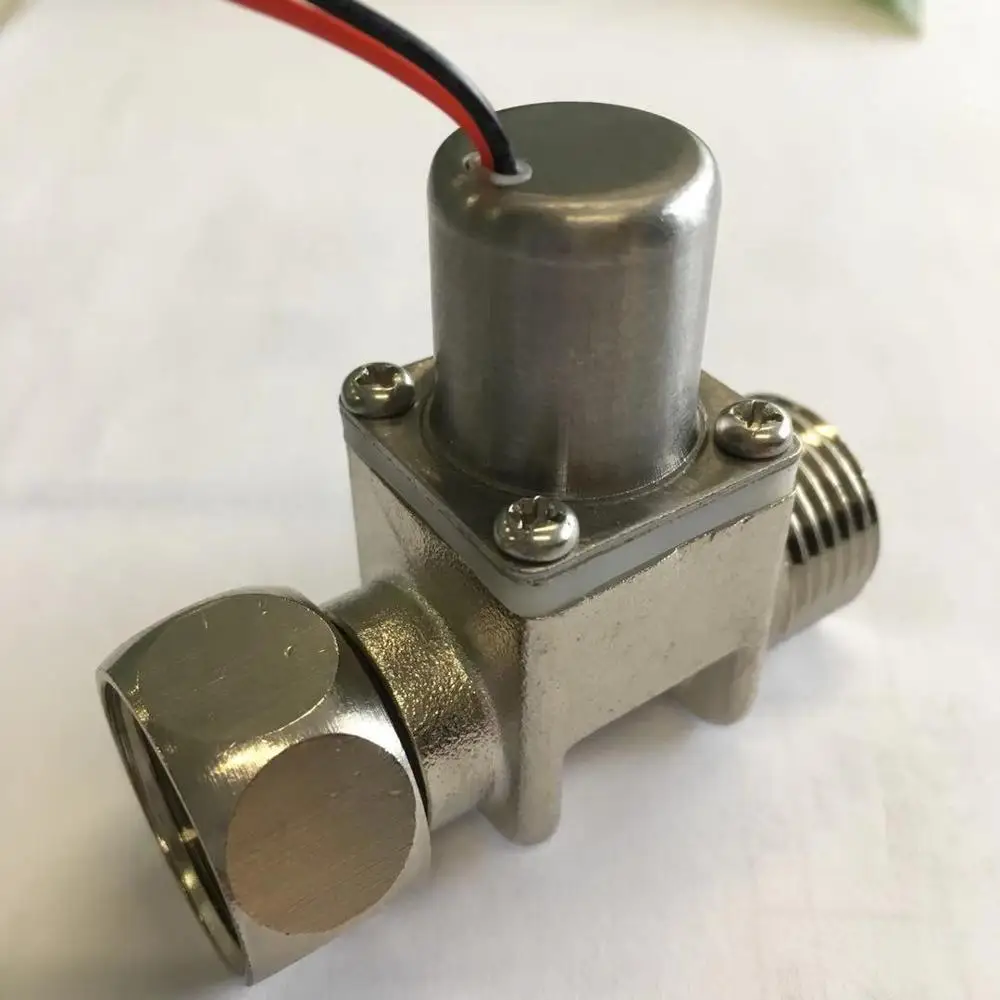

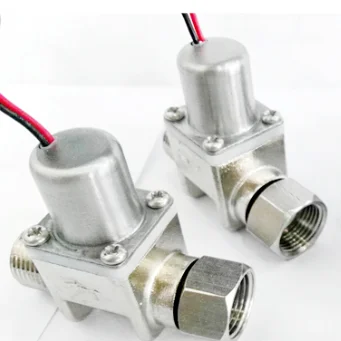

G1/2 латунный фиксирующий Штекерный разъем Соленоидный клапан

G1/2 Brass latching Male- Female connector Solenoid Valve

Bistable Pulse Solenoid Valve Technical Specification:

MFZ211D Series

(Rated Voltage):DC3.6V,4.5V,6V,9V,12V

(Used Voltage):DC3-12V

(Resistance): 9-41 Ω±5%

.(Open on + pulse, close on - pulse.)

(Pulse Width):30 ms

(Worked Pressure):0.8 MPa

(Pressure):0.02-1.0MPa

(Medium):water

(Medium Temperature):1-80 ℃

(Environment Temperature):-10-55℃

(Life span):500,000 times with 0.1Mpa

(Response time):≤0.02S

(Electric strength):600V,50Hz,1mim

(Flow Rate):0.1Mpa,≥12L/min;0.8Mpa,≥23L/min

(Waterproof level):IP65

(Valve seat material):Brass

(Sealing material):NBR

(Thread):G3/8,G1/2, G3/4

Common questions reply:

1, Are you a factory or a trading company?

Reply: We are a regular factory.

2, How many years has your company been?

Reply: more than 20 years.

3,What certification has your company and products passed?

Reply: ISO9001:2015; ISO14001:2015; OHSAS18001-2007; SGS; CE; UL;ROHS;REACH...etc

4,What is the advantage of your company?

Reply: Quick response,Excellent service attitude, Solving problems for customer

5, Can you provide free samples?

Reply: We provide free samples normally, but you should pay the shipping cost.

5, How long is your delivery time?

Reply: Samples within 7 days(if we have exising toolings), customizing toolings needs 25-30 days,

            The lead time for in mass production is 15-20 days

 Remark: We can customize any types of coils and solenoid valves based on your information in details.
