4 кольца, традиционные карбоновые щетки с отверстием 20 мм, скользящее кольцо с держателем и полюсом

Product Overview

Description

USYUMO

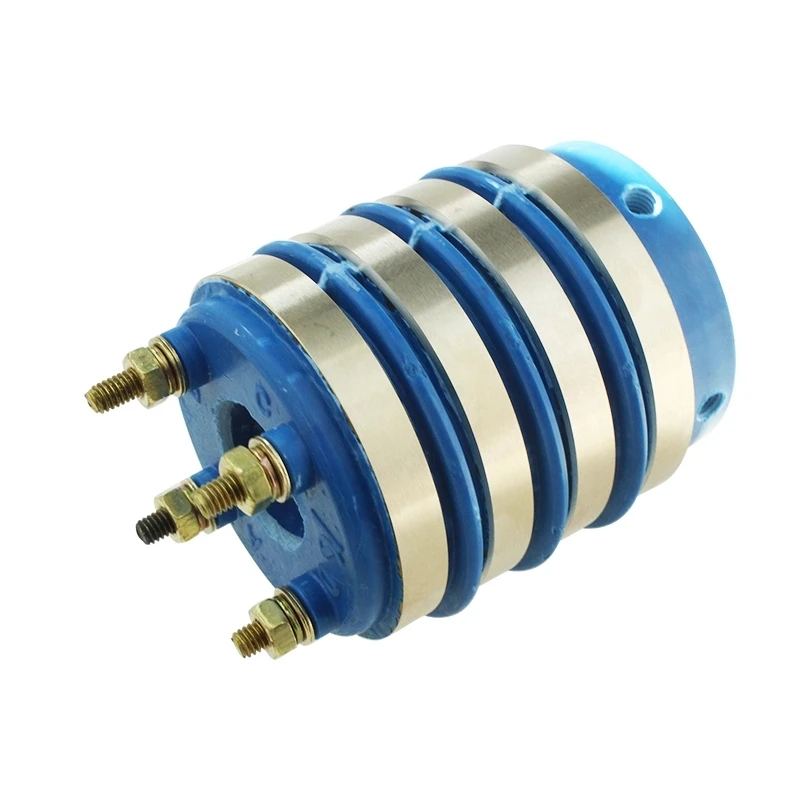

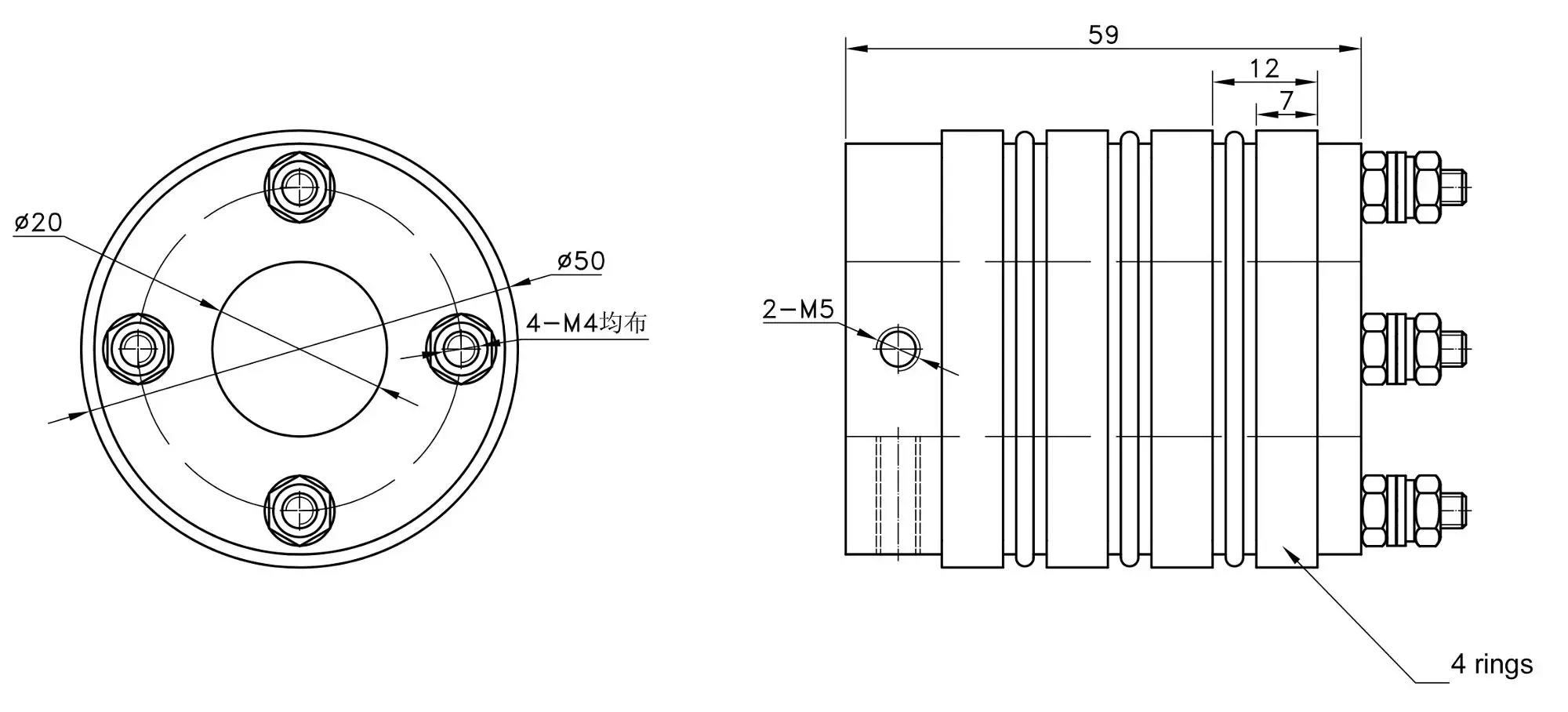

4rings Traditional Carbon Brushes Through Bore 20mm Slip Ring with Holder and pole



Features

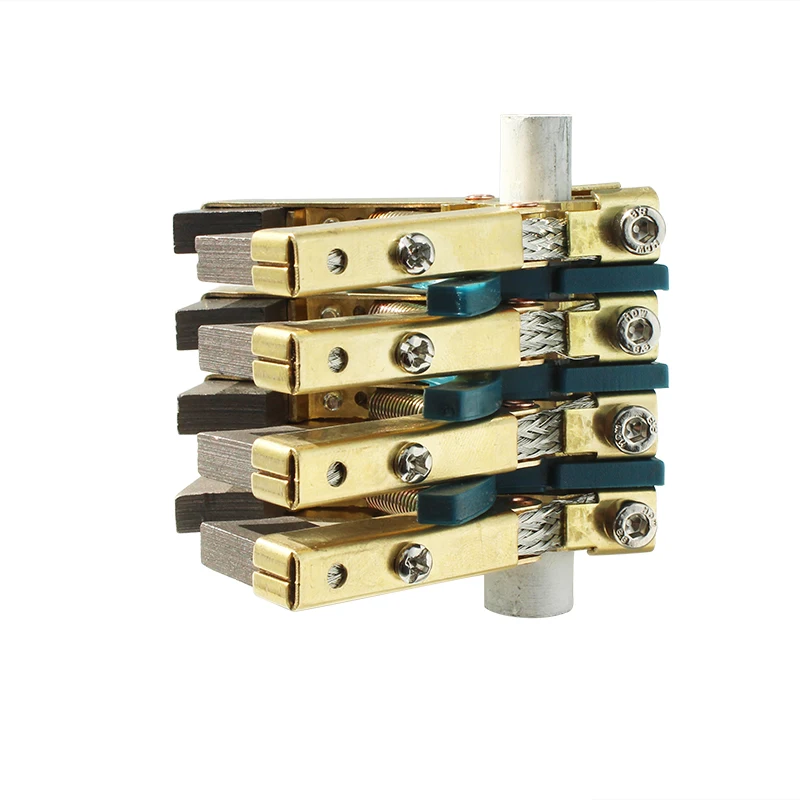

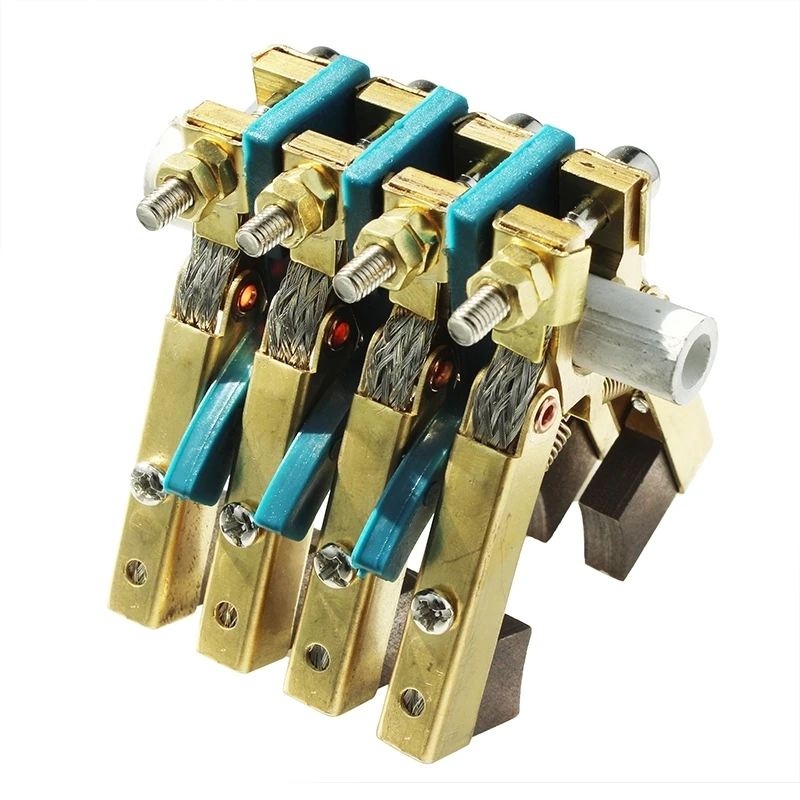

  4poles slip ring , with carbon brush , holder and insulating rod



The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

The SRC Series find typical applications in

*CCTV pan/tilt cameras and pedestals

*Robots and downhole inspection equipment

*Test and measuring equipment

*Manufacturing and process control equipment

Computer peripherals

*Display equipment Medical equipment



Description:

          The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

 Continious transmission of power and/or signal under 360° unrrestrained rotation; applied advanced fiber brush technologly, free of maintennence or lubricating oil; mutil contact points in each ring, low contact pressure, low noise, low contact wear, extremely long-life; standarized&modularized design; and customerized solutions available.



 Customization options

Currend, rated voltage, rated speed, temperature, luton, shell material and color, shape size, special wire, wire length, direction of export, protection grade, terminal type.



FAQ

Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
  2).We make the PI for you.
  3).After you confirm the PI, we arrange the order for you after receiving your payment.
  4).After the goods finished, we send the goods out to you and tell you the tracking number.
  5).We will track your goods until you receive the goods.
Q:  What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your  kindly inquiry !  ^!^
