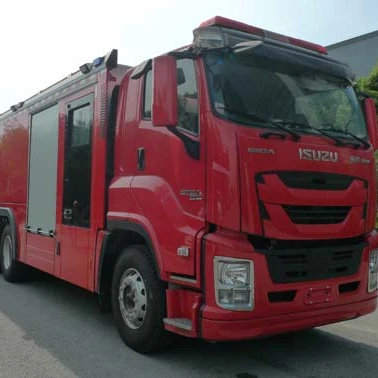

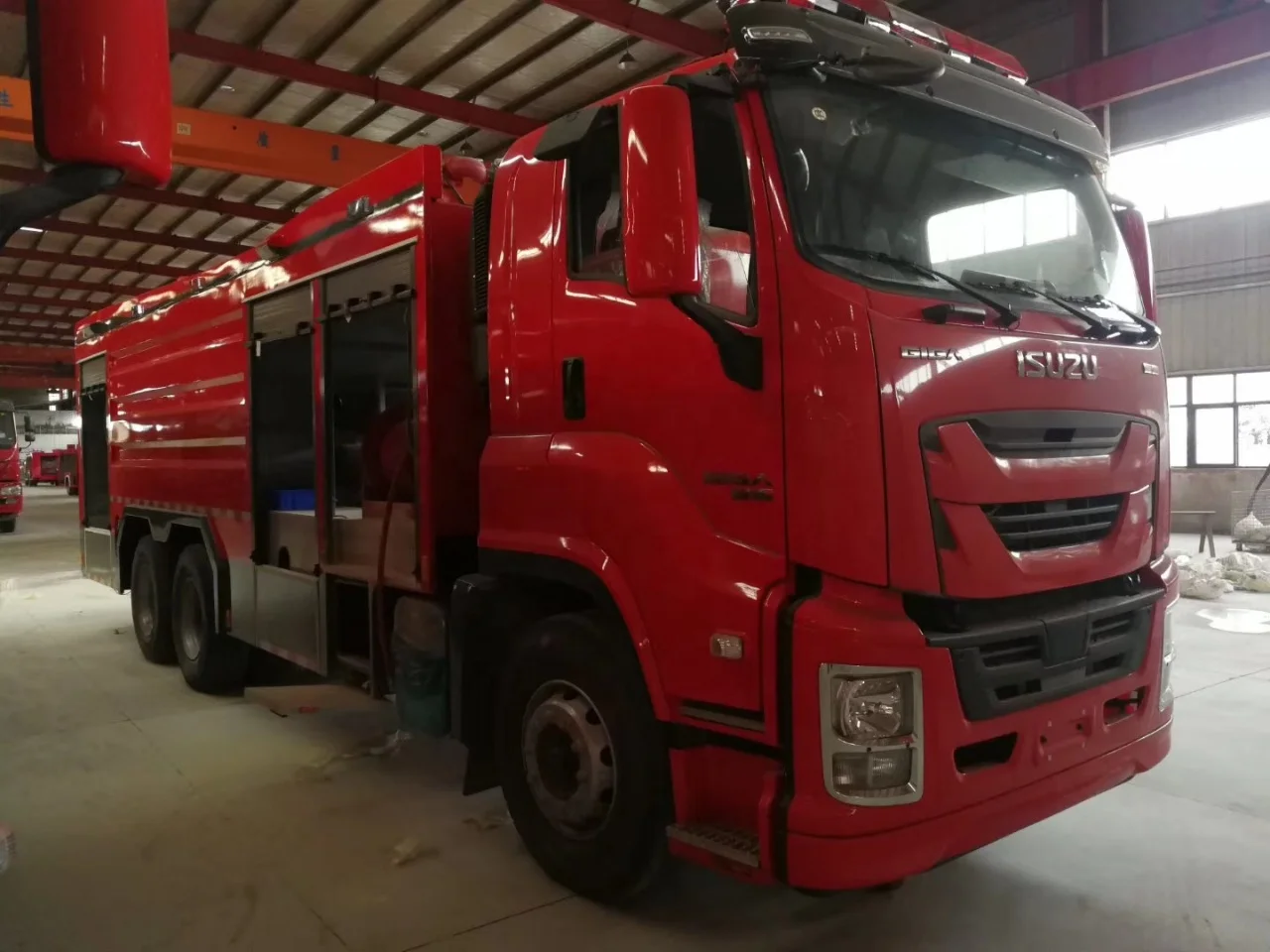

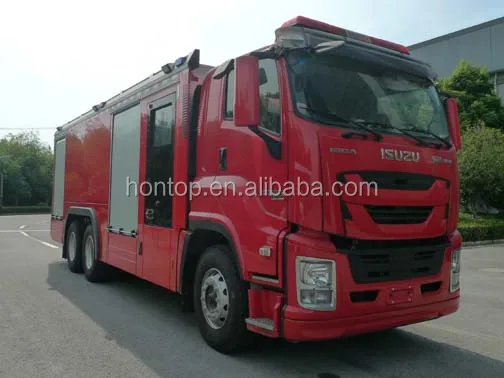

New ISU-ZU 460hp 16000L water foam fire truck fire fighting truck

New ISU-ZU 460hp 16000L water foam fire truck fire fighting truck, assembled with ISU-ZU GIGA chassis with a characteristics of  powerful engine( 460hp), large tank (13000L water tank and 3000L foam tank), solid and durable, high maneuverability and easy operation. The throw range reaches 65 meters and the pumper can get water supply from the natural water and fire hydrant water directly, and also supply water to other fire trucks, for which It can also be used to water supply shortage region. It is suitable to put out general fire.It is widely purchased by the industrial enterprises, petrochemical industry, port, forest fire brigade.



1. Fire fighting system specification

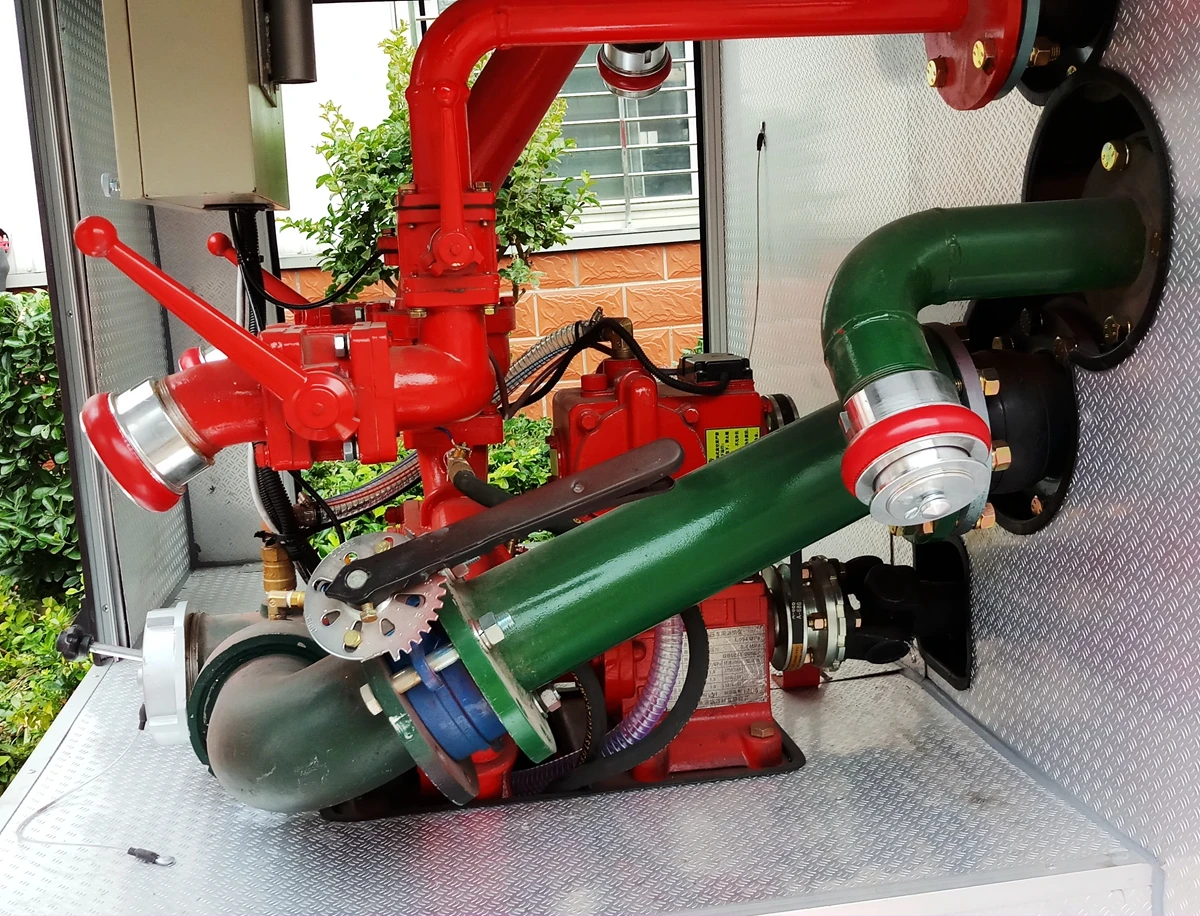

Fire pumpCB10/60
Fire monitorPS60W
Fire monitor rated flow60L/S @1.0Mpa
Max throw rangewater: 65m, foam: 60m
Water tank capacity16000 litre (water 13000L, foam 3000L)
Water tank materialCabon steel (Optional: PP, stainless steel)



 2. General specification

Dimension

9760X2550X3650 mm

Gross weight

27000 kg

Curb weight14450 kg
Axle quantity 3
Axle load 6000/10500/10500 kg
F/R overhang 1370/2355 mm
Wheelbase 4565+1370 mm
Max speed 100km/h



3. Chassis specification

Chassis model

QL5330GXFW2SDZY

Chassis dimension

9895×2540×2985 mm

Tire quantity10
Tire specification

315/80R22.5 18PR

Steel plate spring quantity7/10
Fuel type Diesel



 4. Engine specification

Engine model

6WG1-TCG51

Horsepower460hp
Displacement15681 ml
Emission standardEuro 5
