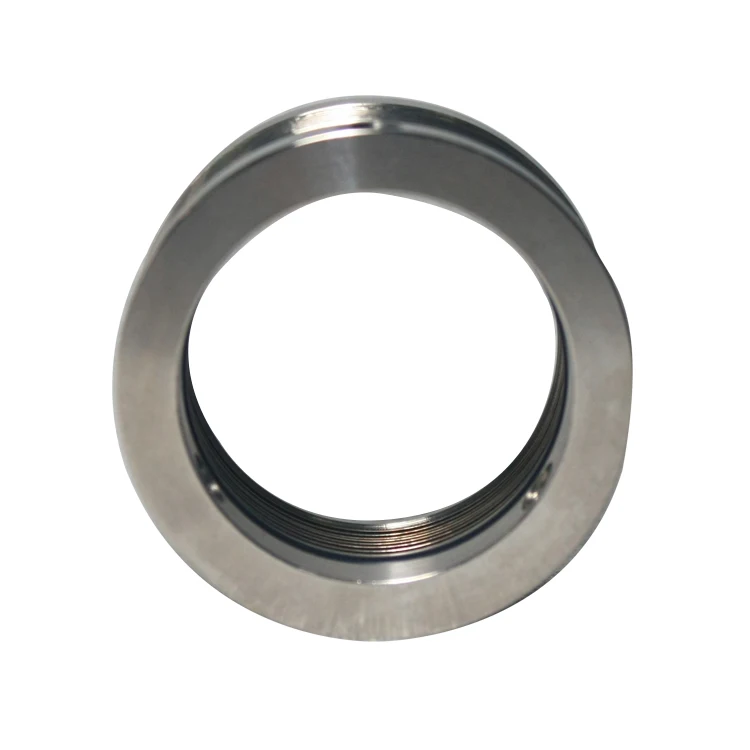

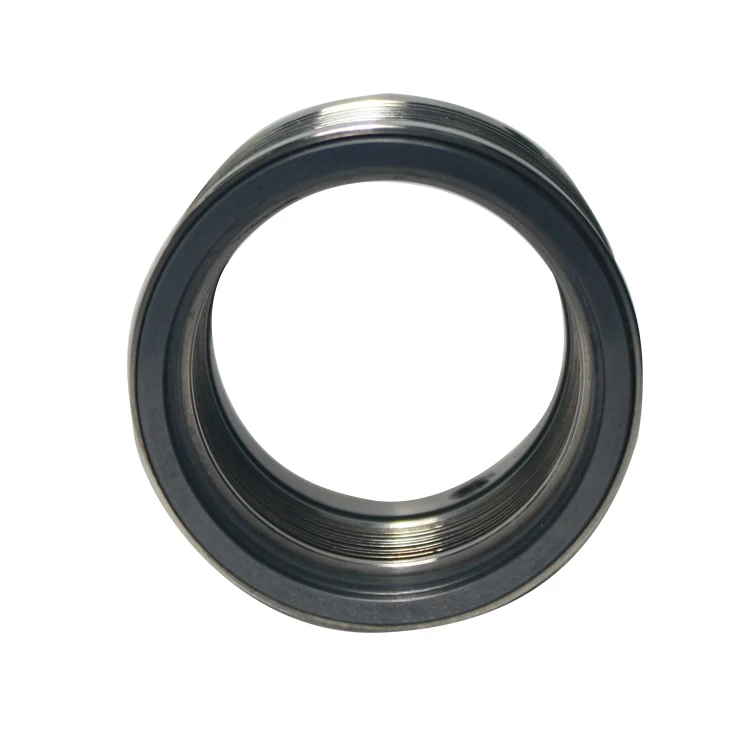

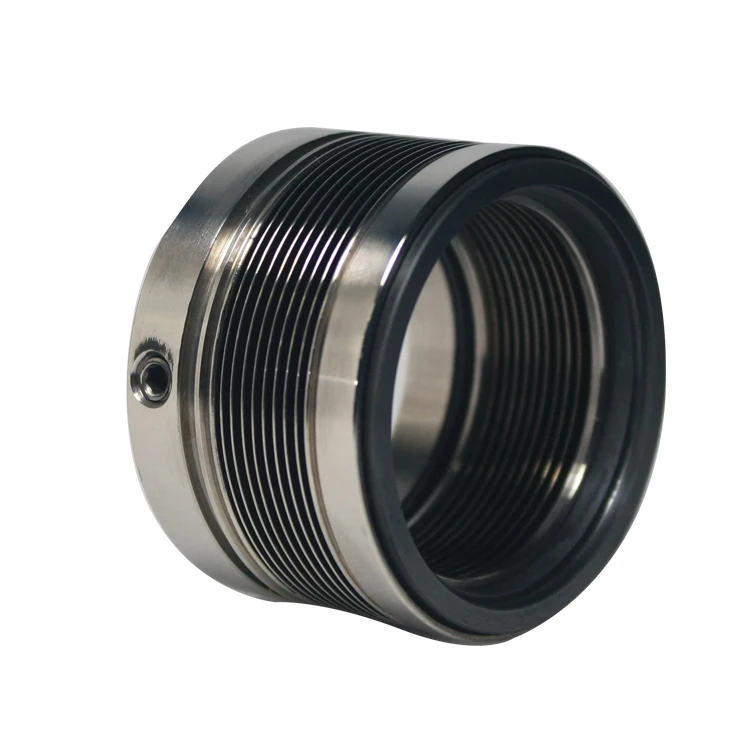

DIN24960 GB6556 670 680 Rotating Edge welded Metal Bellows Seal Detail

Product Description

Technical features:

Accords with standard DIN24960, GB6556 and European and American dimensions

Corrugated tube adopts bow wave, which can maximize the good tracking of pressure deformation force, better sealing effect, different working conditions can be used a variety of materials can be designed into the assembled type, easy to install the flexible graphite seal.

Technical village parameters:

Press :Vacuo ≤ 2 Mpa

            double-deck ≤3.5 Mpa

temperature : -75℃ to 320℃

Linear velocity: ≤ 25m/s

Scope of application:

Medium: various solutions, aromatic, crude oil processing, hydrocarbons, chemical annual output, hot oil transmission, especially suitable for medium high viscosity occasionsSuitable for petrochemical, refining oil field exploitation, chemical industry, chemical fiber, gold, food, medicine, thermoelectric
