2.5MHz Pocket Fetal Doppler/Prenatal Heart Monitor Baby Beat Sound LCD Display
- Category: Other Ultrasonic, Optical, Electronic Eq >>>
- Supplier: Shenzhen Shenrui Medical Co. Ltd.
Share on (62463898189):
Product Overview
Description
Before using it for the first time, make sure 2 batteries are in
Press the power button to power on, then adjust the volume

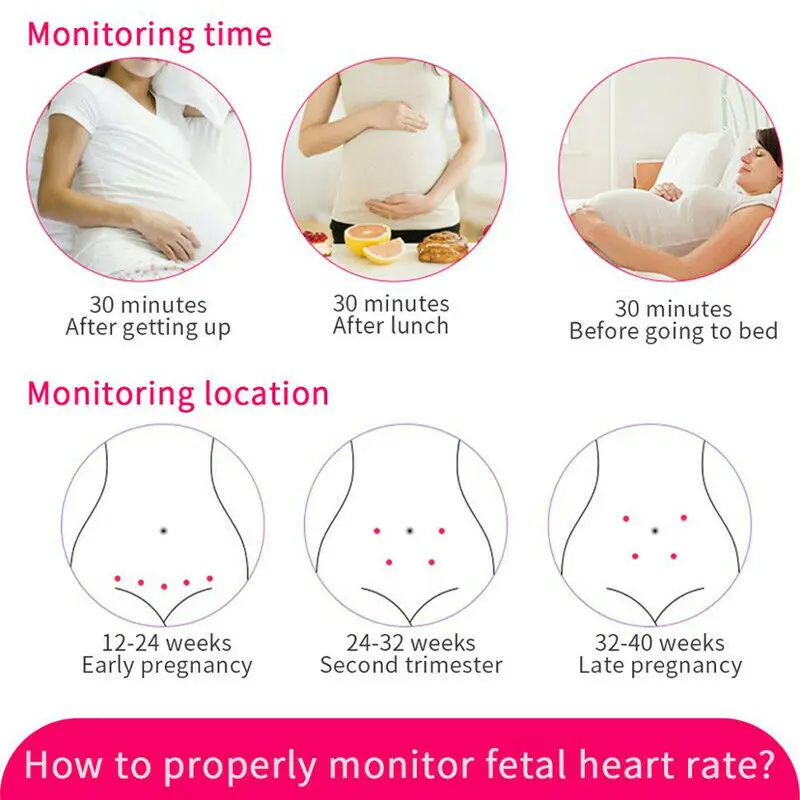

Lie flat with a cushion pillow, keep legs straight and relax
Attach the fetal probe to the abdomen to locate the position of the fetus and find out the best direction to the fetal heart
After hearing regular fetal heart sound, the FHR value will display on the screen in real time
Press the power button to power on, then adjust the volume
Lie flat with a cushion pillow, keep legs straight and relax
Attach the fetal probe to the abdomen to locate the position of the fetus and find out the best direction to the fetal heart
After hearing regular fetal heart sound, the FHR value will display on the screen in real time
Description
100% brand new & high quality
Color:As the picture shows
The pocket fetal doppler is a hand-held obstetrical unit, which is applicable to hospital, clinic and home for daily self-check by pregnant women.

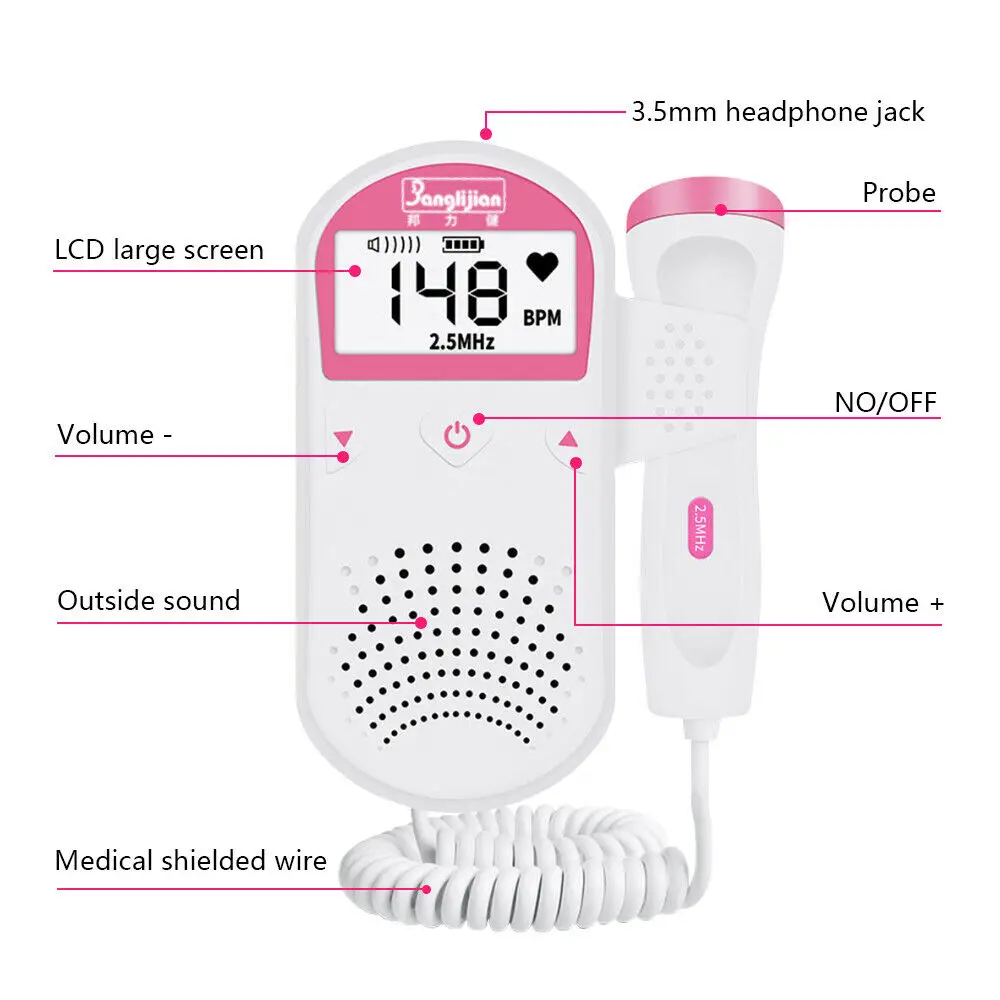

It contains components of an ultrasonic signal transmitter and receiver, an analog signal processing unit, FHR calculating unit, 2 screens optional, etc.
Calculating FHR with DSP techniques as used in the fetal heart monitor, ensure the FHR accuracy and reliability.
Features:
Reliable FHR detection
Acquire the fetal heartbeat signals from fetus throughout pregnancy with ( fetal heart rate ) bicolor LCD screen and color TFT screen
Support 2.5MHz probe

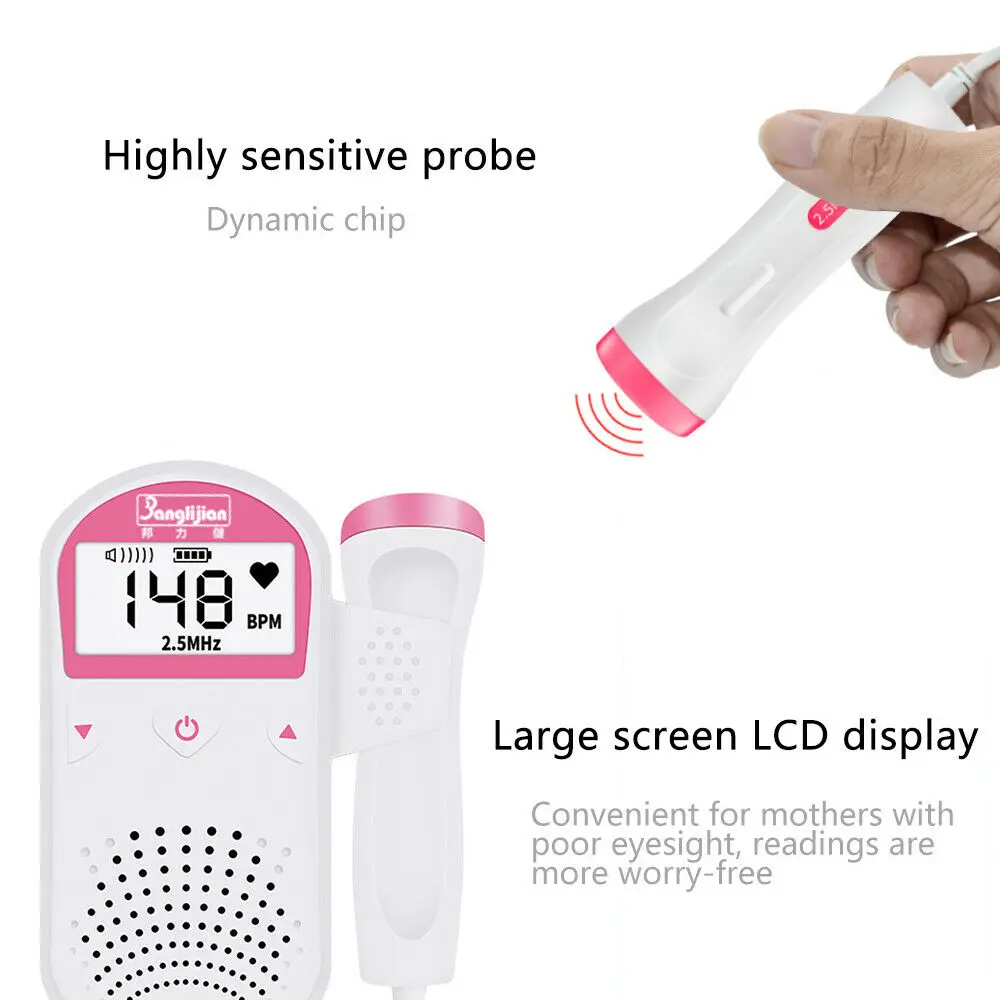

High sensitivity probe, low ultrasound power, safer to the fetus
Built-in speaker and audio output
You can share your joy - a healthy and strong heartbeat with your lover, families and friends

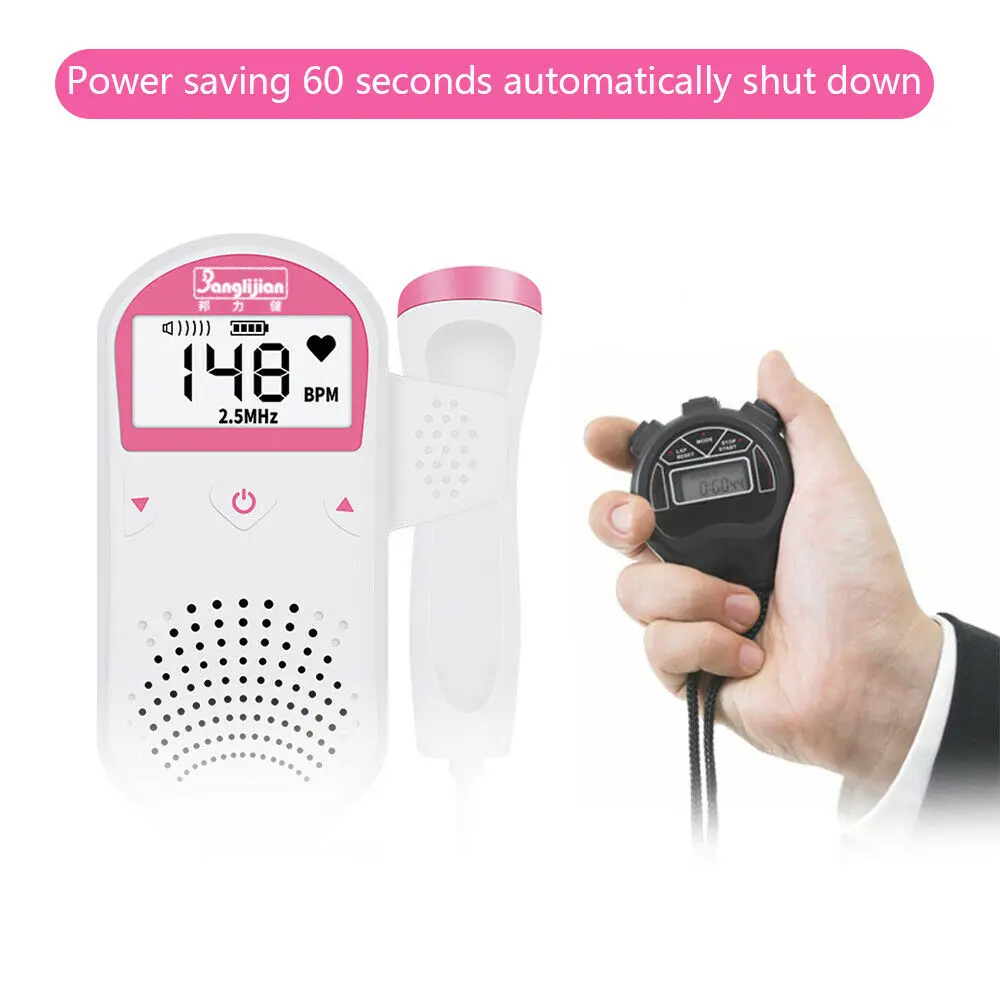

Automatic power-off
It will shut off after 1 minute of inactivity
Gestational weeks: not less than 12 weeks
Working Temperature: 5 - 40 Deg.C / 41 - 104 Deg.F
Storage / Transportation Temperature: -20 - 55 Deg.C / -4 - 131 Deg.F
Working Humidity: 15 - 85 percent
Storage / Transportation Humidity: 10 - 93 percent
Atmospheric Pressure: 86 - 106kPa
Integrative Sensitivity: Not Less than 90db
FHR Measuring Range: 50 - 210 BPM ( BPM : beat per minute )
Accuracy: + / - 2 BPM
Speaker Power: 0.5W
Power: 2 AA Batteries ( not included )
Working Frequency: 2.125 - 2.875 MHZ
Spatial-peak Temporal-peak Intensity: Less than 21.7kPa
Ultrasonic Output Intensity: Less than 10mW
Powered Source: Dry Battery
Display type: Color
Feature: LCD Display,Portable
Pattern Type: Solid
LCD Size: 1.8 inch
Company Information
Founded in 2012, Shenzhen Shenrui Medical Technology is a manufacturer dedicated to research , manufacture and distribution of medical devices such as hearing amplifier, hearing aid and fetal heart rate doppler (FHR) and etc.
We have established a modern scientific and effective manufacturing system and management sytem.
We are developing superior products, improving technology and providing excellent customer satisfaction. We provide not only medical devices with premium quality, but also value-added services. Customers can benefit from our professional R&D talents who have many years of experience in the medical devices manufacturing industry. We set up a Quality Administration System to guarantee the quality of our products.
Shenrui adheres to the people-oriented, innovative development ideas, endeavors to achieve the goal of the international market, informative management, diversifible product. We dedicated to research and manufacture product with advanced technology, better function and predominant in performance
Our Services
Shenzhen Shenrui Medical Co.,Ltd is specializingin researching & developing and manufacture hearing amplifiers, hearing aid and fetal doppler
With the R&D team, Shenrui offer OEM/ODM or other types of customizations to customers all over the world.
Delicate workmanship with advanced equipments.
Sample will be shipped within 2 business days. We will track the shipment and immediately inform you from the departure of factory to the arrival of destination.
ONE year warranty of all products,any product problem please feedback to us as soon as possible.
We provide prompt reply and efficient product solutions to meet clients' demands.Quality First and Service First are our presistent pursuit
Packaging & Shipping
Packaging:
The packaging will come with the main device, power adapter, accessory kit.
Customers can customize their own packaging, logo and etc
Shipping:
Various shipping methods are available.
Usually samples are shipped via expedited shipping service.
