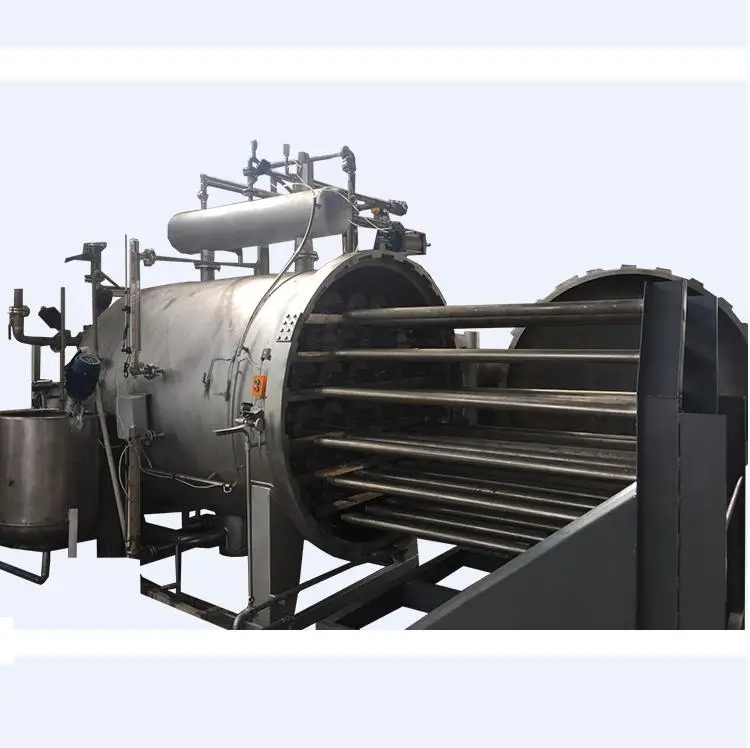

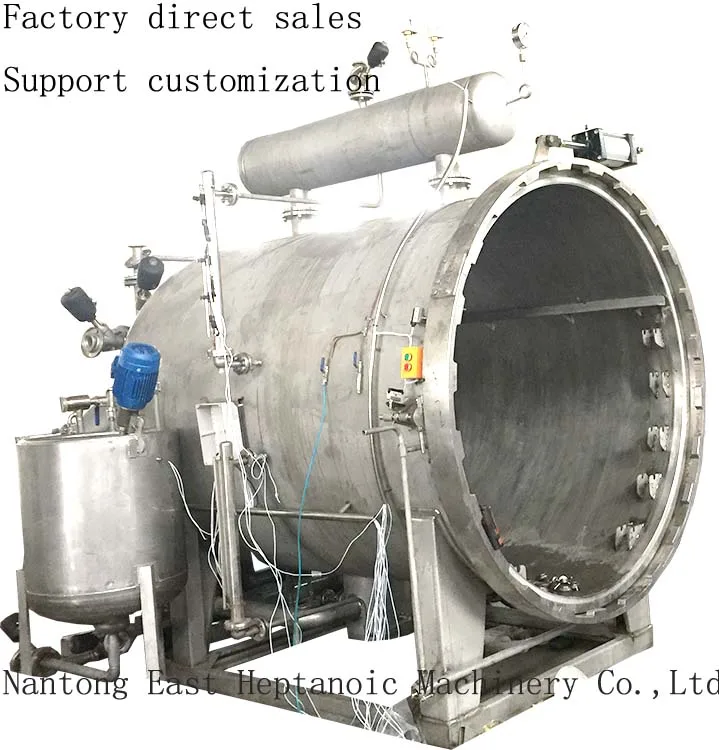

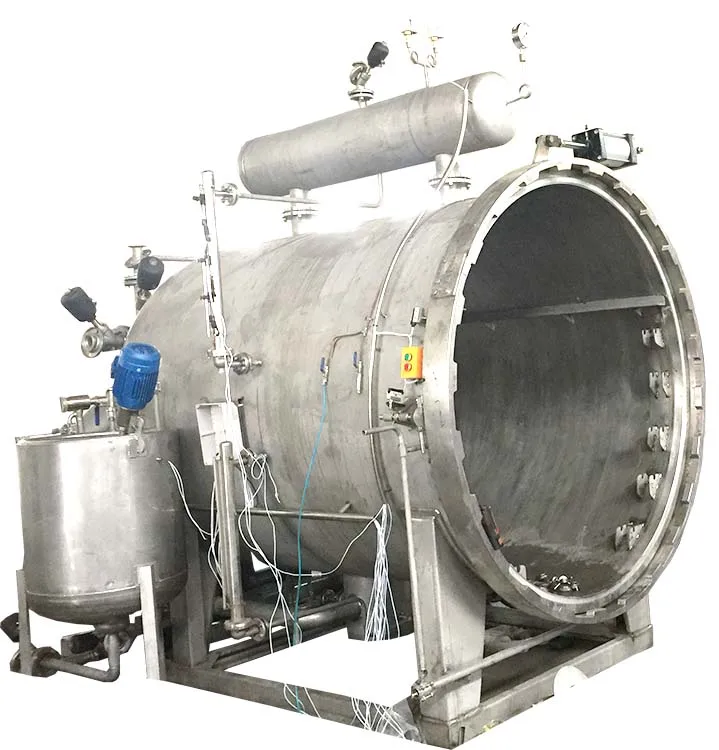

DGSKS high temperature and high pressure cloth cylinder
1. The machine is basically composed of cloth storage tank, circulation system, filter and heat exchanger, feed drum [sub-cylinder] cloth outlet roller, fold and folding device and control system.
2. The circulation of the dyeing liquid is realized by the circulation pump directly driven by the motor. The circulation pump sucks the dye liquor at the bottom of the machine and sends it to the nozzle through the heat exchanger. The nozzle pressure is adjusted by the throttle valve installed on the outlet of the circulation pump. When the main pump motor is driven by the inverter, there is no throttle valve .
3. The pressure gauge and the temperature gauge are installed on the machine, which are used to display the nozzle pressure and the dye liquor temperature, respectively.
4. The front part of the heat exchanger is a filter, which is equipped with a filter screen for blocking the debris in the circulating liquid flow. The heat exchanger is equipped with a heating/cooling valve for heating/cooling the dye liquor.
5. The rope-like fabric runs to the front in the cloth storage tank, which is lifted by the lifting drum driven by the frequency conversion speed regulation motor, and its speed is displayed on the speed display on the electric control box.
6. Feeding tank [sub-cylinder] is used for the preparation of dyes and chemical agents. Open the water inlet valve or the return valve to put the clean water or dye liquor into the feeding tank. The stirring of the solution in the tank can be performed by an electric agitator, which will directly steam The heating valve opens to heat the liquid.
7. Warning: When the temperature of the dye liquor exceeds 85°C [185°F], it is not allowed to open the return valve.
1. The rope-like fabric runs to the front in the cloth storage tank, which is lifted by the lifting drum driven by the frequency conversion speed regulation motor, and its speed is displayed on the speed display on the electric control box.
2. Feeding tank [sub-cylinder] is used for the preparation of dyes and chemical agents. Open the water inlet valve or the return valve to put the clean water or dye liquor into the feeding tank. The stirring of the solution in the tank can be performed by an electric agitator, which will directly steam The heating valve opens to heat the liquid.
3. Warning: When the temperature of the dye liquor exceeds 85°C [185°F], it is not allowed to open the return valve.
Specification
Model
500
800
1700
Capacity（s）
3
7
30
Pump motor（kw）
7.5
75
37
Feed pump（kw）
0.75
0.75
1.1
Standard Structure

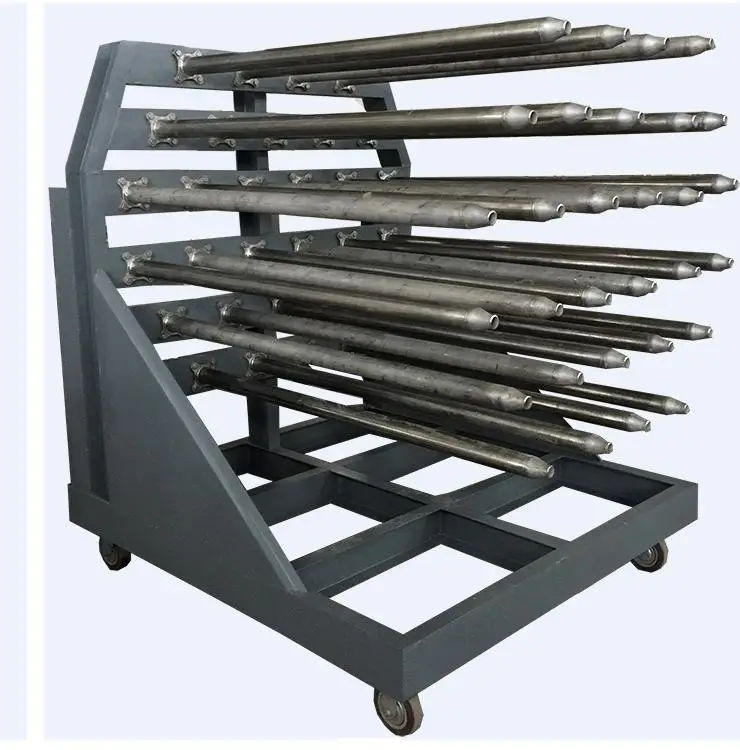

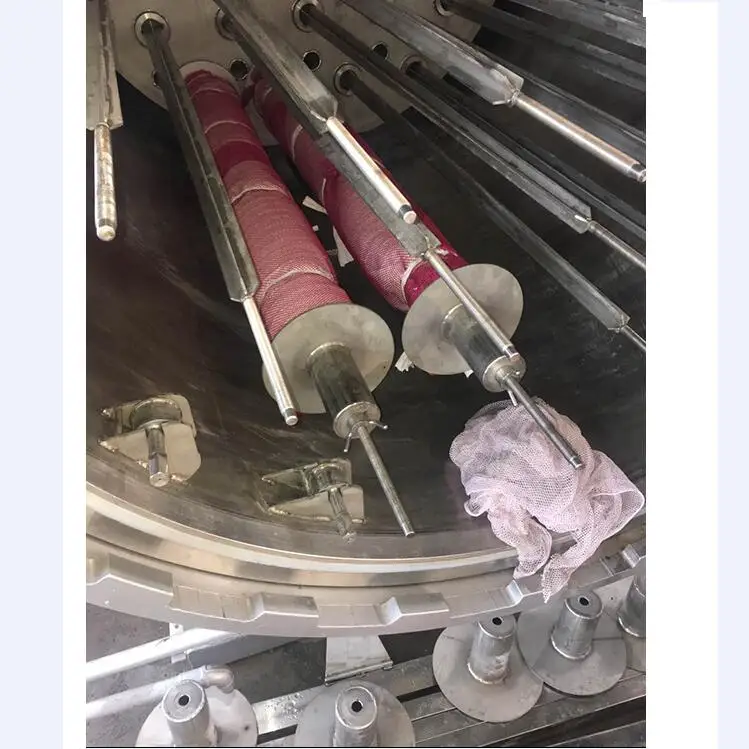

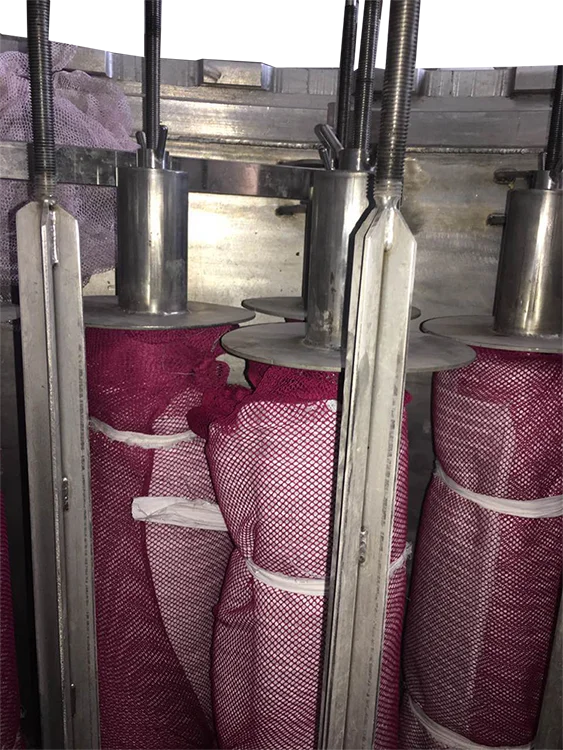

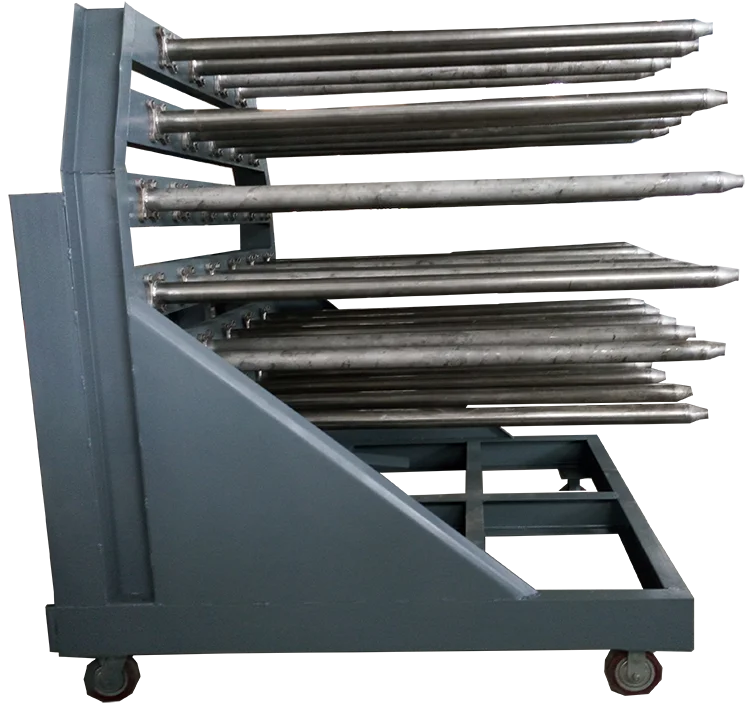

●The body material is made of high-quality, high-corrosion-resistant stainless steel●The cloth hanging rod is made of high corrosion-resistant stainless steel plate ●Reliable PLC program controller ●The overall design of multiple sets of security operating systems ●Tool for easy loading, unloading and cleaning nozzle
Packing & Delivery
Certifications
Recommend Products
Vacuum Forming Machine
Room temperature dyeing machine

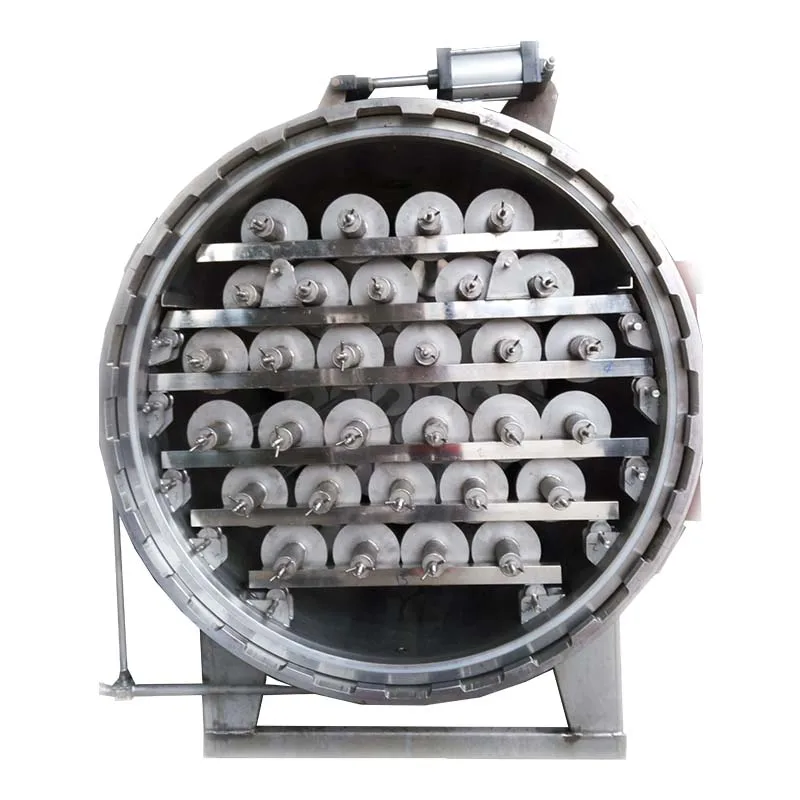

High temperature and high pressure package dyeing machine
Company Profile
Pre-sales, in-sales, after-sales and full service security system
Through years of brand building, DONGGENG machinery has established a complete sales network system, and constantly explore the market, close contact with customers, and cooperate with numerous well-known brands at home and abroad, striving to become a one-stop matching supplier for dyeing and finishing machinery.
Nantong Donggeng Machinery Co., Ltd. is located in taoyuan industrial zone, rugao software park, the longevity town, located in nantong city, north of the Yangtze river in the Yangtze river delta.The company specializes in the manufacture and development of tex- tile printing and dyeing machinery equipment, is a private scientific and technological enterprise in jiangsu province and a high-tech en- terprise in jiangsu province, enjoying a good reputation among peers in the industry
FAQ
Q1:What material?
A:Stainless steel SUS304; SUS316L
Q2: What are the functions?
A:Standard temperature standard function: Master cylinder water (pneumatic)
Master cylinder drainage(pneumatic)
Master cylinder heating (pneumatic)
Master cylinder feeding (pneumatic)
Tank agitation (motor)
Tank drain (pneumatic) Feed water into the tank (manual)
Tank heating (manual)
Tank return (manual) Q3:product advantages Ultra-low energy design (Patent No.: ZL 201510276761.4; ZL201520349197.X), low water ratio dyeing (1:5-8) saves dye additives and steam. Use high-performance motor motor, low speed, low noise, low power consumption, energy saving, and achieve the highest economic benefits
